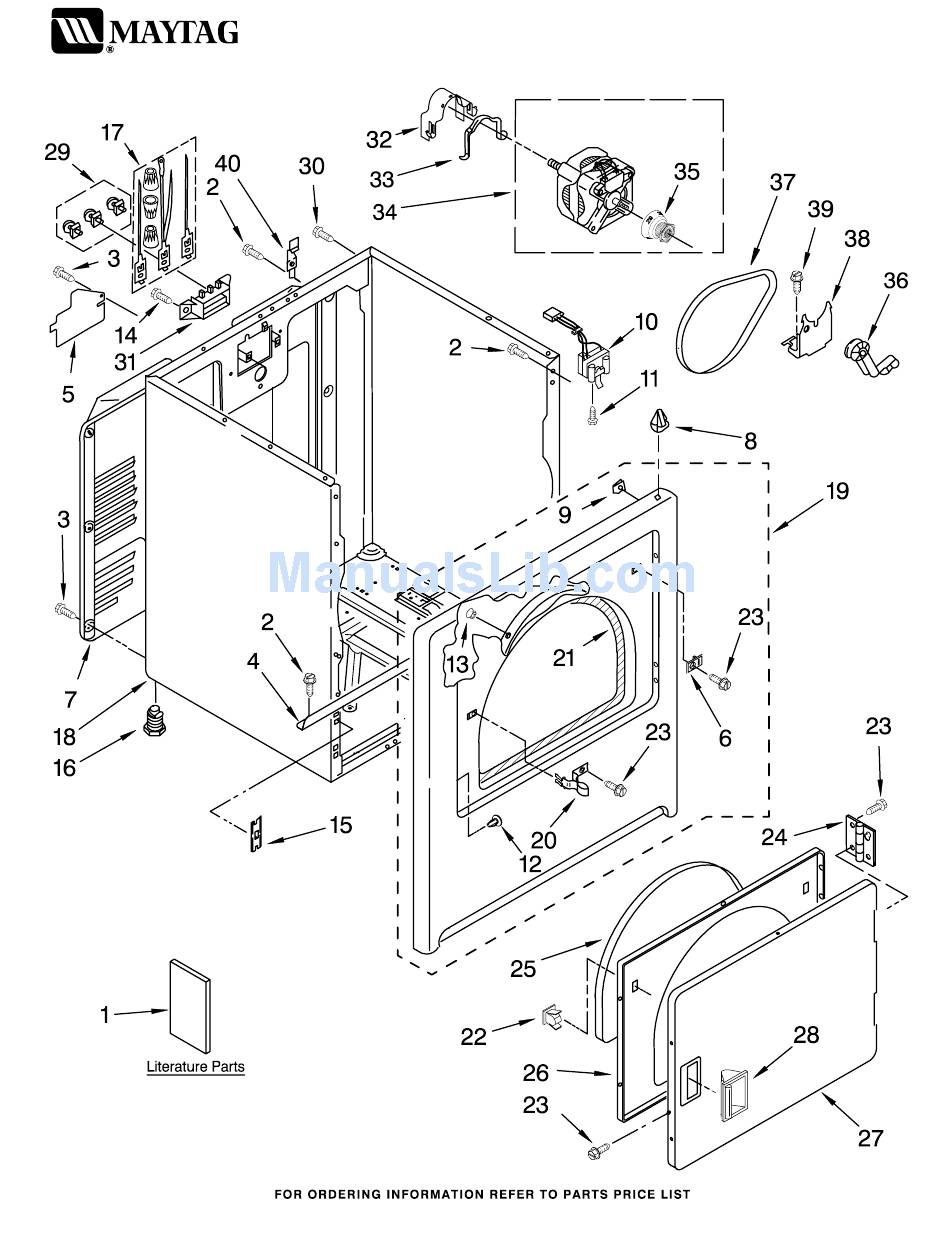

CABINET PARTS 29" ELECTRIC DRYER For Model: MED5600TQ0 (White) 8−07 Litho in U.S.A. (drd) Part No. W10116545 Rev. B...
-
Page 2
98234 Clip, Ground 3406107 Door Switch Assembly 697773 Screw, 6−20 x 7/8 3404413 Plug−Hole 685203 Clip, Felt Pad (3) 3393008 Screw, 10−16 x 1/2 CABINET PARTS For Model: MED5600TQ0 (White) Illus. Part DESCRIPTION 3394083 Clip, Front Panel (2) 3392100 Foot, Dryer 279810 Foot−Optional...
-
Page 3
TOP AND CONSOLE PARTS For Model: MED5600TQ0 W10116545...
-
Page 4
TOP AND CONSOLE PARTS For Model: MED5600TQ0 (White) Illus. Part DESCRIPTION 1 W10112576 Panel, Rear Console 2 W10113080 Wire, Jumper (Tan) 693995 Screw, Hex Head 4 W10086704 Console & Shell Assembly (Includes Items 5 & 6) 5 W10112569 Badge, Assembly 8312709 Clip−Console...
-
Page 5
BULKHEAD PARTS For Model: MED5600TQ0 (White) W10116545...
-
Page 6
BULKHEAD PARTS For Model: MED5600TQ0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 696302 Shield, Exhaust 3392519 Fuse, Thermal (91C) 3387134 Thermostat, Internal−Bias 3977393 Thermal, Cut−Off...
-
Page 7
OPTIONAL PARTS (NOT INCLUDED) W10116545 For Model: MED5600TQ0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.)
