TRENDnet TEG-240WS User Manual

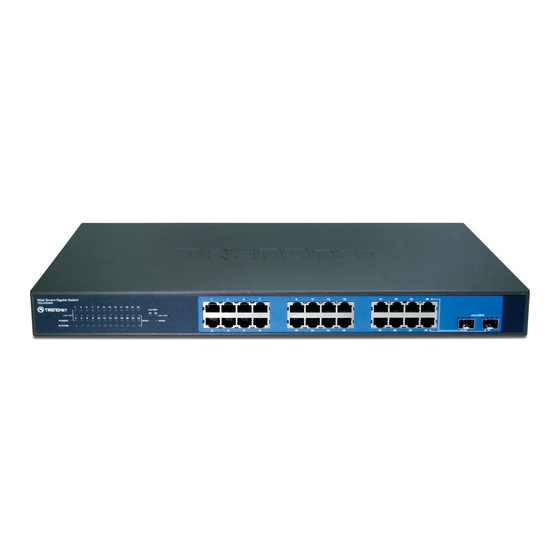

24-port 10/100/1000 mbps gigabit ethernet web smart switch
Hide thumbs Also See for TEG-240WS:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Enlarged version

FCC Warning

This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this user's guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will
be required to correct the interference at his or her own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.

VCCI Warning

This is a product of VCCI Class A Compliance.

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEG-240WS

Summary of Contents for TRENDnet TEG-240WS

  • Page 1: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2 UL Warning a) Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

  • Page 3: Table Of Contents

    Device Setting ................... 23  TABLE OF CONTEN Toolbar ...................... 24  About This Guide ..................... 1  Configuring the Switch ................25  Purpose ......................1  Login ......................26  Terms/Usage ....................1  Setup Setting....................27  Introduction ...................... 3  Port Settings ..................27  Gigabit Ethernet Technology ............... 3  IEEE 802.1Q VLAN ................

  • Page 4: About This Guide

    1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. Purpose This guide discusses how to install your TEG-240WS 24-Port 10/100/1000Mbps Gigabit Ethernet Web Smart Switch. Terms/Usage In this guide, the term “Switch” (first letter upper case) refers to your TEG-240WS 24-Port 10/100/1000Mbps Gigabit Ethernet Web Smart Switch and “switch”...

  • Page 5: Introduction

    In addition, the phenomenal bandwidth delivered by Gigabit Ethernet INTRODUCTION is the most cost-effective method to take advantage of today and This chapter describes the features of the TEG-240WS 24-Port tomorrow’s rapidly improving switching and routing internetworking 10/100/1000Mbps Gigabit Ethernet Web Smart Switch and some technologies.

  • Page 6: Vlan (Virtual Local Area Network)

    Switching Technology VLAN (Virtual Local Area Network) Another approach to pushing beyond the limits of Ethernet technology A VLAN is a group of end-stations that are not constrained by their is the development of switching technology. A switch bridges physical location and can communicate as if a common broadcast Ethernet packets at the MAC address level of the Ethernet protocol domain, a LAN.
  • Page 7 Supports IEEE 802.3x flow control for full-duplex mode ports Supports IEEE 802.1Q VLAN Supports IEEE 802.1p Priority Queues Supports Static Port Trunk Supports Jumbo Frame Supports Broadcast Storm Control Supports Port Mirroring Supports Port Setting for Speed, Flow control Easy configuration via WEB Browser Easy setting via Web Management Utility Standard 19”...

  • Page 8: Unpacking And Installation

    Open the shipping cartons of the Switch and carefully unpacks its contents. The carton should contain the following items: TEG-240WS Gigabit Web Smart Switch Multi-Language Quick Installation Guide Management Utility & User’s Guide CD-ROM...

  • Page 9: Rack Mounting

    Rack Mounting Connecting Network Cable The switch can be mounted in an EIA standard-size, 19-inch rack, The Switch supports 1000Mbps Gigabit Ethernet that runs in Auto- which can be placed in a wiring closet with other equipment. Attach negotiation mode and 10Mbps Ethernet or 100Mbps Fast Ethernet that the mounting brackets at the switch’s front panel (one on each side), runs both in half and full duplex mode and 1000Mbps Gigabit and secure them with the provided screws.

  • Page 10: Identifying External Components

    IDENTIFYING EXTERNAL COMPONENTS Mini-GBIC Slots (Port 23~24) The Switch is equipped with two combo mini-GBIC ports, supported This chapter describes the front panel, rear panel, and LED indicators optional 1000BASE-SX/LX mini-GBIC module. of the Switch. The 1000BASE-T port 23 and 24 are the same ports with the mini- Front Panel GBIC port 23 and 24, when plug in the mini-GBIC module, the device will activate mini-GBIC, and the RJ45 port will be disabled.

  • Page 11: Understanding Led Indicators

    UNDERSTANDING LED INDICATORS 1000BASE-T Port 1~24 Status LEDs The front panel LEDs provides instant status feedback, and, helps monitor and troubleshoot when needed. Link/ACT: Link/Activity When the Link/ACT LED lights on, the respective port is successfully connected to an Ethernet network. Blinking When the Link/ACT LED is blinking, the port is transmitting or receiving data on the Ethernet network.

  • Page 12: Mini-Gbic Port 23 ~ 24 Status Leds

    Mini-GBIC Port 23 ~ 24 Status LEDs Link/ACT When the fiber line connected to the mini-GBIC module is installed and connected to a network, the Link/ACT LED will lights on. Blinking : When the Link/ACT LED is blinking, the port is transmitting or receiving data on the Gigabit Ethernet network.

  • Page 13: Configuration

    CONFIGURATION Through the Web Browser you can configure the Switch such as VLAN, Port Trunking, Jumbo Frame… etc. With the attached Web Management Utility, you can easily discover all the Web Management Switch, assign the IP Address, changing the password and upgrading the new firmware. Installing the Web Management Utility The following are step-by-step instructions for installing the Web Management utility.

  • Page 14: Monitor List

    System word definitions in the Discovery List: View Trap: The Trap function can receive the events that happen from the Web Management Switch in the Monitor List. MAC Address: Shows the device MAC Address. There is a light indicator behind the “View Trap” button, when the IP Address: Shows the current IP address of the device.

  • Page 15: Device Setting

    “Set” to process the data changed Figure 12. Firmware Upgrade immediately. The default password of this TEG-240WS 24-Port 10/100/1000Mbps Gigabit Ethernet Web Smart Switch configuration Access Web: Double click the device in the Monitor List or select a is “admin”.

  • Page 16: Configuring The Switch

    Web Management Utility. Configuring the Switch Figure 13. The TEG-240WS 24-Port 10/100/1000Mbps Gigabit Ethernet Web Or through the Web Management Utility, you do not need to Smart Switch has a Web GUI interface for smart switch configuration.

  • Page 17: Setup Setting

    After entering the password, the main page comes up, the screen will The Link Status in the screen will show the connection speed and display the device status. duplex mode; else this dialog box will show Down when the port is disconnected.

  • Page 18: Ieee 802.1Q Vlan

    QoS: Add VID: Click to create a new VID group, assigning ports from 01 to 24 as Untag, Tag, or Not Member. A port can be “Untagged” in only Displays each port’s 802.1p QoS priority level for received data one VID. To save the VID group, press Apply. packet handling.

  • Page 19: Trunk Setting

    To change exist IEEE 802.1Q VLAN setting, press the VID to modify Trunk Setting that IEEE 802.1Q VLAN setting. The Trunking function enables the cascading of two or more ports for a combined larger bandwidth. Up to six Trunk groups may be created, each supporting up to 8 ports.

  • Page 20: Ieee 802.1P Default Priority

    Selection of the Sniffer mode is as follow: Broadcast Storm Control Setting TX (transmit) mode: this mode will duplicate the data transmit from The Broadcast Storm Control feature provides the ability to control the source port and forward to the Sniffer port. the receive rate of broadcasted packets.

  • Page 21: System Setting

    System Setting System Setting The System Setting includes IP Information and System information. Find that there are nine items, including System Information, System There are two ways for the switch to attain IP: Static and DHCP Setting, Trap Setting, Password Setting, Statistics, Factory Reset, (Dynamic Host Configuration Protocol).

  • Page 22: Trap Setting

    Trap Setting Password Setting Setting a password is a invaluable tool for managers to secure the Web By configuring the Trap Setting, it allows Web Management Utility to Smart Switch. After entering the old password and the new password monitor specified events on this Web-Smart Switch. By default, Trap two times, press Apply for the changes to take effect.

  • Page 23: Statistic

    To view the statistics of individual ports, click one of the Port ID as Statistic Figure 33. The Statistic Menu screen will show the status of each port packet count. Figure 33. Port Statistics Factory Reset The Factory Reset helps you to reset the device back to the default setting from the factory.

  • Page 24: Backup Setting

    Backup Setting System Reboot The backup setting help you to backup the current setting of the Provides to a safe way to reboot the system. Ensure the configuration Switch. Once you need to backup the setting, press the “Backup” has been saved, or all the changes you just made may be lost after button to save the setting.

  • Page 25: Technical Specifications

    TECHNICAL SPECIFICATIONS Performance Transmits Store-and-forward General Method: Standards IEEE 802.3 10BASE-T Ethernet RAM Buffer: 512KBytes per device IEEE 802.3u 100BASE-TX Fast Ethernet Filtering 8K entries per device IEEE 802.3ab 1000BASE-T Gigabit Ethernet Address Table: IEEE 802.3x Full Duplex Flow Control MAC Address Automatic update IEEE 802.3z 1000BASE-SX/LX Gigabit Ethernet...

  • Page 26: Limited Warranty

    TEG-240WS - 5 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN defective product or deliver to customer an equivalent product to replace the THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR...
