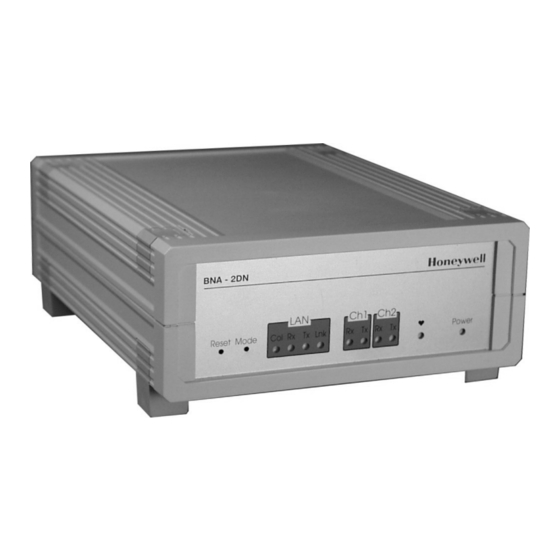

BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN
INSTALLATION INSTRUCTION & USER MANUAL
EN1B-0198GE51 R1004B
Honeywell
Q7055A
BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN
Quick Setup
In order to setup the BNA device properly,
the following connections are prerequisite:
•
Null-Modem cable connected to a PC
running a VT100 terminal emulation
program or a VT100 compatible terminal
(refer to Table 6-1: Terminal settings)
•
LAN connection via UTP (RJ45 connec-
tor).
•
Power connection.
•
An active FTP-Server machine on the LAN
The following BNA Bootloader commands
are mandatory for setting up the BNA (for a
detailed command description, refer to
chapter 6.5 Command Description on Page
31):
np
Basic network parameters
dc
Download configuration
load
Load executable from FTP server
Before the application firmware is started it
is recommended to add some users (user
roles) using command um (refer to chapter
6.5.8 um - User management on Page 37).
After that, the BNA device can be installed
at its final operating location.

Advertisement

Table of Contents
loading

Related Manuals for Honeywell Q7055A

Summary of Contents for Honeywell Q7055A

  • Page 1 Honeywell BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Quick Setup Q7055A In order to setup the BNA device properly, BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN the following connections are prerequisite: • Null-Modem cable connected to a PC INSTALLATION INSTRUCTION & USER MANUAL running a VT100 terminal emulation...

  • Page 2: Technical Data

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Technical Data Supply Voltage 18-24 VAC (50...60 Hz); 18-24 VDC (external power supply required) Power Consumption 5VA (connected via 10BaseT, twisted pair); 12VA (connected via 10Base5) Temperature Limits 0...+50 °C (+32...+122 °F); 5...95% rh, non condensing Ambient storage limits: -35...+70 °C (-31...+160 °F);...

  • Page 3: Table Of Contents

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Table of Contents About BNA............5 Location of Parts and Controls......8 Front Side............ 8 Rear Side........... 11 Before Installation ..........13 BNA Operating Positions ........ 15 Single Device..........15 Stacked Devices ........16 Wall Mounting......... 16 Connections ............
  • Page 4 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Cables and Connectors........42 DB9F Null Modem Cable ....... 42 Ethernet Connectors........ 44 7.2.1 RJ45 Connector..........45 7.2.1.1 Connecting a BNA to a Hub ......45 7.2.1.2 Connecting a BNA to a Workstation.... 46 Tips & Tricks ............48 FAQs................

  • Page 5: About Bna

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 1 About BNA Honeywell TCP/IP LAN BNA-1C BNA-2CS BNA-2DN XCL5010 XCL5010 S-Bus XCL5010 XCL5010 F&S Bus L1 Bus The Building Network Adapter (BNA) delivers ex- ceptional price/performance to meet the require- ments of both building owners and service pro- viders.
  • Page 6 Building Network Adapter is indicated by LEDs on the front. Technically, the Building Network Adapter pro- vides an interface from various Honeywell con- troller busses that use RS232/RS485 signals to a local area network using 802.3 Ethernet protocol.
  • Page 7 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Additionally, each BNA type is equipped with a RJ45 10Base T connector plus an RS232 interface. EN1B-0198GE51 R1004B...

  • Page 8: Location Of Parts And Controls

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 2 Location of Parts and Controls The numbering for the parts and controls in this section refers to the pictures on the rear side of the title page. In order to have a reference between the numbering here and the device pictures, it is possible to fold this page out.
  • Page 9 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Shows the actual LAN traffic using 4 LEDs. Collision indicator (Red). If this LED is on, then two or more devices on the network are transmitting at the same time. This is not a fault, but a normal occurrence on an Ethernet network.
  • Page 10 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN reception activity (Rx) and the other showing BNA transmission activity (Tx). Bus Channel 2 activity display. This display contains two green LEDs, one showing BNA reception activity (Rx) and the other showing transmission activity (Tx) N O T E : Ch2 indication is available on two- channel devices only.

  • Page 11: Rear Side

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Rear Side Differences between the various BNA types are explicitly noted in the corresponding element description. 3-pin connector for field bus channel 2 connection electrically isolated meets the EMC-and FCC-requirements. Field Bus wiring is described in chapter 5.2 Field Bus Connection (Ch1 / Ch2) on Page 20.
  • Page 12 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 3-pin connector for field bus channel 1 connection electrically isolated meets the EMC-and FCC-requirements. Field Bus wiring is described in chapter 5.2 Field Bus Connection (Ch1 / Ch2) on Page 20. AC/DC IN 18-24V Power connector for 18-24V AC (50...60Hz) or 18-24V DC power supplies.

  • Page 13: Before Installation

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 3 Before Installation Please pay attention to the steps listed below prior to installing the Building Network Adapter device. Verify that the product has been received without damage. Verify that the correct BNA type has been delivered.
  • Page 14 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Pieces Item 3-pole Phoenix controller channel connectors Optional wall mounting clips Small inserts Screws Please read chapter 5 Connections on page 19 carefully prior to connecting any power and data interface cables to the BNA. Please refer to the installation instruction manuals of each component that shall be connected to the BNA, like 95-7545 XLS1000 Installation...

  • Page 15: Bna Operating Positions

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 4 BNA Operating Positions Single Device Figure 4-1: Single device operating position Figure 4-1 shows the normal BNA device operating position e.g. on a desk. EN1B-0198GE51 R1004B...

  • Page 16: Stacked Devices

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Stacked Devices Figure 4-2: Stacked Devices BNA Devices may also be stacked. Because of stability issues, it is recommended not to stack more than 3 devices. Wall Mounting It is also possible to mount the BNA device to a wall.
  • Page 17 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN device has to be prepared prior to mounting it to a wall. Put the BNA-adapter with the top side down on the desk (Figure 4-3). Figure 4-3 Remove the four feet (Figure 4-3) from the bottom of the pushing them horizontally away from the...
  • Page 18 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Adjust the four retaining clips (included) on top of the inserts. Fasten the retaining clips with the included four screws (Figure 4-6). Figure 4-6 Use the housing with the clips to mark the positions of the four mounting holes on the wall surface.

  • Page 19: Connections

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 5 Connections This chapter describes how to connect power and the field bus to the BNA device. Together with the BNA device, a supply pack with installation material is delivered containing the required connectors for power and field bus. Power Connection For the BNA device, an external power supply with the following specification is required:...

  • Page 20: Field Bus Connection (Ch1 / Ch2)

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Field Bus Connection (Ch1 / Ch2) Regardless of the type of BNA device, the wiring of the field bus connector is always identical. For connecting the field bus, the 3-pole Phoenix connectors (included) are required. Figure 5-1 Figure 5-1 shows the pin layout of the field bus connectors Ch1 and Ch2.
  • Page 21 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN For each channel the required termination setting can be adjusted individually. At the rear side of the device, a pictogram (Figure 5-2) symbolizes different possible terminations. Figure 5-2 normal XD505 compatible bus termination for C- /S- /FS90-Bus connections It is required to use this switch position for S-Bus and FS90-Bus in any case.

  • Page 22: L1 Bus Termination

    100 Ω ±5% 0,5 W carbon resistor between each wire and ground. further information regarding termination, please refer to Honeywell DeltaNet R7044 EXCEL PLUS CONTROLLER Application Guide 74-2548, Rev.2/93. EN1B-0198GE51 R1004B...

  • Page 23: Bna Bootloader

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 6 BNA Bootloader This chapter describes the functions of the BNA Bootloader software. Each BNA device is equipped with a Bootloader, which functions in the same way for all BNA device types. N O T E : BNA Devices are not equipped with any application firmware.
  • Page 24 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Start In case of any error heardbeat blinking stops and Initialize Hardware LED will be permanently on Heartbeat LED Blinks for 5 Seconds. Then BNA restarts. Download? Download new Firmware to Flash Memory Mode Button pressed? Stay in Bootloader? Firmware in...

  • Page 25: Operating Modes

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Operating Modes The BNA Bootloader provides two different operating modes: Normal Mode (default) • Stay in Bootloader Mode • Normal Mode is the default, which directly starts an application firmware found in Flash memory. If no firmware could be found, then the bootloader command shell is started by the BNA (Figure 6-1).
  • Page 26 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Wait until the heartbeat LED starts flashing RED, then press the Mode Button. The heartbeat flashing immediately stops and the LED is permanently on. The operating modes are displayed using the LAN status LEDs Lnk, Tx, Rx. The Normal Mode is represented via the Lnk LED.
  • Page 27 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Start Press Reset Button Mode Button pressed? Bootloader continues with Heartbeat blinking stops. normal operation after 3 LEDs LNK, Tx and Rx are seconds. representing current mode. Normal Mode (default) Mode Button pressed? Yes, < 1 sec Yes, <...

  • Page 28: Device Setup

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Device Setup In order to setup the BNA device properly, the following connections are necessary: DB9F Null-Modem cable connected to a PC • running a VT100 terminal emulation program or a VT100 compatible terminal (refer to Table 6-1: Terminal settings) •...
  • Page 29 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN root user password. At the Old password: prompt, just hit the Enter-Key. Once a password has been defined the BNA prints the information User 'root' logged in. for all future startups. The root user is the administration user with unlimited access rights.
  • Page 30 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN C A U T I O N : Using unallowed IP-Addresses could cause interference on the network. Please contact your network administrator to retrieve a unique IP-Address. If you want to con- nect the BNA to a customer network, make sure to get in touch with the customers IT manager to retrieve this IP-Address information.

  • Page 31: Command Description

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN As mentioned above, the three commands are the minimum required commands for setting up a BNA device. We recommend also performing some user definitions (see command um) for different user roles. Doing so prevents unfamiliar users from performing accidental redefinition of important settings.

  • Page 32: Help Or

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN N O T E : All BNA Bootloader commands are case- sensitive! 6.5.1 Help or ? Entering help or ? at the BNA bootloader> prompt followed by <Enter> displays all available BNA Bootloader commands. In each sub-shell help or ? can also be used to view the existing commands.

  • Page 33: Dc - Download Configuration

    BNA already comes with a unique Ethernet address (MAC address). So there will be no need to define a new MAC address. It is recommended to not use this command unless advised to Honeywell do so by the Technical Assistance Center. exit exits the sub-shell and returns to the main shell.
  • Page 34 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Command dc defines the IP address of the FTP- Server, the path to the application firmware, a username on the FTP-Server and the user’s pass- word. This command must be invoked prior to using command load. Prerequisite downloading application...
  • Page 35 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN If this is denied the old settings will be restored. Otherwise, the new settings are stored to the Flash memory. These settings are immediately active. delete delete download configuration. After this operation command load can’t be used anymore.

  • Page 36: Load - Load Executable

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 6.5.4 load - Load executable The command load is a direct command which immediately starts downloading the application firmware image into the BNA based on the download configuration defined by the command dc. After loading the image into local memory, the BNA Bootloader starts copying the image into the local Flash memory where it resides until updated the next time.

  • Page 37: Ver - Show Installed Software

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 6.5.6 ver - Show installed software The command ver outputs a list of all installed software components on the current BNA device. 6.5.7 run - Execute installed software The command run starts a previously-installed application firmware. If no application firmware could be found, then the information No executable found is printed out.
  • Page 38 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN It is recommended to define several user roles because also an application firmware may use these user definitions to behave different in potentially provided user interfaces depending on the user who is currently logged in. A BNA device allows up to 5 user definitions with different access rights.
  • Page 39 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN user View only rights. Users who are member of this group are not allowed to change or delete any existing definition. priv Privileged rights. Users of the privileged group are allowed to change several definitions like network parameters but they are allowed perform delete...

  • Page 40: Whoami - Who Am I

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN delete deletes existing user. Optionally, the username can be passed directly on the command-line. Furthermore, an option –all is available that deletes all user definitions except the one for the root user. The root user account can’t be deleted.
  • Page 41 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN bootloader functionality via a network which can be provided by the application firmware, this command becomes more interesting. EN1B-0198GE51 R1004B...

  • Page 42: Cables And Connectors

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 7 Cables and Connectors DB9F Null Modem Cable Figure 7-1: Serial connectors The female connector is numbered as shown below: Ground EN1B-0198GE51 R1004B...
  • Page 43 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Figure 7-2 shows how to configure a Null Modem Cable DB9F. Figure 7-2: Signal connections for DB9F Null Modem Cable EN1B-0198GE51 R1004B...

  • Page 44: Ethernet Connectors

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Ethernet Connectors 8-pin modular (MJ8) connector RJ-45 Figure 7-3: BNA Ethernet connection The BNA provides an RJ45 10BaseT connector to bring the device online on the LAN. This chapter describes the pin layout of this connector and shows how the cables must be configured for con- necting via 10BaseT (RJ45).

  • Page 45: Rj45 Connector

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN 7.2.1 RJ45 Connector A lot of Ethernet local area networks use 10BaseT twisted pair wiring. 10BaseT networks physically laid out in a star topology, where each piece of equipment on the network is connected to a central hub. The wiring is connected to devices using a plug that resembles a phone jack, called RJ45.

  • Page 46: Connecting A Bna To A Workstation

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Rx + Rx + Rx - Rx - Figure 7-4: Straight through pinning for BNA to Ethernet Hub connections 7.2.1.2 Connecting a BNA to a Workstation When a BNA should be directly connected to a workstation without having an Ethernet Hub in between a special cable, called crossover cable, is required.
  • Page 47 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Rx + Rx + Rx - Rx - Figure 7-5: Crossover pinning for BNA to workstation direct- connections EN1B-0198GE51 R1004B...

  • Page 48: Tips & Tricks

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Tips & Tricks Tip 1 simplify downloading, we re- commend reducing (renaming) the application firmware image name to the base name of the image in the FTP- Server publication directory, e.g. rename bna_susi_server_v1.0.0.bin bna_susi_server.bin. This has the advantage that even when updates or upgrades of the application firmware are delivered, no change is necessary in each BNA download con-...

  • Page 49: Faqs

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN FAQs 1. Which terminal type can be used for connecting to the BNA Bootloader? For connecting to the BNA Bootloader, any VT100 compatible terminal VT100 compatible terminal emulation program can be used. For the proper terminal settings, please refer to chapter 6.4 Device Setup on Page 28.

  • Page 50: Glossary

    BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Glossary 10BaseT 10 = 10Mbps, Base = baseband, T = twisted pair. Application firmware An application firmware is a software that is needed to operate the BNA device in a way the Building Manage- ment System requires it. An example for an application firmware is the BNA SUSI Server software.
  • Page 51 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Wide Area Network XD505 C-Bus piggyback type XL500 controllers. Compatible with EXCEL IRC devices on the same bus. XD508 C-Bus piggyback type of XL500 con- trollers. This piggyback type allows C- Bus communication transfer rates up to 76.8 kbps.
  • Page 54 BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN Honeywell Automation and Control Solutions Honeywell GmbH Böblinger Straße 17 D-71101 Schönaich Phone: (49) 7031 63701 Fax: (49) 7031 637493 http://europe.hbc.honeywell.com Subject to change without notice. Printed in Germany. Manufacturing location certified to EN ISO 9001...
