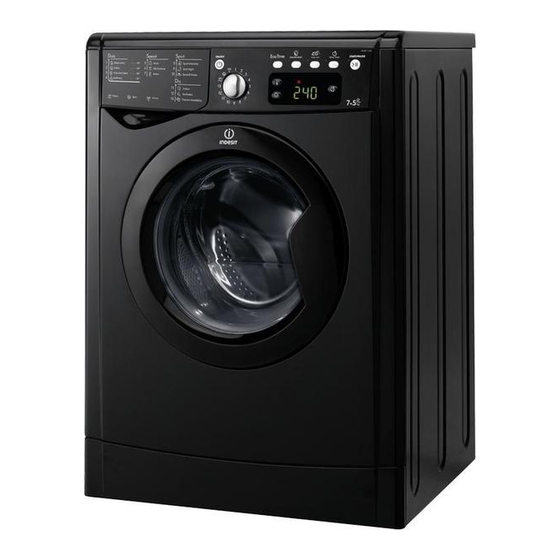

Indesit IWDE 7168 Instructions For Use Manual

Washer-dryer
Hide thumbs Also See for IWDE 7168:
Table of Contents

Advertisement

Quick Links

Instructions for use
GB
English,1
IWDE 7168
This symbol reminds you to read this booklet.
!
Contents
Installation, 2-3-4-5
Cutting off the water or electricity supply
Detergent dispenser drawer
Assistance, 15-16
WASHER-DRYER
1
GB

Advertisement

Table of Contents
loading

Related Manuals for Indesit IWDE 7168

Summary of Contents for Indesit IWDE 7168

  • Page 1: Table Of Contents

    Cleaning the Washer-dryer Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose IWDE 7168 Precautions and tips, 7 General safety Disposal Description of the Washer-dryer, 8-9 Control panel...

  • Page 2: Installation

    Installation ! This instruction manual should be kept in a Levelling the machine correctly will provide safe place for future reference. If the washer- it with stability, help to avoid vibrations and dryer is sold, transferred or moved, make sure excessive noise and prevent it from shifting that the instruction manual remains with the while it is operating.

  • Page 3: Connecting The Drain Hose

    Connecting the drain hose • the socket is compatible with the washing machine’s plug. If this is not the case, repla- Connect the drain ce the socket or the plug. hose, without ben- ding it, to a draining Your appliance is now supplied with a 13 amp duct or a wall drain fused plug it can be plugged into a 13 amp situated between 65...

  • Page 4: The First Wash Cycle

    As the colours of the wires in the lead may not ! The power supply cable must only be repla- correspond with the coloured markings iden- ced by an authorised serviceman. tifyng the terminals in your plug, proceed as follows: Warning! The company denies all liability if and Connect Green &...

  • Page 5: Technical Data

    Technical data Model IWDE 7168 width 59.5 cm Dimensions height 85 cm depth 53.5 cm from 1 to 7 kg for the wash programme Capacity from 1 to 5 kg for the drying programme please refer to the technical Electrical...

  • Page 6: Care And Maintenance

    Care and maintenance Cutting off the water and electri- To access the pre-chamber: city supplies 1. using a screwdri- ver, remove the • Turn off the water tap after every wash cycle. cover panel on the This will limit wear on the hydraulic system lower front part of the inside the washer-dryer and help to prevent washer-dryer (see...

  • Page 7: Precautions And Tips

    Precautions and tips ! This Washer-dryer was designed and constructed in ac- • The door can become quite hot during the wash cycle. cordance with international safety regulations. The following • If the appliance has to be moved, work in a group of information is provided for safety reasons and must therefore two or three people and handle it with the utmost care.

  • Page 8: Description Of The Washer-Dryer

    Description of the Washer-dryer Control panel OPTION TEMPERATURE ON/OFF START/PAUSE buttons with Button button button with indicator light indicator lights DISPLAY Detergent dispenser drawer DRYING SPIN SPEED Button WASH CYCLE Button knob Detergent dispenser drawer: used to dispense START/PAUSE button with indicator light: when the detergents and washing additives (see “Detergents and green indicator light flashes slowly, press the button to...
  • Page 9 Display The display is useful when programming the machine and provides a great deal of information. The duration of the available programmes and the remaining time of a running cycle appear in section A; if the DELAY START option has been set, the countdown to the start of the selected programme will appear. Furthermore, pressing the corre- sponding button allows you to view the maximum temperature, spin speed and drying level or time values attained by the machine during the selected cycle.

  • Page 10: How To Run A Wash Cycle Or A Drying Cycle

    How to run a wash cycle or a drying cycle If your laundry load to be washed and dried is much 1. SWITCH THE MACHINE ON. Press the button; greater than the maximum stated load (see adjacent the START/PAUSE indicator light will flash slowly in a table), perform the wash cycle, and when the cycle green colour.

  • Page 11: Wash Cycles And Options

    Wash cycles and options Table of wash cycles Detergents Max. load (kg) Max. Max. Cycle Description of the wash cycle temp. speed Drying duration Fabric (°C) (rpm) Wash Normal softener Time Daily 1 White Cotton: extremely soiled whites. 90° 1600 ...

  • Page 12: Detergents And Laundry

    Detergents and laundry Detergent dispenser drawer Sport Intensive (wash cycle 8) is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for Good washing results also depend on the correct dose of best results, we recommend not exceeding the maximum detergent: adding too much detergent will not necessa- load indicated in the “Table of wash cycles”.

  • Page 13: Troubleshooting

    Troubleshooting Your Washer-dryer could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be solved easily using the following list. Problem: Possible causes / Solutions: • The appliance is not plugged into the socket fully, or not enough to make contact. The machine does not switch on.
  • Page 14 The machine is noisy. • There will always be some motor, pump and drum noise during spin. The machine wont spin properly. • Out of Balance detected when attempting to go into a spin cycle - If this happens the machine will continue to try to repeat the distribution of the load required before the machine will go into higher spin speeds - This will increase the programme time accordingly.

  • Page 15: Assistance

    5 Year Parts Guarantee Indesit also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time. To activate the extra parts warranty on your appliance, simply call our registration line on 08448 24 24 24 (Republic of Ireland 01 230 0800).

  • Page 16: After Sales Service

    195128017.00 09/2014 - Xerox Fabriano After Sales Service No one is better placed to care for your Indesit appliance during the course of its working life than us - the manufacturer. Essential Contact Information Indesit Service We are the largest service team in Europe offering you access to 400 skilled telephone advisors and 1100 fully qualified engineers on call to ensure you receive fast, reliable, local service.
