Summary of Contents for Magnavox 15MF050V/17

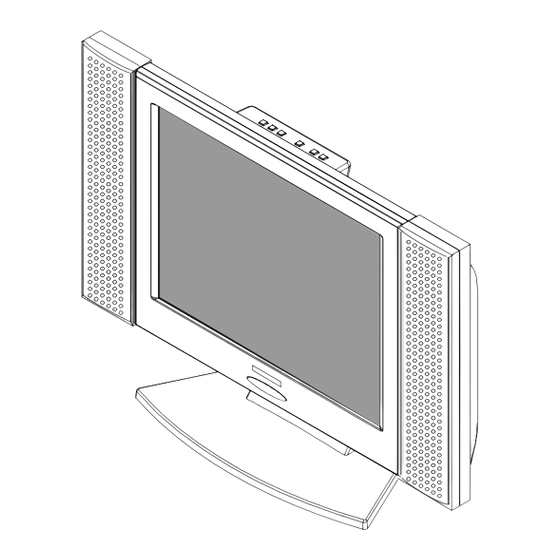

- Page 1 15" LCD TV Operating Instructions Model No. 15MF050V/17...
-
Page 2: Table Of Contents
Top Panel & Remote Controller Function Assembly and Connections Input/Output Signal Connections Wall-mount Operation Instruction 3. 15MF050V/17 OPERATING INSTRUCTIONS TV and AV Manual Operating Instructions Using the 15MF050V/17 as a Computer Monitor 4. REFERENCE Display Modes ---------------------------------------------------------------------------------- LCD Monitor Display Angle 5. APPENDIX... -
Page 3: Important Safety Instructions
Important Safety Instructions: Read Instructions All the safety and operating instructions should be read before the product is operated. Retain Instructions The safety and operating instructions should be retained for future references. Heed Warnings All Warnings on the product and in the operation instructions should be adhered to. Follow Instructions All Operating and user instructions should be followed. - Page 4 Important Safety Instructions Continued Ventilation DO NOT block any ventilation openings. Install in accordance with manufacture's instructions. Slots and openings in the cabinet and the back and bottom are provided for ventilation, and to ensure reliable operation of the product and to protect it from Overheating.
- Page 5 ¡PContact service center if the picture displayed by the unit is getting dimmer. ¡PIf liquid has been spilled, or objects have fallen into the product. ¡PIf the product has been exposed to rain or water. ¡PIf the product does not operate normally after following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
- Page 6 Important Safety Instructions Continued The Lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "DANGEROUS VOLTAGE" within the product's enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons. The Exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing instructions in the literature accompanying the product).
-
Page 7: Product Description
Thank you for choosing the 15MF050V/17 TFT-LCD Color TV/Monitor and for your continued support and use of our products. The 15MF050V/17 combines the features of a TV/MONITOR with a THIN FILM TRANSISTOR liquid crystal display (TFT-LCD). This new generation of TFT-LCD incorporates a high quality display in a light weight module. -
Page 8: Product Features
Product Features TFT-LCD screen connected with Computer support DDC1/2B for"Plug & Play"compatibility. 15-Inch high-resolution LCD Monitor which supports XGA 1024x768 resolution. Super 262,144 high-resolution pixels to enhance TFT-LCD definition. Super 250cd/m high-brightness for picture enjoyment. Super wide viewing angle : Horizontal : 150 , Vertical : 145 (CR=5) . Super-low power consumption ;... -
Page 9: Package Contents
Please check the 15MF050 V/17 Package to make sure it contains the following items : SPEAKERS 15"TFT-LCD BASE TRANS Slim-type Power Transformer Cord Remote Control 15" LCD TV Operating Instructions Model No. 15MF050V/17 Power Cord User Manua l M5 Change M4 Screw... -
Page 10: System Setup
2. SYSTEM SETUP Top Panel & Remote Control Function TOP PANEL : VOL- VOL - : Volume down Button : decreases volume MENU : Menu Button : Selects command function VOL + : Volume up Button : Increases volume POWER : Power Button : Power on/off control CH - : Channel down Button : Decreases setting channel CH +... - Page 12 Plastic Shipping Tab. This Tab must be removed prior to attempting to operate the unit. Change the Battery if the Remote Control no longer operates the 15MF050V/17. Caution : Only use CR2025 type Battery. Confirm the polarity(+/-) of battery before installing Removal the battery if the Remote Control is not to be used for a long time.
- Page 13 The R emot e Co n tr o l Tr an s m is s io n c o nsists of an Infr ar ed (IR ) Signal. Ma k e s ure th e lin e- o f - s igh t b e tw ee n R emote C ontrol and 15MF050V/17 is clear of objec ts that c o u ld int e r fe r e w ith th e r emote IR signal.
-
Page 14: Assembly And Connections
As se m b l y a nd Con ne ct io n Th e Sp eak er s w e r e p r e m o u n te d to th e T V d is p lay in t he f ac t o ry p ri or t o s h ipm en t . Lo ca t e t he p owe r c a b l e in th e a cc e s s o ry bo x an d c on n ec t it t o t h e D C - IN . -
Page 15: Input/Output Signal Connections
Input/Output Signal Connections 1. ANT. CABLE INPUT 2. POWER ADAPTER INPUT 3. EARPHONE OUTPUT 4. RIGHT SPEAKER OUTPUT 5. LEFT SPEAKER OUTPUT 6. VGA INPUT 7. AV INPUT 8. RIGHT AUDIO INPUT 9. LEFT AUDIO INPUT 10. S-VIDEO INPUT Note : Audio IN (R&L) support AV, SVIDEO, and PC mode. Connecting TV Cable TV ANT DC-IN... - Page 16 DC Power Socket DC-IN Connecting Left and Right Speakers SPEAKER...
- Page 17 Connecting to SVIDEO terminal equipment such as DVD, VCR or Gaming Console. VIDEO S-VIDEO Connecting to 15-PIN VGA from a PC FROM ANT TO TV VGA-IN VGA-OUT S-VIDEO IN...
- Page 18 Connecting to AV-terminal equipment such as DVD, VCR, and Gaming Console. AUDIO IN VIDEO IN Yellow White Yellow White FROM ANT S-VIDEO VIDEO TO TV...
-
Page 19: Wall-Mount Operation Instruction
Wall-M ou ntin g O p e r ati n g I n st r u c ti o n s( D o n o t i n cl u d e Wa l l -M o un t) Unlock stand 75 m m Lo ck M5 chan g e M4 screw (Loca te d in the accessory box) Lo ck M5 chan g e M4 screw b eto re in sta lling Wall-Mount. -
Page 20: Mf050V/17 Operating Instructions
3. 15MF050V/17 OPERATI N G I N STRU C TI O NS TV and AV O per ati ng Instr uct i ons M AIN DISPLAY Pr es s and releas e the Menu button to dis play t he f oll owing Main Me nu... - Page 21 AUDIO Select the desired level of BASS, TREBLE and LOUDNESS. 1. AUDIO CHANNEL - Choose Audio Input Source (AV, TV). 2. BASS - Adjusts Bass 3. TREBLE - Adjusts Treble 4. EXIT - Back to Main Menu Display NOTE : Use the to move between the options, also use the...
-
Page 22: Close Caption
CLOSE CAPTION The caption can display the spoken audio . 1. CAPTION - You can choose to show the caption or not. 2. DISPLAY : a. BOX - You can choose to box the caption. b. SHADOW - You can choose to show the caption in shadow (not boxed) format. 3. -
Page 23: Parental Control
PARENTAL CONTROL With the Main Menu displayed, Press an d r e le as e the to highlight PARENTAL CONTROL : MAIN DISPLAY AUDIO CLOSE CAPTION PARENTAL CONTROL OSD SETUP TV SETUP BRIGHTNESS CONTRAST SATURATION SHARPNESS RECALL EXIT Input the four-digit PARENTAL CONTROL Password and confirm using the Menu button (Default Code is 3308) After entering the Password, the following... - Page 24 PARENTAL CONTROL (continued) The TV set also allows you to restrict access to potentially unsuitable content via auxiliary inputs. The following procedure will completely block off any content via the Svideo and AV inputs. From the PARENTAL CONTROL Main Menu. Press and r el ease the highlight V-CHIP lock then Press and release the Menu button :...
- Page 25 PARENTAL CONTROL (continued) PARENTAL CONTROL RATINGS CLASS OPTION a. TV-Y b. TV-Y7 c. TV-G d. TV-PG AV/SVIDEO BLOCK(continued) From the PARENTAL CONTROL Main Menu. Press an d r e le as e the button to highlight MPAA OPTION and press menu : PG-13 NC-17 EXIT...
- Page 26 ON SCREEN DISPLAY(OSD) SETUP : With the Main Menu displayed, Press and r elea se the button to highlight OSD SETUP MAIN DISPLAY AUDIO CLOSE CAPTION PARENTAL CONTROL OSD SETUP TV SETUP BRIGHTNESS CONTRAST SATURATION SHARPNESS RECALL EXIT 640X480 H:31.4KHZ V:59.8HZ OSD LANGUAGE : Using the button, select the desired...
- Page 27 With the MAIN MENU displayed, Select TV SETUP using the Menu button : Select TV SETUP and highlight ADD/ ERASE then Press and release the Menu button. ADD/ERASE AUTO PROGRAM EXIT 640X480 H:31.4KHZ V:59.8HZ Select TV SETUP and highlight AUTO PROGRAM then Press and release the Auto Program only work under TV MODE.
- Page 28 With the MAIN MENU displayed, select BRIGHTNESS, CONTRAST, SATURATION, HUE or SHARPNESS then Press and release the Menu button to confirm. The following screen(s) will be displayed (see screens below) BRIGHTNESS Adjusts the overall image and background screen brightness. BRIGHTNESS P re ss th e b ut t on to ad jus t se tti n g t h e n pre ss M e nu t o r et ur n to th e p r e v i o u s...
- Page 29 With the MAIN ME NU displayed, Select RECALL using the Menu button MAIN DISPLAY AUDIO CLOSE CAPTION PARENTAL CONTROL OSD SETUP TV SETUP BRIGHTNESS CONTRAST SATURATION SHARPNESS RECALL EXIT 640X480 H:31.4KHZ V:59.8HZ RECALL Automatically reset setting to factory defaults. RECALL P r ess the but tons to select YES or N O option, (No need to select Menu, the RECALL will happen Automatically).
- Page 30 EXIT Exits the on-screen-menu controls Wit h the MAI N MEN U displayed, s elec t E XIT usi ng the ME NU button to exit the M AIN MENU MAIN DISPLAY AUDIO CLOSE CAPTION PARENTAL CONTROL OSD SETUP TV SETUP BRIGHTNESS CONTRAST SATURATION...
-
Page 31: Using The 15Mf050V/17 As A Computer Monitor
Us i n g t he 1 5M F0 50 V/1 7 as a C o m pu t e r M o n i t o r Press the butt on t o highlight MAIN DIS PLAY and Press and r elease the Me nu b utton. -
Page 32: Auto Adjust
AUTO ADJUST Automatically optimizes the VGA signal for viewing. With the Main Menu displayed,use MAIN DISPLAY AUTO ADJUST CONTRAST BRIGHTNESS AUDIO COLOR QUALITY POSITION OSD SETUP RECALL SAVE EXIT EXIT Then Press and release the Menu button to display the following screen : AUTO ADJUST: Only worked when unit is connected to computer and the screen will appear "IN PROGRESS"... - Page 33 With the Main Menu displayed, use the button to selcet COLOR. MAIN DISPLAY AUTO ADJUST CONTRAST BRIGHTNESS AUDIO COLOR QUALITY POSITION OSD SETUP RECALL SAVE EXIT EXIT Press and release the Menu button to display the COLOR Menu : Then use the button to select USER.
- Page 34 ADVANCE TUNE With the Main Menu displayed, use butt on to s el ec t Q UALITY. MAIN DISPLAY AUTO ADJUST CONTRAST BRIGHTNESS AUDIO COLOR QUALITY POSITION OSD SETUP RECALL SAVE EXIT EXIT 800X600 H:53.6KHZ V:84.8HZ Adjust the picture PHASE,CLOCK and SHARPNESS. ADVANCE TUNE IN PROGRESS PHASE...
-
Page 35: Image Position
IMAGE POSITION W i t h t h e Ma i n M e nu d i s p l a y e d , u s e t h e b u t t o n t o s e l e c t P O SI TI O N. MAIN DISPLAY AUTO ADJUST CONTRAST... - Page 36 POSITION 1. IMAGE POS. a. HORIZONTAL - Adjusts the horizontal size by increasing or decreasing this setting. b. VERTICAL - Adjusts the vertical size by increasing or decreasing this setting. c. CENTER - Automatic adjusting image to center. 2. OSD POS. You can choose where you would like the OSD control window to appear on your screen. Selecting OSD location allows you to manually adjust the position of the OSD control menu left, right, up or down.
-
Page 37: Reference
Refer en ce Disp lay Modes NOTE : Max resolution is 1024x768 Recommend vertical scan frequency is 60 Hz. LCD Mo nitor Dis pl ay Ang l e Horizontal : Up 30 /Down 5... -
Page 38: Troubleshooting
Troubleshooting Before calling our serviceman, please refer to the following chart to see if you can adjust the problems yourself. Trouble Checks and Adjustments TV will not turn on Plug TV in. Plug something else into the outlet to make sure it is working. Make sure batteries in the remote are not dead. - Page 39 Troubleshooting Interference Please note the following common TV reception interferences: Ignition effect Black spots or vertical lines may appear. Screen jumps crazily or is very unstable. This is commonly the result of car ignition system interference, neon lights, or other forms of electrical interferences.
- Page 40 Troubleshooting You may have problems that can be fixed with a few minor adjustments. Look for the type of problem you are having below and then apply the suggestions to get your TV going again. Picture with no sound Check if you have accidentally pressed the "mute" button Check other channels if the same problem exist.
- Page 41 Picture too dark Check your brightness level Check your contrast level In the on screen display (OSD) select RECALL Check your LCD monitor for possible damage Remote Control Failure Check TV main power source Check if remote control batteries are weak Check if batteries have been correctly installed Check if there are obstructions between your remote control and the main TV remote sensor...
- Page 42 You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and Warranty Service purpose. Model Number: 15MF050V/17 Serial Number:...
-
Page 43: Specification
Product Specifications: Monitor Display Specifications: Screen Size Aspect Ratio Resolution Pixel pitch Total Display Colors Viewing Angle Contrast Ratio Panel Brightness (cd/ ¢T ) Backlight Lamp Life Connection Interfaces: RF (Coax) S-Video AV input Headphone Jack VGA (15 pin D-sub) Convenience Specifications: Total Watt Speaker output Parental Control with V-Chip...
