Pump Specifications
Part No.
HorsePower
PUM3013
2/5
Installation Specifications
Recommended for
Pump
Model Numbers
Power-fin, PF(N,L) 0502-1302
PUM3013
Based on
Minimum Pipe Diameter
2-1/2"
IMPORTANT: Read the Power-fin 0502-2001 Installation and Operation Manual. If the planned system exceeds
the pump capacity in flow and/or head see "Pump Curves-All Pumps" for alternate pumps and pump curves.
PUMP RECOMMENDATION FOR
POWER-FIN 0502-1302 WATER HEATER
Flanges
Valute Material
2"
Brass
Maximum GPM
75 GPM
Based on
Connecting piping
Maximum 45 feet straight pipe with 6-Elbows, 2-Unions,2-Ball Valves and 1-Cold Water Inlet Tee
Flange Material
Vendor
Brass
Armstrong
Based on
Installation Type
Single Water Heater piped to Single Storage Tank
1
PUMP
Recommendation
PUMP-Rec-16 Rev C
Vendor Product Series
E Series
Orientation
Horizontal
Advertisement
Related Manuals for Lochinvar POWER-FIN 0502-1302
Summary of Contents for Lochinvar POWER-FIN 0502-1302

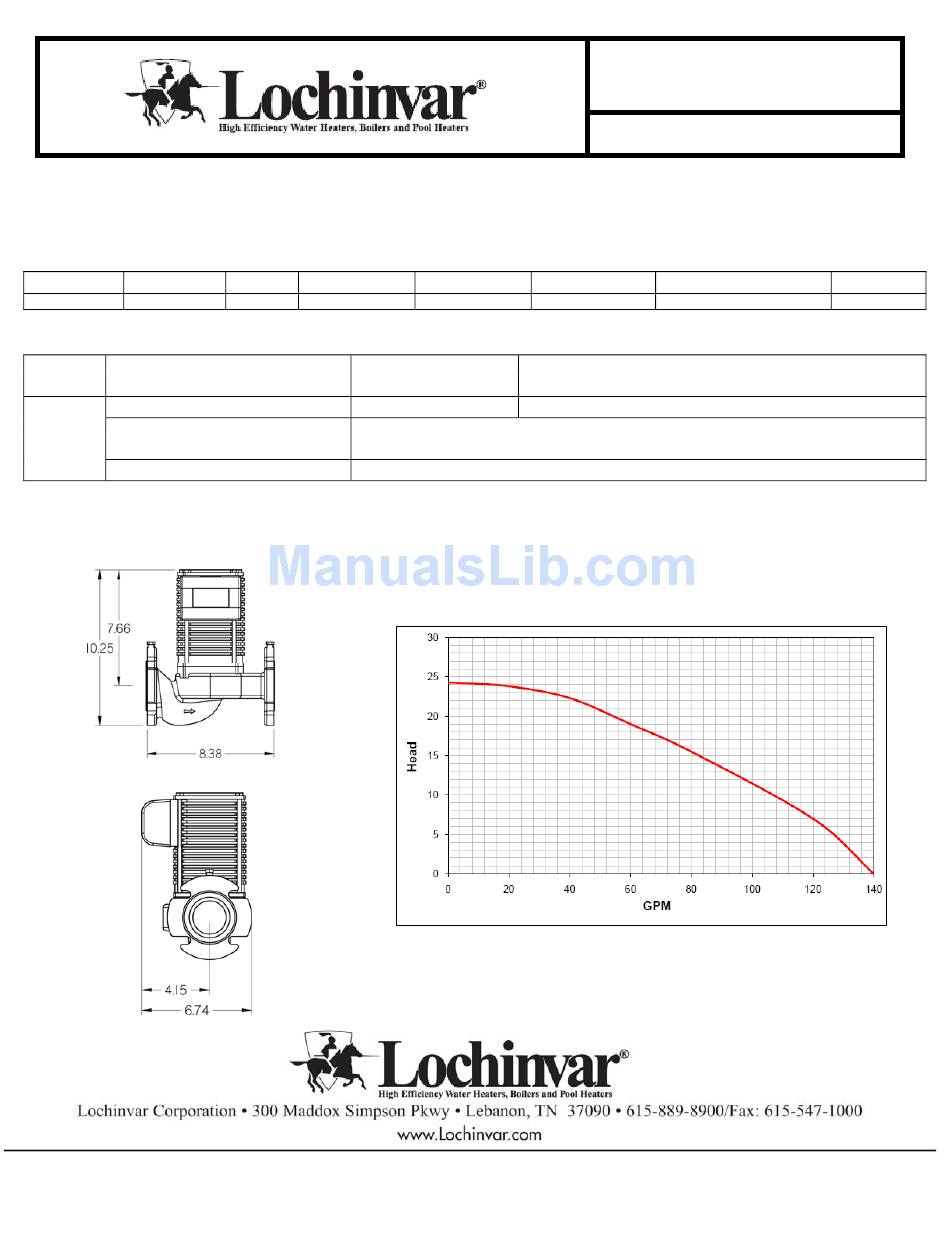

- Page 1 POWER-FIN 0502-1302 WATER HEATER Pump Specifications Part No. HorsePower Flanges PUM3013 2" Installation Specifications Recommended for Pump Model Numbers Power-fin, PF(N,L) 0502-1302 PUM3013 Based on Minimum Pipe Diameter 2-1/2" IMPORTANT: Read the Power-fin 0502-2001 Installation and Operation Manual. If the planned system exceeds the pump capacity in flow and/or head see “Pump Curves-All Pumps”...
