IM799-A

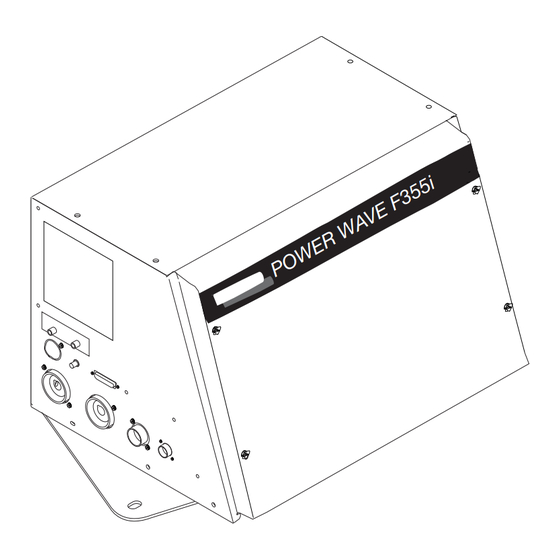

POWER WAVE F355i (CE)
January, 2005
For use with machines Code 10997, 11252
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However, your
overall safety can be increased by
proper installation ... and thought-
ful operation on your part. DO
NOT INSTALL, OPERATE OR
REPAIR THIS EQUIPMENT
WITHOUT
READING
THIS
MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED
THROUGHOUT. And, most
importantly, think before you act
and be careful.
OPERATOR'S MANUAL
Copyright © 2005 Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Lincoln Electric POWER WAVE F355I
Summary of Contents for Lincoln Electric POWER WAVE F355I
- Page 1 RETURN TO MAIN MENU IM799-A POWER WAVE F355i (CE) January, 2005 For use with machines Code 10997, 11252 Safety Depends on You Lincoln arc welding and cutting equipment is designed and built with safety in mind. However, your overall safety can be increased by proper installation ...
-
Page 2: California Proposition 65 Warnings
351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199. BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS. -
Page 3: Electric Shock Can Kill
ELECTRIC SHOCK can kill. 3.a. The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not touch these “hot” parts with your bare skin or wet clothing. Wear dry, hole-free gloves to insulate hands. 3.b. - Page 4 WELDING SPARKS can cause fire or explosion. 6.a. Remove fire hazards from the welding area. If this is not possible, cover them to prevent the welding sparks from starting a fire. Remember that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas.
- Page 5 PRÉCAUTIONS DE SÛRETÉ Pour votre propre protection lire et observer toutes les instructions et les précautions de sûreté specifiques qui parraissent dans ce manuel aussi bien que les précautions de sûreté générales suiv- antes: Sûreté Pour Soudage A L’Arc 1. Protegez-vous contre la secousse électrique: a.
- Page 6 (89/336/EEC). It was manufactured in conformity with a national standard that implements a harmonized standard: EN 50 199 Electromagnetic Compatibility (EMC) Product Standard for Arc Welding Equipment. It is for use with other Lincoln Electric equipment. It is designed for industrial and professional use. Introduction All electrical equipment generates small amounts of electromagnetic emission.
- Page 7 SAFETY ELECTROMAGNETIC COMPATIBILITY (EMC) The size of the surrounding area to be considered will depend on the structure of the building and other activities that are taking place. The surrounding area may extend beyond the boundaries of the premises. Methods of Reducing Emissions Mains Supply Welding equipment should be connected to the mains supply according to the manufacturer s recommendations.
- Page 8 The code number is especially important when identifying the correct replacement parts. - Register your machine with Lincoln Electric either via fax or over the Internet. • For faxing: Complete the form on the back of the warranty statement included in the literature packet accompanying this machine and fax the form per the instructions printed on it.
-
Page 9: Table Of Contents
viii Installation ...Section A Technical Specifications - POWER WAVE 355 ...A-1 Safety Precautions...A-2 Select Suitable Location ...A-2 Stacking ...A-2 Tilting...A-2 Input and Grounding Connections ...A-2 Power Cord Connection ...A-2 Undercarriage Mountings...A-2 Output Cables, Connections and Limitations...A-3 Negative Electrode Polarity ...A-3 Voltage Sensing ...A-3, A-4 Power Wave to Semi-automatic Power Feed Wire Feeder Interconnections...A-4 Control Cable Specifications...A-4... -
Page 10: Installation
Select The output cable size based upon the following chart.* Cable sizes for Combined Length of Electrode and Work Cable (Copper) 75C rated: DUTY CYCLE CURRENT 100% Lincoln Electric recommends using a minimum of 2/0 welding cable for pulse welding. INSTALLATION POWER WAVE F355i Rated DC Output Output... -
Page 11: Safety Precautions
National Electrical Code. ---------------------------------------------------------------------- SELECT SUITABLE LOCATION The Invertec POWER WAVE F355i will operate in harsh environments. Even so, it is important that sim- ple preventative measures are followed in order to assure long life and reliable operation. -
Page 12: Output Cables, Connections And Limitations
Power Wave at the four pin connector. By default the WORK voltage is monitored at the output stud in the POWER WAVE F355i (CE). For more information on the WORK sense lead (21), see"Work Voltage Sensing” in the following paragraph. -
Page 13: Control Cable Specifications
* The electrode voltage 67 sense lead is integral to the control cable to the wire feeder. Work Voltage Sensing The standard POWER WAVE F355i (CE)’s default is to the work stud (work sense lead disabled). For processes requiring work voltage sensing, con-... - Page 14 8 = high speed gear switch 8 Object Instance switch 2 *Factory Setting FEED HEAD BOARD DIP SWITCH LOCATION OF DIP SWITCHES IN MACHINE POWER WAVE F355i (CE) work sense lead electrode polarity positive * negative wire drive gear low speed gear *...
-
Page 15: Welding With Multiple Power Waves
LEAD# FIGURE A.2 TWO POWER WAVES Travel Direction Connect All Welding Work Leads at the Beginning of the Joint POWER WAVE F355i (CE) Function Motor + Motor - Solenoid + Solenoid common Tach 2A Differential Signal Single Tach input +15V Tach Supply... -
Page 16: Operation
300 Amps, 32 volts at 100% duty cycle. RECOMMENDED PROCESSES AND EQUIPMENT RECOMMENDED PROCESSES The POWER WAVE F355i (CE) can be set up in a number of configurations, some requiring optional equipment or welding programs. Each machine is fac- tory preprogrammed with multiple welding procedures,... -
Page 17: Limitations
Lincoln wire feeders or non-Lincoln wire feeders can- not be used. • POWER WAVE F355i (CE) Output Limitations The POWER WAVE F355i (CE) will support maxi- mum average output current of 350 Amps @ 60% duty cycle. DUTY CYCLE AND TIME PERIOD The duty cycle is based upon a ten minute period. -
Page 18: Nominal Procedures
Power Waves encom- passes a wide range of common processes and will meet most needs. If a special welding program is desired, contact the local Lincoln Electric sales repre- sentative. To make a weld, the Power Wave needs to know the desired welding parameters. -
Page 19: Constant Voltage Welding
Current "N" PULSES HIGH HEAT PULSES PEAK AMPS BACKGROUND AMPS POWER WAVE F355i (CE) FIGURE B.3 Time FIGURE B.4 "N" PULSES LOW HEAT PULSES TIME... -
Page 20: Power Mode
330 / 5.0 330 / 4.5 230 / 3.5 230 / 3.5 300 / 6.0 300 / 6.0 400 / 7.5 400 / 7.0 POWER WAVE F355i (CE) Mild Steel Mild Steel Stainless Steel Stainless Steel E308L 0.035 0.035 0.030... -
Page 21: Accessories
K852-95 2/0-3/0 CABLE COMPATIBLE LINCOLN EQUIPMENT Power Feed 10 Robotic Wire Drive K1785-[ ] 14 Pin to 14 Pin Fanuc (Control Cable,12 Ft.,16 Ft. or 25 Ft. lengths) COMMUNICATION INTERFACE K2436-1 (Not on Codes 10997 or below) POWER WAVE F355i (CE) -
Page 22: Maintenance
MAINTENANCE PERIODIC MAINTENANCE Calibration of the POWER WAVE F355i (CE) is critical to its operation. Generally speaking the calibration will not need adjustment. However, neglected or improp- erly calibrated machines may not yield satisfactory weld performance. -
Page 23: Troubleshooting
HOW TO USE TROUBLESHOOTING GUIDE Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual. -
Page 24: Using The Status Led To Troubleshoot System Problems
Normal operation is a steady green light. Error conditions are indicated in the following chart. NOTE: The POWER WAVE F355i (CE) status light will flash green, and sometimes red and green, for up to one minute when the machine is first turned on. - Page 25 ERROR CODES FOR THE POWER WAVE The following is a list of possible error codes that the POWER WAVE F355i (CE) can output via the status light (see "Troubleshooting the Power Wave / Power Feed System Using the Status LED." If connected to a PF-10/11 these error codes will generally be accompanied by an "Err 006"...
-
Page 26: Troubleshooting Guide
Machine will not power up (no lights, no fan, etc.) If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, con- tact your local authorized Lincoln Electric Field Service Facility for technical assistance. TROUBLESHOOTING POSSIBLE... - Page 27 Machine won’t weld, can’t get any output. If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, con- tact your local authorized Lincoln Electric Field Service Facility for technical assistance. TROUBLESHOOTING POSSIBLE...
- Page 28 If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, con- tact your local authorized Lincoln Electric Field Service Facility for technical assistance. TROUBLESHOOTING POSSIBLE...
- Page 29 3. Problem – Conduit leading up to the wire feeder from the wire reel is too long. Solution – Use a short- er length of conduit. CAUTION POWER WAVE F355i (CE) RECOMMENDED COURSE OF ACTION If all recommended possible areas of misadjustments have been checked...
- Page 30 DIAGRAMS BLACK 115V POWER WAVE F355i (CE)
- Page 31 DIAGRAMS BLACK 115V POWER WAVE F355i (CE)
-
Page 32: Connection Diagram
SEE SECTION A-4, Power Wave / Power Feed Wire Feeder Interconnections POWER WAVE F355i WORK FANUC R-J3i CONNECTION DIAGRAM COMMUNICATION INTERFACE OPTIONAL (K2436-1) NOT ON CODES 10997 OR BELOW. VOLTAGE SENSE LEADS (OPTIONAL) K940 WIRE FEEDER CONTROL CABLE K1785 POWER WAVE F355i (CE) - Page 33 DIMENSION PRINT POWER WAVE F355i (CE)
- Page 34 NOTES POWER WAVE F355i (CE)
