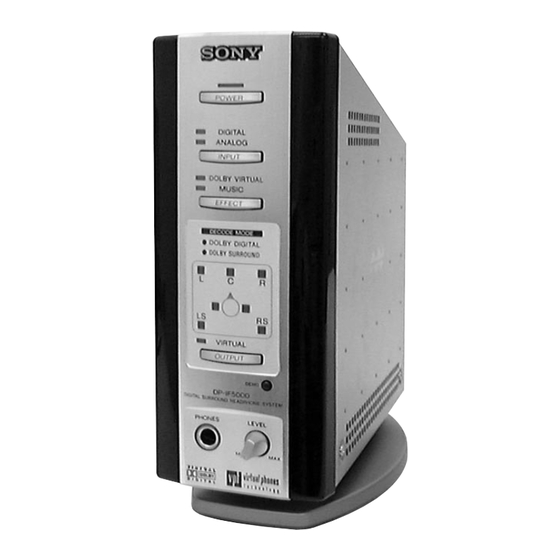

Sony DP-IF5000 Service Manual

Digital surround processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
Ver 1.1 1999. 02
•
Manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY, the double-D symbol a , "PRO LOGIC",
"Dolby Digital (AC-3)", and "VIRTUAL DOLBY DIGITAL" are
trademarks of Dolby Laboratories Licensing Corporation.
•
DP-IF5000 is the component model block one in
MDR-DS5000.
COMPONENT MODEL NAME FOR MDR-DS5000
DIGITAL SURROUND PROCESSOR
CORDLESS STEREO HEADPHONES
MICROFILM
DP-IF5000
DP-IF5000
MDR-IF5000
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
DIGITAL SURROUND PROCESSOR
– 1 –
Canadian Model
AEP Model
SPECIFICATIONS
Modulation System
Frequency modulation
Carrier wave frequency Right channel 2.8 MHz
Left channel 2.3 MHz
Transmission distance Approx. 10 m
Frequency response
20 – 20,000 Hz
Distortion rate
1% or less (1 kHz)
Audio inputs
Optical input
(square-type) × 1
Analog input (pin jack
right/left) × 1
Power requirements
DC 9 V (from the
supplied AC power
adapter)
Approx. 85 × 190 × 180
Dimensions (w/h/d)
mm
Mass
Approx. 1.0 kg
(1000 g)
Design and specifications are subject to
change without notice.
US Model
UK Model
E Model

Advertisement

Table of Contents
loading

Related Manuals for Sony DP-IF5000

Summary of Contents for Sony DP-IF5000

  • Page 1 Left channel 2.3 MHz trademarks of Dolby Laboratories Licensing Corporation. Transmission distance Approx. 10 m Frequency response 20 – 20,000 Hz • DP-IF5000 is the component model block one in Distortion rate 1% or less (1 kHz) MDR-DS5000. Audio inputs Optical input (square-type) ×...
