Lincoln Electric 140HD K2514-1 User Manual

Lincoln electric welder user manual.


Weld-Pak
Processes
MIG, Flux-Cored
Product Number
K2514-1
120 Volt AC Input Compact
Wire Welder
Requiring common 120 volt input power,
®
the Weld-Pak
140HD can be used almost
anywhere. With simple two knob control,
the machine is easy to set up for gasless
flux-cored welding for deep penetration on
thicker steel or gas-shielded MIG welding
on thin gauge steel, stainless or aluminum.
Compare the precise drive, rugged
construction and full list of standard
accessories. . . the Lincoln Electric
®
Weld-Pak
140HD is an excellent choice!
FEATURES
Heavy Duty Wire Drive
– Fully adjustable drive system reduces
the chance of wire tangling and
crushing.
– Brass-to-brass gun connection
enhances conductivity.
– Durable cast aluminum gear box
delivers added drive torque and quiet
operation.
– Easy-turn numeric drive tension
indicator identifies optimized ranges
for different wire diameters.
Capable Performance
– Forgiving arc makes dialing in your
application easy.
– Smooth arc starts with minimal
spatter.
– Wide 30-140 amp welding
output range.
– MIG weld 24 gauge up to 3/16 in.
(4.8 mm) sheet metal in a single
pass. Weld up to 5/16 in. (7.9 mm)
steel using self-shielded
Lincoln Electric Innershield
(FCAW-S) wires.
ISO
9001:2000
14001:2004
Publication E7.39 | Issue D ate 03/12
© Lincoln Global, Inc. All Rights Reserved.
®
140HD
Input Power
120/1/60
Input Current at Rated Output
20A
Rated Output Current/Voltage/Duty Cycle
90A/19.5V @ 20%
APPLICATIONS
Shop
Farm
Home
WHAT'S INCLUDED
Gun
Magnum
cable assembly with brass connection
and 4-pin MS-Type connection for
trigger control (K530-6)
.025 in. (0.6 mm) contact tips
(Qty 3) (KH710)
.035 in. (0.9 mm) contact tips
(Qty. 3) (KH712)
Gasless nozzle for Innershield
welding (KH726)
Gas nozzle for MIG welding (KH725)
Spindle adapter for 8 in. (203 mm)
diameter spools (KH720)
.025 - .035 in. (0.6 - 0.9 mm) wire
diameter dual track drive roll for MIG
and flux-cored welding (KP2948-1)
Shielding Gas Apparatus
Harris
®
(S25805) and 52 in. (1.3 m) hose
(S19303) for use with Ar/CO
gases. For use with CO
order a Lincoln Electric S19298 CO
shielding gas bottle adapter.
Welding Wire
Sample spool of .025 in. (0.6 mm)
diamaeter SuperArc
®
MIG wire
Sample) spool of .035 in. (0.9 mm)
diameter Innershield
flux-cored wire
THE LINCOLN ELECTRIC COMPANY
22801 St. Clair Avenue • Cleveland, OH • 44117-1199 • U.S.A.
PH: +1.216-481-8100 • www.lincolnelectric.com
®
100L gun and 10 ft. (3.0 m)
®
3000290 Gas Regulator
blend
2
shielding gas,
2
2
®
L-56
®
premium
®
®
NR
-211-MP
WIRE FEEDER/WELDERS
Output Range
30 - 140 A
50-500 WFS (1.3-12.7 m/min)
Max. OCV: 33
Weight/Dimensions (H x W x D)
50 lbs. (22.7 kg)
13.7 x 10.15 x 17.9 in.
(357 x 258 x 472 mm)

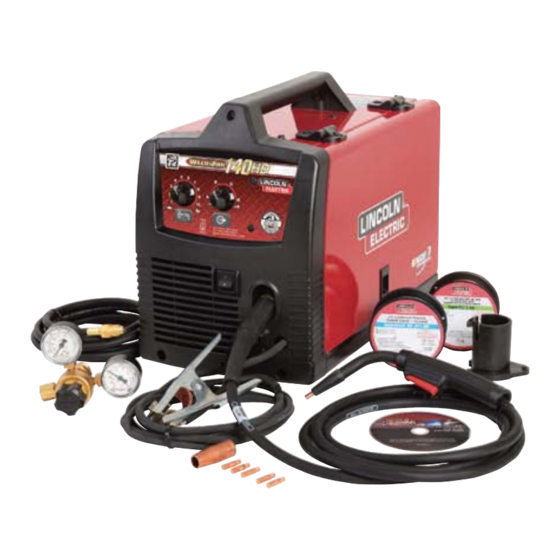

Shown K2514-1
INPUT
OUTPUT
1
PHASE
Two Year Extended
Warranty Available in
the U.S.A. and Canada.
Other
Work clamp and 10 ft. (3.0 m) cable
Enclosed CD includes:
– Instruction manual (IMT-10049)
– How to Weld video
– Learn to Weld manual
– Parts pages
