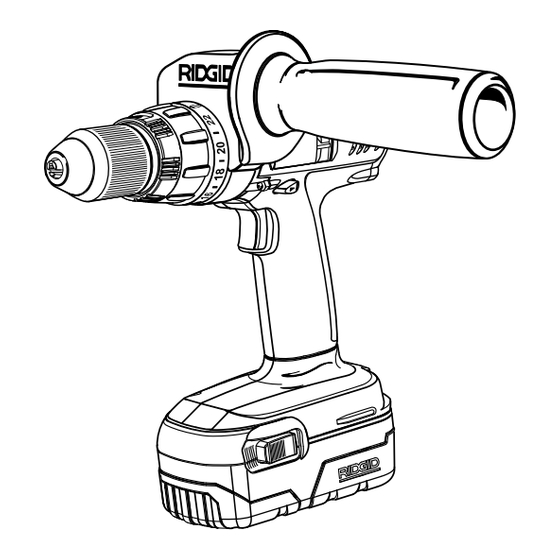

RIDGID R8411503 Operator's Manual

1/2 in. 18 v hammer drill two-speed/reversible
Hide thumbs Also See for R8411503:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Your hammer drill has been engineered and manufactured to our high standards for dependability, ease of operation, and
operator safety.
When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
1/2 in. 18 V HAMMER DRILL
TWO-SPEED/REVERSIBLE
R8411503
product.
®
ACCEPTS ALL RIDGID 18 V BATTERY PACKS


Advertisement

Table of Contents
loading

Related Manuals for RIDGID R8411503

Summary of Contents for RIDGID R8411503

  • Page 1 1/2 in. 18 V HAMMER DRILL TWO-SPEED/REVERSIBLE R8411503 ACCEPTS ALL RIDGID 18 V BATTERY PACKS Your hammer drill has been engineered and manufactured to our high standards for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS  Introduction..................................  General Safety Rules ..............................3-4  Specific Safety Rules ...............................4  Symbols ..................................5-6  Features ..................................7-8  Assembly ..................................8  Operation ................................... 9-4  Maintenance ................................5-6  Warranty ..................................7  Customer Service Information ......................... Back Page INTRODUCTION This product has many features for making its use more pleasant and enjoyable.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES  Do not overreach. Keep proper footing and balance WARNING! at all times. Proper footing and balance enable better READ AND UNDERSTAND ALL INSTRUCTIONS. control of the tool in unexpected situations. Failure to follow all instructions listed below, may  Use safety equipment.

  • Page 4: Specific Safety Rules

    GENERAL SAFETY RULES SERVICE  When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section  Tool service must be performed only by qualified of this manual. Use of unauthorized parts or failure to repair personnel. Service or maintenance performed by follow Maintenance Instructions may create a risk of unqualified personnel may result in a risk of injury.

  • Page 5: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)

  • Page 6: Symbols

    AUTHORIZED SERVICE CENTER for repair. When servic- If you do not understand the warnings and ing, use only identical replacement parts. instructions in the operator’s manual, do not use this product. Call RIDGID customer service for ® assistance. WARNING: The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage.

  • Page 7: Features

    FEATURES PRODUCT SPECIFICATIONS Blows per minute ......0-7,00/0-5,600 BPM Chuck ............/ in. Keyless Clutch ..............4 Position Motor ..............8 Volt DC Torque ..............60 in.lb. Switch ..........Variable Speed (VSR) No Load Speed ....... 0-450/0-,600 r/min. (RPM) TWO-SPEED GEAR TRAIN HAMMER MODE RING AUXILIARY HANDLE...

  • Page 8: Assembly

    FEATURES KNOW YOUR DRILL the direction of bit rotation. Setting the switch trigger in the OFF (center lock) position helps reduce the possibility of See Figure 1. accidental starting when not in use. The safe use of this product requires an understanding of the HAMMER MODE RING information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.

  • Page 9: Operation

     Drilling in ceramics, plastics, fiberglass, and laminates  Drilling in metals  Driving screws  Mixing paint This product will accept RIDGID 8 V lithium-ion battery packs and RIDGID 8 V nickel-cadmium battery packs. INSTALL BATTERY PACK See Figure 2.

  • Page 10: Variable Speed

    OPERATION SWITCH TRIGGER DIRECTION OF ROTATION SELECTOR (FORWARD/REVERSE/CENTER LOCK) See Figure 3. To turn the drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. REVERSE VARIABLE SPEED See Figure 3. The variable speed switch trigger delivers higher speed with increased trigger pressure and lower speed with decreased trigger pressure.
  • Page 11 OPERATION TWO-SPEED GEAR TRAIN TWO SPEED GEAR TRAIN (HI-LO) See Figure 5. The drill has a two-speed gear train designed for drilling or SPEED driving at LO (1) or HI (2) speeds. A slide switch is located on top of the drill to select either LO (1) or HI (2) speed. When using drill in the LO (1) speed range, speed will decrease and unit will have more power and torque.

  • Page 12: Installing Bits

    OPERATION BIT STORAGE See Figure 8. When not in use, bits provided with the drill can be placed SCREWDRIVER BIT in the storage area located on the base of the drill. INSTALLING BITS See Figure 12.  Lock the switch trigger by placing the direction of rotation selector in the center position.

  • Page 13: Wood Drilling

    OPERATION 360° NOTE: For convenience and ease of starting threads, the ROTATION hex nut has been trapped inside the molded slot in the handle assembly. DRILLING See Figure 12.  Check the direction of rotation selector for the correct setting (forward or reverse). ...

  • Page 14: Metal Drilling

    OPERATION METAL DRILLING MASONRY DRILLING For maximum performance, use high speed steel bits for For maximum performance, use carbide-tipped masonry metal or steel drilling. impact bits when drilling holes in brick, tile, concrete, etc.  Select normal drilling mode.  Slide adjustment button on hammer drill left for hammer mode.

  • Page 15: Maintenance

    Only the parts shown on the parts list are intended to be WARNING: repaired or replaced by the customer. All other parts should To avoid serious personal injury, always remove be replaced at a RIDGID authorized service center. the battery pack from the tool when cleaning or performing any maintenance. BATTERIES...
  • Page 16 MAINTENANCE CHUCK REMOVAL MALLET See Figures 13 - 15. CHUCK JAWS The chuck may be removed and replaced by a new one.  Lock the switch trigger by placing the direction of rotation selector in center position.  Insert a 5/6 in. or larger hex key into the chuck of the drill and tighten the chuck jaws securely.

  • Page 17: Warranty

    RIDGID, Inc. All warranty communications should be authorized service center for RIDGID branded hand held directed to One World Technologies, Inc., attn: RIDGID Hand ® and stationary power tools. Consumable accessories pro- Held and Stationary Power Tool Technical Service at (toll vided with the tool such as, but not limited to, blades, bits free) -866-539-70.

  • Page 18: Customer Service Information

    R8411503 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call -866-539-70 or visit us online at www.ridgid.com.
