Before driving
Starting and driving
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company.
Copyright
1998 Ford Motor Company
Contents
2
5
15
71
98
103
123
145
188
199
200
1

Advertisement

Table of Contents
loading

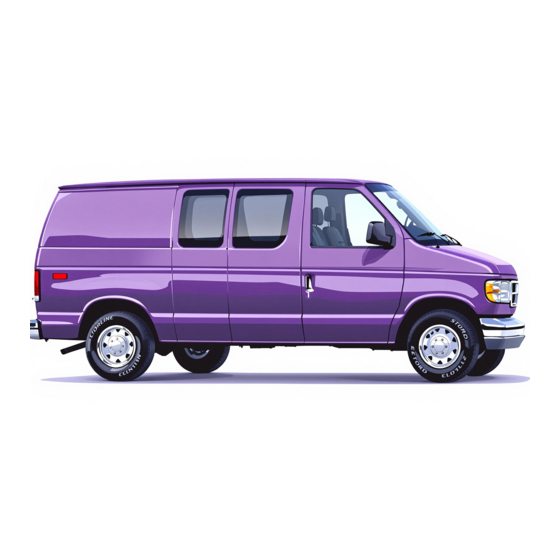

Summary of Contents for Ford 1999 Wagon-Econoline

  • Page 1: Table Of Contents

    All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Copyright 1998 Ford Motor Company...
  • Page 2: Introduction

    Introduction ICONS Indicates a safety alert. Read the following section on Warnings. Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.
  • Page 3 Light Truck Body Builders Advisory Service 1–800–635–5560. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance...
  • Page 4 Introduction Diesel-powered vehicles Read the 7.3L Diesel Engine Owner’s Guide Supplement for information regarding correct operation and maintenance of your diesel-powered light truck. Notice to owners of natural gas fueled vehicles Before you drive your vehicle, be sure to read the “Natural Gas Vehicle Owner’s Guide Supplement.”...
  • Page 5: Instrumentation

    Instrumentation...
  • Page 6 Instrumentation Speed control* Instrument (pg. 57) cluster (pg. 8) 50 60 0 0 0 0 0 0 km/h 0 0 0 0 SERVICE BRAKE ENGINE SOON ACCEL COAST Headlamp control (pg. 15) Turn signal and Driver side air wiper/washer *if equipped control (pg.
  • Page 7 Instrumentation Climate control systems (pg. 16) Auxiliary power point (pg. 22) VENT COOL WARM PUSH SEEK TONE TONE VOL TUNE AM/FM Gearshift (including Electronic sound overdrive button) system (pg. 110) (pg. 23)
  • Page 8 Instrumentation WARNING LIGHTS AND CHIMES 50 60 0 0 0 0 0 0 km/h 0 0 0 0 SERVICE BRAKE ENGINE SOON Brake system warning Momentarily illuminates when the ignition is turned to the ON position BRAKE and the engine is off. If the brake warning lamp does not illuminate at this time, seek service immediately.
  • Page 9 Instrumentation government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning.
  • Page 10 (TCIL). The TCIL may flash steadily if a malfunction is detected. If the TCIL is flashing, contact your Ford dealer as soon as possible. If this condition persists, damage to the transmission could occur. Safety belt...
  • Page 11 Instrumentation High beams Illuminates when the high beam headlamps are turned on. Oil pressure/Engine coolant This light will come on when the key is in the ON position and the: • engine coolant temperature is very high • engine oil pressure is low The light serves as a notice that a system needs your attention and to check the engine coolant temperature gauge and the engine oil pressure gauge.
  • Page 12 Instrumentation GAUGES 50 60 0 0 0 0 0 0 km/h 0 0 0 0 Speedometer Indicates the current vehicle speed. 50 60 0 0 0 0 0 0 km/h 0 0 0 0 Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position).
  • Page 13 Instrumentation Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool.
  • Page 14: Odometer

    Instrumentation Battery voltage gauge This gauge shows the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated), have the vehicle’s electrical system checked as soon as possible. Odometer Registers the total kilometers (miles) of the vehicle.
  • Page 15: Controls And Features

    Controls and features HEADLAMP CONTROL • Pull the headlamp control toward you to the first position to turn on the parking lamps, tail lamps, license plate lamps and marker lamps. • Pull the headlamp control toward you to the outer position to turn on the headlamps (in addition to the previous lamps).
  • Page 16 Controls and features Flash to pass Pull toward you to activate and release to deactivate. PANEL DIMMER CONTROL To adjust the brightness of the instrument panel: • Rotate clockwise/counterclockwise when the headlamp control is in the parking lamp or low-beam position.
  • Page 17 Controls and features Fan speed control Controls the volume of air circulated in the vehicle. Temperature control knob Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature. WARM COOL Mode selector control Controls the direction of the airflow...
  • Page 18 Controls and features Operating tips • In humid weather, select before driving. This will help to prevent your windshield from fogging. After a few minutes, select any desired position. • To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.
  • Page 19 Controls and features Fan speed control Controls the volume of air circulated in the vehicle. Temperature control knob Controls the temperature of the airflow inside the vehicle. WARM COOL Mode selector control Controls the direction of the airflow to the inside of the vehicle. VENT NORM The air conditioning compressor will operate in all modes except VENT...
  • Page 20 Controls and features Under normal conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct. •...
  • Page 21 Controls and features • To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position. • Don’t put objects under the front seat that will interfere with the airflow to the back seats. •...
  • Page 22 Controls and features • To control the auxiliary fan with this control, the rear fan switch on the front control unit must be in the rear control position. • The auxiliary unit does not provide for mixing of hot and cold air.
  • Page 23: Using Your Audio System

    Controls and features USING YOUR AUDIO SYSTEM AM/FM Stereo PUSH SEEK TONE TONE VOL TUNE AM/FM AM/FM Stereo PUSH SEEK TONE TONE VOL TUNE AM / FM STEREO AM/FM...
  • Page 24 Controls and features Volume/power control Press the control to turn the audio PUSH system on or off. Turn the control to raise or lower volume. PUSH If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal”...
  • Page 25 Controls and features Tune adjust in radio mode • Press to move to the next SEEK frequency down the band (whether or not a listenable TUNE station is located there). Hold the control to move through the frequencies quickly. • Press to move to the next frequency up the band (whether or not a listenable station is located there).
  • Page 26 Controls and features Bass adjust The bass adjust control allows you PUSH to increase or decrease the audio system’s bass output. TONE With the electronic stereo radio, press the TONE control once, then use the volume knob to adjust the level.
  • Page 27 Controls and features Setting the clock To set the hour, press and hold the CLK control and press: TONE • to decrease hours and • to increase hours. SEEK SEEK TUNE TUNE To set the minute, press and hold the CLK control and press: TONE •...
  • Page 28 Controls and features AM/FM stereo cassette VOL - PUSH ON BASS TREB FADE TAPE SEEK SIDE 1 - 2 SCAN TUNE Volume/power control Press the control to turn the audio VOL - PUSH ON system on or off. Turn the control to raise or lower volume.
  • Page 29 Controls and features AM/FM select The AM/FM select control works in radio and tape modes. AM/FM select in radio mode This control allows you to select AM or FM frequency bands. Press the AM control to select from AM selections, and press the FM control to select from FM1 or FM2 memory preset stations.
  • Page 30 Controls and features Scan function The scan function works in radio mode. SCAN Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.
  • Page 31 Controls and features Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output. TREB Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers.
  • Page 32 Controls and features Automatic Music Search The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection. TAPE To activate the feature, momentarily depress the TAPE AMS button. Then, press either REW (for the beginning of the current selection) or FF (to advance to the next selection).
  • Page 33 Controls and features Eject function Press the control to stop and eject a tape. Dolby noise reduction Dolby noise reduction operates only in tape mode. Dolby reduces the amount of hiss and static during tape playback. Press the control to activate (and deactivate) Dolby noise reduction. The noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation.
  • Page 34 Controls and features To set the minute, press and hold the CLK control and press: TAPE • to decrease minutes and SEEK SEEK • to increase minutes. TUNE TUNE Premium AM/FM Stereo/Cassette/Premium Sound BASS TREB FADE PUSH ON TAPE TUNE SEEK SCAN AUTO...
  • Page 35 Controls and features individual function controls will either illuminate or turn off. Those controls which have a function for the specific mode of operation selected will be lit, while the controls which have no function for that mode will be turned off. Volume/power control Press the control to turn the audio system on or off.
  • Page 36 Controls and features • to increase volume compensation • to decrease or shut off the volume compensation AM/FM select The AM/FM select control works in radio, tape and CD modes (if equipped). AM/FM select in radio mode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.
  • Page 37 Controls and features Tune adjust for CD changer • Press to select the previous TUNE disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.
  • Page 38 Controls and features Scan function The scan function works in radio, tape or CD mode (if equipped). SCAN Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.
  • Page 39 Controls and features Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Starting autoset memory preset 1.
  • Page 40 Controls and features Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control. Use the SEL FADE control to adjust the sound between the speakers. Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers.
  • Page 41 Controls and features • In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind. Fast forward The fast forward control works in tape and CD modes (if equipped).
  • Page 42 Controls and features Compression feature Compression adjust brings soft and COMP loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. The effect of the feature varies with the music content. Shuffle feature The shuffle feature operates in CD SHUFF...
  • Page 43 Controls and features Premium AM/FM Stereo/Cassette/Single CD/Premium Sound DISC VOL - PUSH ON FM 1 MUTE TAPE DOLBY B NR AUTO SEEK TUNE SCAN BASS TREB FADE SIDE 1-2 COMP SHUFFLE Volume/power control Press the control to turn the audio VOL - PUSH ON system on or off.
  • Page 44 Controls and features If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FM select The AM/FM select control works in radio, tape and CD modes.
  • Page 45 Controls and features Tune adjust for CD changer (if equipped) • Press to select the previous SEEK SEEK disc in the CD changer. (Play will begin on the first track of the TUNE TUNE disc unless the CD changer is in shuffle mode.
  • Page 46 Controls and features Seek function for CD or CD changer • Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press , the CD changer will replay that selection from the beginning.
  • Page 47 Controls and features Setting memory preset stations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. SIDE 1-2 COMP SHUFFLE 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.
  • Page 48 Controls and features To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again. Bass adjust The bass adjust control allows you BASS TREB to increase or decrease the audio system’s bass output. Press the BASS control then press: •...
  • Page 49 Controls and features Press the BAL control then press: • to shift sound to the left and • to shift sound to the right. Speaker fade adjust Speaker sound can be adjusted FADE between the front and rear speakers. Press the FADE control then press: •...
  • Page 50 Controls and features Rewind The rewind control works in tape and CD modes. • In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached. • In CD mode, pressing the REW control rewinds the CD within the current track.
  • Page 51 Controls and features Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Compression adjust Compression adjust brings soft and COMP loud CD passages together for a more consistent listening level.
  • Page 52 Controls and features To set the minute, press and hold the CLK control and press TUNE: AUTO • to decrease minutes and SEEK SEEK • to increase minutes. TUNE TUNE If your vehicle has a separate clock module, (other than the digital radio display), the CLK button will not function in the above manner.
  • Page 53 Controls and features CD changer (if equipped) The CD changer is located behind the driver’s seat in your vehicle. Slide the door to access the CD changer magazine. Press to eject the magazine. Make sure only one disc is inserted in each slot.
  • Page 54 Controls and features The magazine does not need to be full for the changer to operate. Radio power must be turned on to play the CDs in the changer. The magazine may be stored in the glove compartment when not being used. The CD magazine may be inserted or ejected with the radio power off.
  • Page 55 Controls and features CD and CD player care • Handle discs by their edges only. Never touch the playing surface. • Do not insert more than one disc at a time. • Do not expose discs to direct sunlight or heat sources for extended periods of time.
  • Page 56 Controls and features Radio reception factors Three factors can affect radio reception: • Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.
  • Page 57 Controls and features 5. START, cranks the engine. Release the key as soon as the engine starts. HAZARD FLASHER For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter. TURN SIGNAL CONTROL • Push down to activate the left turn signal.
  • Page 58 Controls and features To turn speed control off • Press OFF or • Turn off the vehicle ignition. Once speed control is switched off, the previously programmed set speed will be erased. To set a speed • Press SET/SET ACC/SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater...
  • Page 59 Controls and features To set a higher set speed • Press and hold SET/SET ACC/SET ACCEL. Release the control when the desired vehicle speed is reached or • Press and release SET/SET ACC/SET ACCEL. Each press will increase the set speed by 1.6 km/h (1 mph) or •...
  • Page 60 Controls and features To disengage speed control • Depress the brake pedal. Disengaging the speed control will not erase the previously programmed set speed. Pressing OFF will erase the previously programmed set speed. To return to a previously set speed •...
  • Page 61 Controls and features TILT STEERING Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control. Never adjust the steering wheel when the vehicle is moving. WINDSHIELD WIPER/WASHER CONTROLS Rotate the windshield wiper control to the desired interval, low or high...
  • Page 62 Controls and features Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use. OVERDRIVE CONTROL Activating overdrive (Overdrive) is the normal drive position for the best fuel economy. The overdrive function allows automatic upshifts to second, third and fourth gear.
  • Page 63 Controls and features INTERIOR LAMPS Cargo and dome lamps Rear cargo lamps equipped with an ON/OFF/DOOR control will light when: • the doors are closed and the control is in the ON position. • the control is in the DOOR position and any door is open.
  • Page 64 Controls and features • Press the bottom portion of the rocker switch to open. POWER DOOR LOCKS (IF EQUIPPED) Press U to unlock all doors and L to lock all doors. Memory lock If you lock your doors with the power lock switch or the remote transmitter while the sliding door is open, the door will automatically lock after it is closed.
  • Page 65 Controls and features POWER SIDE VIEW MIRRORS (IF EQUIPPED) To adjust your mirrors: 1. Select to adjust the left mirror or to adjust the right mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place. REMOTE ENTRY SYSTEM (IF EQUIPPED) The remote entry system allows you to lock or unlock all vehicle doors without a key.
  • Page 66 Controls and features • Type B Press this control to unlock the driver’s door. The interior lamps will illuminate. Press the control a second time within three seconds to unlock all doors. Locking the doors • Type A Press this control to lock all doors. To confirm all doors are closed and locked, press the control a second time within five seconds.
  • Page 67 Controls and features Sounding a panic alarm • Type A • Type B Press this control to activate the alarm. To deactivate the alarm, press the control again or turn the ignition to ACC or ON. This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada.
  • Page 68 Controls and features To replace the batteries: 1. Twist a thin coin between the two halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART. 2. Place the positive (+) side of new batteries down.
  • Page 69 Controls and features Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement. Replacing lost transmitters • Type A Take all your vehicle’s transmitters to your dealer if service is required. If you purchase additional transmitters (up to four may be programmed), perform the following...
  • Page 70 Controls and features Illuminated entry The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm. The system automatically turns off after 25 seconds or when the ignition is turned to the RUN or ACC position. The dome lamp control (if equipped) must not be set to the OFF position for the illuminated entry system to operate.
  • Page 71: Seating And Safety Restraints

    Seating and safety restraints SEATING Adjusting the front manual seat Never adjust the driver’s seat or seatback when the vehicle is moving. Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop. Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
  • Page 72 Seating and safety restraints Adjusting the front power seat (if equipped) Never adjust the driver’s seat or seatback when the vehicle is moving. Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop. Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
  • Page 73 Seating and safety restraints Using the manual lumbar support Turn the lumbar support control clockwise to increase firmness. Turn the lumbar support control counterclockwise to increase softness. Rear bench seat To remove the seats: 1. Disengage the lap/shoulder belt from the seat by inserting a key or small screwdriver into the slot in the detachable anchor and lifting upward.
  • Page 74 Seating and safety restraints Stow the tongue end of the detachable anchor. 2. Lift and rotate the LH/RH seat latch handles rearward. 3. Lift the LH/RH latch rod hook ends out of the locking holes in the front strikers. 4. Move the seat rearward and lift the seats rear hooks away from the rear strikers prior to lifting the front hooks out from the front strikers.
  • Page 75 Seating and safety restraints Always latch the vehicle seat to the floor, whether the seat is occupied or empty. If not latched, the seat may cause injury during a sudden stop. Quick release captains chair To remove the seats: 1. Disengage the lap/shoulder belt from the seat by inserting a key or small screwdriver into the slot in the detachable anchor and lifting...
  • Page 76 Seating and safety restraints 2. Pull the seat latch handle, then pull the seat toward the right side of the vehicle to disengage four pins from the floor mount. 3. Remove the seat. To install the seats: Check to see that the seat and seatback is latched securely in position.
  • Page 77 Seating and safety restraints Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision. All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag SRS is provided.
  • Page 78 Seating and safety restraints 2. To unfasten, push the release button and remove the tongue from the buckle. The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front and rear seat passenger outboard safety belts have two types of locking modes described below: Vehicle sensitive mode The vehicle sensitive mode is the normal retractor mode, allowing free...
  • Page 79 Seating and safety restraints How to use the automatic locking mode • Buckle the combination lap and shoulder belt. • Grasp the shoulder portion and pull downward until the entire belt is extracted. • Allow the belt to retract. As the belt retracts, you will hear a clicking sound.
  • Page 80 Seating and safety restraints The safety belt pretensioner uses the same crash sensor system as the air bag supplemental restraint system (SRS). When the safety belt pretensioner deploys, webbing from the lap and shoulder safety belt is tightened. Front safety belt height adjustment Your vehicle has safety belt height adjustments for the driver and front passenger.
  • Page 81 Seating and safety restraints Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle.
  • Page 82 (slide bar)(if equipped), shoulder belt height adjusters (if equipped), child safety seat tether bracket assemblies (if equipped), and attaching hardware, should be inspected after a collision. Ford recommends that all safety belt assemblies used in vehicles involved in a collision be replaced.
  • Page 83 Seating and safety restraints AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) FAN HI VENT NORM COOL WARM P R N D 2 1 FM 1 VOL-PUSH ON FM 1 BASS TREB FADE SEEK DOLBY 8 NR SCAN TAPE TUNE ACCEL SIDE 1-2 COAST Important supplemental restraint system (SRS) precautions The supplemental restraint system...
  • Page 84 Do not attempt to service, repair, or modify the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln-Mercury dealer. Children and air bags...
  • Page 85 Seating and safety restraints How does the air bag supplemental restraint system work? The air bag SRS is designed to activate when the vehicle sustains sufficient longitudinal deceleration sufficient to cause the sensors to close an electrical circuit that initiates air bag inflation. The fact that the air bags did not inflate in a collision does not mean that something is wrong with the...
  • Page 86 Seating and safety restraints Several air bag system components get hot after inflation. Do not touch them after inflation. If the air bag is deployed, the air bag will not function again and must be replaced immediately. If the air bag is not replaced, the unrepaired area will increase the risk of injury in a collision.
  • Page 87 Forward facing convertible safety seats can be used in the center of the three-passenger second row bench seat only if a top tether strap is used. Ford recommends placing forward-facing safety seats in the second row and using safety seats with top tether straps for added protection.
  • Page 88 To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.
  • Page 89 Seating and safety restraints SAFETY SEATS FOR CHILDREN Child and infant or child safety seats Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.
  • Page 90 Seating and safety restraints Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage. For more information on top tether straps, refer to Attaching safety seats with tether straps.
  • Page 91 Seating and safety restraints 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions.
  • Page 92 Seating and safety restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
  • Page 93 Seating and safety restraints Attaching safety seats with tether straps Some manufacturers make safety seats that include a tether strap that goes over the back of the vehicle seat and attaches to an anchoring point. Other manufacturers offer the tether strap as an accessory. Contact the manufacturer of your child safety seat for information about ordering a tether strap.
  • Page 94 Seating and safety restraints 1. Position the child safety seat on the front right-hand passenger seat. 2. Adjust the front right-hand passenger seat full forward. 3. Route the child safety seat tether strap over the back of the front right-hand passenger seat as shown. 4.
  • Page 95 Seating and safety restraints 5. Rotate the tether strap as shown. 6. Clip the tether strap to the seat pedestal as shown. Do not clip the tether strap to the seat pedestal as shown. If the tether strap is clipped incorrectly (as shown) the child safety seat may not be retained properly in the event of a...
  • Page 96 Seating and safety restraints 7. Rotate the tether strap clip as shown. 8. Adjust the front right-hand passenger seat to the full rearward position. 9. Refer to the instructions in this section under Installing child safety seats in combination lap and shoulder belt seating positions to secure the child safety seat.
  • Page 97 Attachment holes have been provided in your vehicle to attach anchor hardware, if required. Tether anchor hardware kits (Part No. 613D74) including instructions, may be obtained at no charge from any Ford dealer. • Second row bucket seats (at rear of lower seat frame) •...
  • Page 98: Starting

    Starting PREPARING TO START YOUR VEHICLE Engine starting is controlled by the ignition system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise. When starting a fuel-injected engine, avoid pressing the accelerator before or during starting.
  • Page 99 Starting 2. Make sure the headlamps and vehicle accessories are off. Type A PUSH PUSH HOOD Type B 3. Make sure the parking brake is set. 4. Make sure the gearshift is in P (Park). 5. Turn the key to 4 (ON) without turning the key to 5 (START).
  • Page 100 Starting 50 60 0 0 0 0 0 0 km/h 0 0 0 0 SERVICE BRAKE ENGINE SOON Make sure the corresponding lights illuminate briefly. If a light fails to illuminate, have the vehicle serviced. • If the driver’s safety belt is fastened, the light will not illuminate.
  • Page 101 Starting Using the engine block heater (if equipped) An engine block heater warms the engine coolant, which improves starting, warms up the engine faster and allows the heater-defroster system to respond quickly. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach –23°C (–10°F) or below.
  • Page 102 Starting Important ventilating information If the engine is idling while the vehicle is stopped in an open area for long periods of time, open the windows at least 2.5 cm (one inch). Adjust the heating or air conditioning (if equipped) to bring in fresh air. Improve vehicle ventilation by keeping all air inlet vents clear of snow, leaves and other debris.
  • Page 103: Driving

    Driving BRAKES Your service brakes are self-adjusting. Refer to the “Service Guide” for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied.
  • Page 104 Driving ABS warning lamp warning lamp in the instrument cluster momentarily illuminates when the ignition is turned on and the engine is off. If the light does not illuminate momentarily at start up, remains on or continues to flash, the ABS needs to be serviced.
  • Page 105 Driving RABS warning lamp warning lamp in the instrument cluster illuminates if a RABS fault is detected. Have your vehicle serviced as soon as possible. Normal braking is still effective unless the BRAKE warning lamp is BRAKE also illuminated. Using RABS •...
  • Page 106 Driving •Type B Apply the parking brake whenever the vehicle is parked. Push pedal downward to set the parking brake. The BRAKE warning lamp in the BRAKE instrument cluster illuminates and remains illuminated (when the ignition is turned ON) until the parking brake is released.
  • Page 107 Driving •Type B Pull the release lever to release the parking brake. Driving with the parking brake on will cause the brakes to wear out quickly and reduce fuel economy. STEERING Your vehicle is equipped with power steering. Power steering uses energy from the engine to help steer the vehicle.
  • Page 108 Driving TRACTION-LOK AXLE (IF EQUIPPED) This axle provides added traction on slippery surfaces, particularly when one wheel is on a poor traction surface. Under normal conditions, the Traction-Lok axle functions like a standard rear axle. Extended use of other than the manufacturer’s specified size tires on a Traction-Lok rear axle could result in a permanent reduction in effectiveness.
  • Page 109 Driving Do not rock the vehicle for more than a few minutes. The transmission and tires may be damaged or the engine may overheat. Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn off the ignition whenever you leave your vehicle.
  • Page 110 Driving R (Reverse) With the gearshift in R (Reverse), the vehicle will move backward. Always come to a complete stop before shifting into and out of R (Reverse). N (Neutral) With the gearshift in N (Neutral), the vehicle can be started and is free to roll.
  • Page 111 Driving Each time the vehicle is started, the transmission will automatically return to normal overdrive mode. Every time the vehicle is shut off and restarted, you must press the transmission control switch to cancel overdrive operation if driving in overdrive is not desired. 2 (Second) Use 2 (Second) to start-up on slippery roads or to provide...
  • Page 112 Driving • GCWR (Gross Combined Weight Rating) : Maximum combined weight of towing vehicle (including passengers and cargo) and the trailer. The GCWR indicates the maximum loaded weight that the vehicle is designed to tow. • Maximum Trailer Weight Rating : Maximum weight of a trailer the vehicle is permitted to tow.
  • Page 113 Driving your vehicle including both Gross Vehicle Weight and Front and Rear Gross Axle Weight Rating limits. Under no circumstance should these limitations be exceeded. Exceeding any vehicle weight rating limitation could result in serious damage to the vehicle and/or personal injury. Calculating the load your vehicle can carry/tow 1.
  • Page 114 Driving Trailer Towing Table GCWR (Gross Combined Weight Rating)/Trailer Weights Trailer weight Maximum Rear Maximum range-kg Frontal Area Engine axle GCWR-kg (lbs.) Of Trailer-m ratio (lbs.) (0-Maximum) Regular Van E-150 4 536 4.2L 3.55 2 313 (5 100) 5.52 (60) (10 000) 5 216 4.6L...
  • Page 115 Driving Trailer Towing Table GCWR (Gross Combined Weight Rating)/Trailer Weights Trailer weight Maximum Rear Maximum range-kg Frontal Area Engine axle GCWR-kg (lbs.) Of Trailer-m ratio (lbs.) (0-Maximum) 5 897 5.4L 3.73 3 356 (7 400) 5.52 (60) (13 000) Regular Van E-350 5 443 5.4L 3.55...
  • Page 116 Driving Trailer Towing Table GCWR (Gross Combined Weight Rating)/Trailer Weights Trailer weight Maximum Rear Maximum range-kg Frontal Area Engine axle GCWR-kg (lbs.) Of Trailer-m ratio (lbs.) (0-Maximum) Club Wagon E-150 (8 passenger) 4 536 4.2L 3.55 2 132 (4 700) 5.52 (60) (10 000) 5 216...
  • Page 117 Driving Trailer Towing Table GCWR (Gross Combined Weight Rating)/Trailer Weights Trailer weight Maximum Rear Maximum range-kg Frontal Area Engine axle GCWR-kg (lbs.) Of Trailer-m ratio (lbs.) (0-Maximum) 8 392 6.8L 4.10 4 536 (10 000) 5.52 (60) (18 500) 7.3L 7 258 3.55 4 173 (9 200)
  • Page 118 Driving Trailer Towing Table GCWR (Gross Combined Weight Rating)/Trailer Weights Trailer weight Maximum Rear Maximum range-kg Frontal Area Engine axle GCWR-kg (lbs.) Of Trailer-m ratio (lbs.) (0-Maximum) E-Super Duty 9 072 6.8L 4.63 4 536 (10 000) 5.52 (60) (20 000) 7.3L 9 072 4.10...
  • Page 119 Driving Your vehicle’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available space when loading a vehicle. Distribute the load so that only 10 to 15% of the total is on the tongue. Tie down the load so that it does not shift and change the weight on the hitch.
  • Page 120 Driving Trailer brakes Electric brakes and manual, automatic or surge-type brakes are safe if installed properly and adjusted to the manufacturer’s specifications. The trailer brakes must meet local and Federal regulations. Do not connect a trailer’s hydraulic brake system directly to your vehicle’s brake system.
  • Page 121 Driving OFF) on moderately steep hills, Second (2) on steep hills, and First (1) on very steep hills. Servicing after towing If you tow a trailer for long distances, your vehicle will require more frequent service intervals. Refer to your maintenance guide and or service guide for more information.
  • Page 122 Driving Replace the rear axle lubricant anytime the axle has been submerged in water. Rear axle lubricant quantities are not to be checked or changed unless a leak is suspected or repair required. Disconnect the wiring to the trailer before backing the trailer into the water.
  • Page 123: Roadside Emergencies

    Roadside emergencies HAZARD LIGHTS CONTROL Use only in an emergency to warn traffic of vehicle breakdown, approaching danger, etc. The hazard flashers can be operated when the ignition is off. • The hazard lights control is located on top of the steering column.
  • Page 124 Roadside emergencies The fuel pump shut-off switch is located in the passenger’s foot well, behind the kick panel, except for commercial stripped chassis vehicles.
  • Page 125 Roadside emergencies For commercial stripped chassis vehicles, the fuel pump shut-off switch is located on a bracket above the brake pedal. FUSES AND RELAYS Fuses If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse.
  • Page 126 Roadside emergencies Standard fuse amperage rating and color COLOR Cartrigde Fuse Mini Standard Maxi Fuse Link Maxi Rating Fuses Fuses Fuses Cartridge Fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
  • Page 127 Roadside emergencies The fuses are coded as follows. Fuse/Relay Fuse Amp Description Location Rating RABS/4WABS Module Brake Warning Diode/Resistor, Instrument Cluster, Warning Chime, 4WABS Relay, Warning Indicators Main Light Switch, RKE Module, Radio Power Locks w/RKE, Illuminated Entry, Warning Chime, Modified Vehicle, Power Mirrors, Main Light Switch, Courtesy Lamps RKE Module, Power Lock Switches, Memory Lock, Power Locks with RKE...
  • Page 128 Roadside emergencies Fuse/Relay Fuse Amp Description Location Rating Radio Capacitor(s), Ignition Coil, PCM Diode, PCM Power Relay, Fuel Heater, Glow Plug Relay (Diesel Only) Wiper Control Module, Windshield Wiper Motor Main Light Switch, (External Lamps) Multi-Function Switch (Flash-to-pass) Brake Pressure Switch, Multi-Function Switch (Hazards), RABS, Brake Pedal Position Switch Transmission Range (TR) Sensor, Auxiliary...
  • Page 129: Servicing

    Roadside emergencies Fuse/Relay Fuse Amp Description Location Rating Right Headlamp (Low Beam), DRL — Not Used — Not Used Transmission Range (TR) Sensor — Not Used (Cluster, A/C, Illumination, Radio), Steering Column Assembly — Not Used Air Bag Diagnostic Monitor —...
  • Page 130 Roadside emergencies The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Description Location Rating — Not Used — Not Used — Not Used PCM Keep Alive Memory, Instrument Cluster Right Trailer Turn Signal Left Trailer Turn Signal — Not Used I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28 PCM Power Relay, Engine Compartment Fuse 4...
  • Page 131 Roadside emergencies Fuse/Relay Fuse Amp Description Location Rating Trailer Running Lamps Relay, Trailer Backup Lamps Relay Main Light Switch RKE Module, Auxiliary Blower Motor Relay Fuel Pump Relay, IDM (Diesel) I/P Fuses 40, 41 4WABS Module Electric Brake Controller Modified Vehicle Power Trailer Battery Charge Relay (Modified Vehicles Only) Ignition Switch...
  • Page 132 Roadside emergencies CHANGING THE TIRES If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decrease your speed. Hold the steering wheel firmly and slowly move to a safe place on the side of the road. Spare tire information The spare tire for your vehicle is stowed under the rear of your vehicle (except cutaway and stripped chassis models).
  • Page 133 Roadside emergencies 3. Raise the tire by turning the wrench or handle clockwise. Continue until the lift mechanism “clicks.” 4. Check that the tire is tightly seated under the vehicle by pushing against the tire. Retighten as necessary. 5. Replace the access cover, anti-theft bracket and thumb screw.
  • Page 134 Roadside emergencies Type A PUSH PUSH HOOD Type B 4. Apply the parking brake and turn engine OFF. 5. Block the wheel that is diagonally opposite the tire you are changing. On E-Super Duty vehicles, the parking brake is on the transmission.
  • Page 135 Roadside emergencies 6. Remove the spare tire and jack from the storage location. 7. Use the tapered end of the lug nut wrench to unscrew wheel ornaments attached by retaining screws. Remove any wheel trim. Insert the tapered end of the lug nut wrench behind wheel covers or hubcaps and twist off.
  • Page 136 Roadside emergencies • Never use the front or rear differential as a jacking point. Rear axle jacking points: • All models except E-Super Duty • E-Super Duty...
  • Page 137 Roadside emergencies Front axle jacking points: • All models Place the jack under the pin on the front axle. 3. Turn the jack handle clockwise until the wheel is completely off the ground. 4. Remove the lug nuts with the lug nut wrench. 5.
  • Page 138 Wheel Lug nut Torque* N•M Ft-Lb E-150 1/2-20 E-250, E-350 9/16-18 and E-Super Duty * Torque specifications are for nut and bolt threads free of dirt and rust. Do not use oil or grease on threads. Use only Ford recommended replacement fasteners.
  • Page 139 Roadside emergencies JUMP STARTING YOUR VEHICLE The gases around the battery can explode if exposed to flames, sparks, or lit cigarettes. An explosion could result in injury or vehicle damage. Do not push start your vehicle. You could damage the catalytic converter.
  • Page 140 Roadside emergencies Connecting the jumper cables 1. Connect the positive (+) booster cable to the positive (+) terminal of the discharged battery. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery.
  • Page 141 Roadside emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor.
  • Page 142 Roadside emergencies Jump starting 1. Start the engine of the booster vehicle and run the engine at moderately increased speed. 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for a further three minutes before disconnecting the jumper cables.
  • Page 143 Roadside emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
  • Page 144 It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. A towing manual is available from Ford Motor Company for all authorized tow truck operators. Have your tow truck driver refer to this manual for...
  • Page 145: Maintenance And Care

    Maintenance and care SERVICE RECOMMENDATIONS To help you service your vehicle: • We highlight do-it-yourself items in the engine compartment for easy location. • We provide a “Service Guide” which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide necessary parts and service.
  • Page 146 Maintenance and care Do not start your engine with the air cleaner removed and do not remove it while the engine is running. OPENING THE HOOD 1. Inside the vehicle, pull the hood release handle located under the bottom left corner of the instrument panel.
  • Page 147 Maintenance and care IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT Engine compartment component locations 1. Windshield washer fluid reservoir 2. Engine oil filler cap 3. Automatic transmission fluid dipstick 4. Air filter assembly 5. Engine oil dipstick 6. Power steering fluid reservoir 7.
  • Page 148 Maintenance and care 3. Set the parking brake and ensure the gearshift is securely latched in P (Park). 4. Open the hood. Protect yourself from engine heat. 5. Locate and carefully remove the engine oil level indicator (dipstick). 6. Wipe the indicator clean. Insert the indicator fully, then remove it again.
  • Page 149 Change your engine oil and filter according to the appropriate schedule listed in the maintenance guide and or service guide. Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, startup engine noises or knock may be experienced.
  • Page 150 3. If necessary, add brake fluid until the level reaches MAX. Do not fill above this line. 4. Use only a DOT 3 brake fluid certified to meet Ford specifications. Refer to Lubricant specifications in the Capacities and specifications chapter. Brake fluid is toxic.
  • Page 151 Maintenance and care WINDSHIELD WASHER FLUID Checking and adding washer fluid Check the washer fluid whenever you stop for fuel. The reservoir is highlighted with a symbol. If the level is low, add enough fluid to fill the reservoir. In very cold weather, do not fill the reservoir all the way.
  • Page 152 Maintenance and care If the engine coolant has not been checked at the recommended interval, the engine coolant reservoir may become empty. If this occurs, add engine coolant to the reservoir. For more information on engine coolant maintenance, refer to Adding engine coolant in this chapter. Automotive fluids are not interchangeable;...
  • Page 153 Before adding engine coolant, check the color of the coolant in your vehicle. For vehicles with green coolant, use Ford Premium Cooling System Fluid E2FZ-19549–AA (in Canada, Motorcraft CXC-8–B) or an equivalent premium engine coolant that meets Ford specification ESE-M97B44–A.
  • Page 154 Maintenance and care Coolant refill capacity To find out how much fluid your vehicle’s cooling system can hold, refer to Refill capacities in the Capacities and specifications chapter. Have your dealer check the engine cooling system for leaks if you have to add more than 1.0 liter (1.0 quart) of engine coolant per month.
  • Page 155 Maintenance and care Continued operation will increase the engine temperature and the engine will completely shut down, causing steering and braking effort to increase. Once the engine temperature cools, the engine can be re-started. Take your vehicle to a service facility as soon as possible to minimize engine damage.
  • Page 156 Maintenance and care CHECKING AND ADDING POWER STEERING FLUID Check the power steering fluid. Refer to the maintenance guide and or service guide for the service interval schedules. If adding fluid is necessary, use only MERCON ATF. Check the fluid level when it is at ambient temperature, 20° – 80° F (-7°...
  • Page 157 Maintenance and care 6. If the fluid is low, add fluid in small amounts, continuously checking the level until it reaches the FULL COLD range. Be sure to put the dipstick back in the reservoir. TRANSMISSION FLUID Checking automatic transmission fluid Refer to your maintenance guide and or service guide for scheduled intervals for fluid checks and changes.
  • Page 158 Maintenance and care operating temperature can be reached after approximately 30 km (20 miles) of driving. However, you can check the fluid without driving if the outside temperatures are above 10°C (50°F). If fluid is added at this time, an overfill condition could result when the vehicle reaches normal operating temperature.
  • Page 159 Maintenance and care DRIVELINE UNIVERSAL JOINT AND SLIP YOKE Your vehicle may be equipped with universal joints that require lubrication. Refer to the maintenance guide and or service guide for maintenance intervals. If the original universal joints are replaced with universal joints equipped with grease fittings, lubrication will also be necessary.
  • Page 160 Maintenance and care Batteries normally produce explosive gases which can cause personal injury. Therefore, do not allow flames, sparks or lighted substances to come near the battery. When working near the battery, always shield your face and protect your eyes. Always provide proper ventilation.
  • Page 161 Maintenance and care If the battery has been disconnected or a new battery has been installed, the clock and the preset radio stations must be reset once the battery is reconnected. • Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal.
  • Page 162 Maintenance and care Gasoline engines Disconnect: 1. Disconnect the primary battery ground cable. 2. Disconnect the auxiliary battery frame ground. • Remove the ground bolt. • Pull the cable away from the frame and make sure that the cable does not contact the frame. Connect: 1.
  • Page 163 Maintenance and care 2. Reconnect the primary battery ground cable. Diesel engines Disconnect: Secondary positive cable remains energized after disconnection. make sure the tool does not contact any ground surface. 1. Disconnect the secondary positive cable from the primary battery terminal.
  • Page 164 Maintenance and care 3. Disconnect the primary battery ground cable. 4. Disconnect the primary battery positive cable. Connect: Secondary positive cable remains energized after disconnection. make sure the tool does not contact any ground surface. 1. Reconnect the primary battery positive cable.
  • Page 165 Maintenance and care WINDSHIELD WIPER BLADES Check the wiper blades at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades. Checking the wiper blades If the wiper blades do not wipe properly, clean both the windshield and wiper blades using undiluted windshield wiper solution or a mild...
  • Page 166 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford to give you the following information about tire grades exactly as the government has written it. Treadwear...
  • Page 167 Maintenance and care Temperature A B C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
  • Page 168 Maintenance and care • Four tire rotation • Five tire rotation...
  • Page 169 Maintenance and care Replacing the tires Replace the tires when the wear band is visible through the tire treads. Failure to follow these precautions may adversely affect the handling of the vehicle and make it easier for the driver to lose control and roll over.
  • Page 170 Maintenance and care • Remove the tire chains when they are no longer needed. Do not use tire chains on dry roads. • The suspension insulation and bumpers will help prevent vehicle damage. Do not remove these components from your vehicle when using snow tires and chains.
  • Page 171 Maintenance and care • Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind can lead to eye and respiratory tract irritation. In severe cases, excessive or prolonged breathing of fuel vapor can cause serious illness and permanent injury. •...
  • Page 172 It should not be necessary to add any aftermarket products to your fuel tank if you continue to use a high-quality fuel. Cleaner air Ford approves the use of gasolines to improve air quality, including reformulated gasolines that contain oxygenates up to 10% ethanol or 15% MTBE.
  • Page 173 If you must replace the fuel filler cap, replace it with a genuine Ford or Motorcraft part. The customer warranty may be void for any damage to the fuel tank or fuel system if a genuine Ford or Motorcraft fuel filler cap is not used.
  • Page 174 Maintenance and care Fuel Filter Your vehicle is equipped with a fuel filter that is mounted on the underbody. For fuel filter replacement, see your dealer or a qualified service technician. Refer to the maintenance guide and or service guide for the appropriate intervals for changing the fuel filter.
  • Page 175 Maintenance and care Filling the tank For consistent results: • Use the same filling rate setting (low — medium — high) each time the tank is filled. • Allow three automatic click-offs when filling. • Always use the recommended octane rating of a known quality gasoline, preferably a national brand.
  • Page 176 Maintenance and care Habits • Smooth, moderate operation can yield up to 10% savings in fuel. • Steady speeds without stopping will usually give the best fuel economy. • Idling for long periods of time (greater than one minute) may waste fuel.
  • Page 177 Maintenance and care Conditions • Heavily loading a vehicle or towing a trailer may reduce fuel economy at any speed. • Carrying unnecessary weight may reduce fuel economy (approximately 2 km/h [1 mpg] is lost for every 180 kg [400 lb] of weight carried). •...
  • Page 178 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
  • Page 179 Maintenance and care engine. This decal identifies engine displacement and gives some tune up specifications. Please consult your “Warranty Guide” for complete emission warranty information. Readiness for inspection/maintenance (I/M) testing In some localities, it may be a legal requirement to pass an I/M test of the on-board diagnostic (OBD-II) system.
  • Page 180 Maintenance and care Do not remove lamp bulbs unless they will be replaced immediately. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect performance. Replacing headlamp bulbs (aerodynamic) Handle a halogen headlamp bulb carefully and keep out of children’s reach.
  • Page 181 Maintenance and care To install the new bulb: 1. With the flat side of the bulb’s plastic base facing upward, insert the glass end of the bulb into the lamp assembly. You may need to turn the bulb left or right to align the grooves in the plastic base with the tabs in the lamp assembly.
  • Page 182 Maintenance and care High-mount brakelamp bulbs The interior cargo lamp (if equipped) will have to be removed from under the high-mount brakelamp assembly located inside the vehicle. To change the high-mount brakelamp bulbs: 1. Remove the two screws from the high-mount brakelamp assembly.
  • Page 183 • The headlamps do not seem to provide enough light for clear night vision. • The headlamp beams are pointed substantially away from a slightly down and to the right position. CLEANING AND CARING FOR YOUR VEHICLE Refer to the “Customer Assistance Guide” for a list of Ford-approved cleaners, polishes and waxes.
  • Page 184 Repairing paint chips Minor scratches or paint damage from road debris may be repaired with touch-up paint, repair foil or aerosol paint spray from the Ford accessory line. Observe the application instructions on the products. Remove particles such as bird droppings, tree sap, insect remains, tar...
  • Page 185 Maintenance and care Cleaning the wheels Wash with the same detergent as the body of your vehicle. Do not use acid-based or alcohol-based wheel cleaners, steel wool, fuel or strong detergents. Never use abrasives that will damage the finish of special wheel surfaces.
  • Page 186 Maintenance and care Cleaning plastic exterior parts Use vinyl cleaner for routine cleaning. Clean with a tar remover if necessary. Do not clean plastic parts with thinners, solvents or petroleum-based cleaners. Cleaning the exterior lamps Wash with the same detergent as the exterior of your vehicle. Use glass cleaner or tar remover if necessary.
  • Page 187 Maintenance and care Cleaning and maintaining the safety belts Clean the safety belts with a mild soap solution recommended for cleaning upholstery or carpets. Do not bleach or dye the belts, because these actions may weaken the belt webbing. Check the safety belt system periodically to make sure there are no nicks, wear or cuts.
  • Page 188: Capacities And Specifications

    Capacities and specifications MOTORCRAFT PART NUMBERS Com- 4.2L V6 4.6L V8 5.4L V8 6.8L V10 ponent* engine engine engine engine Air filter FA-1634 FA-1634 FA-1634 FA-1634 Battery BXT-65-650 BXT-65-650 BXT-65-650 BXT-65-650 (standard) Battery BXT-65-750 BXT-65-750 BXT-65-750 BXT-65-750 (optional) Battery BH-65DC BH-65DC BH-65DC BH-65DC...
  • Page 189 Capacities and specifications REFILL CAPACITIES Fluid Ford Part Application Capacity Name Brake fluid High Fill to line on Performance reservoir DOT 3 Motor Vehicle Brake Fluid Engine Motorcraft 5W30 5.7L oil-gasoline Super Premium (6.0 quarts) engine (includes Motor Oil filter change) Engine oil-diesel Refer to the 7.3L Power Stroke Direct Injection...
  • Page 190 Capacities and specifications Fluid Ford Part Application Capacity Name Power steering Motorcraft Keep in FULL fluid MERCON ATF range on dispstick Rear axle Refer to Ford 8.8/ 2.6-2.7L footnote 4 9.75 inch (5.5-5.8 pints) conventional and Traction-Lok Dana 9.75 inch 3.0L (6.3 pints)
  • Page 191 If your engine coolant is green in color, use Ford Premium Cooling System Fluid. If your coolant is orange in color, use Ford Extended Life Engine Coolant. Refer to Adding engine coolant, in the Maintenance and Care chapter.
  • Page 192 Capacities and specifications Ensure the correct automatic transmission fluid is used for a specific application. Check the container to verify the fluid is MERCON approved. Transmission fluid requirements are indicated on the dipstick handle. Refer to the maintenance guide and or service guide. Do NOT use any non-approved automatic transmission fluid for an application specifying MERCON .
  • Page 193 Capacities and specifications LUBRICANT SPECIFICATIONS Item Ford part Ford part Ford name number specification Brake fluid High Perfor- C6AZ-19542-AB ESA-M6C25-A mance DOT 3 and DOT 3 Motor Vehicle Brake Fluid Door Silicone C0AZ-19553-AA ESR-M13P4-A weatherstrips Lubricant F5AZ-19553-AA Engine coolant Ford Premium...
  • Page 194 Add 118 ml (4 oz.) of EST-M2C118–A (friction modifier Part No. C8AZ-19B546–A) for complete refill of Ford Traction-Lok rear axles. Add 237 ml (6 oz.) of EST-M2C118–A (friction modifier Part No. C8AZ-19B546–A) for complete refill of Dana Traction-Lok rear axles.
  • Page 195 Capacities and specifications ENGINE DATA 4.2L V6 4.6L V8 5.4L V8 6.8L V10 Engine* engine engine engine engine Cubic inches 256 200 @ 215 @ 235 @ 265 @ Horsepower 4800 rpm 4500 rpm 4450 rpm 4250 rpm 250 lb.-ft. @ 290 lb.-ft.
  • Page 196 Capacities and specifications...
  • Page 197 Capacities and specifications Cutaway/commercial stripped chassis models E-250 E-350 E-Super Duty (1) Overall Refer to Body Builder for specifications height (2) Track 1 762.8 mm 1 762.8 mm 1 762.8 mm front/rear (69.4 in)/ (69.4 in.)/ (69.4 in.)/ 1 701.8 mm SRW 1 701.8 1 973.6 mm (67.0 in)
  • Page 198 Capacities and specifications VEHICLE IDENTIFICATION NUMBER Complete Ford built vehicles The vehicle identification number is attached to your vehicle in the following places: • On the metal tag attached to the top of the instrument panel on the driver’s side.
  • Page 199: Reporting Safety Defects

    However, NHTSA cannot become involved in individual problems between you, your dealer or Ford Motor Company. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1–800–424–9393 (202–366–0123 in the Washington D.C.
  • Page 200: Index

    Index Air bag supplemental restraint checking and adding ....152 system ..........83 refill capacities ......154 and child safety seats ....84 Driveline universal joint and description ........83 slip yoke ........159 disposal ........87 Emission control system ..178 indicator light ......86 Engine passenger air bag .....85 coolant ........151 Automatic transmission idle speed control ....159...
  • Page 201 Index bulb specifications ....183 Odometer ........14 high beam ......11,15 Overdrive ........62 warning chime ......11 Panic alarm feature, remote Heating ........16 entry system ........67 auxiliary heater and air Parking brake ......105 conditioner ......21,22 Power distribution box heater only system ..16,17,18 (see Fuses) .......129 heating and air conditioning Power door locks ......64 system ......18,19,20...
  • Page 202 Index Steering wheel Trip odometer ......14 tilting .........61 Vehicle dimensions ....195,197 Tires ........166,167 Vehicle Identification Number changing ......132,133 (VIN) ..........198 checking the pressure ....167 Vehicle loading ......111 replacing ......135,169 Ventilating your vehicle ...102 rotating ........167 Warning chimes ......8 snow tires and chains ....169 Washer fluid ......151 tire grades .......167 reservoir ........151...
  • Page 208: Filling Station Information

    15.0L (15.9 quarts). Use Motorcraft fluid capacity-4R100 MERCON ATF. If your engine coolant is green in color, use Ford Premium Cooling System Fluid. If your engine coolant is orange in color, use Ford Extended Life Engine Coolant. Refer to Adding engine coolant, in the Maintenance and Care chapter.

This manual is also suitable for:

E150 1999

Table of Contents
