Service Manual

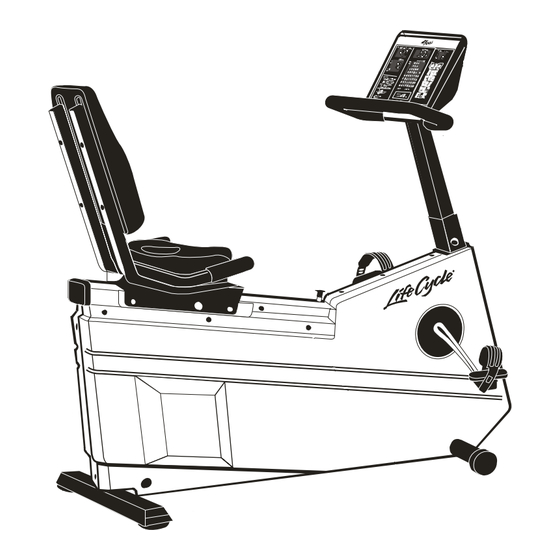

LC-9500R (RE)
Exercise Bike
Console Assembly
AK19-00106-0001(R) Eng/Eng
AK19-00106-0002(R) Eng/Met - R&R only
AK19-00106-0003(R) Ger/Met - R&R only
AK19-00106-0004(R) Spn/Met - R&R only
AK19-00106-0008(R) Itl/Met - R&R only
Levelers w/Pads (2)
SK18-00021-0000
Overlay Bezel
AK18-00192-0001 Eng/Eng
AK18-00192-0002 Eng/Met
AK18-00192-0003 Ger/Met
AK18-00192-0004 Spn/Met
AK18-00192-0008 Itl/Met
Seat Back
0K19-01078-0003
Pad Screw
0017-00101-1131
Washer
0017-00104-0253
Bottom Seat
0K19-01079-0003
Push/Pull Knob
0K14-01150-0000
Stabilizer Bar
SK18-00017-0000
Stabilizer End Cap
0K18-01008-0000
Shroud to Extrusion Screw
0017-00101-1159
1 of 3
GK19-00010-XXXX
Console Logo Decal
0K18-01178-0005
Console Case
0K18-01243-0003
Battery Door
0E09-00903-0002
Console Mounting
Screws
0017-00101-1104
Console Post w/Decal
SK19-00035-0000
Console Post Cap
0K19-01125-0000
rev. 06/21/05
Advertisement
Related Manuals for Life Fitness LC-9500R (RE)
Summary of Contents for Life Fitness LC-9500R (RE)
- Page 1 LC-9500R (RE) Exercise Bike Console Assembly AK19-00106-0001(R) Eng/Eng AK19-00106-0002(R) Eng/Met - R&R only AK19-00106-0003(R) Ger/Met - R&R only AK19-00106-0004(R) Spn/Met - R&R only AK19-00106-0008(R) Itl/Met - R&R only Seat Back 0K19-01078-0003 Pad Screw 0017-00101-1131 Washer 0017-00104-0253 Levelers w/Pads (2) SK18-00021-0000 Overlay Bezel AK18-00192-0001 Eng/Eng AK18-00192-0002 Eng/Met...
- Page 2 LC-9500R (RE) Exercise Bike Master Link Assembly GK18-00004-0002 End Cap 0K19-01208-0000 Seat Assembly w/o Back AK19-00034-0000 Alternator Control Assembly (NLA) AK19-00134-0000(R) Alternator Pull e y SK19-00070-0000 Freewheel Pulley Assembly 6 Vol t Battery AK17-00036-0000 0017-00003-0685 Tabbed Lockwasher 0K18-01280-0000 Crankarm Locknut 0K18-01059-0002 Bearing Nut, LT AK18-00029-0001...
