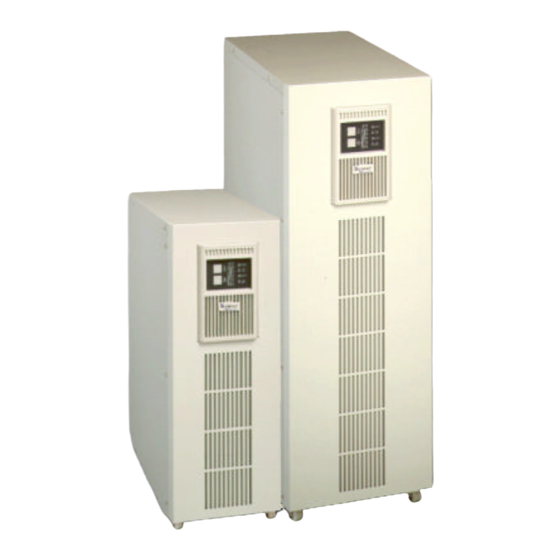

UPStation GXT™
6 & 10 kVA
208V & 240V
U
M
SER
ANUAL
English

Summary of Contents

  • Page 1

    UPStation GXT™ 6 & 10 kVA 208V & 240V ANUAL English...

  • Page 2

    Under no circumstances attempt to gain access internally, due to the risk of electric shock or burn. Do not continue to use the UPS if the front panel indications are not in accordance with these operating instructions, or the UPS performance alters in use.

  • Page 3

    10. Storing magnetic media on top of the UPS may result in data loss or corruption. 11. Turn the UPS off and isolate the UPS before cleaning. Use only a soft cloth, never liquid or aerosol cleaners. Keep the front and rear vents free of dust accumulation that could restrict airflow.

  • Page 4

    Silence/Manual Battery Test button, a combination Off/Bypass button, and two levels of alarms when the unit is operating on battery. The UPStation GXT has an interface port for communications between the UPS and a LAN server or other computer system.

  • Page 5

    AC power to regulated DC power for use by the inverter, while ensuring that the wave shape of the input current used by the UPS is near ideal. Extracting this sinewave input current achieves two objectives: the utility power is used as efficiently as possible by the UPS, and the amount of distortion reflected on the utility is reduced.

  • Page 6

    STATIC BYPASS The UPStation GXT provides an alternate path for utility power to the connected load, in the unlikely event of a UPS malfunction. Should the UPS have an overload, over temperature, or UPS failure condition, the UPS automatically transfers the connected load to BYPASS providing the bypass voltage is within specification.

  • Page 7

    Air vents are located at the front and the rear of the UPS. Do not position the UPS in an enclosed space where airflow is restricted. Allow at least 150mm (6...

  • Page 8

    The following information is provided for your guidance. On start-up, the UPS will take a half cycle inrush current of up to 3 times the rated current. This must be taken into account when selecting the overload protection device at the input Utility supply distribution point.

  • Page 9

    (protective earth) and grounding electrode conductor (power system earth connection) to reduce electrical noise and provide for safe operation of the UPS and connected loads. Conduit used alone without a grounding conductor wire is not an acceptable connection. Size ground (protective earth) conductors...

  • Page 10

    NOT separately derived sources under the NEC. The output L1 terminal is connected to the input L1 terminal and must not be connected to ground at the UPS (see NEC 250-5d, 250-26, 250.91, 250.92). CURRENT CONNECTION...

  • Page 11

    NOTES FOR GXT6000T / 10000T - 208 UPS ONLY The installer must provide circuit breaker protection according to local codes. The UTILITY disconnect must be within sight of the UPS. Maintain service space around the UPS or use flexible conduit.

  • Page 12

    GXT6000T / 10000T - 208X UPS ONLY Models whose part number ends with a “208X” are fitted with a single-phase isolating output transformer and are separately derived sources. The output neutral is already bonded to ground on the output terminals with a Bonding Jumper (see NEC 250-5d, 250-26, 250.91, 250.92).

  • Page 13

    NOTES FOR GXT6000T / 10000T - 208X UPS ONLY The installer must provide circuit breaker protection according to local codes. The utility disconnect must be within sight of the UPS. Maintain service space around the UPS or use flexible conduit.

  • Page 14

    OUTPUT @ 120V 83 AMPS BATTERY 44 AMPS SIZE GROUNDING (PROTECTIVE EARTH) CONDUCTORS EQUAL TO CIRCUIT CONDUCTORS INPUT UTILITY INPUT TO UPS NOTE 1 Grounding Electrode System or Protective Earth System GXT6000T-240X CONNECTIONS Recommended Wire Size 8 AWG (10 mm²) 8 AWG (10 mm²)

  • Page 15

    NOTES FOR GXT6000T / 10000T - 240X ONLY The installer must provide circuit breaker protection according to local codes. Maintain service space around the UPS or use flexible conduit. The installer must provide output distribution panels, circuit breaker protection, or emergency disconnect switches according to local codes.

  • Page 16

    STABILIZERS / LEVELING FEET When the UPS is located in its final position before or after wiring, it is necessary to fit stabilizer brackets and, if necessary, adjust the leveling feet. If the UPS is wired using a rigid wiring system, then movement of the UPS must be prevented by winding down the 4 leveling feet under the UPS as shown below.

  • Page 17

    FERRITE BEAD INSTALLATION When using either of the options below, to reduce the risk of radio interference, fit the ferrite assemblies supplied with the UPS as follows: Serial Communications Attach the smaller enclosed ferrite bead clamp to the communication cable as shown in the drawing using the following directions: Open the ferrite bead.

  • Page 18

    The UPS is now ready for service. In case of problems refer to the fault finding section or call your local distributor for advice. áá - both switches up 208 / 104 áâ...

  • Page 19

    Manual Battery Test Output OFF / Bypass Fault Indicator (Red) The Fault indicator is illuminated if the UPS has detected a problem. Also, one or more of the load/battery level indicators may be illuminated (refer to Troubleshooting Guide). BYPASS Indicator (Amber) The BYPASS indicator is illuminated when the UPS is operating from BYPASS power.

  • Page 20

    This button controls output power to connected load(s) and has three functions: UPS ON, Alarm Silence, and Manual Battery Test. To start the UPS, while in the BYPASS mode, press the ON button until the command is acknowledged by a beep from the audible alarm.

  • Page 21

    GXT 6 & 10 kVA Component Diagram 208 Models Shown DB-9 Communicaions Port Output Voltage Selector Switches Input Battery Breaker Breaker Hardwire Terminal Blocks Intellislot Communications Port Intellislot Communications Port Battery Breaker Output Breaker DB-9 Communications Port Output Voltage Selector Switches Breakers Input Output...

  • Page 22

    To increase this time, turn off non-essential pieces of equipment (such as idle computers and monitors) or add optional external battery cabinets. CAUTION: Turning off the UPS while in battery mode will result in loss of output power. Once utility power is restored, the UPS resumes normal operation. At this time, the Battery Charger begins recharging the battery.

  • Page 23

    Output power will be restored automatically upon restoration of utility. When the UPS is standing by in this mode with the utility power absent, all panel LEDs and cooling fans will turn off.

  • Page 24

    Ensure the load equipment is turned off, and all loads are properly connected to the UPS output. Verify that the utility supplying the UPS is turned on by closing any circuit breaker or switch on the supply side of the UPS.

  • Page 25

    AC LINE LED will be on. To isolate the UPS, turn off the INPUT, OUTPUT, and BATTERY breakers on the rear of the UPS. For complete isolation, turn off the utility to the UPS. ALTERNATE QUICK POWERING DOWN THE UPS The UPS will skip past BYPASS MODE OPERATION directly to OUTPUT OFF MODE OPERATION even with utility available.

  • Page 26

    MODE OPERATION. All LEDs will turn off and all power to the load will stop. 3. To isolate the UPS, turn off the INPUT, OUTPUT, and BATTERY breakers on the rear of the UPS. For complete isolation, turn off the AC supply to the UPS.

  • Page 27

    UPS INTELLIGENT COMMUNICATIONS The UPStation GXT UPS has the capability to communicate intelligently with stand alone computers, network workstations, network servers, or UNIX hosts via the DB-9 socket located at the rear of the UPS. By purchasing the optional Liebert SiteNet®...

  • Page 28

    COMMUNICATIONS INTERFACE PORT The UPStation GXT UPS contains a standard DB-9 socket located on the rear of the UPS unit. Several signals are provided on this port and are assigned as follows: ASSIGNMENT DESCRIPTION Low Battery (open collector) UPS TxD (typical RS-232 levels) UPS RxD (typical RS-232 levels) Remote Shutdown (5-12V);...

  • Page 29

    UPStation GXT develops a problem. Use this information to determine whether external factors cause the problem and how to remedy the situation. 1. The fault indicator will illuminate indicating the UPS detected a problem. 2. An alarm will sound, alerting that the UPS requires attention.

  • Page 30

    DC Bus over voltage (bypass) PFC failure (bypass) Inverter failure Battery Test failure TROUBLESHOOTING GUIDE PROBLEM UPS fails to start when on button is pressed Battery indicator is illuminated UPS has reduced battery time One short beep every ten seconds...

  • Page 31

    Fault indicators and diagnostic LED C & E are illuminated CAUSE UPS overloaded or load equipment is faulty UPS internal fan has a problem or UPS shutdown due to temperature condition. Load is on bypass power. UPS internal DC bus over voltage UPS PFC fault.

  • Page 32

    When storing the UPS for any length of time, it is recommended to apply power to the UPS for at least 24 hours every four to six months to ensure full recharge of the batteries. In no case should the unit be stored in excess of six months without recharge.

  • Page 33

    MODEL NUMBER MODEL RATING VA/W (max) DIMENSIONS: mm (in) Unit W x D x H Shipping W x D x H WEIGHT: kg (lbs) Unit Shipping INPUT AC PARAMETERS Voltage Range (typical) 100% - 90% Loading 90% - 70% Loading 70% - 30% Loading 30% - 0% Loading Frequency...

  • Page 34

    MODEL NUMBER MODEL RATING VA/W (max) DIMENSIONS: mm (in) Unit W x D x H Shipping W x D x H WEIGHT: kg (lbs) Unit Shipping INPUT AC PARAMETERS Voltage Range (typical) 100% - 90% Loading 90% - 70% Loading 70% - 30% Loading 30% - 0% Loading Frequency...

  • Page 35

    MODEL NUMBER MODEL RATING VA/W (max) DIMENSIONS: mm (in) Unit W x D x H Shipping W x D x H WEIGHT: kg (lbs) Unit Shipping INPUT AC PARAMETERS Voltage Range (typical) 100% - 90% Loading 90% - 70% Loading 70% - 30% Loading 30% - 0% Loading Frequency...

  • Page 36

    The battery must be recharged every four (4) to six (6) months when not in use. If the UPS fails to conform with the above warranty within the two year warranty period, Liebert will repair or replace the UPS, at Liebert's option.

  • Page 37

    Outside the U.S.A. Worldwide FAX tech support The Company Behind The Products With more than 500,000 installations around the globe, Liebert is the world leader in computer protection systems. founding in 1965, Liebert has developed a complete range of support and protection...
