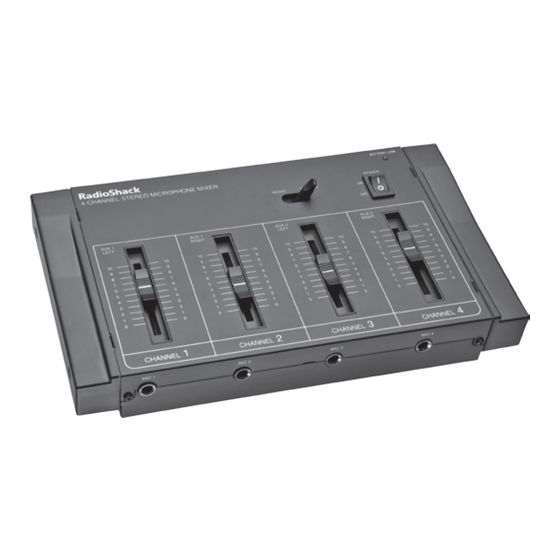

- Page 1 3200029 User’s Guide 4-Channel Stereo Microphone Mixer Thank you for purchasing your Microphone Mixer from RadioShack. Please read this user’s guide before installing, setting up, and using your new mixer.
-
Page 2: Battery Low
MONO/STEREO BATTERY LOW Indicator POWER Switch CHANNEL 1-4 MIC jacks DC 9V OUTPUT L/R AUX 2 L/R, AUX 1 L/R Connect to Connect to audio devices speaker system or recording device... -
Page 3: Package Contents
Package Contents • Mixer • User’s Guide Features • Connect up to two separate stereo or four separate mono sources to mix your sounds at the right levels. • Four slide-action channel faders allow maximum control over sound mixing. Power Your Mixer Install the Battery Insert one 9V battery (not supplied) in the battery compartment matching the polarity symbols (+ and –) marked inside. Battery Note: • Replace the battery when the Battery Low indicator lights. - Page 4 Use AC Power (Optional) Connect a 9V AC adapter (not supplied) to the DC 9V jack according to the marked polarity. Connect the other end to the power source. Note: • Always connect the AC adapter to the mixer before you connect it to AC power. When you finish, disconnect the adapter from AC power before you disconnect it from the mixer. • Using an adapter that does not meet the specifications could damage the mixer or adapter. Setup Preset the Mixer Important! To prevent accidental audio mixing or channel overdrive, set MONO/STEREO to MONO, set POWER ON/OFF to OFF, and slide Channels 1–4 to 0 before you connect to your power supply.
- Page 5 Connect the Mixer Use shielded audio cables (not supplied) for all input connections. Signals from connected input sources are routed to the corresponding channels on the mixer. Two stereo inputs Connect the line level outputs from one device to the mixer’s AUX 1 INPUT R and L jacks. Connect the line level outputs from the second device to the mixer’s AUX 2 INPUT R and L jacks. Four stereo sources as monaural inputs Use shielded Y-adapters (not supplied) at each source’s left and right outputs, and connect a separate stereo source to each input jack (AUX 1 R, AUX 1 L, AUX 2 R, or AUX 2 L) on the mixer. Four monaural inputs Connect each monaural device to each input jack (AUX 1 R, AUX 1 L, AUX 2 R, or AUX 2 L) on the mixer.
- Page 6 Output To play the mixer’s output through your speaker system, use an audio phono cable (not supplied) to connect the mixer’s OUTPUT L and R jacks to your receiver or amplifier’s line input jacks. Recording To record the mixer’s output, use an audio phono cable (not supplied) to connect the mixer’s OUTPUT L and R jacks to your recording device’s line input jacks. Use Your Mixer 1. Set the POWER switch to ON. To avoid popping sounds, always turn on the mixer before you turn on your amplifier. 2. Turn on the output amplifier and set its volume to the lowest level. 3. Set the audio input source’s volume to the lowest level. Turn on the source, and press Play (or continuously talk into the microphone). 4. Adjust the mixer’s corresponding CHANNEL 1, 2, 3, or 4 to level 6–10. When mixing more than one audio input, adjust each input’s volume to about the same listening level.
- Page 7 Mixing Mono or Stereo To mix mono signals with stereo signals, set STEREO/ MONO to STEREO. When STEREO/MONO is set to MONO: • The mixer routes monaural input signals of devices connected (separately) to the mixer’s AUX 1 L, AUX 1 R, AUX 2 L, AUX 2 R jacks to both outputs. • The mixer changes stereo input signals of devices connected to the mixer’s AUX 1 L/R and AUX 2 L/R jacks to monaural signals. For mono amplifiers (found in some PA systems), set MODE STEREO/MONO to MONO for best results. Voiceovers Talk into a microphone to mix pre-recorded music or sound from an audio input source with your voice.
-
Page 8: Specifications
Specifications Input Sensitivity: Mic ..................1.5 mV/600 ohm Line ..................150 mV/27k ohm Output Level at 10k Ohm Load .............1.2V Input Overload: Mic ................... more than 250 mV Line ..................more than 6V Distortion ................less than 0.2% Signal-to-Noise Radio ............. better than 60 dB Frequency Response ..........10~35,000 Hz ± 3 dB Power Requirements: DC ..................One 9V battery AC Adapter ............. Output: 9VDC, 100 mA Dimensions (H×W×D) ...... 2 3/16 × 10 5/8 × 6 5/16 inches ................... (5.5 × 27 × 16 cm) Weight ................1 lb 10.5 oz. (850 g) Specifications are subject to change and improvement without notice. - Page 9 (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 10 Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at: RadioShack Customer Relations, 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2012. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com Printed 04A12 are trademarks used by RadioShack Corporation. in China 3200029...
