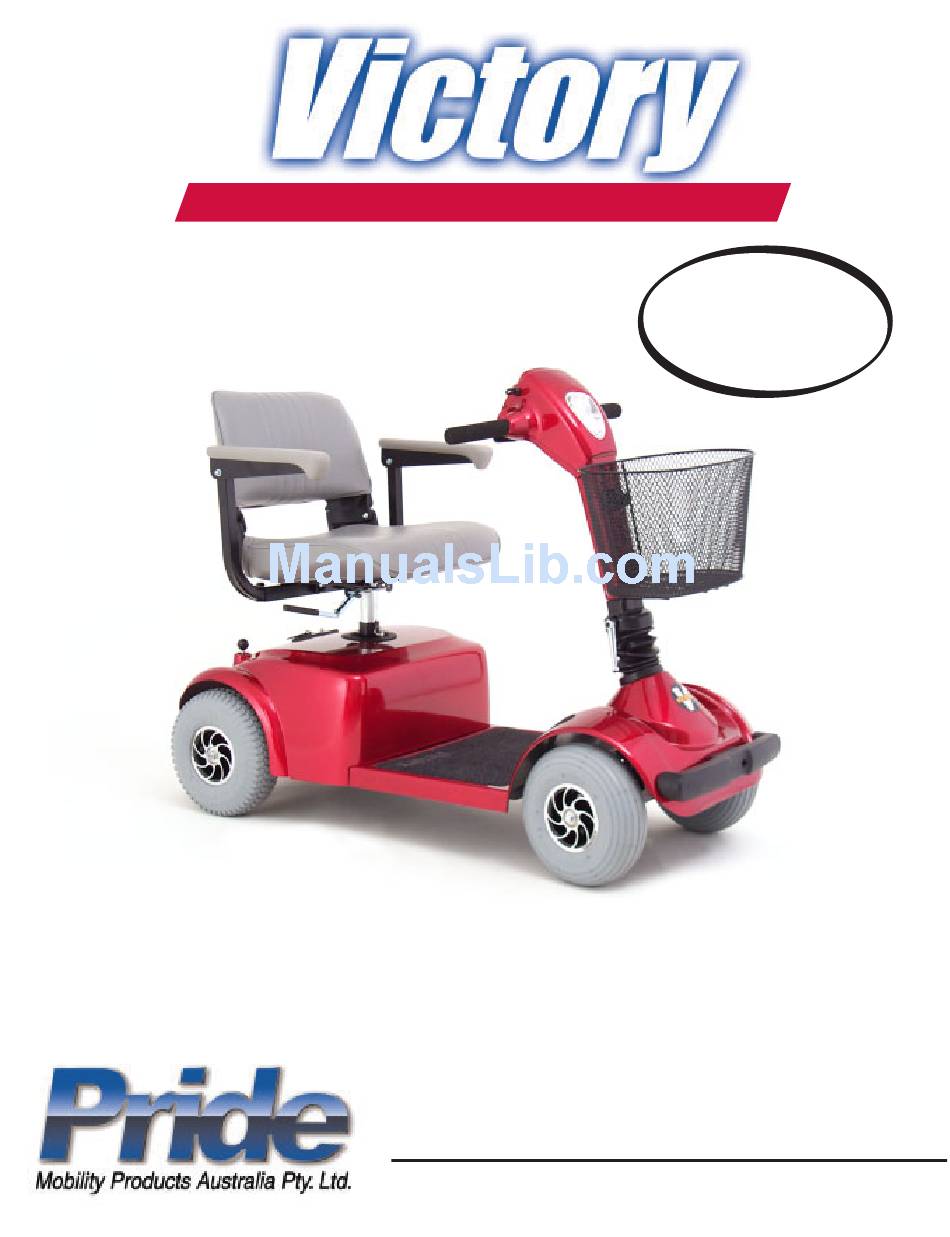

- Page 1 Owner’s Manual ATTENTION: Read everything in this manual before operating your Scooter The Ultimate In Style & Performance ® 21 Healey Road Dandenong, 3175 Victoria, Australia ACN # 088 609 661 www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your Scooter. Copyright © 2002 Pride Mobility Products Australia Pty. Ltd. INFMANU 1563/REV E/OCTOBER 2002...
-
Page 3: Table Of Contents
C O N T E N T S contents INTRODUCTION......................... 4 SAFETY ............................6 III. SPECIFICATIONS ........................9 IV. YOUR VICTORY ........................11 BATTERIES AND CHARGING .................... 16 VI. OPERATION ..........................20 VII. COMFORT ADJUSTMENTS....................22 VIII. DISASSEMBLY AND ASSEMBLY ..................24 IX. -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). Congratulations on the purchase of your new Pride Scooter. Your Scooter design combines the most advanced state-of-the-art components with modern, attractive styling. - Page 5 I N T R O D U C T I O N Pride Owners Club As a Pride product owner, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting Pride’s web site at www.pridemobility.com.
-
Page 6: Safety Precautions
I I . S A F E T Y You must read this entire manual and understand all of the safety precautions before you attempt to operate your new Victory for the first time. SAFETY PRECAUTIONS n Lock your seat into place and remove the key from the key switch before you get on or off of your Scooter. n Lock the seat into position before you operate your Scooter. - Page 7 I I . S A F E T Y WARNING! Do not operate your Scooter while you are under the influence of alcohol. Operating powered vehicles while you are under the influence of alcohol impairs your ability to operate your Scooter in a safe manner and may violate certain existing laws.
- Page 8 I I . S A F E T Y WARNING! These tests were conducted with the Victory’s seat in the highest position and adjusted backward on the seat base Do not exceed the incline guidelines or any other specifications presented in this manual. See pages to its farthest rearward position.
-
Page 9: Specifications
I I I . S P E C I F I C A T I O N S 39 cm 19 cm 46 cm - 51 cm 10 cm 119 cm Length (3 Wheel) 46 cm 124.5 cm Length (4 Wheel) 40.5 cm 53 - 73 cm 104 cm... - Page 10 I I I . S P E C I F I C A T I O N S Model Number(s) 3-wheel: SC1660AUS 4-wheel: SC1770AUS Available Colours Painted: Candy Apple Red, Viper Blue Overall Length (3-wheel) 119 cm Overall Length (4-wheel) 124.5 cm Overall Width 61 cm...
-
Page 11: Your Victory
I V . Y O U R V I C T O R Y Your Victory is a motorized electric Scooter designed to enhance your personal mobility. Your Victory is an indoor/ outdoor Scooter designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots, floors, and driveways. -
Page 12: Throttle Control Lever
I V . Y O U R V I C T O R Y BATTERY CONDITION METER KEY SWITCH SPEED ADJUSTMENT DIAL LIGHT SWITCH HORN BUTTON THROTTLE CONTROL THROTTLE CONTROL LEVER LEVER FIGURE 7. CONTROL CONSOLE ASSEMBLY Throttle Control Lever This lever allows you to control the forward speed and the reverse speed of your Victory up to the maximum speed preset on the speed adjustment dial. -
Page 13: Onboard Battery Charger
I V . Y O U R V I C T O R Y REAR SECTION The onboard battery charger, the charger power lead receptacle, the battery charger fuse, the batteries, the elec- tronic controller module, the main circuit breaker (reset button), the manual freewheel lever, and the motor/transaxle assembly are located on the rear section of your Victory. -
Page 14: Main Circuit Breaker
I V . Y O U R V I C T O R Y Batteries The batteries store the electrical energy that powers your Victory. See V. “Batteries and Charging.” Electronic Controller Module The electronic controller module is located behind the batteries and at the forward left corner of the Victory’s rear section. - Page 15 I V . Y O U R V I C T O R Y Manual Freewheel Lever Whenever you need or want to push your Victory for short distances, you can put it in manual freewheel mode. WARNING! Before placing your Victory into or taking it out of freewheel mode, make certain that the key is removed from the key switch.
-
Page 16: Batteries And Charging
B A T T E R I E S A N D C H A R G I N G Your Victory uses two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free. They are recharged by an onboard 2,5-amp charging system designed for ease of use and convenience. See figure 8. n Charge your Victory’s batteries prior to using it for the first time. - Page 17 B A T T E R I E S A N D C H A R G I N G With these considerations in mind, you can determine just how often and for how long you should charge your Victory’s batteries. We designed the onboard charger so that it does not overcharge your Scooter’s batteries. However, you may encounter some problems if you do not charge your batteries often enough and if you do not charge them on a regular basis.
- Page 18 B A T T E R I E S A N D C H A R G I N G To change a battery in your Victory: WARNING! Battery posts, terminals, and related accessories contain lead and lead com- pounds. Wash hands after handling. 1.
- Page 19 B A T T E R I E S A N D C H A R G I N G How can I ensure maximum battery life? Fully charged deep-cycle batteries provide reliable performance and extended battery life. Keep your Victory’s batteries fully charged whenever possible.
-
Page 20: Operation
V I . O P E R A T I O N GETTING ON YOUR VICTORY 1. Make certain that the key is removed from the key switch. 2. Stand at the side of your Victory. 3. Push forward on the seat lock lever and rotate the seat until it is facing you. 4. - Page 21 V I . O P E R A T I O N NOTE: The rear wheel drive transaxle gives your Victory maximum traction with minimal steering effort on your part. GETTING OFF OF YOUR VICTORY 1. Bring your Victory to a complete stop. 2.
-
Page 22: Comfort Adjustments
V I I . C O M F O R T A D J U S T M E N T S WARNING! Remove the key from the key switch before adjusting the tiller or the seat. Never attempt to adjust the tiller or the seat while the Scooter is in motion. TILLER ANGLE ADJUSTMENT You can adjust the tiller to many positions. - Page 23 V I I . C O M F O R T A D J U S T M E N T S FRONT-TO-BACK SEAT ADJUSTMENT SEAT You can reposition the Victory’s seat forward or rearward PLATFORM to one of three settings to adjust the distance between the seat and the tiller.
-
Page 24: V I I I . D I S A S S E M B L Y A N D A S S E M B L Y
V I I I . D I S A S S E M B L Y A N D A S S E M B L Y The Victory requires no tools for disassembly. Always disassemble or assemble your scooter on a level, dry surface with sufficient room for you to work and move around your scooter. - Page 25 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y Frame Separation 1. Push back on the seat post to pivot the scooter’s rear section backwards until the rear section is standing vertically on its rear bumper.
-
Page 26: Optional Accessories
I X . O P T I O N A L A C C E S S O R I E S For information concerning these optional accessories, see your authorized Pride provider. OXYGEN HOLDER DOUBLE CRUTCH HOLDER SINGLE CRUTCH HOLDER CANE/CRUTCH HOLDER WALKER HOLDER CANE/CRUTCH HOLDER... -
Page 27: Basic Troubleshooting
B A S I C T R O U B L E S H O O T I N G Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are worn down and can no longer hold a charge. -
Page 28: Care And Maintenance
X I . C A R E A N D M A I N T E N A N C E Your Victory requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride provider. -
Page 29: Warranty
X I I . W A R R A N T Y TWO-YEAR LIMITED WARRANTY Structural frame components, including: platform, fork, seat post, and frame welds. Drive train, including: differential, motor, and brake. ONE-YEAR LIMITED WARRANTY Your Pride Scooter is fully guaranteed for twelve (12) months from the date of purchase against faults arising due to defects in manufacture or materials.
