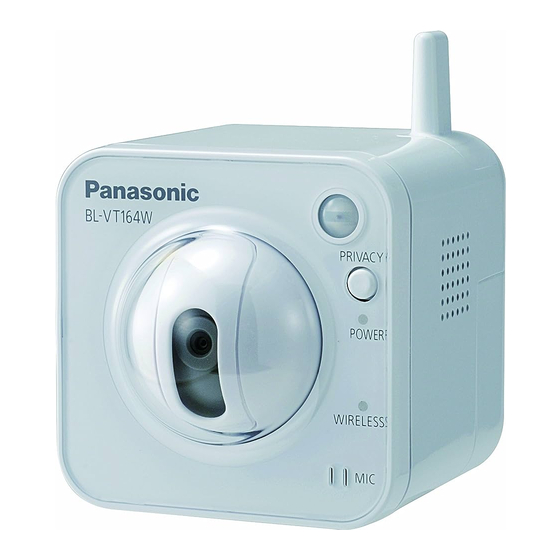

Panasonic BL-VT164W Quick Reference Manual

Connection
Step1
"Setup Will Not Work On A Mac
4
WPS Button
Router
(Cat-5 straight cable)
Internet Modem
PC
In case of Wired Connection
1. Connect the LAN cable to the camera and the router.
2. Connect the AC adaptor cord to the DC IN jack.
3. Plug the AC adaptor into the power outlet, then go to Step2.
In case of Wireless Connection
1. No LAN cable connection is required if router supports WPS.
2. Connect the AC adaptor cord to the DC IN jack.
3. Plug the AC adaptor into the power outlet.
Setting of the Camera with CD from PC
Step2
1. Insert the CD-ROM into your PC.
2. Click the [Run] of the IP Setting Software.
3. Select the camera you want to configure, and click [Access Camera].
4. The user authentication window will be
displayed and then enter the default
User name and Password, and log in.
5. Setup is completed. For the operation, please refer to O/I in the CD-ROM.
If the setup does not complete successfully, please see the following Website for FAQ.
http://panasonic.net/pss/security/support/info.html
Quick Reference Guide for Setup
®
"
1
5
2
Wireless Button
(WPS Button)*1
LAN cable
To the Power Outlet
3
AC adaptor
User name: admin
Password : 12345
BL-VT164W
*1: WPS(Wi-Fi Protected Setup) is a computing standard that attempts to allow
easy establishment of a secure wireless home network.
4. If your router has a WPS
of the wireless router.
If NO WPS function on your router, please connect the LAN cable as the
Wired Connection. (For detail information, refer to the operating instructions
of the wireless router)
5. Press and hold down the WIRELESS button of the camera for
a second or more until the indicator blinks orange.
It will restart, if this is successful. Please wait for about 2 minutes.
6. The WIRELESS indicator turns Green, then go to Step2.
*1
If it's not turning Green indicator, you may need to check a Wireless router
configuration or see the following Website for FAQ.
http://panasonic.net/pss/security/support/info.html
BL-VP104W
Power Indicator
6
Wireless Indicator
(WPS indicator )
*1
function, press the button on the back
2
3
