GARAGE DOOR OPENER
Model 3585S 3/4 HP
For Residential Use Only
Owner's Manual
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System
®
is connected and properly aligned.
■ Periodic checks of the opener are required to ensure safe operation.
■ The model number label is located under the light lens on the left side panel of your opener.

Advertisement

Table of Contents
loading

Related Manuals for Chamberlain Elite 3585S 3/4 HP

Summary of Contents for Chamberlain Elite 3585S 3/4 HP

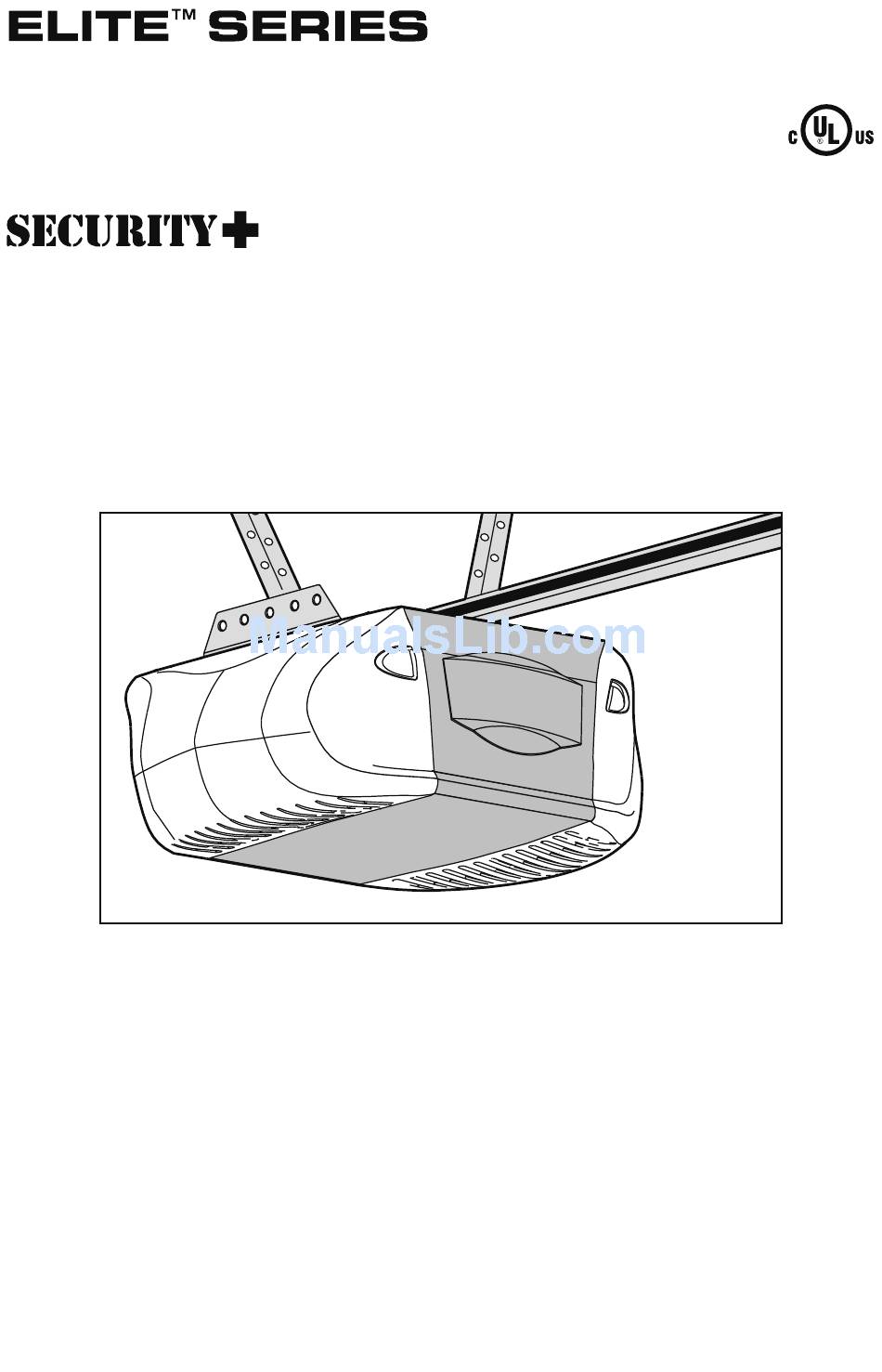

  • Page 1 The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196 www.liftmaster.com ® GARAGE DOOR OPENER Model 3585S 3/4 HP For Residential Use Only Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Adjustment 24-26 Safety symbol and signal word review ....2 Adjust the UP and DOWN travel limits ....24 Preparing your garage door .

  • Page 3: Preparing Your Garage Door

    Preparing your garage door Before you begin: • Disable locks. To prevent possible SERIOUS INJURY or DEATH: • ALWAYS call a trained door systems technician if • Remove any ropes connected to garage door. garage door binds, sticks, or is out of balance. An •...

  • Page 4: Planning

    Planning Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may fi nd it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

  • Page 5: Carton Inventory

    Carton Inventory Your garage door opener is packaged in two cartons which If anything is missing, carefully check the packing material. contain the motor unit and all parts illustrated below. Parts may be stuck in the foam. Hardware for installation Accessories will depend on the model purchased.

  • Page 6: Assembly

    ASSEMBLY STEP 1 Attach the Rail to the Motor Unit To avoid SERIOUS damage to opener, ONLY use bolts/ fasteners mounted in top of motor unit. To avoid installation diffi culties, do not run the garage door opener until instructed to do so. •...

  • Page 7: Attach The Belt Cap Retainer

    ASSEMBLY STEP 3 Attach the Belt Cap Retainer To avoid possible SERIOUS INJURY to fi ngers from moving garage door opener: • Position the belt cap retainer over the motor unit sprocket so the two holes in cap align with the two •...

  • Page 8: Determine The Header Bracket Location

    INSTALLATION STEP 1 Unfi nished OPTIONAL Ceiling Determine the Header Bracket Location CEILING MOUNT HEADER Header Wall BRACKET Vertical Centerline To prevent possible SERIOUS INJURY or DEATH: of Garage Door • Header bracket MUST be RIGIDLY fastened to Structural structural support on header wall or ceiling, Supports otherwise garage door might NOT reverse when required.

  • Page 9: Install The Header Bracket

    Wall Mounting Holes The nail hole is for INSTALLATION STEP 2 positioning only. You must use lag Install the Header Bracket screws to mount the header bracket. You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements.

  • Page 10: Attach The Rail To The Header Bracket

    INSTALLATION STEP 3 Attach the Rail to the Header Bracket • Position the opener on the garage fl oor below the header bracket. Use packing material as a protective Header Wall base. NOTE: If the door spring is in the way you’ll need help.

  • Page 11: Position The Opener

    INSTALLATION STEP 4 Position the Opener To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door. Follow instructions which apply to your door type as illustrated. SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK A 2x4 laid fl...

  • Page 12: Hang The Opener

    INSTALLATION STEP 5 Hang the Opener To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural Three representative installations are shown. Yours may supports of the garage. Concrete anchors MUST be be different. Hanging brackets should be angled used if installing ANY brackets into masonry.

  • Page 13: Install The Door Control

    INSTALLATION STEP 6 Install the Door Control To prevent possible SERIOUS INJURY or DEATH from Locate door control within sight of door, at a minimum electrocution: height of 5' (1.5 m) where small children cannot reach, • Be sure power is NOT connected BEFORE installing away from moving parts of door and door hardware.

  • Page 14: Install The Light

    INSTALLATION STEP 7 Install the Light To prevent possible OVERHEATING of the endpanel or light socket: • Press the release tabs on both sides of lens. Gently rotate lens back and downward until the lens hinge is in • DO NOT use short neck or specialty light bulbs. the fully open position.

  • Page 15: Electrical Requirements

    INSTALLATION STEP 9 Electrical Requirements To prevent possible SERIOUS INJURY or DEATH from electrocution or fi re: To avoid installation diffi culties, do not run the opener at this time. • Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing cover To reduce the risk of electric shock, your garage door to establish permanent wiring connection.

  • Page 16: Install The Protector System

    INSTALLATION STEP 10 ® Install The Protector System Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor. The safety reversing sensor must be connected and To prevent SERIOUS INJURY or DEATH from a closing aligned correctly before the garage door opener will garage door: move in the down direction.
  • Page 17 INSTALLING THE BRACKETS Figure 1 DOOR TRACK MOUNT (RIGHT SIDE) Be sure power to the opener is disconnected. Install Door and align the brackets so the sensors will face each other Track across the garage door, with the beam no higher than 6" (15 cm) above the fl...
  • Page 18 MOUNTING AND WIRING THE SAFETY Figure 5 REVERSING SENSORS Mounting: Wing Nut • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a Carriage Bolt bracket extension (Figure 5).
  • Page 19 Connect to garage door opener: • Strip 7/16" (11 mm) of insulation from each set of wires. Separate white and white/black wires suffi ciently to connect to the opener quick-connect terminals. Twist like colored wires together. Insert wires into quick-connect holes: white to white and white/black to grey (Figure 10).

  • Page 20: Fasten The Door Bracket

    INSTALLATION STEP 11 Fasten the Door Bracket Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation Follow instructions which apply to your door type as of door bracket. Contact your door manufacturer for illustrated below or on the following page. reinforcement kit.
  • Page 21 ONE-PIECE DOORS Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also. HARDWARE SHOWN ACTUAL SIZE • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.
  • Page 22 Inner Trolley INSTALLATION STEP 12 Connect Door Arm to Trolley Outer Trolley Follow instructions which apply to your door type as illustrated below and on the following page. Clevis Pin Ring 5/16"x1" SECTIONAL DOORS ONLY Fastener Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley.

  • Page 23: Connect The Door Arm To The Trolley

    ALL ONE-PIECE DOORS Figure 5 CORRECT INCORRECT 1. Assemble the door arm, Figure 5: IMPORTANT: The groove on the straight door arm Straight MUST face away from the curved door arm (Figure 5). Straight Door Door • Fasten the straight and curved door arm sections Curved Curved together to the longest possible length (with a 2 or 3...

  • Page 24: Adjustment

    ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Limits Without a properly installed safety reversal system, persons (particularly small children) could be Limit adjustment settings regulate the points at which the SERIOUSLY INJURED or KILLED by a closing garage door will stop when moving up or down.

  • Page 25: Adjust The Force

    ADJUSTMENT STEP 2 Adjust the Force Without a properly installed safety reversal system, Force adjustment controls are located on the back panel persons (particularly small children) could be of the motor unit. Force adjustment settings regulate the SERIOUSLY INJURED or KILLED by a closing garage amount of power required to open and close the door.

  • Page 26: Test The Safety Reversal System

    ADJUSTMENT STEP 3 Test the Safety Reversal System Without a properly installed safety reversal system, persons (particularly small children) could be TEST SERIOUSLY INJURED or KILLED by a closing garage • With the door fully open, place a 1-1/2" (3.8 cm) board door.

  • Page 27: Operation

    OPERATION IMPORTANT INSTALLATION INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL WARNINGS 9. If one control (force or travel limits) is adjusted, the AND INSTRUCTIONS. other control may also need adjustment. 2.

  • Page 28: Using The Wall-Mounted Door Control

    Using the Wall-Mounted Door Control (PROG) Learn Feature The door control is equipped with a PROG <LEARN> ® THE SMART CONTROL PANEL button to assist in learning remote controls to the unit. Press the PROG <LEARN> button once to initiate LEARN Press the push bar to open or close the door.

  • Page 29: Using The Remote Control

    Using the Remote Control The Remote Control Battery NOTE: To activate the remote control functions, pull out the plastic pull tab protruding from the remote control housing. To prevent possible SERIOUS INJURY or DEATH: This remote control is equipped with a proximity lighting feature.

  • Page 30: To Open The Door Manually

    To Open the Door Manually MAINTENANCE SCHEDULE Every Month • Manually operate door. If it is unbalanced or binding, call a trained door systems technician. To prevent possible SERIOUS INJURY or DEATH from • Check to be sure door opens and closes fully. Adjust a falling garage door: limits and/or force if necessary.

  • Page 31: Having A Problem

    HAVING A PROBLEM? Bell Wire 1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. •...

  • Page 32: Diagnostic Chart

    Bell Wire Diagnostics Located On Motor Unit Installed “Learn” Safety Reversing Button Sensor LED or Diagnostic Your garage door opener is programmed with self- diagnostic capabilities. The “Learn” button/diagnostic LED Safety Reversing Sensor will fl ash a number of times then pause signifying it has found a potential issue.

  • Page 33: Smart Control Panel Messages

    ® Smart Control Panel Messages The following messages are contained within the Smart Control Panel ® and may appear during the operations of the unit: Message Meaning: This message will appear if the Safety Reversing Sensors are out of alignment, if they are blocked or if the wiring is disconnected. To clear SAFETY SENSORS message from Smart Control Panel ®...

  • Page 34: Programming

    PROGRAMMING ® NOTICE: If this Security✚ garage door opener is operated with a non-rolling code transmitter, the technical measure in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.

  • Page 35: To Add, Reprogram Or Change A Keyless Entry Pin

    To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON USING THE SMART CONTROL PANEL ® NOTE: This method requires two people if the Keyless 1.

  • Page 36: Repair Parts

    REPAIR PARTS Rail Assembly Parts KEY PART NO. NO. DESCRIPTION 4A1008 Master link kit 41B5424 Belt pulley bracket 41B3869-3A Complete trolley assembly 2777BD One-piece T-rail 7' (2 m) 2778BD Complete Rail 8' (2.4 m) 2770BD Complete Rail 10' (3 m) 41A5434-11 Full belt assembly Installation Parts...

  • Page 37: Motor Unit Assembly Parts

    Motor Unit Assembly Parts LIMIT SWITCH Brown (Down) Contact ASSEMBLY Wire Grey Wire Drive Gear Center Limit (Up) Yellow Contact Contact Wire KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 41A4371 Belt Cap 41A5633-12 Cover 41A4885-5 Gear and sprocket assembly 41A2818 Limit switch drive &...

  • Page 38: Accessories

    3-Button Security✚ Remote Control : 990LM Surge Protector: Includes visor clip. The Garage Door Opener Surge Protector ® is designed to protect LiftMaster garage door openers against damage from lightning and power surges. 373LM 3-Button Security✚ ® Remote Control :...

  • Page 39: Notes

    NOTES...

  • Page 40: Repair Parts And Service

    6050 S. Country Club Road For professional installation, parts and service, Tucson, Arizona 85706 contact your local LIFTMASTER/CHAMBERLAIN dealer. SERVICE INFORMATION TOLL FREE NUMBER: Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.
