Heat pump water heater with airduct connection and 3-speed radial fan

Advertisement

Installation and Operating Manual
Heat Pump Water Heater
with Airduct Connection and 3-Speed Radial Fan
**
LBW 300 / LBW300LW
451902.67.37
FD8408

Advertisement

Table of Contents
loading

Summary of Contents for Dimplex LBW 300

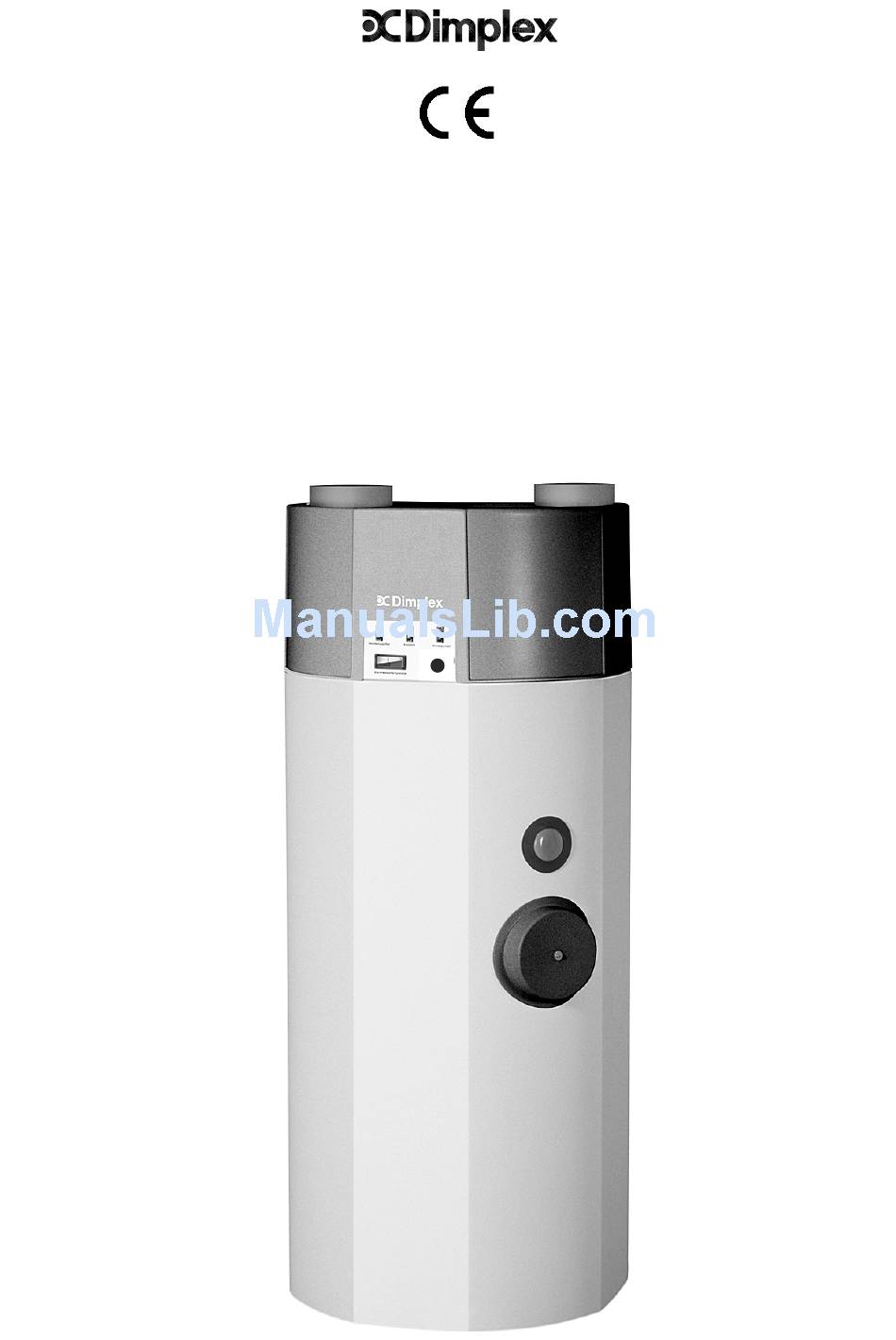

  • Page 1 Installation and Operating Manual Heat Pump Water Heater with Airduct Connection and 3-Speed Radial Fan LBW 300 / LBW300LW 451902.67.37 FD8408...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page REGULATIONS / SAFETY NOTICES DESCRIPTION Refrigeration Cycle Water Circuit Safety and Control Devices STORAGE / TRANSPORT General Requirements INSTALLATION Installation Site Installation MOUNTING Connection of Water Piping Connection of Condensate Line Electrical Connection COMMISSIONING Hot Water Circuit Operation of the Heat Pump Water Heater MAINTENANCE / SERVICE Water Circuit / Condensate Drain...
  • Page 3: Regulations / Safety Notices

    Regulations / Safety Notices This installation and operating manual must be read before the unit is started up! ¾ ¾ ¾ ¾ # # # # The heat pump water heater (HPWH) is designed exclusively for the heating of domestic or potable water within the specified operating temperature limits! The heating of liquids other than drinking water is not permissible.
  • Page 4: Description

    Description The HPWH is a heating appliance ready for connection and essentially consists of a domestic water tank, the components of the refrigeration, air and water circuits as well as all control, regulating and monitoring devices required for automatic operation. The desired fan speed (3 settings) can be selected via a wire-bound remote control.
  • Page 5: Water Circuit

    Water Circuit The water circuits of the HPWH are dependent on the specific type (with or without internal heat exchanger). They have to be field-installed. The water connections (Fig. 1) are located at the rear of the unit. Ø Ø (Cable entries for (Leitungseinführungen 1660...
  • Page 6: Safety And Control Devices

    Safety and Control Devices The HPWH is equipped with the following safety features: 2.3.1 High-pressure pressostat (HP) The high-pressure pressostat protects the heat pump from excessive operating pressures in the refrigeration cycle. In the case of a malfunction, the pressostat switches off the heat pump. The heat pump is restarted automatically as soon as the pressure in the refrigeration cycle has dropped to an acceptable level.
  • Page 7: Storage / Transport

    Storage and Transport General Requirements As a rule, the HPWH is to be stored or transported in its shipping box in upright position and without water charge. For a transport over short distances, and provided due care is exercised, an inclination angle of up to 45° is permitted.
  • Page 8: Installation

    The notices below apply to the connection of the HPWH to exhaust air duct systems: Standardised exhaust air systems: Standardised exhaust air distribution systems with decentralised outside air valves are offered for use with the HPWH. The connection of these systems to the unit is accomplished via a flexible, sound and heat insulated airduct (DN 160).
  • Page 9: Mounting

    Mounting Connection of Water Piping The nominal pipe widths of the field-installed sanitary installations must be determined on the basis of the available water pressure and the expected pressure drops within the piping system. The water-side installation has to be executed in compliance with DIN 1988 (see appendix – in the case of excessive water pipe pressure, a pressure relief valve is to be provided, among other things !) The water pipes may be of the rigid or flexible type.
  • Page 10: Commissioning

    Commissioning Hot Water Circuit Caution! The HPWH may only be operated with the unit filled with water! 6.1.1 Hot water circuit requirements On the consumer side, the following materials may be incorporated into the water circuit: Â Â Â Â copper stainless steel brass...
  • Page 11: Remote Control

    Switch position O Æheat pump is In switch position I it is In switch pos. I the immersion heater is continuously switched on, in pos. possible to activate a å å å å / OFF , in switch position immersion heater is in the automatic mode supplementary heat source the heat pump is in operation "Immersion heater"...
  • Page 12 Ventilation mode If the 'heat pump' switch on the heat pump is in position “ “ (Off), the HPWH can be operated in the ventilation mode, provided the slide switch '1' is in position " I ". In this case, three ventilation settings can be selected without the water heating function of the heat pump being activated.
  • Page 13: Maintenance / Service

    Maintenance / Service CAUTION! Prior to opening the HPWH, the unit must be disconnected from the power supply; be careful of fan that may still be rotating! General The heat pump water heater is nearly maintenance-free. A few days following the commissioning procedure, a visual check for possible leaks in the water system or clogging of the condensate drain is to be performed once.
  • Page 14: Sacrificial Anode

    Sacrificial Anode The sacrificial anode installed in the hot water tank for corrosion protection purposes, must be checked electrically on a regular basis, at least every two years after commissioning, and be replaced, if necessary. The electrical check is to be conducted by means of a suitable ammeter without draining the water in the tank. Procedure: Withdraw PE conductor from tab of sacrificial anode.
  • Page 15: Malfunctions / Troubleshooting

    8. Malfunctions / Troubleshooting ( for the user ) Caution! Work on the hot water heat pump may only be performed by competent persons! Accident prevention regulations must be adhered to! Heat pump fails to run ! Please check whether Ö...
  • Page 16: Refrigeration Cycle With Legend

    11.1 Refrigeration Cycle with Legend TI-CO-L -CO-H -C I -L PA-CO-H TI-CO-H -CO-H -C I -L freie Tauchhülse Compressor Control electronics Evaporator Pressostat HP Safety temperature limiter Condenser Temp. controller immers. heater Check valve Hot water tank Temperature display Insulation Heat exchanger Filter drier (not all types)
  • Page 17: Hydraulic Plumbing Diagram

    11.2 Hydraulic Plumbing Diagram Hot water Warmwasser Circulation Zirkulation (if required) (wenn erforderlich) Hot water flow Heizwasservorlauf Hot water return Heizwasserrücklauf Cold water connection acc. to DIN 1988 Kaltwasseranschluß nach DIN 1988 Shut-off valve Drain valve Pressure-reducing valve Diaphragm safety valve Test valve (to be mounted above tank edge) Non-return valve...
  • Page 18: Connection Diagram Of Heat Exchanger (Example: Thermal Solar System)

    11.3 Connection Diagram of Heat Exchanger to Thermal Solar System Venting to heat Stop-cock Thermometer Check valve exchanger Flow from collector Safety valve Pressure gauge Catchpan Flowmeter to heat Check valve exchanger Return Stop- to collector Stop-cock Circulating cocks pump Charging pump Expansion vessel...
  • Page 19: Circuit Diagram

    11.4 Circuit Diagram LBW300 / LBW300LW Exhaust air temp. Storage tank temp. Setpoint Heating “ON/OFF”, external Control of external pump Heating “ON/OFF”, external Control of external pump Remote control Remote control...
  • Page 20: Technical Data

    11.5 Technical Data Heat Pump Water Heater LBW 300 LBW 300LW Type without additional with additional tubular tubular heat exchanger heat exchanger Nominal tank capacity Tank material (enamelled acc. to DIN 4753) enamelled steel enamelled steel Nominal tank pressure (bar)
  • Page 21 Harmonized EN Standards: EN 255 1997 EN 378 1994 Type(s): EN 60335-1/A11/A12 1995/1996 A13/A14 1998/1998 EN 60335-2-40 1998 LBW 300 EN 55014-1/A1 1993/1997 LBW 300LW EN 55014-2 1997 National Standards/Directives Order No.: 346 330 VBG20 NEN 5128 SVTI 346 340 Kulmbach, 29.04.2004...
  • Page 24 Subject to technical changes...
