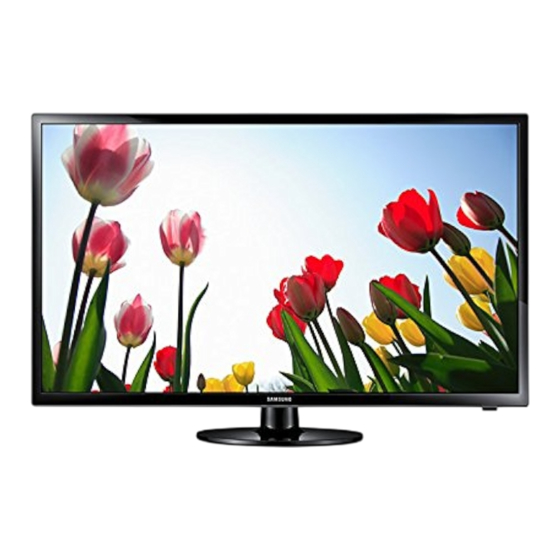

Samsung 4 series User Manual

LED TV
user manual
Figures and illustrations in this User Manual are provided for reference only and
Contact SAMSUNG WORLDWIDE
may differ from actual product appearance. Product design and specifications
may be changed without notice. If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care Centre.
Still image warning
Country Customer Care Centre
Avoid displaying still images (like jpeg picture files) or still image element (like TV
programme logo, panorama or 4:3 image format, stock or news bar at screen bottom AUSTRALIA 1300 362 603
etc.) on the screen. Constant displaying of still picture can cause ghosting of LED
NEW ZEALAND 0800 SAMSUNG (0800 726 786)
screen, which will affect image quality. To reduce risk of this effect, please follow below
recommendations:
CHINA 400-810-5858
y Avoid displaying the same TV channel for long periods.
y Always try to display any image on full screen, use TV set picture format menu for
best possible match. HONG KONG (852) 3698-4698
y Reduce brightness and contrast values to minimum required to achieve desired
picture quality, exceeded values may speed up the burnout process.
y Frequently use all TV features designed to reduce image retention and screen 1800 3000 8282
INDIA
burnout, refer to proper user manual section for details.
1800 266 8282
Securing the Installation Space
0800-112-8888
INDONESIA
021-5699-7777
Keep the required distances between the product and other objects (e.g. walls) to
ensure proper ventilation. JAPAN 0120-327-527
Failing to do so may result in fire or a problem with the product due to an increase in
the internal temperature of the product. MALAYSIA 1800-88-9999
✎
When using a stand or wall-mount, use parts provided by Samsung Electronics
1-800-10-SAMSUNG(726-7864)
only.
x for PLDT
If you use parts provided by another manufacturer, it may result in a problem with
the product or an injury due to the product falling. 1-800-3-SAMSUNG(726-7864) for
✎
The appearance may differ depending on the product. PHILIPPINES Digitel
✎
Be careful when you contact the TV because some parts can be somewhat hot. 1-800-8-SAMSUNG(726-7864) for
Globe
Installation with a stand. Installation with a wall-mount.
02-5805777
10 cm SINGAPORE 1800-SAMSUNG(726-7864)
10 cm
10 cm 1800-29-3232
10 cm 10 cm
THAILAND
10 cm
02-689-3232
0800-329-999
TAIWAN
10 cm
0266-026-066
VIETNAM 1 800 588 889
For India Only
This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers - 18002668282, 180030008282.
BN68-04908A-03
BN68-04908A
- 1 -
How to use Edit Name
Changing the Input Source
Edit Name lets you associate a device name to an input source. To
access Edit Name, press the TOOLS button in Source List. Name the
Source List
device connected to the input jacks to make your input source selection
easier.
Use to select TV or other external input sources such as DVD / Blu-ray
✎
players / cable box / STB satellite receiver connected to the TV. When connecting a PC to the HDMI IN 2 (DVI)
cable, you should set the TV to PC mode under Edit Name.
1. Press the SOURCE button.
✎ When connecting a PC to the HDMI IN 2 (DVI)
2. Select a desired external input source.
to DVI cable, you should set the TV to DVI PC mode under Edit
■ TV / AV / Component / HDMI1 / HDMI2/DVI
Name.
✎
You can only choose external devices that are connected to the TV.
✎ When connecting an AV devices to the HDMI IN 2 (DVI)
In the Source List, connected inputs will be highlighted.
HDMI to DVI cable, you should set the TV to DVI mode under Edit
Name.
Information
You can see detailed information about the selected external device.
✎
Information only available for the current connected source.
Remote Control
✎ This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.
Displays and selects the available video
Turns the TV on and off.
sources.
Press to directly access to channels.
Alternately select Teletext ON, Double, Mix or OFF. Returns to the previous channel.
Cuts off the sound temporarily.
Adjusts the volume.
Changes channels.
Displays the main on-screen menu.
Displays the channel list on the screen.
HDMI Selects the HDMI mode directly.
Views the Media Play.
Quickly select frequently used functions.
Displays information on the TV screen.
Selects the on-screen menu items and changes the
values seen on the menu.
Returns to the previous menu.
Exit the menu.
A B C D Use these buttons according to the direction
SPORTS on screen.
P.MODE: Selects the picture mode.
P.MODE P.SIZE
P.SIZE: Selects the picture size. Use these buttons in a specific feature.
: Sports Mode on or off.
- 5 -
UF4000_5000_32_ENG.indd 1
Important Safety Instructions
Warning! Important Safety Instructions
(Please read the safety instructions below before installing and using the product.)
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. RE-
FER ALL SERVICING TO QUALIFIED PERSONNEL.
Web Site
• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus,
www.samsung.com
and to protect it from overheating, these slots and openings must never be blocked or covered.
- Do not cover the slots and openings with a cloth or other materials.
www.samsung.com
- Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.
www.samsung.com - Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.
• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.
www.samsung.com/
hk • Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.
• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
www.samsung.com/
swimming pool etc.). If this appratus accidentally gets wet, unplug it and contact an authorized dealer immediately.
hk_en/
• Make sure to pull out the power cord from the outlet before cleaning.
www.samsung.com/
• This apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect the
in
environment. Please contact your local authorities for disposal or recycling information.
www.samsung.com/ • Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.
id
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular
attention to cords at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.
www.samsung.com
• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and
www.samsung.com/
disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.
my
• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local
electrical supply. (depending on the model)
• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.
• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
www.samsung.com/
ph • Make sure to plug the power cord in until it is firmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do not
touch the power cord with wet hands.
• If this appratus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact
an authorized dealer or service center.
• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially
www.samsung.com
when children, elderly or disabled people will be left alone in the house).
www.samsung.com/
- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat, or cause the
th
insulation to deteriorate.
• Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity,
www.samsung.com
chemical substances or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious damage
to your set.
www.samsung.com
• Use only a properly grounded plug and receptacle.
- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)
• To turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily accessible
at all times.
• Do not allow children to hang onto the product.
• Store the accessories (batteries, etc.) in a location safely out of the reach of children.
• Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to vibration.
• Do not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.
• To clean the product, unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such
as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the
product.
• Do not expose the apparatus to dripping or splashing.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble, or overheat the batteries.
• not short circuit, disassemble, or overheat the batteries.
• There is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.
• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
- English -
- 2 -
Display Modes (HDMI/DVI Input)
❑ Retuning Channels
Optimal resolution
Area
4 series:1366 x 768@60Hz / 5 series: 1920 x 1080@60Hz
Horizontal Vertical Pixel Clock Sync You can change the desired area.
Mode Resolution Frequency Frequency Frequency Polarity 1366 x 768 1920 x 1080
(KHz) (Hz) (MHz) (H / V)
Auto Store
port with HDMI IBM 720 x 400 31.469 70.087 28.322 -/+ c c
640 x 480 35.000 66.667 30.240 -/- c c
(depending on the country)
MAC 832 x 624 49.726 74.551 57.284 -/- c c
port with HDMI
1152 x 870 68.681 75.062 100.000 -/- c Scans for a channel automatically and stores in the TV.
640 x 480 31.469 59.940 25.175 -/- c c
✎
Automatically allocated programme numbers may not correspond to
640 x 480 37.861 72.809 31.500 -/- c c
640 x 480 37.500 75.000 31.500 -/- c c actual or desired programme numbers. If a channel is locked, the PIN
port with
800 x 600 37.879 60.317 40.000 +/+ c c
input window appears.
800 x 600 48.077 72.188 50.000 +/+
c c
Manual Store
800 x 600 46.875 75.000 49.500 +/+ c c
1024 x 768 48.363 60.004 65.000 -/- c c
1024 x 768 56.476 70.069 75.000 -/- c c
Scans for a channel manually and stores in the TV.
1024 x 768 60.023 75.029 78.750 +/+ c c
✎
VESA DMT 1152 x 864 67.500 75.000 108.000 +/+ c If a channel is locked, the PIN input window appears.
1280 x 720 45.000 60.000 74.250 +/+ ✎
c c According to channel source, Manual Store may be supported.
1280 x 800 49.702 59.810 83.500 -/+ c
✎ Programme, Colour System, Sound System, Channel, Search,
1280 x 1024 63.981 60.020 108.000 +/+ c
Store: If there is abnormal sound or no sound, reselect the sound
1280 x 1024 79.976 75.025 135.000 +/+ c
1366 x 768 47.712 59.790 85.500 +/+ c c standard required.
1440 x 900 55.935 59.887 106.500 -/+ c
✎ Channel mode
1600 x 900RB 60.000 60.000 108.000 +/+
c
x
P (Programme): When tuning is complete, the broadcasting stations
1680 x 1050 65.290 59.954 146.250 -/+ c
in your area have been assigned to position numbers from P0 to
1920 x 1080 67.500 60.000 148.500 +/+ c
P99. You can select a channel by entering the position number in
Installing batteries (Battery size: AAA)
this mode.
x C (aerial channel mode) / S (cable channel mode): These two modes
allow you to select a channel by entering the assigned number for
each aerial broadcasting station or cable channel.
Channel List Option Menu t
Set each channel using the Channel List menu options (Add / Delete,
Add to Favourite / Delete from Favourite, Timer Viewing, Lock /
Unlock, Edit Channel Name, Sort, Select All / Deselect All, Auto
Store). Option menu items may differ depending on the channel status.
Set each channel using the Channel List menu options. Option menu
✎ NOTE
items may differ depending on the channel status.
x
Use the remote control within 23 feet from TV.
■ Add / Delete: Delete or add a channel to display the channels you
x
Bright light may affect the performance of the remote control. Avoid
want.
using nearby special fluorescent light or neon signs.
✎
x All deleted channels will be shown on the All Channels menu.
The Colour and shape may vary depending on the model.
✎ A gray-Coloured channel indicates the channel has been deleted.
✎
The Add menu only appears for deleted channels.
Channel Menu
✎
Delete a channel from the Added Channels or Favourites menu in
the same manner.
■ Add to Favourite / Delete from Favourite t : Set channels you
❑ Seeing Channels
watch frequently as favourites
Channel List
■ Timer Viewing: You can set a desired channel to be displayed
automatically at the set time; even when you are watching another
Select a channel in the All Channels, Added Channels, Favourites or
channel. Set the current time first to use this function.
Programmed screen by pressing the ▲/▼ buttons, and pressing the
■ Edit Channel Name: Assign your own channel name.
ENTERE button. Then you can watch the selected channel.
■ Sort: This operation allows you to change the programme numbers of
All Channels: Shows all currently available channels.
■
the stored channels. This operation may be necessary after using the
■ Added Channels: Shows all added channels.
auto store.
Favourites: Shows all favourite channels.
■ *
■ Lock / Unlock: Lock a channel so that the channel cannot be selected
Programmed: Shows all currently reserved Programmes.
■ and viewed.
✎
Using the remote control buttons with the Channel List ✎ This function is available only when the Channel Lock is set to On.
x
Green (Zoom): Enlarges or shrinks a channel number. ✎
The PIN input screen appears. Enter your 4-digit PIN, the default of
x Yellow (Select): Selects multiple channel lists. Select desired channels
which is "0-0-0-0". Change the PIN using the Change PIN option.
and press the Yellow button to set all the selected channels at the same
■ Select All / Deselect All: You can select or deselect all channels in the
time. The c mark appears to the left of the selected channels.
channel list.
x T (Tools): Displays the Channel List option menu. (The Options menus
■ Auto Store: Scans for a channel automatically and stores in the TV.
may differ depending on the situation.)
Channel Status Display icons
Icons Operations
c A channel selected.
* A channel set as a favourites.
\ A locked channel.
) A reserved programme.
- 6 -
Getting Started
Accessories
y Remote Control & Batteries (AAA x 2)
y Owner's Instructions
This symbol indicates that high voltage is present inside. It
is dangerous to make any kind of contact with any internal
part of this product.
This symbol indicates that important literature concerning
operation and maintenance has been included with this
product .
y Holder Ring (2EA) Case A. Installing the SAMSUNG Wall-Mount
(UA46F5000 / UA46F5100 /
UA50F5000)
y Holder-Wire Stand Assembling the Holder-Wire stand
Input Cables (Sold Separately)
y Composite (AV) y Coaxial (RF)
y Component y HDMI
TV Controller (Panel Key)
Selecting the Media Play
MEDIA.P
Selecting a Source
Selecting the Menu m R s
P Power off
Return
Function menu
✎
To close the Menu, Media Play List, or Source List, press the Controller for more than 1 second.
✎
When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first, you
cannot operate it to move the up/down/left/right directions.
Plug & Play (Initial Setup)
When you turn the TV on for the first time, a sequence of screens and on-screen prompts will assist you in configuring the TV's basic settings. Plug the
power cord into a wall outlet, and then press the POWER button to turn on the TV. Set the initial setup following instructions that the TV guides.
✎
If you are not using a cable box or satellite box, make you sure have connected the TV to an Aerial or cable connection before you turn on the TV.
✎ Connecting the power cord and antenna. (refer to 'Connections')
Channel Mode
Channels will be switched within the favourite or memorised channel list.
■ Added Channels: Shows all added channels.
■ Favourite Ch.: Shows all favourite channels.
Fine Tune
If the reception is clear, you do not have to fine tune the channel, as this is
done automatically during the search and store operation. If the signal is
weak or distorted, fine tune the channel manually.
✎
Fine tuned channels that have been saved are marked with an asterisk
"*" on the right-hand side of the channel number in the channel
banner.
✎
To reset the fine-tuning, select Reset.
Picture Menu
Mode t
Select your preferred picture type.
■ Dynamic: Suitable for a bright room.
■ Standard: Suitable for a normal environment.
■ Movie: Suitable for watching movies in a dark room.
■ Entertain: Suitable for watching movies and games.
✎ It is only available when connecting a PC.
Backlight / Contrast / Brightness / Sharpness /
Colour / Tint (G/R)
Your television has several setting options for picture quality control.
✎
In analogue TV, AV modes of the PAL system, the Tint (G/R)
function is not available.
✎ When connecting a PC, you can only make changes to Backlight,
Contrast, Brightness and Sharpness.
✎ Settings can be adjusted and stored for each external device
connected to the TV.
✎ Lowering picture brightness reduces power consumption.
Advanced Settings
(available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a more precise
picture.
■ Dynamic Contrast: Adjusts the screen contrast.
■ Black Tone: Select the black level to adjust the screen depth.
■ Flesh Tone: Emphasize pink "Flesh Tone".
■ Colour Space: Adjusts the range of colours available to create the
image.
■ White Balance: Adjust the colour temperature for a more natural
picture.
R-Offset / G-Offset / B-Offset: Adjust each colour's (red, green, blue)
darkness.
R-Gain / G-Gain / B-Gain: Adjust each colour's (red, green, blue)
brightness.
Reset: Resets the White Balance to its default settings.
■ Gamma: Adjusts the primary colour intensity.
■ Motion Lighting: Reduce power consumption by brightness control
adapted motion.
✎ Only available in Standard mode.
Connections
y For better picture and audio quality, connect to a digital device using an HDMI
cable.
y Warranty Card / Regulatory Guide (Not available in some locations) y The picture may not display normally (if at all) or the audio may not work if an
y Power Cord external device that uses an older version of HDMI mode is connected to the TV.
If such a problem occurs, ask the manufacturer of the external device about the
HDMI version and, if out of date, request an upgrade.
y Be sure to purchase a certified HDMI cable. Otherwise, the picture may not
display or a connection error may occur.
1 1
1 1 HDMI connection
Blu-ray player / DVD /
Set-top box
Case B. Installing another company's Wall-Mount
TV Side Panel
y HDMI-DVI USB
(UA32F4000 /
UA32F4020)
or
VHF/UHF Antenna
TV Controller
Remote control sensor
The image is drawn by facing
the front side of the TV.
Cable
- 3 -
Picture Options
Sound Menu
■ Colour Tone
✎ Warm1 or Warm2 will be deactivated when the picture mode is Mode t
Dynamic.
■ Standard: Selects the normal sound mode.
■ Size: Your cable box/satellite receiver may have its own set of screen
sizes as well. However, we highly recommend you use 16:9 mode most
■ Music: Emphasizes music over voices.
of the time.
■ Movie: Provides the best sound for movies.
16:9: Sets the picture to 16:9 wide mode.
■ Clear Voice: Emphasizes voices over other sounds.
Wide Zoom: Magnifies the picture size more than 4:3.
■ Amplify: Increase the intensity of high-frequency sound to allow a
✎ Adjusts the Position by using ▲, ▼ buttons.
better listening experience for the hearing impaired.
Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.
Equalizer
4:3: Sets the picture to basic (4:3) mode.
✎
Do not watch in 4:3 format for a long time. Traces of borders (standard sound mode only)
displayed on the left, right and centre of the screen may cause
■ Balance: Adjusts the balance between the right and left speaker.
image retention (screen burn) which are not covered by the
■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):
warranty.
Adjusts the level of specific bandwidth frequencies.
Screen Fit: Displays the full image without any cut-off when HDMI (720p
■ Reset: Resets the Equalizer to its default settings.
/ 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
DTS TruSurround t
✎ NOTE
x
After selecting Screen Fit in HDMI (1080i / 1080p) or Component
(standard sound mode only)
(1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼,
◄, ► button. This function provides a virtual 5.1 channel surround sound experience
x through a pair of speakers using HRTF (Head Related Transfer Function)
Depending on the input source, the picture size options may vary.
x technology.
The available items may differ depending on the selected mode.
x
Settings can be adjusted and stored for each external device
Auto Volume
connected to an input on the TV.
x If you use the Screen Fit function with HDMI 720p input, 1 line will Because each broadcasting station has its own signal conditions, the
be cut at the top, bottom, left and right as in the overscan function. volume may fluctuate each time channel is changed. This feature lets
you automatically adjust the volume of the desired channel by lowering
■ Digital Clean View: If the broadcast signal received by your TV is weak,
you can activate the Digital Clean View feature to reduce any static and the sound output when the modulation signal is high or by raising the
ghosting that may appear on the screen. sound output when the modulation signal is low.
✎
When the signal is weak, try other options until the best picture is
SPDIF Output
displayed.
■ MPEG Noise Filter: Reduces MPEG noise to provide improved picture SPDIF Output is used to provide digital sound, reducing interference
quality. going to speakers and various digital devices such as a DVD player.
■ Audio Format: You can select the Digital Audio output format. The
■ HDMI Black Level: Selects the black level on the screen to adjust the
screen depth. available Digital Audio output format may differ depending on the input
✎ source.
Available only in HDMI mode (RGB signals).
✎
■ Film Mode: Sets the TV to automatically sense and process film signals By connecting to 5.1ch speakers in a Dolby Digital setup,
from all sources and adjust the picture for optimum quality. maximize your interactive 3D sound experience.
✎ ■ Audio Delay: Correct audio-video sync problems, when watching TV
Available in TV mode, AV, COMPONENT (480i / 1080i) and HDMI
or video, and when listening to digital audio output using an external
(480i / 1080i).
device such as an AV receiver (0ms ~ 250ms).
■ LED Clear Motion: Removes drag from fast scenes with a lot of
movement to provide a clear picture.
Speaker Select
■ Analogue Clean View: Reduces diagonal noise in picture caused by
the crosstalk of signals. A sound echo may occur due to a difference in decoding speed between
the main speaker and the audio receiver. In this case, set the TV to
Picture Reset
External Speaker.
✎
When you set Speaker Select to External Speaker, the TV's
Resets your current picture mode to its default settings.
speakers are turned off. You will hear sound through the external
■ Reset Picture Mode: Returns all picture values in the currently selected
speakers only. When you set Speaker Select to TV Speaker both
mode to the default settings.
the TV's speakers and the external speakers are on. You will hear
sound through both.
✎ When Speaker Select is set to External Speaker, the volume
and MUTE buttons will not operate and the sound settings will be
limited.
✎ If there is no video signal, both speakers will be mute.
- 7 -
y PC/DVI AUDIO IN input is not supported.
y For HDMI/DVI cable connection, you must use the HDMI IN 2 (DVI) port.
y Connecting through the HDMI cable may not be supported depending on the
PC.
y If an HDMI to DVI cable is connected to the HDMI IN 2 (DVI) port, the audio
does not work.
y For Set-top box connection using HDMI cable, we highly recommend you to
connect the HDMI IN 1 (STB) port.
PC connection Audio connection (Digital)
PC Digital Audio System
y The rear panel may differ
depending on the model.
TV Rear Panel
Power Input
(UA32F5000 / (UA32F4100 /
UA40F5000 / UA32F5100 /
UA40F5020 / UA40F5100 /
UA46F5000 / UA46F5100)
UA50F5000)
Audio connection Component connection AV connection
(Analog)
Blu-ray player / DVD VCR
DVD / Home Theater
- 4 -
Sound Reset
■ Reset All: Reset all sound settings to the factory defaults.
Selecting the Sound Mode t
When you set to Dual I-II, the current sound mode is displayed on the
screen.
Audio Type Dual I-II Default
Mono Mono Automatic
A2 Stereo Stereo Stereo ↔ Mono change
Dual Dual I ↔ Dual II Dual I
Mono Mono Automatic
NICAM Stereo Mono ↔ Stereo change
Stereo Mono ↔ Dual I
Dual Dual I
 Dual II 
✎
If the stereo signal is weak and an automatic switching, occurs, then
switch to the mono.
✎
Only activated in stereo sound signal.
✎ This function is available for all input sources.
Setup Menu
Language
Set the menu language.
✎ Select Language and press the ENTERE button.
Time
✎
The current time will appear every time you press the INFO button.
■ Clock Set: Set the Day, Month, Year, Hour, Minute.
■ Sleep Timer t
Automatically shuts off the TV after a preset period of time. (30, 60,
90, 120, 150 and 180 minutes)
✎
To cancel Sleep Timer, select Off.
■ Timer 1 / Timer 2 / Timer 3
Three different on / off timer settings can be made. You must set the
clock first.
On Time / Off Time: Set the hour, minute and Activate / Inactivate.
(To activate the timer with the setting you have chosen, set to
Activate.)
Volume: Set the desired volume level.
Contents: When the On Time is activated, you can turn on a specific
channel or play back contents such as photo or audio files.
− TV/USB: Select TV or USB. (Make sure that an USB device is
connected to your TV.)
− Antenna: Displays the current antenna source.
− Channel: Select the desired channel.
− Music/Photo: Select the folder containing MP3/JPEG files on the
USB device.
✎
The maximum displayed number of files, including sub folders, in
one folder of USB storage device is 2000.
✎
The media may not be playing smoothly when using the device
lower than USB 2.0.
Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or
Manual to set at your convenience. If you select Manual, you can set
up the day you want to activate the timer.
- 8 -
2013-03-15 5:04:05
