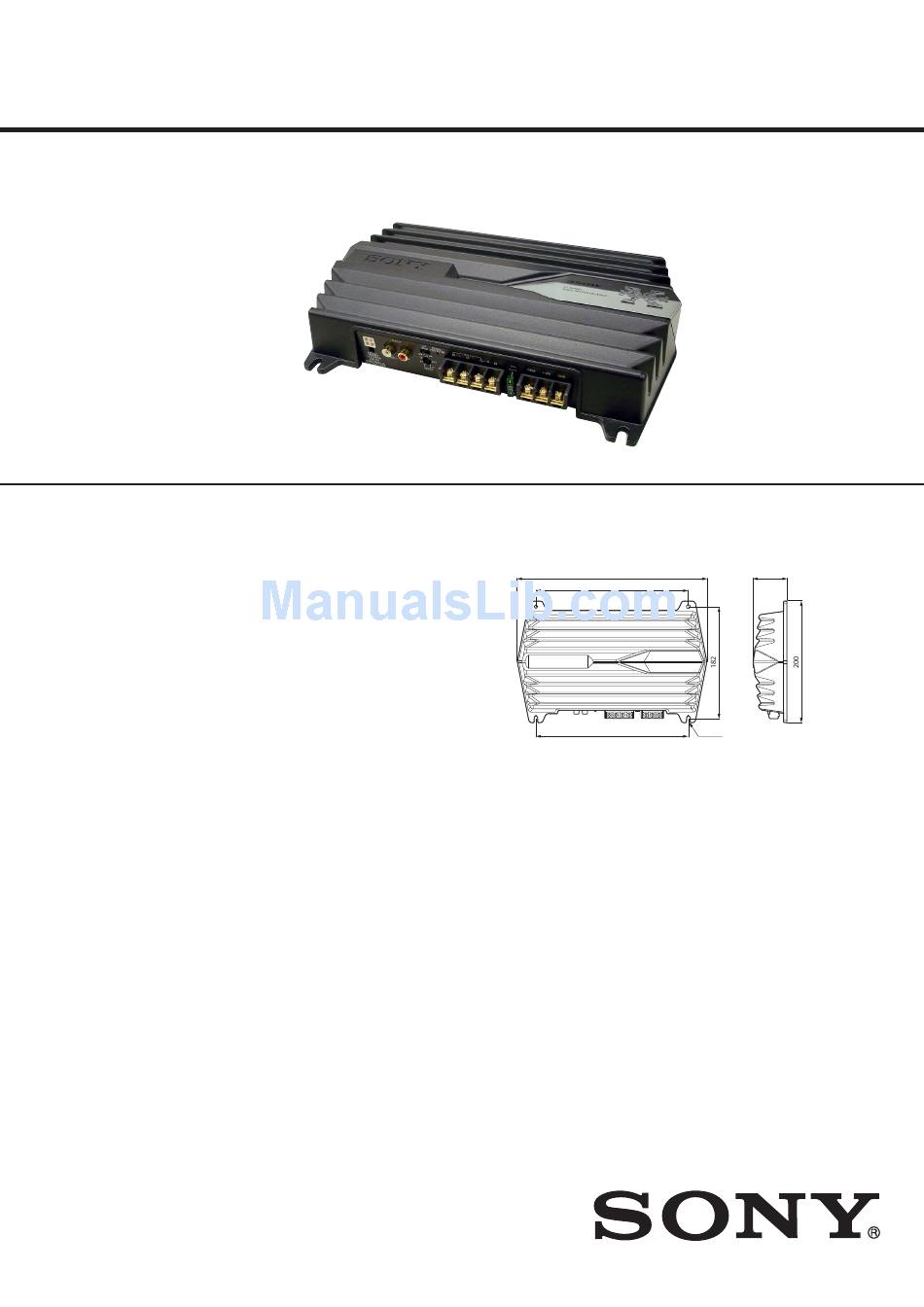

XM-GTX6020/GTX6022
SERVICE MANUAL
Ver. 1.0 2009.12
Circuit system
OTL (output transformerless) circuit
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Input level adjustment range
0.3 – 6 V (RCA pin jacks),
2.8 – 12 V (High level input)
Outputs
Speaker terminals
2 – 8 Ω (stereo)
Speaker impedance
4 – 8 Ω (when used as a bridging amplifi er)
110 W × 2 (at 4 Ω)
Maximum output
350 W (BTL, at 4 Ω)
Rated output (supply voltage at 14.4 V, 20 Hz – 20 kHz, 1 % THD)
60 W × 2 (at 4 Ω)
75 W × 2 (at 2 Ω)
150 W (BTL) (at 4 Ω)
Frequency response
5 Hz – 50 kHz ( dB)
0.05 % or less (at 1 kHz, 4 Ω)
Harmonic distortion
Low-pass fi lter
80 Hz, 18 dB/oct
Power requirements
12 V DC car battery (negative ground)
Power supply voltage
10.5 – 16 V
at rated output: 15 A (4 Ω, 60 W × 2)
Current drain
Remote input: 1 mA
Approx. 312 × 55 × 200 mm (w/h/d)
Dimensions
not incl. projecting parts and controls
Mass
Approx. 1.8 kg not incl. accessories
Supplied accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and specifi cations are subject to change without notice.
Sony Corporation
9-889-723-01
2009L04-1
Audio&Video Business Group
©
2009.12
Published by Sony Techno Create Corporation
SPECIFICATIONS
+0
–3
Dimensions / Dimensions / Dimensiones
312
251
251
STEREO POWER AMPLIFIER
AEP Model
UK Model
E Model
XM-GTX6020
Indian Model
XM-GTX6022
55
Unit: mm
Unité: mm
Unidad: mm
ø 6
