www.radioshack.com

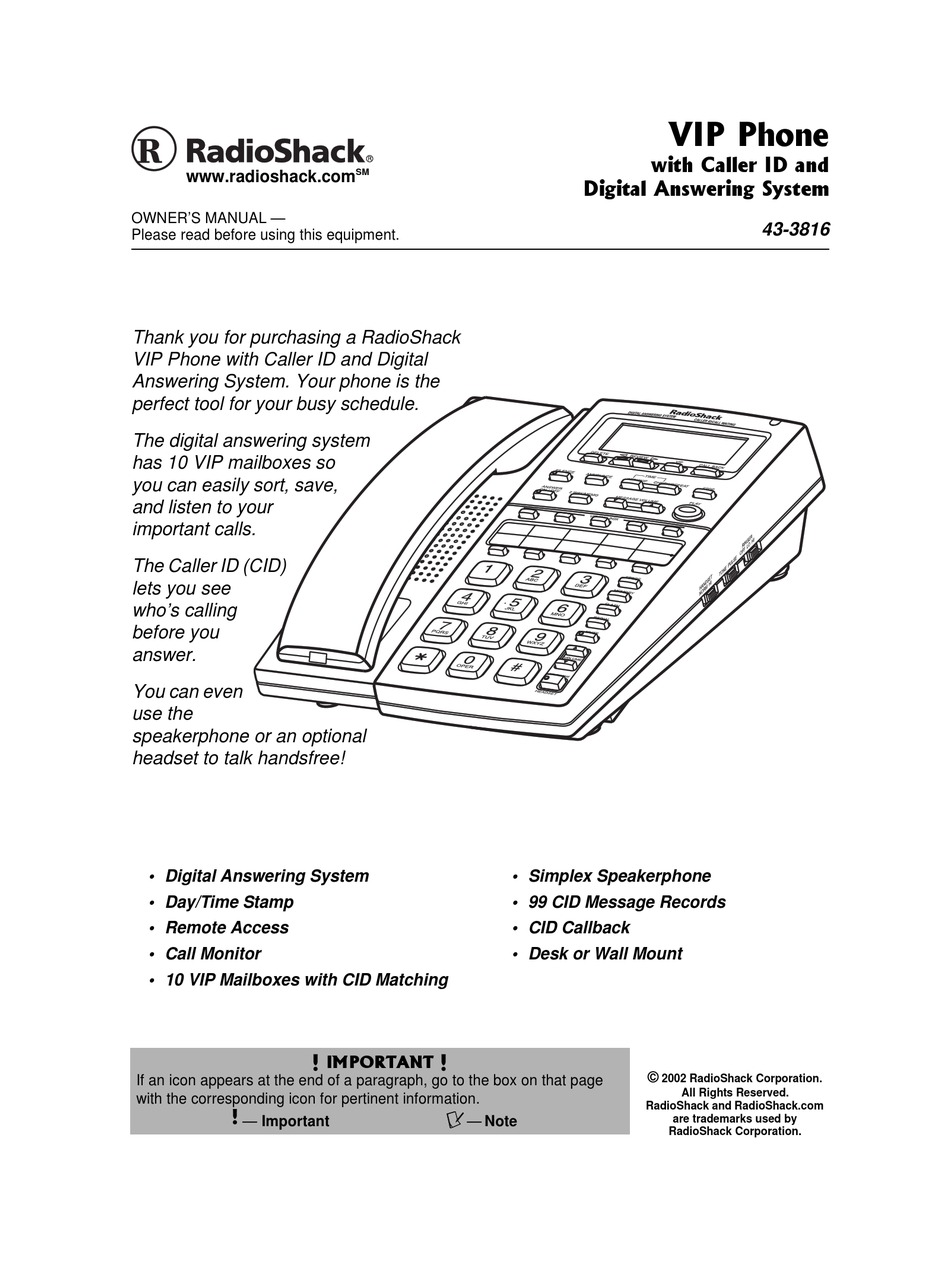

OWNER'S MANUAL —
Please read before using this equipment.
Thank you for purchasing a RadioShack
VIP Phone with Caller ID and Digital
Answering System. Your phone is the
perfect tool for your busy schedule.
The digital answering system
has 10 VIP mailboxes so
you can easily sort, save,
and listen to your
important calls.
The Caller ID (CID)
lets you see
who's calling
before you
answer.
You can even
use the
speakerphone or an optional
headset to talk handsfree!
• Digital Answering System
• Day/Time Stamp
• Remote Access
• Call Monitor
• 10 VIP Mailboxes with CID Matching
If an icon appears at the end of a paragraph, go to the box on that page
with the corresponding icon for pertinent information.
!
— Important
SM
!
!
IMPORTANT
Ô
— Note
VIP Phone
with Caller ID and
Digital Answering System
• Simplex Speakerphone
• 99 CID Message Records
• CID Callback
• Desk or Wall Mount
©
2002 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com
are trademarks used by
RadioShack Corporation.
43-3816

Advertisement

Table of Contents
loading

Related Manuals for Radio Shack 43-3816

Summary of Contents for Radio Shack 43-3816

  • Page 1 VIP Phone with Caller ID and www.radioshack.com Digital Answering System OWNER’S MANUAL — 43-3816 Please read before using this equipment. Thank you for purchasing a RadioShack VIP Phone with Caller ID and Digital Answering System. Your phone is the perfect tool for your busy schedule.

  • Page 2: Table Of Contents

    CONTENTS A Quick Look at Your VIP Phone .... 3 Answering System Operation ....13 Installation ..........5 Turning the Answering System On/Off ... 13 Prerecorded Outgoing Messages ....13 Mounting Your Phone ........5 Recording an Outgoing Message ....13 On a Desktop ..........

  • Page 3: A Quick Look At Your Vip Phone

    A QUICK LOOK AT YOUR VIP PHONE ± ² REVIEW (Page 14) DELETE TIME CALL BACK ANNOUNCE SET/SKIP TIME CHECK/ (Page 8) REPEAT SILENCE STOP 2 WAY/MEMO (Page 17) ANSWER ON/OFF PLAY MESSAGE VOLUME www.radioshack.com...
  • Page 4 A QUICK LOOK AT YOUR VIP PHONE VIP MAILBOX Buttons New Call LED RINGER OFF/LO/HI TONE/PULSE HANDSET VOL NORM/HI STORE MEMORY Number Keys FLASH REDIAL SPKPHONE/ MUTE HEADSET VOLUME HEADSET Jack Handset Cord Jack (Master/Secondary Switch, Page 9) 1/5/ANNC ONLY RING SELECT 2/4/7/TS DC 9V Power Jack...

  • Page 5: Installation

    INSTALLATION OUNTING HONE Your phone connects directly to a modular telephone line jack. If your telephone wiring does not have a modular jack, Ô Ô NOTE you can update the wiring yourself using jacks and adapters Installation (available at your local RadioShack store or online at Your phone is ETL listed to UL www.radioshack.com), or have the telephone company standards and meets all applicable...

  • Page 6: Directly On The Wall

    Directly on the Wall You will need a drill and screws (not supplied) with heads that fit the keyhole slots on the bottom of the system and the mounting bracket. 1. Drill two holes 3 inches apart, one below the other. 2.

  • Page 7: Installing A Backup Battery

    Select Language AREA CODE DAY_WK appear, 0 New 0 Total then the system beeps twice and appears. To set your own language, area code pin and day of the week, see “Phone Settings” on Page 8. NSTALLING A ACKUP ATTERY If AC power fails or you unplug the system, you need one 9V alkaline backup battery (not supplied) to save the answering system’s messages and settings for the day and...

  • Page 8: Phone Settings

    PHONE SETTINGS ETTING THE ANGUAGE Select Language 1. Press and then TIME SET/SKIP appears. 2. Press flashes MESSAGE VOLUME to indicate which language you selected. AREA PIN ² 3. Press to confirm the language. REVIEW DAY_WK appears. 4. Press to choose the digits MESSAGE VOLUME AREA (area code),...

  • Page 9: Using Toll Saver

    SING AVER Toll Saver (TS) allows you to check your messages from a remote, long distance telephone without incurring long distance charges. on the back of the phone to . The RING SELECT system answers on the second ring, when there are new messages.

  • Page 10: Telephone Operation

    TELEPHONE OPERATION AKING AND NSWERING ALLS To make a call Lift the handset, or press SPKPHONE/ once (if you press HEADSET SPKPHONE/ , the HEADSET SPKPHONE/HEADSET lights), and dial the desired telephone number. To answer a call Lift the handset or press SPKPHONE/ once.

  • Page 11: Using A Headset

    SING A EADSET Headsets are available from your local RadioShack store or online at www.radioshack.com. 1. Insert the headset’s plug into the jack on the HEADSET left side of the phone. 2. Press to make or answer calls. SPKPHONE/HEADSET 3. Press again to hang up.

  • Page 12: Using Pause

    SING AUSE Some PABX and PBX telephone systems require an access number (often 9) to be entered before allowing the user to make an outside call. You can save the access number and a pause as part of a memorized number. To insert a 3 second pause between the access number and the telephone number, press when storing a...

  • Page 13: Answering System Operation

    ANSWERING SYSTEM OPERATION URNING THE NSWERING YSTEM To turn on the answering system, press ANSWER ON/OFF LED lights and the system beeps ANSWER ON/OFF once. The system is set to answer calls. To turn off the system, press again. The ANSWER ON/OFF LED turns off and the system beeps twice.

  • Page 14: Setting The Vip Number

    4. To stop the outgoing message before it ends, press STOP To hear the announce only outgoing message at any time, press twice. ANNOUNCE VIP N ETTING THE UMBER You can program up to 10 VIP Numbers into your answering system by using Caller ID records from frequent or important callers.

  • Page 15: Reviewing Vip Numbers

    VIP N EVIEWING UMBERS To review the VIP mailboxes, press , and then press ± ² REVIEW To delete a number stored in a VIP mailbox, press DELETE when the desired VIP number appears during review. If you have set one VIP number in ANSWER ANNOUNCE Mailbox 3, and no VIP numbers in...

  • Page 16: Setting The System To Answer Calls

    ETTING THE YSTEM TO NSWER ALLS Ô Ô NOTE 1. Set to select 1 minute or 5 1/5/ANNC ONLY Setting the System to minutes as the maximum incoming message length. Answer Calls 2. Press . The ANSWER ON/OFF ANSWER ON/OFF •...

  • Page 17: Memo Recording

    ECORDING You can record memos up to one minute long. Make sure that the handset is on the cradle and the speaker and headset are not in use before you begin recording. 1. Hold down . The system beeps. 2 WAY/MEMO 2 WAY/MEMO 2.

  • Page 18: Screening Calls

    CREENING ALLS To screen calls, let the system answer and listen to the caller’s message through the answering system’s speaker. If you decide to answer the call, pick up any phone connected to the same phone line as the system. The system stops recording and resets to answer the next call.

  • Page 19: Playing Vip Messages

    VIP M LAYING ESSAGES During an incoming VIP call, the system sounds ± ² REVIEW the VIP alert tone between rings. When there DELETE are new VIP messages, the VIP MAILBOX button(s) with the new messages flash. 1. Press a blinking button.

  • Page 20: Remote Operation

    EMOTE PERATION While you are away from your home or office, you can use a touch-tone phone, or a pulse (rotary) phone with a pocket tone dialer, to enter your remote operation security code and: • set the system to answer calls •...

  • Page 21: Caller Id Operation

    CALLER ID OPERATION If you subscribe to Caller ID service from your phone company, the phone company sends information about the call, as well as the time and date between the first and second rings of every call you receive. The system displays this information and stores up to 99 numbers only, or name and number, call records in its CID memory, and then replaces the oldest call record with each...

  • Page 22: Receiving Call Waiting Calls

    • area code + local phone number (10-digit number) • 1 + area code + local phone number (1 + 10-digit number). If the caller’s phone number has a different area code from ± ² your preset area code, repeatedly press REVIEW choose a 10-digit number or 1+10-digit number.

  • Page 23: Caller Id Messages

    ID M ALLER ESSAGES Display Description English Spanish New Total Nuevo Total The number of new calls and total number of incoming calls. Call information is stored in Caller ID memory location #01 Appears when the caller has blocked Caller ID information from Private Privado being sent.

  • Page 24: Important Information

    IMPORTANT INFORMATION VIP P ESETTING HONE If you need to reset your phone, unplug the AC adapter from the wall outlet and remove the battery from the battery compartment. Ô Ô Ô NOTE Once the display screen has cleared, plug the AC adapter Resetting your phone does not clear the CID records.

  • Page 25: Fcc Statement

    FCC S TATEMENT This phone is Hearing Aid compatible. Your phone complies with Part 68 of FCC Rules and the requirements adopted by the ACTA. On the bottom of this product is a label with this product’s FCC Product Identification number in the format US:AAOMT09B433816. Ô...

  • Page 26: The Fcc Wants You To Know

    FCC W ANTS OU TO This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 27 Limited One-Year Warranty This product is warranted by RadioShack against manufacturing defects in material and work- manship under normal use for one (1) year from the date of purchase from RadioShack com- pany-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICU- LAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED...

  • Page 28: Accessories

    RadioShack. 43-3816 LIB883YY RadioShack Corporation 10A02 Fort Worth, Texas 76102 Printed in China...
