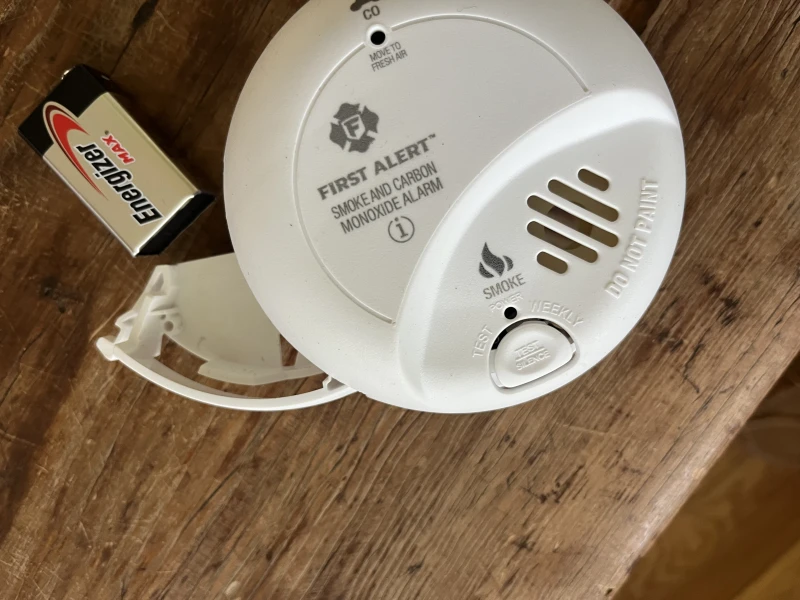

First Alert SCO2 User Manual

INSTALLATION
USER'S MANUAL
WHERE TO INSTALL THIS ALARM
Smoke & Carbon
Minimum coverage for Smoke Alarms, as recommended by the
Monoxide Alarm
National Fire Protection Association (NFPA), is one Smoke Alarm on
every floor, in every sleeping area, and in every bedroom (See
"Regulatory Information For Smoke Alarms" for details on the NFPA
Battery Powered Smoke &
recommendations).
Carbon Monoxide Alarm
For CO Alarms, the National Fire Protection Association (NFPA)
with Silence Feature
recommends that a CO Alarm should be centrally located outside of
and Latching Alarm each separate sleeping area in the immediate vicinity of the bedrooms.
For added protection, install additional CO Alarms in each separate
bedroom, and on every level of your home.
In general, install combination Smoke and Carbon Monoxide
Alarms:
• On every level of your home, including finished attics and basements.
Model SCO2
• Inside every bedroom, especially if people sleep with the door partly
or completely closed.
• In the hall near every sleeping area. If your home has multiple
sleeping areas, install a unit in each. If a hall is more than 40 feet
(12 meters) long, install a unit at each end.
• At the top of first-to-second floor stairs.
IMPORTANT! PLEASE READ CAREFULLY AND SAVE
This user's manual contains important information about your Alarm's • At the bottom of the basement stairs.
operation. If you are installing the Alarm for use by others, you must
• For additional coverage, install Alarms in all rooms, halls, and storage
leave this manual — or a copy of it — with the end user.
areas, where temperatures normally remain between 40˚ F and
100˚ F (4˚ C and 38˚ C).
LISTED TO
Printed in Mexico
UL 217 and Model
Recommended Placement
M08-0094-010 K1 09/09
UL 2034 SCO2
STANDARDS
INTRODUCTION
Thank you for choosing BRK Brands, Inc. for your Smoke and Carbon
Monoxide Alarm needs. You have purchased a state-of-the-art Smoke &
CO Alarm designed to provide you with early warning of a fire or Carbon
Monoxide. Key features include:
Smoke & Carbon Monoxide Combination Alarm. One alarm protects
against two deadly household threats.
Most Accurate Carbon Monoxide Sensor* Advanced electrochemical
CO sensor technology.
Intelligent Sensing Technology designed to help reduce unwanted or
nuisance alarms.
Single Button Test/Silence eliminates confusion. Depending on what
In new construction AC and AC/DC smoke alarms MUST
mode the alarm is in, pushing the button provides different functions
be interconnected to meet NFPA recommendations.
such as testing the alarm, silencing the alarm, re-testing the alarm
when in silence and clearing the Latching feature.
• When installing on the wall, the top edge of Smoke Alarms should
Two Silence Features. Temporarily silence low battery chirp for up to be placed between 4 inches (102 mm) and 12 inches (305 mm)
eight hours before replacing low battery or silence an unwanted alarm from the wall/ceiling line.
for several minutes.
• When installing on the ceiling, place the alarm as close to the
Two Latching Features. Alarm Latch: Easily identifies initiating alarm center as possible.
even after alarm condition has subsided. Low Battery Latch: Identifies
• In either case, install at least 4 inches (102 mm) from where the
which unit is in low battery condition.
wall and ceiling meet. See "Avoiding Dead Air Spaces" for more
Perfect Mount System includes a gasketless base for easy installation information.
and a new mounting bracket that keeps the alarm secure over a wide
NOTE: For any location, make sure no door or other obstruction could
rotation range to allow for perfect alignment.
keep carbon monoxide or smoke from reaching the Alarm.
End of Life Signal. Provides audible and visual confirmation alarm
needs to be replaced. Installing Smoke/CO Alarms in Mobile Homes
*As compared to other sensing technologies
For minimum security install one Smoke/CO Alarm as close to each
sleeping area as possible. For more security, put one unit in each room.
© 2009 BRK Brands, Inc. All rights reserved.
Many older mobile homes (especially those built before 1978) have little
Distributed by BRK Brands, Inc.
or no insulation. If your mobile home is not well insulated, or if you are
3901 Liberty Street Road, Aurora, IL 60504-8122
unsure of the amount of insulation, it is important to install units on
Consumer Affairs: (800) 323-9005
inside walls only.
www.brkelectronics.com • www.firstalert.com
WHERE THIS ALARM SHOULD NOT BE INSTALLED
All BRK ® and First Alert ® Smoke Alarms conform to regulatory
requirements, including UL217 and are designed to detect particles
Do NOT locate this Smoke/CO Alarm:
of combustion. Smoke particles of varying number and size are
• In garages, kitchens, furnace rooms, crawl spaces and unfinished
produced in all fires.
attics. Avoid extremely dusty, dirty or greasy areas.
Ionization technology is generally more sensitive than photo-
• Where combustion particles are produced. Combustion particles
electric technology at detecting small particles, which tend to be
form when something burns. Areas to avoid include poorly ventilated
produced in greater amounts by flaming fires, which consume
kitchens, garages, and furnace rooms. Keep units at least 20 feet
combustible materials rapidly and spread quickly. Sources of these
(6 meters) from the sources of combustion particles (stove, furnace,
fires may include paper burning in a wastebasket, or a grease fire in
water heater, space heater) if possible. In areas where a 20-foot
the kitchen.
(6 meter) distance is not possible – in modular, mobile, or smaller
Photoelectric technology is generally more sensitive than ionization
homes, for example – it is recommended the Smoke/CO Alarm be
technology at detecting large particles, which tend to be produced placed as far from these fuel-burning sources as possible. The
in greater amounts by smoldering fires, which may smolder for
placement recommendations are intended to keep these Alarms at
hours before bursting into flame. Sources of these fires may include
a reasonable distance from a fuel-burning source, and thus reduce
cigarettes burning in couches or bedding.
"unwanted" alarms. Unwanted alarms can occur if a Smoke/CO
Alarm is placed directly next to a fuel-burning source. Ventilate
For maximum protection, use both types of Smoke Alarms on
these areas as much as possible.
each level and in every bedroom of your home.
• Within 5 feet (1.5 meters) of any cooking appliance. In air streams
near kitchens. Air currents can draw cooking smoke into the smoke
sensor and cause unwanted alarms.

FIRE SAFETY TIPS

• In extremely humid areas. This Alarm should be at least 10 feet
Follow safety rules and prevent hazardous situations: 1) Use smoking
(3 meters) from a shower, sauna, humidifier, vaporizer, dishwasher,
materials properly. Never smoke in bed. 2) Keep matches or lighters
laundry room, utility room, or other source of high humidity.
away from children; 3) Store flammable materials in proper containers;
4) Keep electrical appliances in good condition and don't overload elec-
• In direct sunlight.
trical circuits; 5) Keep stoves, barbecue grills, fireplaces and chimneys
• In turbulent air, like near ceiling fans or open windows. Blowing air
grease- and debris-free; 6) Never leave anything cooking on the stove
unattended; 7) Keep portable heaters and open flames, like candles, may prevent CO or smoke from reaching the sensors.
away from flammable materials; 8) Don't let rubbish accumulate.
• In areas where temperature is colder than 40˚ F (4˚ C) or hotter than
100˚ F (38˚C). These areas include non-airconditioned crawl spaces,
Keep alarms clean, and test them weekly. Replace alarms immediately
if they are not working properly. Smoke Alarms that do not work cannot unfinished attics, uninsulated or poorly insulated ceilings, porches,
alert you to a fire. Keep at least one working fire extinguisher on every and garages.
floor, and an additional one in the kitchen. Have fire escape ladders or
• In insect infested areas. Insects can clog the openings to the
other reliable means of escape from an upper floor in case stairs are
sensing chamber.
blocked.
• Less than 12 inches (305 mm) away from fluorescent lights.
Electrical "noise" can interfere with the sensor.
BASIC SAFETY INFORMATION
• In "dead air" spaces. See "Avoiding Dead Air Spaces".
• Dangers, Warnings, and Cautions alert you to important
AVOIDING DEAD AIR SPACES
operating instructions or to potentially hazardous situations.
Pay special attention to these items.
"Dead air" spaces may prevent smoke from reaching the Smoke/CO
Alarm. To avoid dead air spaces, follow installation recommendations
• This Smoke/CO Alarm is approved for use in single-family
below.
residences. It is NOT designed for marine or RV use.
On ceilings, install Smoke/CO Alarms as close to the center of the
ceiling as possible. If this is not possible, install the Smoke/CO Alarm
• This combination Smoke/Carbon Monoxide Alarm has two
at least 4 inches (102 mm) from the wall or corner.
separate alarms. The CO Alarm is not designed to detect fire
or any other gas. It will only indicate the presence of carbon For wall mounting (if allowed by building codes), the top edge of
monoxide gas at the sensor. Carbon monoxide gas may be Smoke/CO Alarms should be placed between 4 inches (102 mm) and
12 inches (305 mm) from the wall/ceiling line.
present in other areas. The Smoke Alarm will only indicate the
presence of smoke that reaches the sensor. The Smoke Alarm
On a peaked, gabled, or cathedral ceiling, install the first Smoke/CO
is not designed to sense gas, heat or flames.
Alarm within 3 feet (0.9 meters) of the peak of the ceiling, measured
horizontally. Additional Smoke/CO Alarms may be required depending
on the length, angle, etc. of the ceiling's slope. Refer to NFPA 72 for
details on requirements for sloped or peaked ceilings.
• This unit will not alert hearing impaired residents. It is
recommended that you install special units which use devices
like flashing strobe lights to alert hearing impaired residents.
• This Smoke/CO Alarm cannot operate without working
batteries. Removing the batteries for any reason, or failing to
replace the batteries at the end of their service life, removes
your protection.
• The battery compartment resists closing unless a battery is
installed. This warns you the unit will not operate without a
battery.
• Do not stand too close to the unit when the alarm is sounding.
It is loud to wake you in an emergency. Exposure to the horn
at close range may harm your hearing.
• Do not paint over the unit. Paint may clog the openings to the
sensing chambers and prevent the unit from operating properly.
1
BEFORE YOU BEGIN INSTALLATION
This combination Smoke/CO Alarm was designed to be mounted
on the ceiling or wall. It is not a tabletop device. Read "Where to
Install This Alarm" and "Where This Alarm Should Not Be Installed"
before you begin installation.
Find the pair of self-adhesive labels included with this Smoke/CO Alarm.
• On each label write in the phone number of your emergency
responder (like 911) and a qualified appliance technician.
• Place one label near the Smoke/CO Alarm, and the other label in
the "fresh air" location you plan to go if the alarm sounds.
HOW TO INSTALL THIS SMOKE/CO ALARM
Tools you will need: Pencil, drill with 3/16" (5mm) drill bit,
flathead screwdriver, hammer.
• Do not connect this unit to any other alarm or auxiliary device.
It is a single-station unit that cannot be linked to other devices.
Connecting anything else to this unit may prevent it from working
properly.
• Do not install this unit over an electrical junction box. Air currents
around junction boxes can prevent smoke from reaching the
sensing chamber and prevent the unit from alarming. Only AC
powered units are intended for installation over junction boxes.
To install this unit:
If you want to lock the battery compartment, or lock the Smoke/CO
Alarm to the mounting bracket, please read the "Optional Locking
Features" section.
SUGGESTED AREAS FOR INSTALLING
SMOKE ALARMS, CO ALARMS, AND COMBO UNITS
1. Hold base firmly and twist the mounting bracket counterclockwise
(left) to separate it from the unit.
KEY:
2. Hold the mounting bracket against the ceiling (or wall) so the
SMOKE ALARMS vertical mounting slot is aligned in the 12 o'clock position and trace
around the inside of the mounting slots (vertical and horizontal
SMOKE ALARM WITH
mounting).
SILENCE FEATURE
3. Put the unit where it won't get covered with dust when you drill the
CO ALARMS
mounting holes.
BOTH, OR COMBINATION
SMOKE/CO ALARMS
Suggested locations are based on
NFPA recommendations (NFPA 72
for Smoke Alarms and NFPA 720 for
Carbon Monoxide Alarms). Always
refer to national and local codes
before beginning any installation.
The optional locking features are designed to discourage unauthorized
removal of the battery or alarm. It is not necessary to activate the locks
in single-family households where unauthorized battery or alarm
removal is not a concern.
These Smoke/CO Alarms have two separate locking features: one locks
the battery compartment, and the other locks the Smoke/CO Alarm to the
mounting bracket. You can choose to use either feature independently, or
use them both.
Tools you will need: • Needle-nose pliers or utility knife
• Standard/Flathead screwdriver.
Both locking features use locking pins, molded into the mounting bracket. Using needle nose pliers or a utility knife, remove one or both pins, depending
on which locking features you use.
THE BATTERY COMPARTMENT LOCK
TO LOCK THE BATTERY COMPARTMENT:
Do not lock the battery compartment until you have activated the battery
and tested the Smoke/CO Alarm.
1. Activate the battery by removing the
"Pull to Activate Battery" tab. Push and
hold the test button on the Smoke/CO
Alarm's cover until the alarm sounds:
4 beeps, pause, 4 beeps, pause,
3 beeps, pause, 3 beeps, pause.
If the unit does not alarm during
testing, DO NOT lock the battery
compartment! Install a new battery
and test again. If it still does not
alarm, replace the Smoke/CO
Alarm immediately.
2. Using needle-nose pliers or a utility
knife, detach one locking pin from
the mounting bracket.
3. Push the locking pin
through the black dot on
the label on the back of
the Smoke/CO Alarm.
THE MOUNTING BRACKET LOCK
TO ACTIVATE THE BRACKET LOCK:
1. Using needle-nose pliers, detach
one locking pin from the mounting
bracket.
2. Insert the locking pin into the lock
located on the base as shown in
the diagram.
3. When you attach the
Smoke/CO Alarm to the
mounting bracket, the
locking pin's head will fit
into a notch on the bracket.
Continued...
2
INSTALLATION, Continued
1
PARTS OF THIS SMOKE/CO ALARM
3
1 Mounting Bracket
2 Mounting Slot and Screws
2
3 Locking Pins (break out of
bracket)
2
4 Lever to Open Battery
Compartment
3
5 Swing-Out Battery
4
Compartment
6 Not Used
5
6
4. Using a 3/16" (5 mm) drill bit, drill a hole through the center of the
oval outlines you traced.
5. Insert the plastic screw anchors (in the plastic bag with screws) into
the holes. Tap the screw anchors gently with a hammer, if necessary,
until they are flush with the ceiling or wall.
6. Line the mounting bracket up over the plastic screw anchors.
7. Screw the mounting bracket to the ceiling or wall through the
mounting slots using the two screws provided.
8. Position the base of the Smoke/CO Alarm over the mounting bracket
and turn. The Alarm will remain secure over a wide rotation range to
allow for perfect alignment. When wall mounting, this will allow fine-
tuning on the positioning to compensate for out of aligned wall studs
and to keep the wording level. The Alarm can be positioned over the
bracket every 120°. Rotate the Alarm until aligned properly.
9. Test the Smoke/CO Alarm. See "Weekly Testing" for details.

USING THE OPTIONAL LOCKING FEATURES

Battery Drawer Lock
Locking Pin
Mounting Bracket Lock
TO UNLOCK THE BATTERY COMPARTMENT:
1. Remove the Smoke/CO Alarm from the mounting bracket. If the
unit is locked to the bracket, see the section "To Deactivate the
Bracket Lock."
2. Insert a flathead screwdriver under the head
of the locking pin, and gently pry it out of
the battery compartment lock. (If you plan
to relock the battery compartment, save
the locking pin.)
3. To re-lock the battery compartment, close
the battery door and reinsert the locking pin
in the lock.
4. Reattach the Smoke/CO Alarm to the mounting bracket.
When replacing the battery, always test the Smoke/CO Alarm before
relocking the battery compartment.
TO DEACTIVATE THE BRACKET LOCK:
1. Insert a flathead screwdriver between the mounting bracket pin
and the mounting bracket.
2. Pry the Smoke/CO Alarm away from the bracket by turning both
the screwdriver and the Smoke/CO Alarm counterclockwise (left)
at the same time.
TO PERMANENTLY REMOVE
THE BRACKET LOCK:
Insert the flathead screwdriver
between the locking pin and
the lock, and pry the pin out
of the lock.
3 4
HOW YOUR SMOKE/CO ALARM WORKS WHAT TO DO IF SMOKE IS DETECTED
THE COVER OF YOUR SMOKE/CO ALARM
If you hear the alarm horn sound 3 beeps, pause, 3 beeps,
pause and the RED SMOKE light is flashing, smoke has
1. Test/Silence Button: Press
been detected. Evacuate everyone from the building.
and hold to activate test,
or to silence the alarm.
2. POWER Light (GREEN)/
SMOKE ALARM Light (RED) • If the unit alarms and you are not testing the unit, it is warning
you of a potentially dangerous situation that requires your
3. CO ALARM Light (RED)
immediate attention. NEVER ignore any alarm. Ignoring the
alarm may result in injury or death.
4. Battery Drawer
• Never remove the battery to quiet an unwanted alarm.
5. (Behind the Cover) Alarm
Removing the battery disables the Alarm so it cannot sense
Horn: 85dB audible alarm
smoke. This will remove your protection. Instead, open a
for test, alarm, and unit
malfunction warning. window or fan the smoke away from the unit. The Alarm will
reset automatically.
• If the unit alarms get everyone out of the house immediately.
If the unit alarms and you are certain that the source of smoke is not a
WHAT YOU WILL SEE AND HEAR WITH THIS ALARM
fire—cooking smoke or an extremely dusty furnace, for example—open a
nearby window or door and fan the smoke away from the unit. Use the
Under Normal Operations
Silence Feature to silence the Alarm. This will silence the alarm, and
Horn: Silent once the smoke clears the unit will reset itself automatically.
Power/Smoke LED: Intermittent Green
CO LED: Off
WHAT TO DO IN CASE OF FIRE
When You Test the Alarm • Don't panic; stay calm. Follow your family escape plan.
Horn: 3 beeps, pause, 3 beeps • Get out of the house as quickly as possible. Don't stop to get
Power/Smoke LED: Flashes Red in sync with the horn pattern dressed or collect anything.
CO LED: Off, followed by
• Feel doors with the back of your hand before opening them.
Horn: 4 beeps, pause, 4 beeps If a door is cool, open it slowly. Don't open a hot door. Keep doors
and windows closed, unless you must escape through them.
Power/Smoke LED: Off
CO LED: Flashes Red in sync with the horn pattern • Cover your nose and mouth with a cloth (preferably damp).
Take short, shallow breaths.
If Battery Becomes Low or is Missing
• Meet at your planned meeting place outside your home,
Horn: chirps once a minute
and do a head count to make sure everybody got out safely.
Power/Smoke LED: Flashes Green once a minute until reset. Low
• Call the Fire Department as soon as possible from outside.
Battery latch is now engaged. (See Latching Features note
Give your address, then your name.
below.) Green LED On for 2 seconds/Off for two seconds.
CO LED: Off • Never go back inside a burning building for any reason.
• Contact your Fire Department for ideas on making your home safer.
If Alarm is Not Operating Properly (MALFUNCTION SIGNAL)
Horn: 3 chirps every minute
Power/Smoke LED: Green LED 3 Flashes approx. once a minute Alarms have various limitations. See "General Limitations of
CO LED: Off Smoke/CO Alarms" for details.
Alarm has reached its End of Life
USING THE SILENCE FEATURES
Horn: 5 chirps every minute
Power/Smoke LED: Green LED 5 Flashes approx. once a minute
CO LED: Off
Never remove the batteries to quiet an unwanted alarm. Removing
the batteries disables the alarm and removes your protection.
Alarm Levels of CO are Detected
The Silence Feature is intended to temporarily silence the horn while
Horn: 4 beeps, pause, 4 beeps
you identify and correct the problem. Do not use the Silence Feature in
Power/Smoke LED: Off
emergency situations. It will not correct a CO problem or extinguish a
CO LED: During Alarm: Flashes Red in sync with the horn pattern.
fire.
After Alarm: Flashes Red On for 2 seconds/Off for 2 seconds.
The Silence Feature can temporarily quiet an unwanted alarm for several
CO Alarm Latch is now engaged. (See LATCHING FEATURES
minutes. You can silence this Smoke/CO Alarm by pressing the Test/
section for details).
Silence button on the alarm cover until you hear an acknowledge chirp.
Smoke is Detected
After the Test/Silence button is released, the Red LED blinks during the
Horn: 3 beeps, pause, 3 beeps silence mode.
Power/Smoke LED: During Alarm: Flashes Red in sync with the
When the Smoke Alarm is
horn pattern. After Alarm: Flashes Red On for 2 seconds/Off
Silenced
for 2 seconds. Smoke Alarm Latch is now engaged. (See
LATCHING FEATURES section for details).
The Smoke Alarm will remain
CO LED: Off
silent for up to 15 minutes, then
return to normal operation.
Smoke Alarm is Silenced
If the smoke has not cleared–or
Horn: Off
continues to increase–the device
Power/Smoke LED: Flashes Red
will go back into alarm.
CO LED: Off
CO Alarm is Silenced
SILENCING THE LOW BATTERY WARNING
Horn: Off
Power/Smoke LED: Off This Silence Feature can temporarily quiet the low battery warning
"chirp" for up to 8 hours. Press the Test/Silence button on the Alarm
CO LED: Flashes Red
cover until you hear the acknowledge "chirp".
Latching Features Note: Low Battery Latch or Alarm Latch are only Once the low battery warning "chirp" silence feature is activated, the
engaged for about 15 minutes to conserve power. Low Battery unit continues to flash the green light once a minute for 8 hours. After
Latch and Alarm Latch do not operate with a missing battery. 8 hours, the low battery "chirp" will resume. Note, if battery is missing or
dead, Low Battery Silence cannot be activated and alarm will continue
to chirp approximately once per minute. Replace the batteries as soon
as possible; this unit will not operate without battery power!
To deactivate this feature: Press the Test/Silence button again.
IF YOUR SMOKE/CO ALARM SOUNDS
The unit will go into Test Mode and the low battery warning will resume
(LED flashes and unit sounds "chirp" once a minute).
WHAT TO DO IF CARBON MONOXIDE IS DETECTED
SILENCING THE END OF LIFE SIGNAL
"ALARM-MOVE TO FRESH AIR"
This silence feature can temporarily quiet the End of Life warning "chirp"
If you hear the alarm horn sound 4 beeps, pause,
for up to 2 days. You can silence the End of Life warning "chirp" by
4 beeps, pause, and the RED CO light is flashing,
pressing the Test/Silence button. The horn will chirp, acknowledging
move everyone to a source of fresh air.
that the End of Life silence feature has been activated.
After approximately 2 days, the End of Life "chirp" will resume.
After approximately 2-3 weeks the End of Life warning cannot be
silenced.
Actuation of your CO Alarm indicates the presence of carbon
monoxide (CO) which can kill you. In other words, when your CO
Alarm sounds, you must not ignore it!
LATCHING FEATURES
Alarm Latch is activated after an Alarm is exposed to alarm levels of
IF THE CO ALARM SOUNDS:
smoke or carbon monoxide. After smoke or CO levels drop below alarm
1. Operate the Test/Silence button. levels, the "Smoke/Power" or "CO" Red LED will begin to flash On 2
seconds/Off 2 seconds. It will continue to flash or "latch" until you clear
2. Call your emergency services, fire department or 911. Write down
it by testing the alarm.
the number of your local emergency service here:
This feature helps emergency responders, investigators, or service
_____________________________________________________________
technicians identify which unit(s) in your home were exposed to alarm
levels of smoke or carbon monoxide. This can help investigators
3. Immediately move to fresh air—outdoors or by an open door or
pinpoint the source of smoke or CO.
window. Do a head count to check that all persons are accounted
for. Do not re-enter the premises, or move away from the open door
The Latching Alarm Indicator stays ON until you clear it, so it can alert
or window until the emergency services responder has arrived, the
you to an alarm that occurred while you were away from home, even
premises have been aired out, and your Smoke/CO Alarm remains though smoke or CO present in the air has dropped below alarm levels.
in its normal condition.
Low Battery Latch is activated when the Alarm is in the "low battery
4. After following steps 1-3, if your Smoke/CO Alarm reactivates within
condition". When this occurs, the Smoke/Power LED flashes Green On
a 24-hour period, repeat steps 1-3 and call a qualified appliance
for 2 seconds/Off for 2 seconds. This feature is designed to help you
technician to investigate for sources of CO from fuel-burning
identify which Alarm needs to have the battery replaced. Although, the
equipment and appliances, and inspect for proper operation of
Alarm will sound the low battery chirp approximately once every minute,
this equipment. If problems are identified during this inspection
sometimes during the initial stages of "low battery", the Alarm will chirp
have the equipment serviced immediately. Note any combustion
in greater intervals than one minute, sometimes up to several hours, until
equipment not inspected by the technician, and consult the
the battery reaches a steady low battery level. This innovative feature
manufacturers' instructions, or contact the manufacturers directly,
eliminates the frustration of waiting for and/or identifying which unit is
for more information about CO safety and this equipment. Make
chirping.
sure that motor vehicles are not, and have not, been operating in
an attached garage or adjacent to the residence. Write down the
Latching Features Note: Low Battery Latch or Alarm Latch are only
number of a qualified appliance technician here:
engaged for about 15 minutes to conserve power. Low Battery
Latch and Alarm Latch do not operate with a missing battery.
_____________________________________________________________
5
When the CO Alarm is
Silenced
The CO alarm will remain silent
for up to 4 minutes.
After 4 minutes, if CO levels
remain potentially dangerous the
horn will start sounding again.
6
