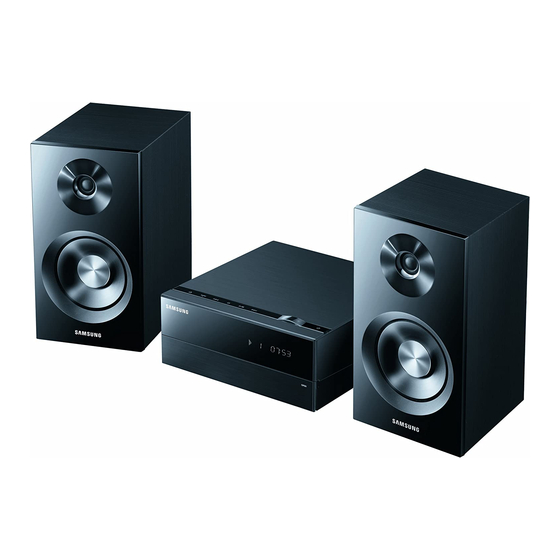

Personal micro component system
Hide thumbs Also See for MM-D430D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AH68-02344N(Rev 0.0)
Downloaded From Disc-Player.com Samsung Manuals

Advertisement

Table of Contents
loading

Related Manuals for Samsung MM-D430D

Summary of Contents for Samsung MM-D430D

  • Page 1 AH68-02344N(Rev 0.0) Downloaded From Disc-Player.com Samsung Manuals...
  • Page 2 MM-D430D MM-D530D PERSONAL MICRO COMPONENT SYSTEM user manual imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/register Downloaded From Disc-Player.com Samsung Manuals...

  • Page 3: Safety Warnings

    THIS APPLIANCE IS FITTED WITH 220V SASO APPROVED PLUG.THE CUSTOMER IS ENTITLED TO A FREE SASO APPROVED 127V PLUG FROM THE LOCAL DEALER. WHAT’S INCLUDED Check for the supplied accessories below. Remote Control/Batteries(AAA size) iPod Dock(optional) Video Cable FM Antenna User's Manual (optional) Downloaded From Disc-Player.com Samsung Manuals...

  • Page 4: Precautions

    Use of this product is for personal use only. Condensation may occur if your player or disc have been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 5: Features

    HDMI transmits DVD video and audio signals simultaneously,and provides a clearer picture. Anynet+ (HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Micro Component System to a SAMSUNG TV using a HDMI Cable.

  • Page 6: Table Of Contents

    Sleep Timer Function / Mute Function..........................56 DEMO Function / DIMMER Function ..........................57 Connecting Headphones/Microphone ..........................58 Cautions on Handling and Storing Discs ..........................59 Before Calling for Service ..............................60 Notes on Terminology ................................ 62 Specifications ..................................63 Downloaded From Disc-Player.com Samsung Manuals...

  • Page 7: Notes On Discs

    • This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. Copyright • © 2011 Samsung Electronics Co., Ltd. All rights reserved. Downloaded From Disc-Player.com Samsung Manuals...
  • Page 8 • DivX Certified® to play DivX ® video. • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. • “Pat. 7,295,673; 7,460,688; 7,519,274”. • DivX® ,DivX Certified® and associated logos are trademarks of DivX,Inc.and are used under license. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 9: Description

    USB JACK HEADPHONE JACK MIC JACK —Top Panel— OPEN/CLOSE BUTTON FUNCTION BUTTON SEARCH FUNCTION BUTTON(DOWN) TUNING MODE OR STOP BUTTON 5. PLAY/PAUSE BUTTON 6. SEARCH FUNCTION BUTTON(UP) 7. VOLUME CONTROL BUTTON(+,-) POWER BUTTON 1 2 3 Downloaded From Disc-Player.com Samsung Manuals...

  • Page 10: Rear Panel

    All those pictures of Rear panel are based on MODEL:MM-D530D • MM-D430D/MM-D530D may not have the iPod function depending on your region. • Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

  • Page 11: Remote Control

    DSP/EQ button ECHO button SLEEP button REMAIN button MO/ST button MIC VOL + button TUNER MEMORY button SLOW button POWER BASS button ZOOM button POWER SOUND button MIC VOL - button REPEAT A-B button ANGLE button Downloaded From Disc-Player.com Samsung Manuals...
  • Page 12 Range of Operation of the Remote Control The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 13: Connecting The Speakers

    • If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 14: Connecting The Video Out To Your Tv

    See your TV owner's manual for more information on how to select the TV's Video Input source. Micro Component If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the • using the TV's remote control. (This is only available with SAMSUNG TV's that support Anynet+(HDMI-CEC).)

  • Page 15: Hdmi Function

    Content is encrypted at the source device to prevent unauthorized copies from being made. What is Anynet+? • Anynet+ is a convenient function that offers linked operation of this unit through Samsung TV's with the Anynet+ feature. —...
  • Page 16 When you playback CD during CEC ON, if you turn off the TV Power, the Micro Component doesn't automatically turn off the Power. BD Wise (Samsung products only) You can select to use the BD Wise menu only if the Micro Component is connected to a Samsung TV that supports BD Wise using an HDMI cable. •...
  • Page 17 If the TV does not support the configured resolution, you will not be able to see the picture • properly. See your TV owner's manual for more information on how to select the TV's Video Input • source. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 18: P.scan(Progressive Scan) Function

    Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive scan TVs.) • Depending on the brand and model of your TV, this function may not work. • Before set the I-SCAN or P-SCAN mode, please disconnect the HDMI cable first. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 19: Connecting An Ipod(Optional)

    Adjust the volume to a moderate level before you connect your iPod and Micro Component.  When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.  You must have the VIDEO output connected to your TV view iPod video. iPod Downloaded From Disc-Player.com Samsung Manuals...
  • Page 20 Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Note • MM-D430D/MM-D530D may not have the iPod function depending on your region. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 21: Connecting External Components

    Connect AUX IN on the player to Audio Out on the external analog component. • Be sure to match connector colors. Press AUX to select AUX. • ‘ AUX’ appears in the display. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 22: Connecting The Fm Antennas

    • Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.) Downloaded From Disc-Player.com Samsung Manuals...

  • Page 23: Setting The Clock

    Press the REMAIN button. the time is displayed as below: If you press the REMAIN button, the remaining time is displayed. TITLE REMAIN TIME To cancel this function, press the REMAIN button again. CHAPTER REMAIN TIME ELAPSED TIME Downloaded From Disc-Player.com Samsung Manuals...

  • Page 24: Disc Playback

    If pressed twice, “STOP” is displayed, and if PLAY ( ) button is pressed, playback starts from the beginning. To temporarily pause playback, press PAUSE button during playback. • To resume playback, press PLAY( ) button again. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 25: Mp3/Wma-Cd Playback

    Steps 2 and 3 above. • Depending on the recording mode, some MP3/WMA-CDs may not be played. Note • Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 26: Jpeg File Playback

    Press INFO button during playback, and then press INFO button or Cursor buttons to select the Slide Show Speed, the playback speed changes as follows: SLIDE SHOW SPEED Normal SLIDE SHOW SPEED Slow SLIDE SHOW SPEED Fast Downloaded From Disc-Player.com Samsung Manuals...

  • Page 27: Divx Playback

    Go to the previous file whenever you press button, if there are over 2 files in the disk. Fast playback Press button. • Each time the button is pressed during playback, • To resume normal playback, press PLAY ( ) button. Downloaded From Disc-Player.com Samsung Manuals...
  • Page 28 Among the available DivX audio formats, DTS Audio is not supported. • When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file. • MPEG 1 Layer 1 (MP1) is not supported. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 29: Using An Ipod(Optional)

     What is an ID3 Tag? This is what is attached to an MP3 to carry information relevant to the fi le such as the title, artist, album, year, genre and a comment fi eld. Downloaded From Disc-Player.com Samsung Manuals...
  • Page 30 Video menu.  If you select iPod mode during HDMI Audio is on, HDMI will automatically change to OFF mode.  The repeat function is not available during viewing the iPod vedio. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 31: Playing Media Files Using The Usb Feature

    To play back the disc at a faster speed, press button during playback. • Each time you press either button, the playback speed will change as follows: • To resume normal playback, press PLAY ( ) button. Downloaded From Disc-Player.com Samsung Manuals...
  • Page 32 A device using NTFS fi le system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) fi le system is supported.) • Does not operate with Janus enabled MTP (Media Transfer Protocol) devices. • MPEG 1 Layer 1 (MP1) is not supported. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 33: Displaying Disc Information

    If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played. • Depending on the disc, the disc information display may appear different. Note Downloaded From Disc-Player.com Samsung Manuals...

  • Page 34: Fast/Slow Playback

    • During fast playback of a CD or MP3-CD, sound is not heard. Note • No sound is heard during slow playback and step motion playback. • During slow playback of a DIVX, the playback speed maybe abnormal. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 35: Skipping Scenes/Songs

    Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played. JPEG DIVX Playing Frame by Frame DIVX Press STEP button. • The picture moves forward one frame each time the button is pressed during playback. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 36: Angle Function

    • Each time the button is pressed, the angle changes as follows: • Note The Angle function works only with discs on which multiple angles have been recorded. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 37: Repeat Playback

    - When playing an Audio CD(CD-DA): The shuffle option plays a disc’s tracks in shuffle order. - When playing an MP3 disc : The shuffle option plays a folder’s file in shuffle order. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 38: A-B Repeat Playback

    REPEAT A-B button again. DIVX Repeat A-B Off • The A-B Repeat and Repeat function does not operate with JPEG disc. • The time space of point A and B should be more than 5 seconds. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 39: Zoom Function

    This function allows you to enlarge a particular area of the displayed image. Zoom (Screen Enlarge) Function DIVX JPEG Press Cursor , , Press ZOOM , buttons to button. move the area. Each time the button is pressed, the zoom level changes as follow: OFF. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 40: Selecting Audio/Subtitle Language

    You can use the AUDIO or SUBTITLE button on the remote control to select an audio or subtitle language. • Depending on the disc, the Subtitle and Audio Language functions may not work. • When you use AUDIO button to select "DTS", sound is not heard, and the TV displays as below: Downloaded From Disc-Player.com Samsung Manuals...

  • Page 41: Moving Directly To A Scene/Song

    Note You can press on the remote control to move directly • NUMBER to the desired chapter. Depending on the disc, you may not be able to move to the • selected title or time. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 42: Using Disc Menu

    ENTER press ENTER button. button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press EXIT button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 43: Using The Title Menu

    ENTER press ENTER button. button. Press MENU button to exit the setup screen. Press EXIT button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 44: Setting The Language

    Selecting the Subtitle Language Selecting the DivX Subtitle (recorded on the disc) Language (recorded on the disc) Press MENU or EXIT button to exit the setup screen. Press RETURN button to return to the previous level. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 45: Setting Tv Screen Type

    • You can select 'On' or 'Off'. • You can select 'I-SCAN' or 'P-SCAN'. On: you can see the screen messages. (see the page 16 about P-SCAN or Off: you can't see the screen messages. I-SCAN mode.) Downloaded From Disc-Player.com Samsung Manuals...
  • Page 46 TV, and the TV aspect ratio setting. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press EXIT button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 47: Setting Parental Controls (Rating Level)

    This function works only if a DVD disc contains the rating level information. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press EXIT button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 48: Setting The Password

    • The setting is complete. Press RETURN button to return to the previous level. Press CANCEL button to cancel the error numeric when you inputting password. Press MENU button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 49: Setting The Drc (Dynamic Range Compression)

    You can set the DRC between 0 and 8. Set it to the optimal status. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press EXIT button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 50: Av Sync Setup

    You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press EXIT button to exit the setup screen. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 51: Listening To Radio

    (This applies only when listening to an FM station.) • Each time the button is pressed, the sound switches between "STEREO" and "MONO". • In a poor reception area, select MONO for a clear, interference-free broadcast. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 52: Presetting Stations

    MEMORY button. steps 2 to 5. number. • • You can select between 1 and If you can’t press “TUNER MEMORY” in 5 seconds, the preset disappears and “FM” displays. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 53: Cd Ripping Function

    Ripping maybe disengage. Sometimes, some of USB devices, CD Ripping time is long. ◆ When CD Ripping completes or Stops, the CD will reload. ◆ When HDMI audio on, the CD RIPPING can’t work. ◆ Downloaded From Disc-Player.com Samsung Manuals...

  • Page 54: Timer Function

    If the timer switch on and off times are identical, the word ERROR is displayed. Note • If there is no disc or usb, when you select the “DVD, USB, it will automatically change to “TUNER”. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 55: Canceling The Timer

    If you no longer wish to use the timer, you must cancel it. To cancel the timer, press TIMER ON/OFF once. • is no longer displayed. To resume the timer, press TIMER ON/OFF again. • is displayed again. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 56: Power Sound/Power Bass Function

    Result: “P,BASS” is displayed for a few seconds. To cancel this function, press P.BASS again, “OFF” is displayed for a few seconds. When CD Ripping,the P.BASS function can’t work and the P.BASS automatically covert to “OFF” mode. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 57: Dsp/Eq Function

    : Select this for normal listening.  When you insert the microphone, you can't select DNSE and WIDE 3D modes.  When CD Ripping,the DSP/EQ function can’t work and the DSP/EQ automatically covert to “PASS” mode. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 58: Sleep Timer Function / Mute Function

    OFF appears on the display. Mute Function This is useful when answering a doorbell or telephone call. Press MUTE button. • ‘ MUTE’ appears in the display. • To turn off mute, press this button again. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 59: Demo Function / Dimmer Function

    You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing. Press DEMO/DIMMER button. • Each time the button is press, the brightness changes as follows: DEMO ON DIMMER ON(Dim) DIMMER OFF(Bright). Note Press any buttons to cancel DEMO function. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 60: Connecting Headphones/Microphone

    • Press the ECHO button to select ECHO1,ECHO2, and ECHO OFF. Note • Prolonged use of headphones at a high volume may damage your hearing. • When you use the headphones, the HDMI Audio will auto swicth to Off mode. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 61: Cautions On Handling And Storing Discs

    When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 62: Before Calling For Service

    Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy Disc tray does not open.
  • Page 63 5 seconds. “INITIAL” appears on the display and all settings will return to the default values. level has been forgotten. • Press the POWER button. Using the RESET function will erase all stored settings. Do not use this unless necessary. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 64: Notes On Terminology

    5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs recorded as a digital signals (with disc marking). With better sound quality, dynamic range, and directionality than traditional Dolby surround technology, you can enjoy dynamic, realistic sound. Downloaded From Disc-Player.com Samsung Manuals...

  • Page 65: Specifications

    Weight 1.9 Kg *: Nominal specifi cation - Samsung Electronics Co., Ltd reserves the right to change the specifi cations without notice. - Weight and dimensions are approximate. - Design and specifi cations are subject to change without prior notice.
  • Page 66 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area Contact Center Web Site Area Contact Center Web Site ` North America 0700 Samsung (0700 726 Serbia www.samsung.com...
