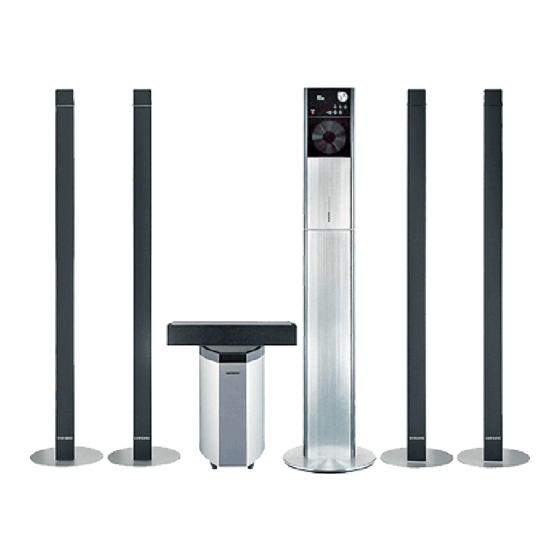

Slim digital home cinema system
Hide thumbs Also See for HT-DS1000:
Table of Contents

Advertisement

Quick Links

SLIM DIGITAL HOME
CINEMA SYSTEM
HT-DS1000
HT-DS1100
Instruction Manual
COMPACT
COMPACT
DIGITAL VIDEO
DIGITAL AUDIO
Downloaded From TheatreSystem-Manual.com Manuals

Advertisement

Table of Contents
loading

Summary of Contents for Samsung HT-DS1000

  • Page 1 SLIM DIGITAL HOME CINEMA SYSTEM HT-DS1000 HT-DS1100 Instruction Manual COMPACT COMPACT DIGITAL VIDEO DIGITAL AUDIO Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 2: Safety Warnings

    Safety Warnings Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUKT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPO- SURE TO BEAM.
  • Page 3: Precautions

    Precautions Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered.
  • Page 4: Features

    When you turn on the power, a ‘sound logo’ will be heard. TV Screen Saver Function The HT-DS1000/HT-DS1100 automatically brightens and darkens the brightness of the TV screen after 3 minutes in the stop mode. The HT-DS1000/HT-DS1100 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.
  • Page 5: Table Of Contents

    Contents PREPARATION Safety Warnings..................................1 Precautions ..................................2 Features....................................3 Notes on Discs..................................5 Description ..................................7 CONNECTIONS Installing DVD player .................................13 Connecting the Speakers ..............................14 Connecting the Video Out to TV............................17 Connecting External Components ............................21 Connecting the FM Antenna ...............................23 Before Using Your DVD Player............................24 OPERATION Disc Playback ..................................25 MP3-CD Playback ................................27...
  • Page 6: Notes On Discs

    Notes on Discs DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these V I D E O realistic effects in the home, as if you were in a movie theater or concert hall. DVD players and the discs are coded by region.
  • Page 7 Disc Recording Format CD-R/RW Discs • Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discs may not be playable. • Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable. •...
  • Page 8: Description

    Description —Front Panel— Volume control Play/Pause ( ) button Stop ( ) button Power ( ) button Open/Close ( ) button Function button Tuning UP & Skip ( ) button Tuning Down & Skip ( ) button Display DOLBY DIGITAL indicator DSP indicator PRO LOGIC II indicator DVD AUDIO indicator...
  • Page 9: Rear Panel

    —Rear Panel— Resolution Switch External Digital in Optical 1,2 Input Connectors Cooling Fan Accessories Remote Control Video Cable HDMI Cable Vertical Stand Horizontal Stand Screw Large : 3EA Screw Large : 2EA HDMI/DVI Cable Screw Small : 4EA Auto Sound Calibration FM Antenna DIN Audio Connection User's Manual...
  • Page 10 Description Headphone Jack Auto Sound Calibration button FM Antenna Connector Bottom HDMI Video/Audio Output Connector COMPONENT VIDEO OUTPUT Connector DIN Audio Output Jack External Audio Component Input Connectors Video Output Connector Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 11 Subwoofer PSWS1000T (Subwoofer of HT-DS1000) Subwoofer Level control Crossover frequency control DIN Audio Input terminal Speaker Output Terminals Subwoofer Power button < Right > < Rear > PSWS1100T (Subwoofer of HT-DS1100) Subwoofer Level control Subwoofer Power button DIN Audio Input terminal...
  • Page 12: Remote Control

    Description —Remote Control— TV indicator TV DVD RECEIVER TV, DVD POWER button DVD RECEIVER indicator MODE button TV/VIDEO, DIMMER button OPEN/CLOSE TV/VIDEO MODE OPEN/CLOSE button DIMMER AUX button DVD button TUNER TUNER button SLOW SUB TITLE Auto Sound Calibration button SUBTITLE button MO/ST SLOW, MO/ST button...
  • Page 13 Insert Remote Batteries Remove the battery Insert two 1.5V AAA Replace the battery cover on the back batteries, paying cover. of the remote by attention to the correct pressing down and polarities (+ and –). sliding the cover in the direction of the arrow.
  • Page 14: Installing Dvd Player

    Installing DVD player You can select and install either the Vertical or Horizontal Stand, depending on your preference. Vertical Stand (supplied) Main unit REAR OF MAIN UNIT Fix the round support and Vertical Stand with screws 3EA. Open the cover on the rear of Vertical Stand and connect the Audio/Video cable into the Vertical Stand.
  • Page 15: Connecting The Speakers

    Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Position of the DVD Player Selecting the Listening Position • Place it on a stand or cabinet shelf, or under The listening position should be located about 2.5 to 3 the TV stand.
  • Page 16 Connecting the Speakers Connect the front, rear and center speakers to the speaker output jack on the side of subwoofer. HT-DS1000 Rear of Subwoofer (PSWS1000E) Bottom of Main unit (HT-DS1000) Center Speaker Green Rear Speaker (R) Rear Speaker (L) Blue...
  • Page 17 HT-DS1100 Rear of Subwoofer (PSWS1100E) Bottom of Main unit (HT-DS1100) Center Speaker Green Rear Speaker (R) Rear Speaker (L) Gray Blue White Front Speaker (R) Front Speaker (L) Connecting the Speakers Press down the terminal Insert the black wire into the Connect the correct color speaker cable tab on the back of the black terminal (–) and the gray...
  • Page 18: Connecting The Video Out To Tv

    Connecting the Video Out to TV When you connect to Video Out Good Quality Method1 Connect the Video Out to the Video In on the TV. Video Cable Set the Video Input source on your TV (supplied) to the corresponding Video output on your Home Theater.
  • Page 19 When you connect to HDMI Out Best Quality Method 3 Connect if the TV has an HDMI (or DVI) In jack. Connect the HDMI Out to the HDMI (or DVI) Input on the TV. Set the Video Input source on your TV HDMI/DVI Cable to the corresponding HDMI output on (supplied)
  • Page 20 Connecting the Video Out to TV Selecting Resolution You can adjust the resolution switch to set the HDMI and component (P , Y) output resolution to 576p(480p)/720p/1080i. Example: If the TV supports resolution up to 576p(480p) Set the resolution switch to 576p(480p). •...
  • Page 21 DCDi Function (Directional Correlational Deinterlacing) Converts the interlace signal to progressive to prevent flickering and to remove distortion or noise on the edge of screen. Press and hold DCDi button on the remote control for over 3 seconds. • Each time the button is pressed, the selection alternates between DCDi ON and DCDi OFF.
  • Page 22: Connecting External Components

    Connecting External Components Connecting an External Digital Component Example: Digital signal components such as a Settop Box or CD Recorder. Optical Cable (not supplied) Connect the Digital In 1 or 2 (OPTICAL) on the main unit to the Digital Output on the external digital component.
  • Page 23: Connecting An External Analog Component

    Connecting an External Analog Component Example: Analog signal components such as a VCR or TV. Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. Connect Audio In on the main unit to Audio Out on the external analog component. •...
  • Page 24: Connecting The Fm Antenna

    Connecting the FM Antenna FM antenna connection Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. Selecting the Video Format Press and hold NTSC/PAL button on the remote controller for over 5 seconds while the power is turned off.
  • Page 25: Before Using Your Dvd Player

    Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO and Numeric (0-9) buttons. • By default, the remote control is set to work with Samsung TVs. See page 77 for more information on the operation of the remote control. •...
  • Page 26: Disc Playback

    Disc Playback Press OPEN/CLOSE button to open the disc tray. Insert the disc so that the printed side faces up. Press OPEN/CLOSE button to close the disc window. • The disc plays automatically when the disc window is closed. • The disc menu may appear differently depending on the disc.
  • Page 27: Disc Terminology

    Disc terminology Groups and tracks (DVD-AUDIO) • DVD-audios is divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers". GROUP 1 GROUP 2 TRACK 1 TRACK 2 TRACK 3...
  • Page 28: Mp3-Cd Playback

    MP3-CD Playback Data CDs (CD-R, CD-RW) encoded in MP3 format can be played. Press the In Stop mode, use OPEN/CLOSE button to select to open the disc tray, the album, and then and then load the press the ENTER MP3 disc. button.
  • Page 29: Jpeg Disc Playback

    JPEG Disc Playback Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this unit. Press the OPEN/CLOSE button to open the disc windows, and then load the JPEG disc.
  • Page 30: Divx Playback

    DivX Playback Skip Forward/Back During playback, press the button. • Go to the next file whenever you press button, if there are over 2 files in the disk. • Go to the previous file whenever you press button, if there are over 2 files in the disk.
  • Page 31: Subtitle Display

    5 Minute Skip function During playback, press the button. • Go to the screen about 5 minutes after whenever you press button. • Go to the screen about 5 minutes earlier whenever you press button. Subtitle Display Press the SUBTITLE button. •...
  • Page 32: Displaying Disc Information

    Displaying Disc Information You can view disc playback information on the TV screen. Press INFO button. • Each time the button is pressed, the display changes as follows: DivX JPEG DVD RECEIVER SMART NAVI Something like you Back for good Love of my life More than words Display disappears...
  • Page 33: Checking The Remaining Time

    Checking the Remaining Time Press the REMAIN button. • For checking the total and remaining time of a title or chapter being played. Each time the REMAIN button is pressed DVD- DVD- VIDEO AUDIO GROUP ELAPSED TITLE ELAPSED GROUP REMAIN TITLE REMAIN TRACK ELAPSED CHAPTER ELAPSED...
  • Page 34: Fast/Slow Playback

    Fast/Slow Playback Fast Playback Press and hold • Each time the button is held down during playback, the playback speed changes as follows: Slow Playback Press SLOW button. • Each time the button is pressed during playback, the playback speed changes as follows: DivX •...
  • Page 35: Skipping Scenes/Songs

    Skipping Scenes/Songs Briefly press • Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played. TITLE 01/05 CHAPTER 002/040 DVD RECEIVER SMART NAVI Something like you Back for good Love of my life More than words I need you...
  • Page 36: Repeat Playback

    Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: DVD- DVD- VIDEO AUDIO JPEG...
  • Page 37: To Select A Repeat Playback Mode In The Disc Information Screen

    To Select a Repeat Playback Mode in the Disc Information Screen Press INFO button twice. Press Cursor button to move to REPEAT PLAYBACK( ) display. Press Cursor button to select the desired Repeat Playback mode. Press ENTER button. For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
  • Page 38: A-B Repeat Playback

    A-B Repeat Playback Press Cursor Press INFO button button to move to twice. REPEAT PLAYBACK ) display. • For a VCD or CD, press INFO button once. Press Cursor Press ENTER buttons to select ‘A-’ and button at the end then press ENTER of the desired button at the beginning of...
  • Page 39: Angle Function

    Angle Function This function allows you to view the same scene in different angles. Press Cursor button Press INFO button. to move to ANGLE ) display. Press Cursor or numeric buttons to select the desired angle. • Each time the button is pressed, the angle changes as follows: •...
  • Page 40: Zoom Function

    Zoom Function This function allows you to enlarge a particular area of the displayed image. Zoom (Screen Enlarge) Function Press Cursor Press ENTER Press ZOOM buttons to button. button. move to the area you want to enlarge. • Each time the button is pressed, the zoom level changes as follows: SELECT ZOOM POSITION Aspect Ratio...
  • Page 41: Bonus Group / Navigating Pages

    Bonus Group / Navigating Pages Bonus Group DVD- AUDIO Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number. When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.
  • Page 42: Selecting Audio/Subtitle Language

    Selecting Audio/Subtitle Language Audio Language Selection Function Press Cursor Press INFO button buttons or numeric buttons to select the twice. desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.
  • Page 43: Moving Directly To A Scene/Song

    Moving Directly to a Scene/Song Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor , or numeric buttons to select buttons to move to Press INFO button. the desired title/track and then Chapter ( press ENTER button. display.
  • Page 44: Using Disc Menu

    Using Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. Press Cursor In Stop mode, buttons to move to press MENU ‘DISC MENU’ and then button. press ENTER button.
  • Page 45: Using The Title Menu

    Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently. Press Cursor In Stop mode, Press ENTER button to move to press MENU button.
  • Page 46: Setting The Language

    Setting the Language OSD language is set to English by default. Press Cursor In Stop mode, button to move to press MENU ‘Setup’ and then button. press ENTER button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 47 Press Cursor Press Cursor Press ENTER button to select the button to select the button. desired item and then desired language and then press ENTER button. press ENTER button. • Once the setup is complete, if the language was set to English, OSD will be displayed in English. Selecting the Selecting the Selecting the...
  • Page 48: Setting Tv Screen Type

    Setting TV Screen type Depending on your TV type (Wide Screen TV or conventional 4:3 TV), you can select the TV's aspect ratio. Press Cursor In Stop mode, button to move to press MENU ‘Setup’ and then button. press ENTER button. Press Cursor Press Cursor button to select the...
  • Page 49: Adjusting The Tv Aspect Ratio (Screen Size)

    Adjusting the TV Aspect Ratio (Screen Size) The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
  • Page 50: Setting Parental Controls (Rating Level)

    Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. Press Cursor In Stop mode, button to move to press MENU ‘Setup’ and then button. press ENTER button. Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 51: Enter Button

    Press Cursor Press Cursor , button Enter the password button to move to to select the desired rating and then press ‘PARENTAL’ and then level and then press ENTER button. press ENTER button. ENTER button. • • The password is set to "7890" by default. If you have selected Level 6, you •...
  • Page 52: Setting The Password

    Setting the Password You can set the password for the Parental (rating level) setting. Press Cursor button to move to Press MENU button. ‘Setup’ and then press ENTER button. • Note The password is set to "7890" by default. Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 53 Press Cursor button to Press ENTER Enter the password move to ‘PASSWORD’ and then press button. and then press ENTER ENTER button. button. • Enter the old password, a new password, and confirm new password. • The setting is complete. Press RETURN button to return to the previous level.
  • Page 54: Setting The Wallpaper

    The selected wallpaper will be You can repeat Steps 1 and 2 to displayed. set up to 3 wallpapers. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 55 To Change the Wallpaper Press Cursor Press Cursor In Stop mode, button to move to button to move to press MENU ‘Setup’ and then ‘LOGO’ and then button. press ENTER button. press ENTER button. Press to select Press MENU the desired ‘USER’, button to exit the and then press setup screen.
  • Page 56: Dvd Playback Mode

    DVD Playback Mode Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. Press Cursor Press the MENU button to move to button while the ‘Setup’...
  • Page 57 Press Cursor button Press Cursor , to move to ‘DVD button to move to TYPE’ and then press ‘DVD VIDEO’ and then ENTER button. press ENTER button. • Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode. When Selecting DVD Play Mode: •...
  • Page 58: Setting The Speaker Mode

    Setting the Speaker Mode Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not. Press Cursor In Stop mode, button to move to press MENU ‘Audio’...
  • Page 59: Setting The Test Tone

    Setting the Test Tone Use the Test Tone feature to check the speaker connections and to adjust the speaker levels. Press Cursor Press Cursor button In Stop mode, button to move to to move to ‘TEST press MENU ‘Audio’ and then TONE’...
  • Page 60: Setting The Delay Time

    Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. Press Cursor button In Stop mode, to move to ‘Audio’ and press MENU then press ENTER button.
  • Page 61 Press Cursor Press Cursor button , buttons to move Press Cursor to move to ‘DELAY to set the Delay to the desired TIME’ and then press time. speaker and then ENTER button. press ENTER button. • You can set the delay time for C between 00 and 05mSEC and for LS and RS between 00 and 15mSEC.
  • Page 62: Setting The Audio Quality

    Setting the Audio Quality You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen Method 1 Press Cursor In Stop mode, button to move to press MENU ‘Audio’ and then press button.
  • Page 63 When manually adjusting with the SOUND EDIT button Method 2 Adjusting Front Speaker Balance Adjusting Rear Speaker Balance Adjusting Center Speaker Level Press SOUND Press SOUND Press SOUND EDIT button and EDIT button and EDIT button and then press Cursor then press Cursor then press Cursor Adjusting Rear Speaker Level...
  • Page 64: Setting The Drc (Dynamic Range Compression)

    Setting the DRC (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. Press Cursor In Stop mode, button to move to press MENU ‘Audio’ and then button. press ENTER button. Press Cursor Press Cursor button to move to...
  • Page 65: Av Sync Setup

    AV SYNC Setup Video may lag behind the audio if the unit is connected to a digital TV. If this occurs, adjust the audio delay time to sync up with the video. Press Cursor buttons Press the MENU button. to move to ‘Audio’ and then press ENTER button.
  • Page 66: Dolby Pro Logic Ii Mode

    Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode. Press PL II MODE button. • Each time the button is pressed, the mode changes as follows. PRO LOGIC II • MUSIC : When listening to music, you can experience sound effects as if you are listening to the actual performance.
  • Page 67: Dolby Pro Logic Ii Effect

    Dolby Pro Logic II Effect This function works only in Dolby Pro Logic MUSIC mode. Press PL II EFFECT button Press PL II MODE and then press Cursor button to select ‘MUSIC’ buttons to select the mode. mode. • You can select either 0 or 1. MPEG-2 AAC MPEG-2 AAC MPEG Press...
  • Page 68: Auto Sound Calibration Setup

    Auto Sound Calibration Setup * This function is available only for DVD/CD playback. Auto Sound Calibration By setting the auto sound calibration function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create 5.1-channel sound field optimized for the listener's environment.
  • Page 69 Plug the auto sound calibration microphone into the auto sound calibration input jack. Place the auto sound calibration microphone at the listener's position. Adjust the volume control on the main unit as follows: • If the distance between the listener and the speaker is over 5 m: Set the main unit's volume to over 25.
  • Page 70: Live Surround Mode

    Live Surround Mode SUPER 5.1 MUSIC MOVIE You can reproduce a 2-channel sound source, such If you press the MUSIC button when listening to a You can select from 3 different modes of sound 2-channel sound source, it will be reproduced in as CD, and radio broadcast, in 5.1-channel field for movies.
  • Page 71: Virtual Headphone Function

    Virtual Headphone Function Use headphones (not supplied) for private listening pleasure. You can enjoy a dynamic sound effects similar to that of 5.1 channel surround sound using conventional stereo headphones. Plug the Press V-H/P headphones into the button. headphone jack. •...
  • Page 72: Listening To Radio

    Listening to Radio You can listen to the chosen band (FM broadcast stations) by using either the automatic or manual tuning operation. Remote Control Unit Tune in to the Press TUNER desired station. button. Automatic Tuning 1 When is pressed, a •...
  • Page 73: Presetting Stations

    Presetting Stations You can store up to: 15 FM stations Example: Presetting FM 89.1 in the memory Press the TUNER Press the TUNER Press button and select MEMORY button. select "89.10". the FM band. • • Refer to Step 2 on page 71 to “PRGM”...
  • Page 74: About Rds Broadcasting

    About RDS broadcasting Using the RDS (Radio Data System) to receive FM stations RDS allows FM stations to send an additional signal along with their regular program signals. For example,the stations send their station names,as well as information about what type of program they broadcast, such as sports or music,etc.
  • Page 75 PTY (Program Type) indication and PTY-SEARCH function One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes. To search for a program using the PTY codes Display Program Type Before you start, remember...
  • Page 76: Convenient Functions

    Convenient Functions Sleep Timer Function You can set the time that the DVD player will shut itself off. Press SLEEP button. • "SLEEP" will be displayed. Each time the button is pressed the preset time changes as follows: 10 OFF. To confirm the sleep timer setting, press SLEEP button.
  • Page 77: Adjusting Display Brightness

    Adjusting Display Brightness Touch your hands to the front of main unit to automatically turn on the LED and Operation Buttons. Press DIMMER button. • Press the DIMMIER button to toggle between DIMMER AUTO DIMMER ON DIMMER OFF on the Display. DIMMER AUTO : Touch your hands to the operation buttons, and it will turn on for about 5 seconds and then turn off.
  • Page 78: Operating A Tv With The Remote Control

    The remote control may not work on some brands of TVs. Also some operations may not be possible depending on your brand of TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 79 TV Brand Code List Brand Code Brand Code SAMSUNG 00(Initial Value), 01, 02, 03, 04, 05, 73 BRANDT ANAM 06~11, 59 FERGUSON DAEWOO 12~18, 20, 21 PIONEER 41, 48, 74 05, 20, 21, 22, 53 TELEAVA HITACHI 23, 40, 41, 49...
  • Page 80: Before Calling For Service

    Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy Disc tray does not open.
  • Page 81 Symptom Check/Remedy • Disc is rotating but no • Is the TV power on? • Are the video cables connected properly? picture is produced. • Is the disc dirty or damaged? • Picture quality is poor and • A poorly manufactured disc may not be playable. picture is shaking.
  • Page 82: Cautions On Handling And Storing Discs

    Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface.
  • Page 83: Specifications

    Specifications HT-DS1000/1100 : 30W Power Consumption PSWS1000E/1100E : 150W MAIN UNIT : 2.25kg Weight VERTICAL STAND : 6.35kg HORIZONTAL STAND : 1.5kg Dimensions (W x H x D) 180 x 500 x 68 mm Operating Temperature Range 5°C ~ 35°C...
  • Page 84: Notes On Terminology

    Notes on Terminology Recorded onto some DVD discs are scenes which have been simultaneously shot from a number ANGLE of different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes. These numbers are recorded on DVD discs.
  • Page 85: Memo

    Memo Downloaded From TheatreSystem-Manual.com Manuals...
