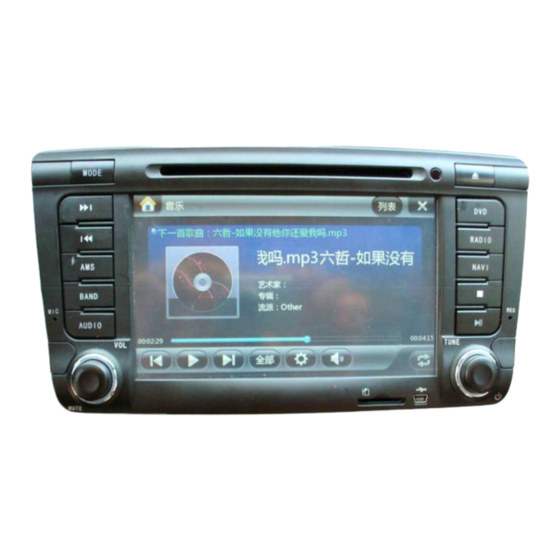

Skoda Octavia I Installing Manual

Navigation & entertainment system
Hide thumbs Also See for Octavia I:

Advertisement

Quick Links

Installing Guide Of Skoda Octavia I
Navigation& Entertainment System
Navigation& Entertainment System
Navigation& Entertainment System
Navigation& Entertainment System
Installation Flow
Installation Flow
Installation Flow
Installation Flow
(V1.1)
(V1.1)
(V1.1)
(V1.1)
01
Original Car's in-dash board.
03
Pry the silver decorative strip of the front right
corner.
05
Outlook after remove of the decorative board.
07
Take out the four fixed screws.
02
Pry the silver decorative strip of the front left
corner with plastic knife.
04
Remove the decorative face board as the photo
shows.
06
Take out the decorative cover of the four fixed
screws of original Radio.
08
Take out the original Radio and pull out the
original harness.

Advertisement

loading

Summary of Contents for Skoda Octavia I

  • Page 1 Installing Guide Of Skoda Octavia I Navigation& Entertainment System Navigation& Entertainment System Navigation& Entertainment System Navigation& Entertainment System Installation Flow Installation Flow Installation Flow Installation Flow (V1.1) (V1.1) (V1.1) (V1.1) Original Car’s in-dash board. Pry the silver decorative strip of the front left corner with plastic knife.
  • Page 2 It’s our special power cable, red one With It’s still our special power cable, yellow one is original power jacket, blue one with Our reverse power cable(optional) the blue brake unit,(photo 14),green one with can Bus box. cable with( photo 11) USB cable’s Brake jacket. Special USB cable, green one with unit, red one Special power cable, red one is connect with is brake cable(photo 12) with main cable’s brake...
