Page 1: Oven Parts

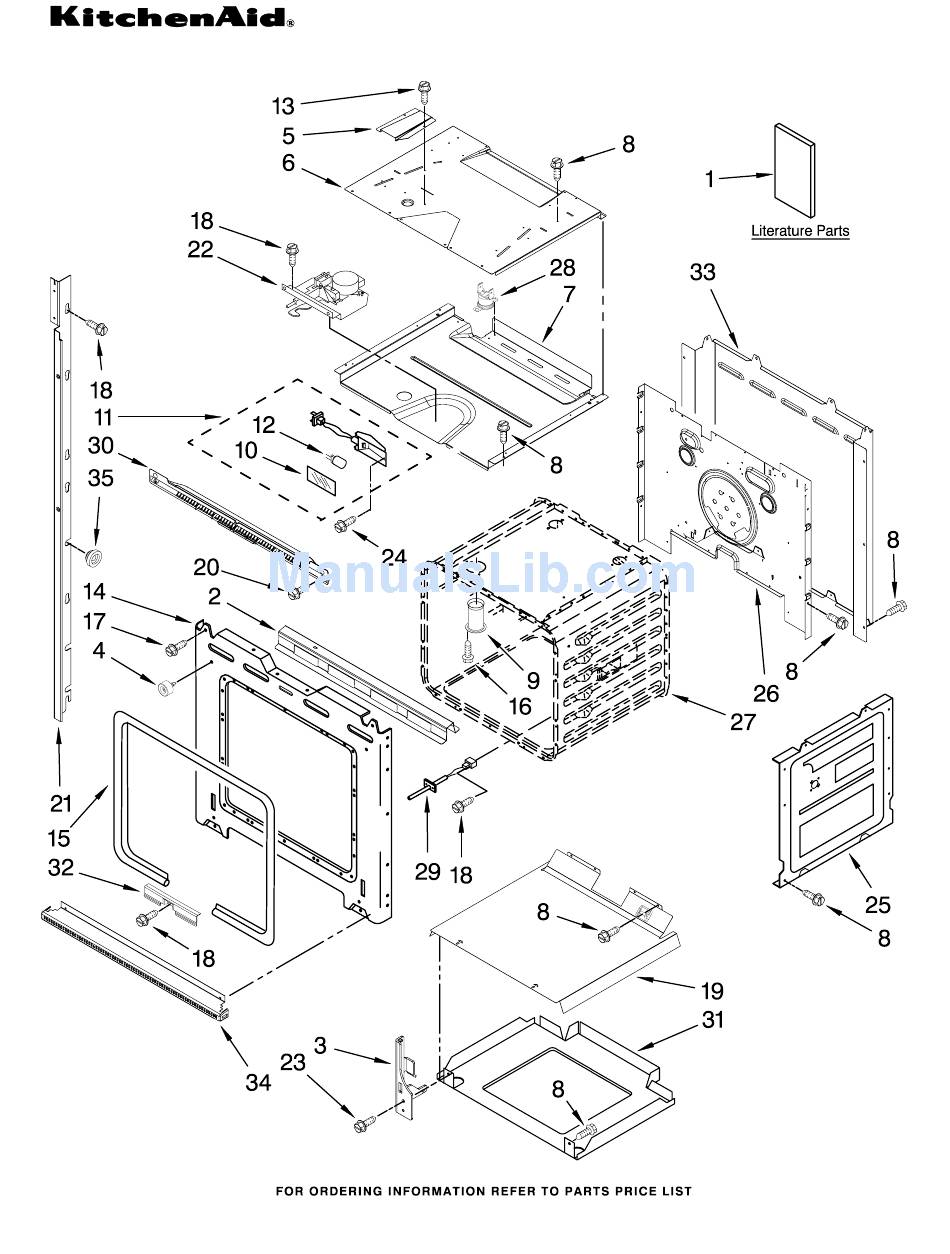

OVEN PARTS 27" BUILT−IN ELECTRIC 27" BUILT−IN ELECTRIC For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 COMBO OVEN COMBO OVEN THERMAL CONVECTION THERMAL CONVECTION (Black) (White) (Stainless) 7−07 Litho in U.S.A. (amd) Part No. W10132513 Rev. C... - Page 2 For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 Illus. Part DESCRIPTION Literature Parts 8304337 Installation Instructions 8304358 Use & Care Guide Tech Sheet 8304098 English 8304417 French Easy Set Guide 8304338 Oven 8304375 Microwave Safer Cooking Tips 3191638 English 9759133 French 8304420 Bracket, Base...
-
Page 3: Control Panel Parts
For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 W10132513 CONTROL PANEL PARTS (Black) (White) Illus. Part DESCRIPTION Panel, Control 8303717BL Black 8303717WH White 8303717SS Stainless 8304441 Resistor, Drop 8303797 Bracket, Glass Touch 8303881 Keyboard, Glass Touch 5 W10118734 Oven, User Interface 8303720 Backer, Control... -
Page 4: Oven Door Parts
For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 Illus. Part DESCRIPTION 8303738BL Door Liner 8303990 Hinge, Door (2) 3196183 Screw 8304580BL Vent, Door Top Bracket, Door 8304377 Right 8304378 Left 8303732 Glass, Inner 4449154 Screw 8304523 Seal OVEN DOOR PARTS (Black) (White) Illus. - Page 5 INTERNAL OVEN PARTS For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 W10132513 (Black) (White) (Stainless) Illus. Part DESCRIPTION 8304586 Element, Broil Shield 9760774 Element, Broil 8303842 Rack, Oven 9760768 Element, Bake 4455036 Tray, Bake 4449154 Screw 4450039 Cover, Bake Tray 4449809 Screw 9 8304422BU Cover, Fan...
- Page 6 TOP VENTING PARTS For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 (Black) Illus. Part DESCRIPTION 4449154 Screw 4454949 Holder, Fuse 4449809 Screw 8303972 Blower 9760588 Transformer, Lights 8303514 Exhaust Duct 9762053 Transformer, Control 8285593 Control Cover 4449868 Block, Terminal 10 W10017410 Fuse 8304509 Back Chassis...
- Page 7 CABINET AND STIRRER PARTS For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 (Black) (White) (Stainless) W10132513...
- Page 8 CABINET AND STIRRER PARTS For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 Illus. Part DESCRIPTION 1 W10120227 Control, Electric 8205669 Support 3 W10130892 Plate, Air 4 W10130901 Insulation, Side Left 5 W10120471 Cover, Side Left 6 W10120223 Thermostat 7 W10120224 Element, Convection 4375418 Fan...
- Page 9 INTERNAL MICROWAVE PARTS For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 W10132513 (Black) (White) Illus. Part DESCRIPTION 1 W10120480 Crisp Plate 2 W10120484 Steamer 4 W10120486 Plate, Baking 5 W10120483 Rack 8205676 Turntable 8205678 Ring 8205677 Drive, Turn Table 9 W10120481 Handle, Pan...
- Page 10 MICROWAVE DOOR PARTS For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 (Black) Illus. Part DESCRIPTION 8304588BL Button, Plug (2) 4449809 Screw 3 W10120488 Door, Microwave 4449154 Screw (4) 8303033 Bracket, Handle Glass Assembly 8304030 Black 8304031 White 8304029 Stainless Handle, Door 8303775BL Black...
- Page 11 OPTIONAL PARTS (NOT INCLUDED) For Models: KEMS378SBL00, KEMS378SWH00, KEMS378SSS00 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.)
