KitchenAid KBMS1454RBL0 Manual

Kitchenaid built-in microwave oven control parts.

Download Manual (6 pages, 0.3 Mb) Add to your account Write a comment Upload Manual
1 2 3 4 5 6

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
8205303 Installation
Instructions
8205301 Use & Care Guide
8205305 Cook Guide Label
8205302 Guide−Quick
Reference
8205304 Tech Sheet
2
Panel, Control
8205725 Black
8205723 White
8205726 Biscuit
8205724 Stainless
3−09 Litho in U.S.A. (rek) (eeb)

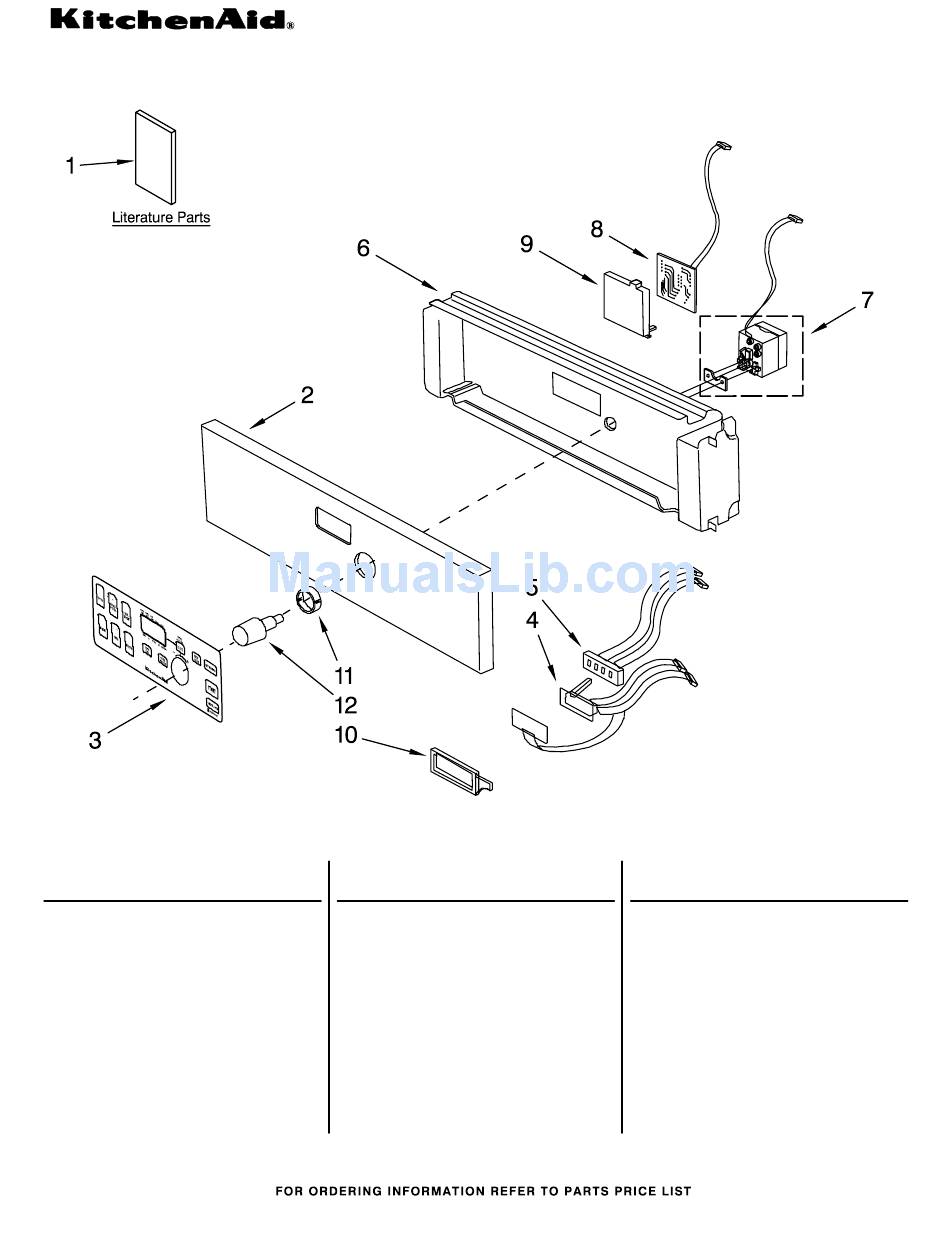

CONTROL PARTS
(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
3
Switch, Membrane
8205667 Black
8205666 White
8205668 Biscuit
4 W10203481 Foil, Touch
5
8205663 Board, Display
6
8205722 Support, Control
Panel
7
8205662 Board, Selector
8
8205665 Board, Interface
9
8205739 Holder, Control
Board
1
BUILT−IN MICROWAVE
(Biscuit)
(Stainless)
Illus.
Part
No.
No.
10
8205657 Holder, Display
11
8205727 Black
8205728 White
8205729 Biscuit
12
8205730 Black
8205731 White
8205732 Biscuit
Part No. 8205649 Rev. B
BUILT−IN MICROWAVE
DESCRIPTION
Board
Ring, Knob
Knob
Next page ->

Related Manuals for KitchenAid KBMS1454RBL0

This manual also for: Kbms1454rss0, Kbms1454rwh0, Kbms1454rbt0

Summary of Contents

  • Page 1

    For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0 Illus. Part DESCRIPTION Literature Parts 8205303 Installation Instructions 8205301 Use & Care Guide 8205305 Cook Guide Label 8205302 Guide−Quick Reference 8205304 Tech Sheet Panel, Control 8205725 Black 8205723 White 8205726 Biscuit 8205724 Stainless 3−09 Litho in U.S.A. (rek) (eeb)

  • Page 2

    For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0 Illus. Part DESCRIPTION Trim, Side 8205715 RH Black 8205718 RH White 8205717 RH Biscuit 8205716 RH Stainless 8205712 LH Black 8205711 LH White 8205714 LH Biscuit 8205713 LH Stainless CABINET PARTS (Black) (White) Illus.

  • Page 3

    For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0 Illus. Part DESCRIPTION Door Assembly 8205737 Black 8205736 White 8205738 Biscuit 8205735 Stainless 8205649 DOOR PARTS (Black) (White) Illus. Part DESCRIPTION 8205733 Hinge Assembly (2) 8205687 Sliding Arm Assy 8205683 Switch Holder (2) 4375346 Switch (3) 8205684 Push−Rod (2)

  • Page 4

    TOP VENTING PARTS For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0 (Black) Illus. Part 8205706 Air Duct 8205740 Air Guide 8205692 Transformer, Lamp 8205721 Motor, Fan Assy 8205664 Control, 8205669 Holder, Control 8205705 Top Chassis 8205719 Vent, Control 4357202 Screw (White) (Biscuit)

  • Page 5

    For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0 Illus. Part DESCRIPTION 4375321 Fuse 8205670 Fuse Holder 8205650 Magnetron 8205651 Screw 8205652 Thermostat 8205654 Thermostat 8205653 Mains Filter 8205655 Turntable Motor 8205656 Screw 8205659 Thermostat, Cavity 8205649 OVEN INTERIOR PARTS (Black) (White) Illus.

  • Page 6

    For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0 Illus. Part DESCRIPTION 8205754 Z−Bracket 8205755 6 pk. screws Narrow Bracket 8205756 27" Left 8205757 27" Right Narrow Trim 8205758 27" White 8205759 27" Black 8205760 27" Biscuit 8205761 27" Stainless Wide Bracket 8205762 30" Left 8205763 30"...
