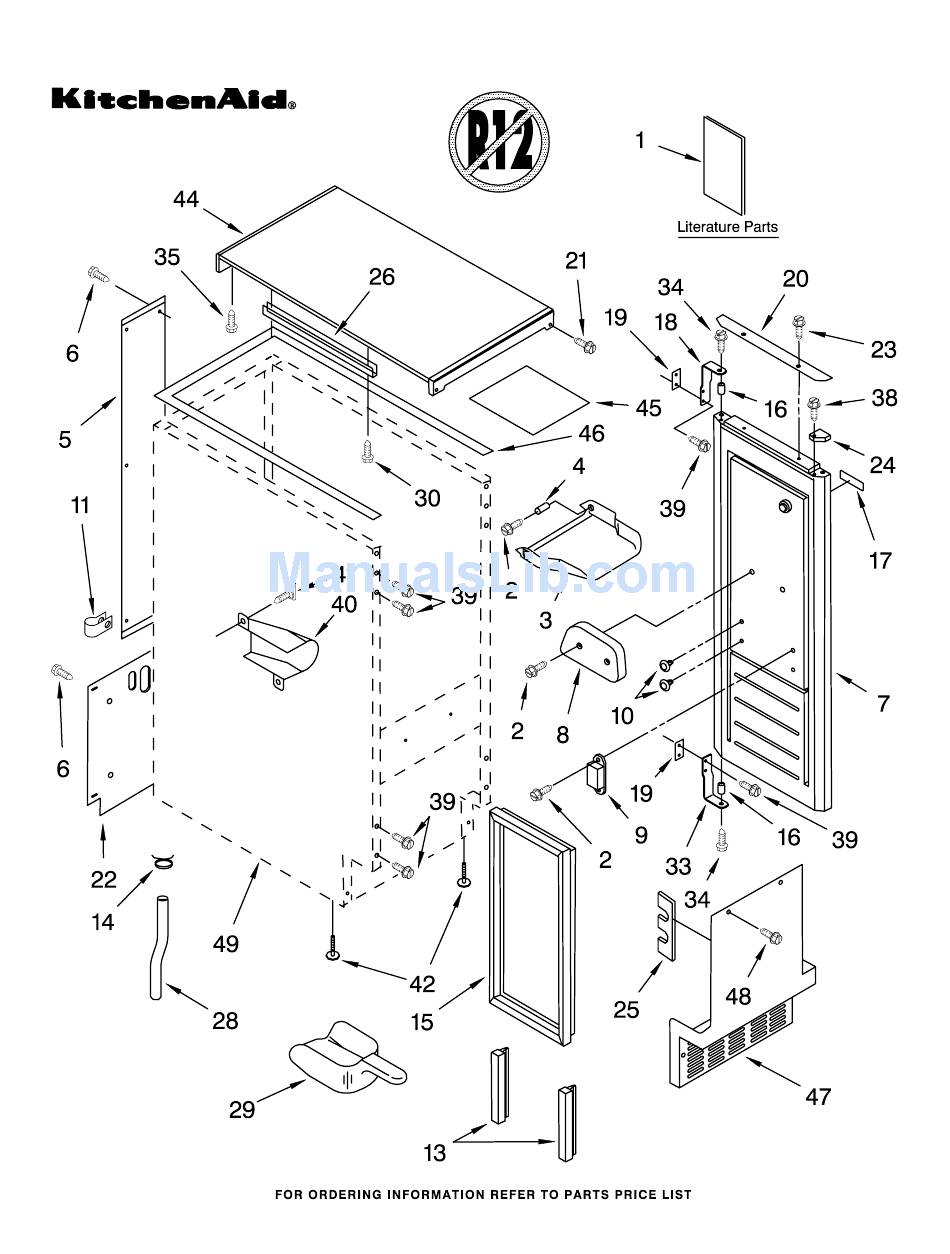

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 MAKER (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 12−01 Litho In U.S.A. (sg) Part No. 8197836...
-
Page 2: Cabinet Liner And Door Parts
CABINET LINER AND DOOR PARTS For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 Illus. Part DESCRIPTION Literature Parts LIT2217246 Use & Care Guide LIT2217232 Service & Wiring Sheet 3400886 Screw 8−18 X 1 1/4 2185742 Bin, Door 2185678 Spacer 2185575 Cover, Wiring... - Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8197836...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2185669 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208420 Evaporator 627018 Nut, Compression...
-
Page 5: Pump Parts
For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 8197836 PUMP PARTS (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8197836... - Page 8 UNIT PARTS For Models: KUIS155HWH3, KUIS155HBT3, KUIS155HBL3, KUIS155HBS3 (WHITE) (BISCUIT) Illus. Part 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan 304392 Screw 8−18 X 1/2 2208370 Compressor A201435 Clip, Mounting A201441 Shim (8) 2185960 Clamp (Power Cord)
