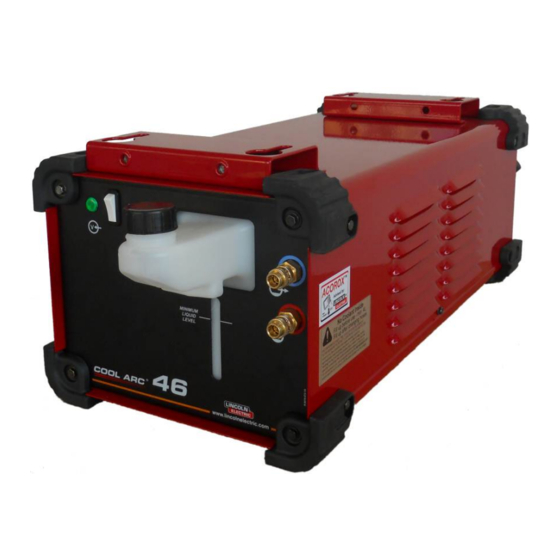

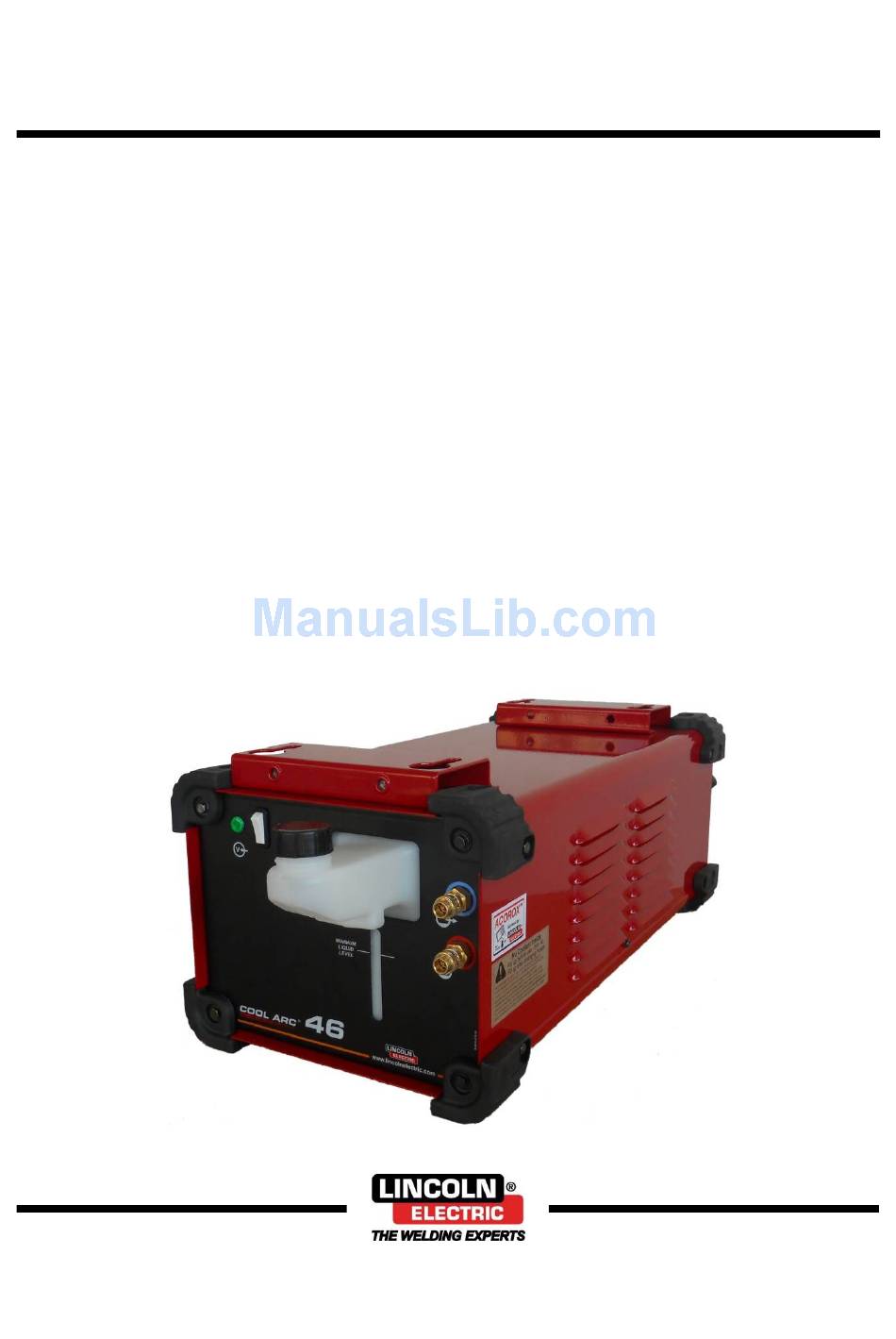

  • Page 1 M3044 09/2012 REV01 COOLARC 46 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...

  • Page 2: Declaration Of Conformity

    2006/95/CEE, 2004/108/CEE and has been designed in compliance with the following standards: EN 60974-2, EN 60974-10:2007 27.04.2012 Paweł Lipiński Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland 12/05 English English...

  • Page 3: Table Of Contents

    12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products.  Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer.  For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate.

  • Page 4: Safety

    Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.

  • Page 5: Introduction

    The manufacturer reserves the right to make changes and/or improvements in design without upgrade at the same time the operator’s manual. Introduction The COOLARC 46 is a cooling system designed for use COOLARC 46 is delivered empty with no coolant in the witch water-cooler torches and guns: system.
  • Page 6 Avoid placing the cooler near areas of extreme heat. Preparation COOLARC 46 to Work  Fill the coolant reservoir.  Connect COOLARC 46 to power source.  Turn the power source on.  Warning: First use the cooler require the pump is Figure 2.
  • Page 7 Coolant and Filling the Reservoir WARNING At first using of the COOLARC 46 reservoir’s nut has to be removed to avoid generate partial vacuum in cooling WARNING system during priming pump. Before filling the coolant reservoir, disconnect cooler’s power lead to the power source.
  • Page 8 For any repair operations, modifications or each repair, perform proper tests to ensure safety. maintenances, it is recommended to contact the nearest Technical Service Center or Lincoln Electric. Repairs and modifications performed by unauthorized service or personnel will cause, that the manufacturer’s warranty will become null and void.

  • Page 9: Troubleshooting

    WARNING If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact the nearest authorized Technical Service Center or Lincoln Electric for technical troubleshooting assistance before you proceed. Cooler does not ...

  • Page 10: Electromagnetic Compatibility (Emc)

    Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances.

  • Page 11: Technical Specifications

    Technical Specifications NAME INDEX COOLARC 46 K14105-1 INPUT Input Voltage U Input Amperes I 1max COOLARC 46 230 V ± 10% 0,65 A 400 V ± 10% Frequency EMC Group / Class COOLARC 46 50/60 Hz II / A PARAMETERS RATING...

  • Page 12: Weee

    12/05 Part list reading instructions  Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed.  Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
