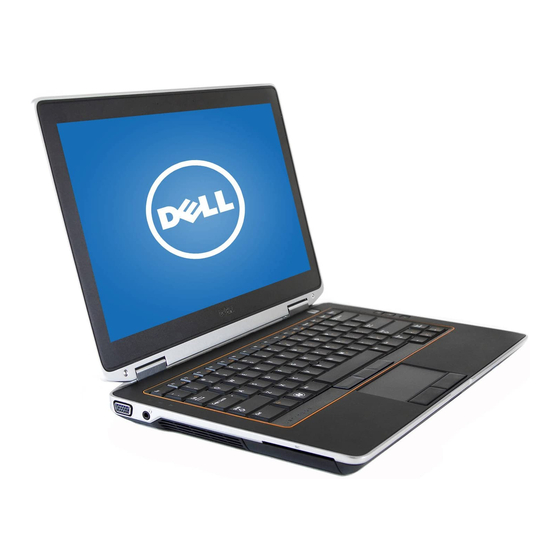

Dell Latitude E6320 Owner's Manual

Hide thumbs Also See for Latitude E6320:
Table of Contents

Advertisement

Quick Links

See also: Setup and Features Information , Manual
Dell Latitude E6320 Owner's Manual
Regulatory Model: P12S
Regulatory Type: P12S001

Advertisement

Table of Contents
loading

Related Manuals for Dell Latitude E6320

Summary of Contents for Dell Latitude E6320

  • Page 1 Dell Latitude E6320 Owner's Manual Regulatory Model: P12S Regulatory Type: P12S001...

  • Page 2: Notes, Cautions, And Warnings

    เป น เครื ่ อ งหมายการค า จดทะเบี ย น ® และครอบครองโดย Bluetooth SIG, Inc. การใช เ ครื ่ อ งหมายดั ง กล า วโดย Dell Inc. มี ข ึ ้ น โดยได ร ั บ อนุ ญ าต Wi-Fi เป น เครื ่ อ งหมายการค า ของ ®...

  • Page 3: Table Of Contents

    Contents Notes, Cautions, and Warnings..............2 บทที ่ 1: การทำงานกั บ ส ว นประกอบภายในของคอมพิ ว เตอร ..........9 ..................9 การดำเนิ น การกั บ ส ว นประกอบภายในคอมพิ ว เตอร .......................10 เครื ่ อ งมื อ ที ่ แ นะนำให ใ ช .
  • Page 4 .....................28 Installing The Optical Drive บทที ่ 8: Base Cover..................31 ....................31 Removing The Base Cover ....................32 Installing The Base Cover บทที ่ 9: เมมโมรี ่ ก าร ด .....................33 ....................33 Removing The Memory .....................34 Installing The Memory บทที ่ 10: ถ า นกระดุ ม .....................35 ..................35 Removing The Coin-Cell Battery ..................36...
  • Page 5 ..................57 Removing The Bluetooth Card ..................58 Installing The Bluetooth Card บทที ่ 17: แผง LED....................61 ....................61 Removing The LED Board ....................62 Installing The LED Board 18 Smart Card Reader.................65 ..................65 Removing The Smart Card Reader ...................66 Installing The Smart Card Reader บทที...
  • Page 6 บทที ่ 25: ลำโพง....................95 ....................95 Removing The Speakers ....................97 Installing The Speakers บทที ่ 26: พอร ต DC-In..................99 ....................99 Removing The DC-In Port ....................101 Installing The DC-In Port บทที ่ 27: กรอบจอแสดงผล..................103 ..................103 Removing The Display Bezel ..................104 Installing The Display Bezel บทที...
  • Page 7 บทที ่ 32: การวิ น ิ จ ฉั ย ระบบ..................131 ......................131 Device Status Lights .....................131 Battery Status Lights ......................131 LED Error Codes บทที ่ 33: การติ ด ต อ กั บ Dell.................135 ........................135 การติ ด ต อ กั บ Dell...

  • Page 9: บทที ่ 1: การทำงานกั บ ส ว นประกอบภายในของคอมพิ ว เตอร

    โทรศั พ ท แ จ ง เท า นั ้ น ความเสี ย หายเนื ่ อ งจากการซ อ มแซมที ่ ไ ม ไ ด ร ั บ การรั บ รองจาก Dell จะไม ไ ด ร ั บ ความคุ  ม ครองตามการรั...

  • Page 10: เครื ่ อ งมื อ ที ่ แ นะนำให ใ ช

    ข อ ควรระวั ง : ปลดสายเครื อ ข า ยโดยถอดสายออกจากคอมพิ ว เตอร ก  อ น แล ว จึ ง ถอดสายจากอุ ป กรณ เ ครื อ ข า ย ถอดสายโทรศั พ ท ห รื อ สายเครื อ ข า ยทั ้ ง หมดออกจากคอมพิ ว เตอร ถอดปลั...

  • Page 11: หลั ง จากทำงานกั บ ส ว นประกอบภายในของคอมพิ ว เตอร

    ข อ ควรระวั ง : เพื ่ อ ป อ งกั น ความเสี ย หายต อ คอมพิ ว เตอร ให ใ ช เ ฉพาะแบตเตอรี ่ ท ี ่ ไ ด ร ั บ การออกแบบมาสำหรั บ คอมพิ ว เตอร Dell รุ  น นี ้ โ ดยเฉพาะ ห า มใช แ บตเตอรี ่ ท ี ่ อ อกแบบมาสำหรั บ คอมพิ ว เตอร ข อง Dell รุ  น อื ่ น...

  • Page 13: บทที ่ 2: Expresscard

    ExpressCard Removing The ExpressCard Follow the procedures in Before Working On Your Computer. Press in on the ExpressCard to release it from the computer. Slide the ExpressCard out of the computer.

  • Page 14: Installing The Expresscard

    Related Links Installing the ExpressCard Installing the ExpressCard Slide the ExpressCard into its slot until it clicks into place. Follow the procedures in After working inside your computer. Related Links Removing The ExpressCard...

  • Page 15: บทที ่ 3: การ ด Sd

    การ ด SD Removing The Secure Digital (SD) Card Follow the procedures in Before Working On Your Computer. Press in on the SD card to release it from the computer. Slide the SD card out of the computer.

  • Page 16: Installing The Secure Digital (Sd) Card

    Related Links Installing the Secure Digital (SD) Card Installing the Secure Digital (SD) Card Slide the Secure Digital (SD) card into its slot until it clicks into place. Follow the procedures in After working inside your computer. Related Links Removing The Secure Digital (SD) Card...

  • Page 17: บทที ่ 4: แบตเตอร

    แบตเตอรี ่ Removing The Battery Follow the procedures in Before Working On Your Computer. Slide the battery latches to unlock the battery. Slide the battery out and remove it from the computer.

  • Page 18: Installing The Battery

    Related Links Installing The Battery Installing The Battery Slide the battery into its slot until it clicks into place. Follow the procedures in After working inside your computer. Related Links Removing The Battery...

  • Page 19: บทที ่ 5: Subscriber Identity Module (Sim) Card

    Subscriber Identity Module (SIM) Card Removing The Subscriber Identity Module (SIM) Card Follow the procedures in Before Working On Your Computer. Remove the battery. Press in on the SIM card to release it from the computer. Slide the SIM card out from the computer.

  • Page 20: Installing The Subscriber Identity Module (Sim) Card

    Related Links Installing the Subscriber Identity Module (SIM) Card Installing the Subscriber Identity Module (SIM) Card Slide the SIM card into its compartment. Install the battery. Follow the procedures in After Working Inside Your Computer. Related Links Removing The Subscriber Identity Module (SIM) Card...

  • Page 21: บทที ่ 6: ฮาร ด ไดร ฟ

    ฮาร ด ไดร ฟ Removing The Hard Drive Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the screws that secure the hard drive to the computer. Slide and remove the hard drive out of the computer.
  • Page 22 Remove the screw that secures the hard-drive caddy to the hard drive. Pull and remove the hard-drive caddy away from the hard drive.

  • Page 23: Installing The Hard Drive

    Related Links Installing The Hard Drive Installing The Hard Drive Attach the hard-drive caddy to the hard drive. Tighten the screws to secure the hard-drive caddy to the hard drive. Slide the hard drive into the computer. Replace and tighten the screws that secure the hard drive to the computer. Install the battery.

  • Page 25: บทที ่ 7: ออพติ ค อลไดร ฟ

    ออพติ ค อลไดร ฟ Removing The Optical Drive Follow the procedures in Before Working On Your Computer. Press and release the optical drive latch. Pull the optical drive out of the computer. Pull the optical drive door from one side to release it.
  • Page 26 Pull the other side of the optical drive door to release it completely from the optical drive. Remove the screw that secures the drive latch to the optical drive.
  • Page 27 Remove the drive latch from the optical drive. Remove the screws that secures the drive latch bracket to the optical drive.

  • Page 28: Installing The Optical Drive

    Remove the drive latch bracket from the optical drive. Related Links Installing The Optical Drive Installing The Optical Drive Insert the drive latch bracket into the optical drive. Tighten the screws to secure the drive latch bracket to the optical drive. Insert the drive latch into the optical drive.
  • Page 29 Removing The Optical Drive...

  • Page 31: บทที ่ 8: Base Cover

    Base Cover Removing The Base Cover Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) Card. Remove the screws that secure the base cover to the computer. Lift the base cover up and away from the computer.

  • Page 32: Installing The Base Cover

    Related Links Installing The Base Cover Installing The Base Cover Place the base cover to align the screw holes correctly with the computer. Replace and tighten the screws to secure the base cover to the computer. Install the Secure Digital (SD) Card.

  • Page 33: บทที ่ 9: เมมโมรี ่ ก าร ด

    เมมโมรี ่ ก าร ด Removing The Memory Follow the procedures in Before Working On Your Computer Remove the battery. Remove the Secure Digital (SD) card. Remove the base cover. Pry the retention clips away from the memory module until it pops up. Remove the memory module from the computer.

  • Page 34: Installing The Memory

    Related Links Installing The Memory Installing The Memory Insert the memory module into the memory slot. Press the clips to secure the memory module to the system board. Install the base cover. Install the Secure Digital (SD) card. Install the battery Follow the procedures in After Working Inside Your...

  • Page 35: บทที ่ 10: ถ า นกระดุ ม

    ถ า นกระดุ ม Removing The Coin-Cell Battery Follow the procedures in Before Working on Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the base cover. Disconnect the coin-cell battery cable from the system board. Release and remove the coin-cell battery from the computer.

  • Page 36: Installing The Coin-Cell Battery

    Related Links Installing The Coin-Cell Battery Installing The Coin-Cell Battery Place the coin-cell battery in its location. Connect the coin-cell battery cable to the system board. Install the base cover. Install the Secure Digital (SD) card. Install the battery Follow the procedures in After working inside your computer.

  • Page 37: บทที ่ 11: การ ด เครื อ ข า ยภายในไร ส าย (Wlan)

    การ ด เครื อ ข า ยภายในไร ส าย (WLAN) Removing The Wireless Local Area Network (WLAN) Card Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the base cover. Disconnect the antenna cables from the WLAN card.

  • Page 38: Installing The Wireless Local Area Network (Wlan) Card

    Remove the WLAN card from its slot on the system board. Related Links Installing The Wireless Local Area Network (WLAN) Card Installing The Wireless Local Area Network (WLAN) Card Insert the WLAN card into its connector at a 45–degree angle. Replace and tighten the screw that secures the WLAN card to the computer.
  • Page 39 Install the Secure Digital (SD) card. Install the battery Follow the procedures in After Working Inside Your Computer. Related Links Removing The Wireless Local Area Network (WLAN) Card...

  • Page 41: บทที ่ 12: การ ด เครื อ ข า ยวงกว า งไร ส าย (Wwan)

    การ ด เครื อ ข า ยวงกว า งไร ส าย (WWAN) Removing The Wireless Wide Area Network (WWAN) Card Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the base cover.

  • Page 42: Installing The Wireless Wide Area Network (Wwan) Card

    Remove the WWAN card from the computer. Related Links Installing The Wireless Wide Area Network (WWAN) Card Installing The Wireless Wide Area Network (WWAN) Card Insert the WWAN card into its connector at a 45–degree angle. Replace and tighten the screw to secure the WWAN card to the computer. Connect the antenna cables according to the color code on the WLAN card.
  • Page 43 Install the Secure Digital (SD) card. Install the battery Follow the procedures in After Working Inside Your Computer. Related Links Removing The Wireless Wide Area Network (WWAN) Card...

  • Page 45: Keyboard Trim

    Keyboard Trim Removing The Keyboard Trim Follow the procedures in Before Working On Your Computer. Using a plastic scribe, pry under the keyboard trim to release it from the computer. Lift the keyboard trim to release the tabs and remove it from the computer.

  • Page 46: Installing The Keyboard Trim

    Related Links Installing The Keyboard Trim Installing The Keyboard Trim Align the keyboard trim with the keyboard and snap it into place. Follow the procedures in After Working Inside Your Computer. Related Links Removing The Keyboard Trim...

  • Page 47: บทที ่ 14: แป น พิ ม พ

    แป น พิ ม พ Removing The Keyboard Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the keyboard trim. Remove the screws that secure the keyboard to the computer. Remove the screws that secure the keyboard to the palmrest assembly.
  • Page 48 Flip the keyboard over and lay it toward the display. Lift the clip to release the keyboard cable and disconnect it from the computer.
  • Page 49 Remove the keyboard from the computer. Remove the tape securing the keyboard cable from the keyboard.

  • Page 50: Installing The Keyboard

    10. Disconnect and remove the keyboard cable from the keyboard. Related Links Installing The Keyboard Installing The Keyboard Connect the keyboard cable and secure it to the keyboard using the tape. Connect the keyboard cable to its connector on the system board. Turn the keyboard over and lay it on the palmrest.
  • Page 51 Install the battery. Install the keyboard trim Follow the procedures in After Working Inside Your Computer. Related Links Removing The Keyboard...

  • Page 53: บทที ่ 15: ที ่ พ ั ก มื อ

    ที ่ พ ั ก มื อ Removing The Palmrest Assembly Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive.
  • Page 54 – bluetooth – contactless smart card reader – ExpressCard – fingerprint reader 12. Remove the screws to release the palmrest assembly from the system board. 13. Lift the palmrest assembly along the edges to unlock the tabs and remove it away from the computer.

  • Page 55: Installing The Palmrest Assembly

    Related Links Installing The Palmrest Assembly Installing The Palmrest Assembly Align the palmrest assembly with the computer and snap it into place. Replace and tighten the screws to secure the palmrest assembly to the system board. Connect the following cables to the system board: –...
  • Page 56 Related Links Removing The Palmrest Assembly...

  • Page 57: บทที ่ 16: การ ด Bluetooth

    การ ด Bluetooth Removing The Bluetooth Card Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive. Remove the keyboard trim.

  • Page 58: Installing The Bluetooth Card

    13. Release and remove the bluetooth cable from the bluetooth card. Related Links Installing The Bluetooth Card Installing The Bluetooth Card Connect the bluetooth cable to the bluetooth card. Place the bluetooth card on the palmrest assembly. Replace and tighten the screw to secure the bluetooth card to the palmrest assembly.
  • Page 59 Install the base cover. 10. Install the optical drive. 11. Install the Secure Digital (SD) card. 12. Install the battery. 13. Follow the procedures in After Working Inside Your Computer. Related Links Removing The Bluetooth Card...

  • Page 61: บทที ่ 17: แผง Led

    แผง LED Removing The LED Board Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive. Remove the keyboard trim.

  • Page 62: Installing The Led Board

    13. Remove the LED board from the palm rest assembly. Related Links Installing The LED Board Installing The LED Board Align the LED board on the palmrest. Replace and tighten the screw that secure the LED board to the palmrest. Route the LED board cable to its original position.
  • Page 63 Install the palmrest assembly. Install the keyboard. Install the keyboard trim. Install the hard drive. Install the ExpressCard. Install the base cover. 10. Install the optical drive. 11. Install the Secure Digital (SD) card. 12. Install the battery. 13. Follow the procedures in After Working Inside Your Computer.

  • Page 65: Smart Card Reader

    Smart Card Reader Removing The Smart Card Reader Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive.

  • Page 66: Installing The Smart Card Reader

    13. Lift and remove the smart card reader from the computer. Related Links Installing The Smart Card Reader Installing The Smart Card Reader Place the smart card reader to its original position on the computer. Replace and tighten the screws to secure the smart card reader to the computer. Connect the smart card reader cable to the system board.
  • Page 67 Install the hard drive. Install the ExpressCard. 10. Install the base cover. 11. Install the optical drive. 12. Install the Secure Digital (SD) card. 13. Install the battery. 14. Follow the procedures in After Working Inside Your Computer. Related Links Removing The Smart Card Reader...

  • Page 69: บทที ่ 19: Media Board

    Media Board Removing The Media Board Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive. Remove the keyboard trim.

  • Page 70: Installing The Media Board

    13. Remove the media board from the computer. Related Links Installing The Media Board Installing The Media Board Align the media board to its original position on the computer. Replace and tighten the screws to secure the media board to the computer. Connect the media board cable to the system board.
  • Page 71 Install the ExpressCard. Install the base cover. 10. Install the optical drive. 11. Install the Secure Digital (SD) card. 12. Install the battery. 13. Follow the procedures in After Working Inside Your Computer. Related Links Removing The Media Board...

  • Page 73: บทที ่ 20: Display Hinges

    Display Hinges Removing The Display Hinge Covers Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive. Remove the keyboard trim.

  • Page 74: Installing The Display Hinge Covers

    Related Links Installing The Display Hinge Covers Installing The Display Hinge Covers Place the display hinges in the appropriate positions. Replace and tighten the screws to secure the display hinge covers to the computer. Install the palmrest assembly. Install the keyboard. Install the keyboard trim.

  • Page 75: บทที ่ 21: ชุ ด จอแสดงผล

    ชุ ด จอแสดงผล Removing The Display Assembly Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the base cover. Remove the ExpressCard. Remove the hard drive. Remove the keyboard trim.
  • Page 76 13. Remove the screws that secure the display assembly to the computer. 14. Pull out the antenna cables from their routing channels? 15. Remove the screws that secure the display cable bracket to the system board.
  • Page 77 16. Remove the display cable bracket from the computer. 17. Pull the display cable to disconnect it from the system board.

  • Page 78: Installing The Display Assembly

    18. Remove the screw that secures the display assembly to the computer. 19. Remove the display assembly from the computer. Related Links Installing The Display Assembly Installing The Display Assembly Align the display assembly into its original position on the computer. Replace and tighten the screw to secure the display assembly to the computer.
  • Page 79 Replace and tighten the screws to secure the display cable bracket to the system board. Route the antenna cables through the system board. Replace and tighten the screws to secure the display panel to the computer. Route the antenna cables to their original position. Install the display hinge covers.

  • Page 81: บทที ่ 22: เมนบอร ด

    เมนบอร ด Removing The System Board Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the subscriber identity module (SIM) card. Remove the base cover. Remove the ExpressCard. Remove the hard drive.
  • Page 82 19. Remove the screws that secure the system board to the computer. 20. Lift the system board to locate the power supply cable.
  • Page 83 21. Disconnect the power supply cable from the system board. 22. Lift and remove the system board from the computer.
  • Page 84 NOTE: Steps 23 and 24 are applicable for computers that shipped in the United States of America. 23. Flip the system over and remove the screw that secures the TAA board. 24. Remove the TAA board from the system.

  • Page 85: Installing The System Board

    Related Links Installing The System Board Installing The System Board Place the TAA board to its original position. NOTE: Steps 1 and 2 are applicable for computers that shipped in the United States of America. Replace and tighten the screw to secure the TAA board to the computer. Align the system board into its original position on the computer.
  • Page 86 17. Install the battery. 18. Follow the procedures in After Working Inside Your Computer. Related Links Removing The System Board...

  • Page 87: บทที ่ 23: ฮี ท ซิ ง ค

    ฮี ท ซิ ง ค Removing The Heat-Sink Assembly Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the subscriber identity module (SIM) card. Remove the base cover.
  • Page 88 20. Loosen the screws that secure the heat-sink assembly to the system board. 21. Remove the heat-sink assembly from the system board.

  • Page 89: Installing The Heat-Sink Assembly

    Related Links Installing The Heat-Sink Assembly Installing The Heat-Sink Assembly Align the heat-sink assembly to its original position on the system board. Tighten the screws to secure the heat-sink assembly to the system board. Connect the heat-sink cable to the system board. Install the heat-sink assembly.

  • Page 91: บทที ่ 24: แผง I/O

    แผง I/O Removing The Input/Output Panel Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the subscriber identity module (SIM) card. Remove the base cover. Remove the ExpressCard. Remove the hard drive.

  • Page 92: Installing The Input/Output Panel

    19. Remove the I/O panel from the computer. Related Links Installing The Input/Output Panel Installing The Input/Output Panel Replace the I/O panel in the computer Tighten the screw securing the I/O panel to the computer. Install the display assembly. Install the display hinge covers.
  • Page 93 Install the keyboard. Install the keyboard trim. Install the hard drive. Install the ExpressCard. 10. Install the base cover. 11. Install the optical drive. 12. Install the Secure Digital (SD) card. 13. Install the battery. 14. Follow the procedures in After Working Inside Your Computer.

  • Page 95: บทที ่ 25: ลำโพง

    ลำโพง Removing The Speakers Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the base cover. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the subscriber identity module (SIM) card. Remove the ExpressCard. Remove the hard drive.
  • Page 96 20. Remove the screws that secure the speakers to the computer. 21. Remove the speakers from the computer.

  • Page 97: Installing The Speakers

    Related Links Installing The Speakers Installing The Speakers Replace the speakers to their original position in the computer. Tighten the screws to secure the speakers to the computer. Route and connect the speaker cable. Install the system board Install the display assembly.

  • Page 99: บทที ่ 26: พอร ต Dc-In

    พอร ต DC-In Removing The DC-In Port Follow the procedures in Before Working on Your Computer. Remove the battery. Remove the Secure Digital (SD) card. Remove the optical drive. Remove the subscriber identity module (SIM) card. Remove the base cover. Remove the ExpressCard.
  • Page 100 20. Remove the DC-In bracket from the system. 21. Remove the DC-In port from the system.

  • Page 101: Installing The Dc-In Port

    Related Links Installing The DC-In Port Installing The DC-In Port Replace the DC-In port to its original position in the computer. Replace the DC-In bracket to its original position in the computer. Tighten the screw to secure the DC-In bracket to the computer. Install the system board Install the...

  • Page 103: บทที ่ 27: กรอบจอแสดงผล

    กรอบจอแสดงผล Removing The Display Bezel Follow the procedures in Before Working On Your Computer. Remove the battery. Starting from the bottom, pry the bezel from inside the display assembly. Remove the bezel from the display assembly.

  • Page 104: Installing The Display Bezel

    Related Links Installing The Display Bezel Installing The Display Bezel Place the display bezel onto the display assembly. Work along to the top and bottom edges of the display bezel. Press the left and right edges of the display bezel. Install the battery.

  • Page 105: บทที ่ 28: แผงจอแสดงผล

    แผงจอแสดงผล Removing The Display Panel Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the display bezel Remove the screws that secures the display panel to the display assembly. Flip the display panel over.
  • Page 106 Disconnect the Low-Voltage Differential Signaling (LVDS) cable from the display panel. Remove the display panel from the display assembly.

  • Page 107: Installing The Display Panel

    Related Links Installing The Display Panel Installing The Display Panel Align the display panel in its original position on the display assembly. Connect the Low-Voltage Differential Signaling (LVDS) cable to the display panel. Tighten the screws to secure the display panel to the display assembly. Install the display bezel Install the...

  • Page 109: บทที ่ 29: กล อ ง

    กล อ ง Removing The Camera Follow the procedures in Before Working On Your Computer. Remove the battery. Remove the display bezel. Remove the display panel. Disconnect the cable from the camera module. Remove the screw that secures the camera and microphone to the display assembly.

  • Page 110: Installing The Camera

    Remove the camera from the display assembly. Related Links Installing The Camera Installing The Camera Place the camera module to its original position in the display assembly. Tighten the screw to secure the camera to the display assembly. Connect the camera cable to the camera. Install the display panel.
  • Page 111 Related Links Removing The Camera...

  • Page 113: บทที ่ 30: รายละเอี ย ดทางเทคนิ ค

    รายละเอี ย ดทางเทคนิ ค Technical Specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information regarding the configuration of your computer, click Start → Help and Support and select the option to view information about your computer.
  • Page 114 Memory Minimum memory 2 GB Maximum memory 8 GB Audio Type four-channel high definition audio Controller IDT 92HD90 Stereo conversion 24-bit (analog-to-digital and digital-to-analog) Interface: Internal high definition audio External microphone-in/stereo headphones/external speakers connector Speakers Internal speaker amplifier 0.5 W (typical) per channel Volume controls keyboard function keys, program menus Video...
  • Page 115 Ports and Connectors Network adapter one RJ-45 connector one 4-pin USB 2.0-compliant connector and one eSATA/USB 2.0-compliant connector Memory card reader one 5-in-1 memory card reader Contactless Smart Card Supported Smart Cards/ ISO14443A — 106 kbps, 212 kbps, 424 kbps, and Technologies 848 kbps ISO14443B —...
  • Page 116 Keyboard Number of keys United States: 86 keys, United Kingdom: 87 keys, Brazil: 87 keys, and Japan: 90 keys Layout QWERTY/AZERTY/Kanji Touchpad Active Area: X-axis 80.00 mm Y-axis 40.70 mm Battery Type • 3-cell (30Wh) lithium ion battery with ExpressCharge •...
  • Page 117 Battery 3-cell and 6-cell (60Wh) approximately 1 hour to 80% capacity and 2 hours to 100% capacity Voltage 11.10 VDC Temperature range: Operating 0 °C to 35 °C (32 °F to 95 °F) Non-Operating –40 °C to 65 °C (–40 °F to 149 °F) Coin-cell battery 3 V CR2032 lithium coin cell AC Adapter...
  • Page 118 Environmental Temperature: Operating 0 °C to 35 °C (32 °F to 95 °F) Storage –40 °C to 65 °C (–40 °F to 149 °F) Relative humidity (maximum): Operating 10 % to 90 % (noncondensing) Storage 5 % to 95 % (noncondensing) Altitude (maximum): Operating –15.24 m to 3048 m (–50 ft to 10,000 ft)

  • Page 119: บทที ่ 31: การตั ้ ง ค า ระบบ

    Entering System Setup Turn on (or restart) your computer. When the blue DELL logo is displayed, you must watch for the F2 prompt to appear. Once the F2 prompt appears, press <F2> immediately. NOTE: The F2 prompt indicates that the keyboard has initialized. This prompt can appear very quickly, so you must watch for it to display, and then press <F2>...

  • Page 120: General

    General Option Description System Information This section lists the primary hardware features of your computer. • System Information • Memory Information • Processor Information • Device Information Battery Information Displays the battery status and the type of AC adapter connected to the computer. Boot Sequence Allows you to change the order in which the computer attempts to find an operating...

  • Page 121: System Configuration

    System Configuration Option Description NOTE: System Configuration contains options and settings related to integrated system devices. Depending on your computer and installed devices, the items listed in this section may or may not appear. Integrated NIC Allows you to configure the integrated network controller.
  • Page 122 Option Description Default Setting: COM1 SATA Operation Allows you to configure the internal SATA hard-drive controller. The options are: • Disabled • • AHCI • RAID On Default Setting: RAID On NOTE: SATA is configured to support RAID mode. USB Controller Allows you to control the USB controller.

  • Page 123: Video

    Option Description Keyboard illumination Allows you to configure the keyboard illumination feature. The options are: • Disabled • Level is 25% • Level is 50% • Level is 50% • Levels is 100% Default Setting: Level is 25% Drives Allows you to configure the SATA drives on board.
  • Page 124 Option Description NOTE: Deleting the admin password automatically deletes the system password and the hard drive password. NOTE: Successful password changes take effect immediately. Default Setting: Not set System Password Allows you to set, change or delete the system password. NOTE: Successful password changes take effect immediately.
  • Page 125 Option Description OROM Keyboard Access Allows you to set an option to enter the Option ROM Configuration screens using hotkeys during boot. The options are: • Enable • One Time Enable • Disable Default Setting: Enable TPM Security Allows you to enable the Trusted Platform Module (TPM) during POST.

  • Page 126: Performance

    Option Description Admin Setup Lockout Allows you to prevent users from entering Setup when an Administrator password is set. Default Setting: Enable Admin Setup Lockout is not selected. Performance Option Description Multi Core Support Allows you to enable or disable multi-core support for the processor.

  • Page 127: Power Management

    Power Management Option Description AC Behavior Allows you to enable or disable the computer from turning on automatically when an AC adapter is connected. Default Setting: Wake on AC is not selected. Auto On Time Allows you to set the time at which the computer must turn on automatically.

  • Page 128: Post Behavior

    Option Description ExpressCharge Allows you to enable or disable the ExpressCharge feature. The options are: • Standard • ExpressCharge Default Setting: ExpressCharge POST Behavior Option Description Adapter Warnings Allows you to enable or disable the system setup (BIOS) warning messages when you use certain power adapters.

  • Page 129: Virtualization Support

    Option Description Fn Key Emulation Allows you to set the option where the <Scroll Lock> key is used to simulate the <Fn> key feature. Default Setting: Enable Fn Key Emulation is selected. POST HotKeys Allows you enable the sign-on screen message display indicating the keystroke sequence to access the System Setup option menu.

  • Page 130: Maintenance

    Option Description • WWAN • WLAB • Bluetooth Default Setting: All the options are selected. Wireless Device Enable Allows you to enable or disable the wireless devices Default Setting: All the options are selected. Maintenance Option Description Service Tag Displays the Service Tag of your computer.

  • Page 131: บทที ่ 32: การวิ น ิ จ ฉั ย ระบบ

    If the computer is connected to an electrical outlet, the battery light operates as follows: • Alternately blinking amber light and blue light — An unauthenticated or unsupported non-Dell AC adapter is attached to your laptop. • Alternately blinking amber light with steady blue light — Temporary battery failure with AC adapter present.
  • Page 132 Appearance Description Next Step Blinkin Solid Solid Processor error Replace the system board. Solid Blinkin Solid Memory is 1. Reseat the memory. detected but has 2. If two modules are installed errors remove one and test. Try the other module in the same slot and test. Test the other slot with both modules.
  • Page 133 Appearance Description Next Step Blinkin Blinkin Modem error 1. Reseat the modem. 2. Replace the modem. 3. Replace the system board.

  • Page 135: บทที ่ 33: การติ ด ต อ กั บ Dell
