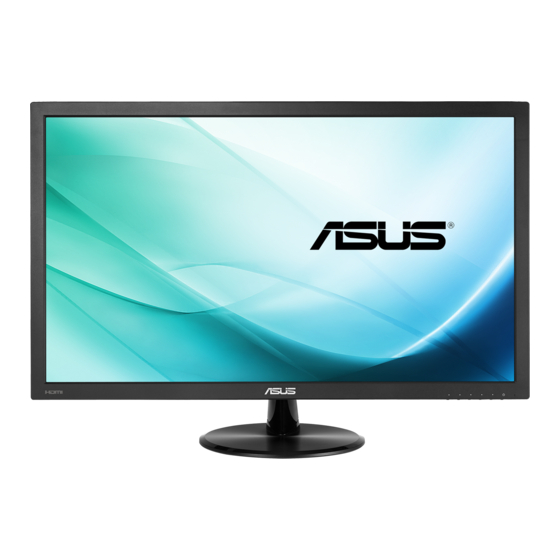

- Page 1 VX24A/VX249 series LCD Monitor User Guide...
- Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
-
Page 3: Table Of Contents
Contents Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 1.3.3 QuickFit Function ............1-4 Chapter.2:..Setup 2.1. -
Page 4: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard. • Do not overload power strips and extention cords. Overloading can result in fire or electric shock. • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface. • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges. • Never push objects or spill liquid of any kind into the slots on the monitor cabinet. • To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC. -
Page 6: Care.&.Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the monitor. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. -
Page 7: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. - Page 8 viii...
-
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor.introduction
1.3 Monitor introduction 1.3.1 Front view VX24AH VX24AQ VX249H Auto VX249N Shortcut : • Default: Preset Mode hotkey. • To change the hotkey function, go to the Shortcut > Shortcut 1 menu. Shortcut : • Default: Brightness hotkey. • To change the hotkey function, go to the Shortcut > Shortcut 2 menu. Button: •... -
Page 11: Back View
VX24AH/VX249H VX24AH/VX249H VX249N VX249N VX24AQ VX24AQ DC-IN.port. This port connects the power cord. HDMI/MHL.port. This port is for connection with an HDMI/MHL compatible device. DisplayPort. This port is for connection for a DisplayPort compatible device. ASUS VX24A/VX249 Series LCD Monitor... -
Page 12: Quickfit Function
DVI.port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. VGA.port. This 15-pin port is for PC VGA connection. Audio-in. port.. This port connects PC audio source by the bundled audio cable. Earphone.jack. This port is only available when an HDMI/DisplayPort cable is connected. - Page 13 Photo 4x6, 3x5, 2x2 Photo 8x10, 5x7 8x10 When QuickFit is activated, press the control buttons to make adjustments. The QuickFit OSD displayed in the lower right corner of the screen will guide users to make selections. ASUS VX24A/VX249 Series LCD Monitor...
- Page 14 Chapter 1: Product introduction...
-
Page 15: Assembling.the.monitor.arm/Base
Hold the stand to prevent the monitor from falling when you change its angle. • The recommended adjusting angle is +20 to -5˚ -5 to +20 It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS VX24A/VX249 Series LCD Monitor... -
Page 16: Connecting.the.cables
Connecting the cables Connect the cables as the following instructions: VX24AH/VX249H VX24AH/VX249H VX249N VX249N VX24AQ VX24AQ HDMI/MHL Audio-in Displayport Earphone jack •. To.connect.the.power.cord: Connect the power adapter securely to the monitor’s DC input port. Connect one end of the power cord to the power adapter and the other end to a power outlet. -
Page 17: Turning.on.the.monitor
Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS VX24A/VX249 Series LCD Monitor... - Page 18 Chapter 2: Setup...
-
Page 19: Osd.(On-Screen.display).Menu
Game.Mode: best choice for games playing with SPLENDID™ Video Enhancement. •. Night.View.Mode: best choice for dark-scene games or movies with SPLENDID™ Video Enhancement. •. sRGB: best choice for viewing photos and graphics from PCs. •. Reading.Mode: This is the best choice for book reading. ASUS VX24A/VX249 LCD Monitor... -
Page 20: User Mode
•. Darkroom.Mode: This is the best choice for a weak ambient light environment. • In the Standard Mode, the ASCR, Saturation ,Sharpness functions and Skin Tone are not user-configurable. • In the sRGB Mode, the Saturation, Color Temp., Skin Tone, Sharpness, Brightness, Contrast and ASCR functions are not user- configurable. - Page 21 VividPixel: enhances the outline of the displayed picture and generates high-quality images on screen. • ASCR: turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Position (Only available for VGA input): adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100.
- Page 22 Input.Select. VX24xH Standard Mode VGA 1920 x 1080 @ 60Hz In this function, you can select Splendid Color HDMI/MHL-1 your desired input source. Image HDMI/MHL-2 Sound Input Select System Setup Shortcut (VX24AH/VX249H) VX249 VX24A Standard Mode VGA 1920 x 1080 @ 60Hz Standard Mode VGA 1920 x 1080 @ 60Hz Splendid...
- Page 23 VGA 1920 x 1080 @ 60Hz Defines the functions for Shortcut Splendid Shortcut 1 Color Shortcut 2 1 and 2 buttons. Image • Shortcut 1/Shortcut 2: selects Sound a function for Shortcut 1 and 2 Input Select buttons. System Setup Shortcut ASUS VX24A/VX249 LCD Monitor...
-
Page 24: Specifications.summary.(Vx24A)
Specifications summary (VX24A) Panel.Type TFT LCD Panel.size 23.8”W (16:9, 60.5 cm) wide screen Max..Resolution 2560 x 1440 Pixel.pitch 0.275 mm Brightness.(Typical) 300 cd/m Contrast.Ratio.(Typical) 1000:1 Contrast.Ratio.(Max.) 100,000,000:1 (with ASCR on) Viewing.angle(H/V).CR>10 178˚/178˚ Display.colors 16.7 M Response.time 5 ms (Gray to gray) SPLENDID™.Video.Enhancement SPLENDID™.selection 8 video preset modes (by hotkey) -
Page 25: Specifications.summary.(Vx249)
< 0.5 W (Typical), Power Off: < 0.3 W (Switch off) Temperature.(Operating) 0˚C~40˚C Temperature.(Non-operating) -20˚C~+60˚C Dimensions.(W.x.H.x.D) 540.5 mm x 394.4 mm x 210.1 mm (machine) 600.0 mm x 145.0 mm x 488.0 mm (package) Weight.(Esti.) 3.5 kg (Net); 5.2 kg (Gross) ASUS VX24A/VX249 LCD Monitor... - Page 26 Multi-languages 21 languages (English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian) Accessories. VGA cable, DVI cable (VX249N), HDMI cable (VX249H), Audio cable (VX249H), Power cord, Power adapter, Quick start guide, Warranty card Regulation.approvals Energy Star...
-
Page 27: Troubleshooting.(Faq)
• Ensure that the HDMI cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI device. • Ensure that the computer sound card driver is properly installed and activated. ASUS VX24A/VX249 LCD Monitor... -
Page 28: Supported.operating.modes
Supported operating modes Resolution. Horizontal. Vertical.Frequency. Pixel.(MHz) Frequency Frequency.(KHz) (Hz) 640x480 31.47(N) 59.94(N) 25.18 640x480 35.00(N) 66.66(N) 30.24 640x480 37.87(N) 72.82(N) 31.5 640x480 37.5(N) 75.00(N) 31.5 720x400 31.47(N) 70.08(P) 28.32 800x600 35.16(P) 56.25(P) 36.00 800x600 37.88(P) 60.32(P) 40.00 800x600 48.08(P) 72.12(P) 50.00 800x600...
