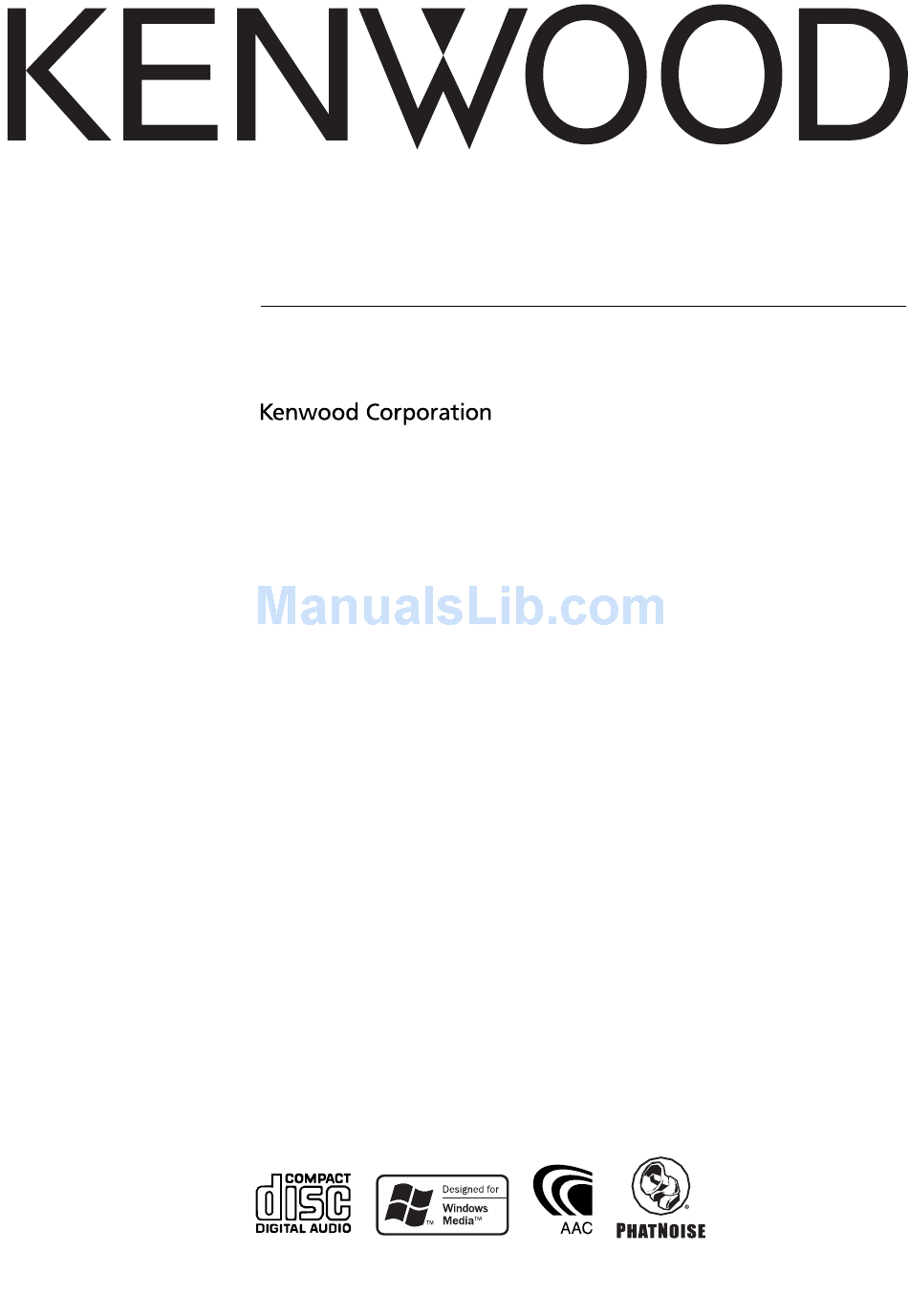

Page 1: Instruction Manual

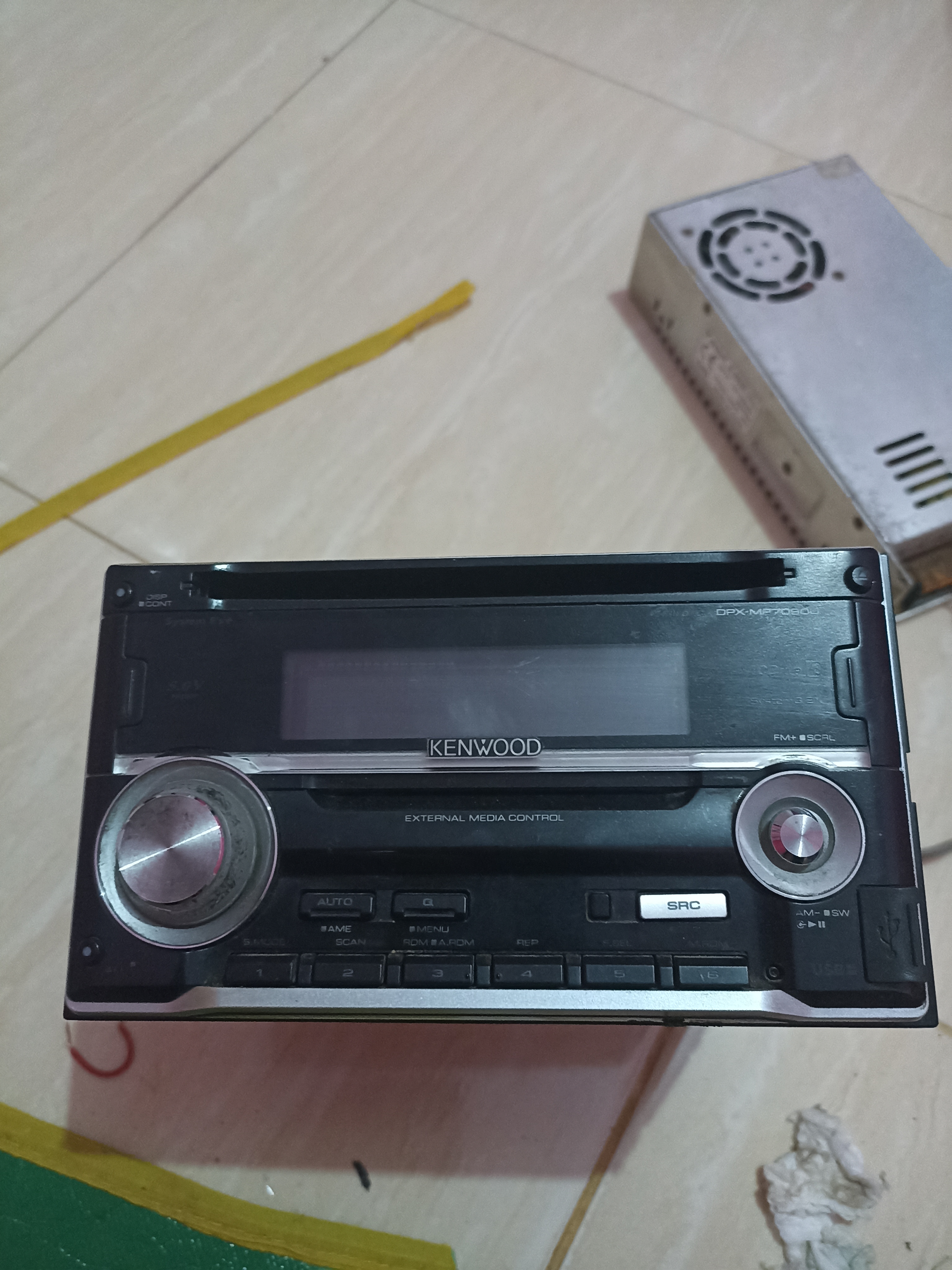

DUAL DIN SIZED CD RECEIVER DPX-MP7090U INSTRUCTION MANUAL © B64-3399-00/00 (MW) -
Page 2: Table Of Contents
Contents Safety precautions Notes About CDs About USB device About AAC, MP3 and WMA General features Power Selecting the Source Volume Attenuator System Q Audio Control Adjusting the detail of Audio Control Audio Setup Speaker Setting Subwoofer Output TEL Mute Display Type Selection Graphic part/ Spectrum Analyzer Display Switching... - Page 3 Basic Operations of remote control 35 Accessories/ Installation Procedure 37 Connecting Wires to Terminals Installation Troubleshooting Guide Specifications The "AAC" logo is trademark of Dolby Laboratories. English...
-
Page 4: Safety Precautions
Kenwood disc changers/ CD players released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any Kenwood disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit. -
Page 5: Notes
• If you experience problems during installation, consult your Kenwood dealer. • When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area. • We recommend the use of <Activating Security Code>... -
Page 6: About Cds
About CDs Handling CDs • Do not touch the recording surface of the CD. • CD-R and CD-RW are easier to damage than a normal music CD. Use a CD-R or a CD-RW after reading the caution items on the package etc. •... -
Page 7: About Usb Device
• USB devices whose maximum current consumption is 500 mA or less. For the supported formats and USB device types, refer to http://www.kenwood.mediamanager.jp/. • USB Mass Storage Class: USB devices that the PC can recognize as an external storage without using any special driver or application software. -
Page 8: About Aac, Mp3 And Wma
• The unit may not be compatible with upgrade of compression format standard and additional specifications. • For details on the formats used for USB devices and restrictions, refer to http://www.kenwood. mediamanager.jp/. Playable AAC file • ".m4a" file encoded by AAC-LC format. - Page 9 Playing order of the Audio file • The Audio file plays in the order which is written by CD writing software. You may be able to set the playing order by writing the play sequence numbers such as "01" to "99" at the beginning of the file name.
-
Page 10: General Features
General features DISP Power Turning ON the Power Press the [SRC] button. Turning OFF the Power Press the [SRC] button for at least 1 second. Selecting the Source Press the [SRC] button. Source required Tuner USB device TV (Optional accessory) External disc (Optional accessory) Auxiliary input Auxiliary input (Optional accessory) -
Page 11: System Q
System Q Selecting the best sound setting preset for different types of music. Select the source to set Press the [SRC] button. Select the Sound type Press the [Q] button. When you press the button once, the current sound setting is displayed. Each time you press the button, the sound setting alternates. -
Page 12: Adjusting The Detail Of Audio Control
General features Adjusting the detail of Audio Control Among the Basic Audio items, you can adjust the Bass level, Middle level, and Treble level in detail. Select the Basic Audio item Select the desired item to be set in detail from followings;... -
Page 13: Speaker Setting
Exit Audio Setup mode Press the [VOL] knob for at least 1 second. Speaker Setting Fine-tuning so that the System Q value is optimal when setting the speaker type. Enter Standby Press the [SRC] button. Select the "STANDBY" display. Enter Speaker Setting mode Press the [VOL] knob. -
Page 14: Display Type Selection
General features Display Type Selection Changing the display mode. Press the [DISP] button. Each time you press the button, the display mode alternates between the display modes shown in the table below. Display Mode Display Display Type A Display Type B Display Type C Display Type D 1 Graphic display part... -
Page 15: Wallpaper Selecting
Display Type A/ Display Type B Wallpaper selecting Selecting a wallpaper to display when Display Type is set to Display Type A/ Display Type B. Select the wallpaper display Refer to <Graphic part/ Spectrum Analyzer Display Switching> (page 14). Select the wallpaper Display the wallpapers one after another Press the Control knob. -
Page 16: Text Selection For Display
General features Display Type B Text Selection for Display Selecting the text display. Select the display Type Press the [DISP] button. Select the Display Type B. Enter text select mode Press the [DISP] button for at least 1 second. Select the text Push the Control knob towards [4] or [¢]. - Page 17 In Auxiliary input source Information Display Spectrum Analyzer & Clock Date "Source Name" "Speana/Clock" Blank "Date" • * If the contents of the information cannot be displayed, Kenwood Logo is displayed. Display "Speana/Clock" "Date" "Blank" Display "Speana/Clock" "Date" "Blank" "Disc Title"* "Track Title"*...
-
Page 18: Font Color Select
General features The text display in the Lower text display part In Tuner source Information Indicator Spectrum Analyzer & Clock Date Blank In CD & External disc source Information Indicator Spectrum Analyzer & Clock Date Blank Disc title Track title Disc name In Audio file source Information... -
Page 19: Tuner/Tv Control Features
Tuner/TV control features AUTO/AME Tuning Selecting the station. Select tuner source Press the [SRC] button. Select the "TUNER" display. Select the band Push the Control knob towards [FM] or [AM]. Each time you push the knob toward [FM], it switches between the FM1, FM2, and FM3 bands. Tune up or down band Push the Control knob towards [4] or [¢]. -
Page 20: Direct Access Tuning
Tuner/TV control features Function of remote control Direct Access Tuning Entering the frequency and tuning. Select the band Press the [FM] or [AM] button. Enter Direct Access Tuning mode Press the [DIRECT] button on the remote control. "– – – –" is displayed. Enter the frequency Press the number buttons on the remote control. -
Page 21: Tv Tuning
Function of LX BUS Television TV Tuning Selecting the TV channel of a connected LX BUS Television (optional accessory). The action depends on the setting of the connected LX BUS Television. Refer to the user instruction of the LX BUS Television for details. Select TV source Press the [SRC] button. -
Page 22: Cd/Usb Device/Audio File/External Disc Control Features
CD/USB device/Audio file/External disc control features Playing CD & Audio file When a disc is inserted Press the [SRC] button. Select the "Compact Disc" display. • When a CD is inserted, the "IN" indicator is ON. Pause and play Press the Control knob. Each time you press the knob, the audio pauses or plays. -
Page 23: Playing External Disc
• You can cancel the announcement when selecting the folder by <Voice Index> (page 33) during the play of the ACDrive media. Pause and play Press the Control knob. Each time you press the knob, the audio pauses or plays. Removing the USB Device Select a source other than the USB device Press the [SRC] button. -
Page 24: Direct Track/File Search
CD/USB device/Audio file/External disc control features Function of remote control Direct Track/File Search Doing Track/File Search by entering the track/file number. Enter the track/file number Press the number buttons on the remote control. • You can select Direct File Search up to 999. Do Track/File Search Press the [4] or [¢] button. -
Page 25: All Random Play
Function of Audio file All Random Play Playing randomly from all of the Audio files recorded in the media. Press the [A.RDM] button for at least 1 second. When the random mode is ON, "All Random ON" is displayed. Cancelling the All Random Play Press the [A.RDM] button. -
Page 26: Folder Select 1 Mode
CD/USB device/Audio file/External disc control features Function of Audio file Folder Select 1 mode Select the target folder by tracing the hierarchical levels of folders. This is convenient when managing audio files by folder. Enter Folder Select 1 mode Press the [F.SEL] button. Select the "FOLDER SELECT1"/ "FOLDER SELECT"... -
Page 27: Switching The Play Mode
Function of ACDrive media Switching the Play mode Arrange the playing orders of the songs by categories. Press the [S.MODE] button. Each time you press the button, the Play mode alternates between the modes shown in the table below. Play mode Category which is to be arranged "PlayList Mode"... -
Page 28: Menu System
Menu system Menu System Setting beep sound during operation, etc. functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. Enter Menu mode Press the [MENU] button for at least 1 second. "MENU"... -
Page 29: Activating Security Code
In Standby mode Activating Security Code Activating the Security Code disables the usage of audio unit by someone else. Once the Security Code is activated, the entry of authorized Security Code is required to turn on the audio unit when it is removed from the vehicle. -
Page 30: Touch Sensor Tone
Menu system In Standby mode Touch Sensor Tone Setting the operation check sound (beep sound) ON/OFF. Display Setting "Beep : ON" Beep is heard. "Beep : OFF" Beep canceled. In Standby mode Manual Clock Adjustment Select Clock Adjustment mode Push the Control knob towards [FM] or [AM]. Select the "Clock Adjust"... -
Page 31: Display Illumination Control
Display Illumination Control This function turns off the display when you perform no operation for 5 seconds. This function is effective when you are driving at night. Display Setting "Display : ON" Keeps the display on. "Display : OFF" Turns off the display when you perform no operation for 5 seconds. -
Page 32: Amp Control
Menu system When LX AMP unit connecting AMP Control You can control the LX AMP connected to the unit. Select AMP Control mode Push the Control knob towards [FM] or [AM]. Select the "AMP Control" display. Enter AMP Control mode Press the Control knob for at least 1 second. -
Page 33: Auxiliary Input Display Setting
• When operation stops for 10 seconds the name at that time is registered, and Name Set mode closes. • Memory numbers - FM/ AM: 30 stations - Internal CD player: 10 discs - External CD changer/ player: Varies according to the CD changer/ player. -
Page 34: Acdrive Firmware Version Display
Menu system In CD/ USB mode ACDrive firmware version display Displaying the firmware version with the ACDrive function. Select the firmware version display mode Push the Control knob towards [FM] or [AM]. Select the "ACD F/W Version" display. Display the ACDrive firmware version Push the Control knob towards [4] or [¢]. -
Page 35: Basic Operations Of Remote Control
Basic Operations of remote control FM/AM/ Not Used 2-ZONE [0] — [9] Loading and Replacing the battery Use two "AA"/ "R6"-size batteries. Slide the cover while pressing downwards to remove it as illustrated. Insert the batteries with the + and – poles aligned properly, following the illustration inside the case. -
Page 36: In Tuner Source
Basic Operations of remote control Audio Control [AUD] button Selects the Audio item to be adjusted. [VOL] buttons Adjusts the Audio item. • Refer to <Audio Control> (page 11) for the operation method, such as the procedures for Audio control and others operations. -
Page 37: Accessories/ Installation Procedure
Accessories/ Installation Procedure Accessories Installation Procedure 1. To prevent a short circuit, remove the key from the ignition and disconnect the - battery. 2. Make the proper input and output wire connections for each unit. 3. Connect the speaker wires of the wiring harness. 4. -
Page 38: Connecting Wires To Terminals
Car fuse box AUX left input (White) AUX right input (Red) Sub Woofer left output (White) Sub Woofer right output (Red) To connect the Kenwood navigation system, consult your navigation manual. Ignition key switch Car fuse box (Main fuse) -
Page 39: Installation
Installation When performing a check of the CD operation prior to installation, place this unit in a horizontal position and perform a loading/eject of the CD. Installation Install onto the car bracket using the supplied screws (M5 × 6 mm, M5 × 7 mm). The holes of the car bracket to use will differ depending on the car model. -
Page 40: Troubleshooting Guide
Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. General The power does not turn ON. ✔... - Page 41 Tuner source Radio reception is poor. ✔ The car antenna is not extended. ☞ Pull the antenna out all the way. ✔ The antenna control wire is not connected. ☞ Connect the wire correctly, referring to the section on <Connecting Wires to Terminals>. The desired frequency can’t be entered with the Direct Access Tuning.
- Page 42 • The file system of the connected USB device is broken. ➪ Copy the files and folders for the USB device again referring to www. kenwood.mediamanager.jp. If the error message is still displayed, initialize the USB device or use other USB devices. Error 05: The CD is upside-down.
- Page 43 Mecha Error: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason. ➪ Check the disc magazine. And then press the reset button on the unit. If the "Mecha Error" code does not disappear, consult your nearest service center. Hold Error: The protective circuit in the unit activates when the temperature inside the...
-
Page 44: Specifications
Specifications Specifications subject to change without notice. FM tuner section Frequency range (50 kHz space) : 87.5 MHz – 108.0 MHz (200 kHz space): 87.9 MHz – 107.9 MHz Usable sensitivity (S/N = 30dB) : 9.3dBf (0.8 μV /75 Ω) Quieting Sensitivity (S/N = 50dB) : 15.2dBf (1.6 μV /75 Ω) Frequency response (±3.0 dB)
