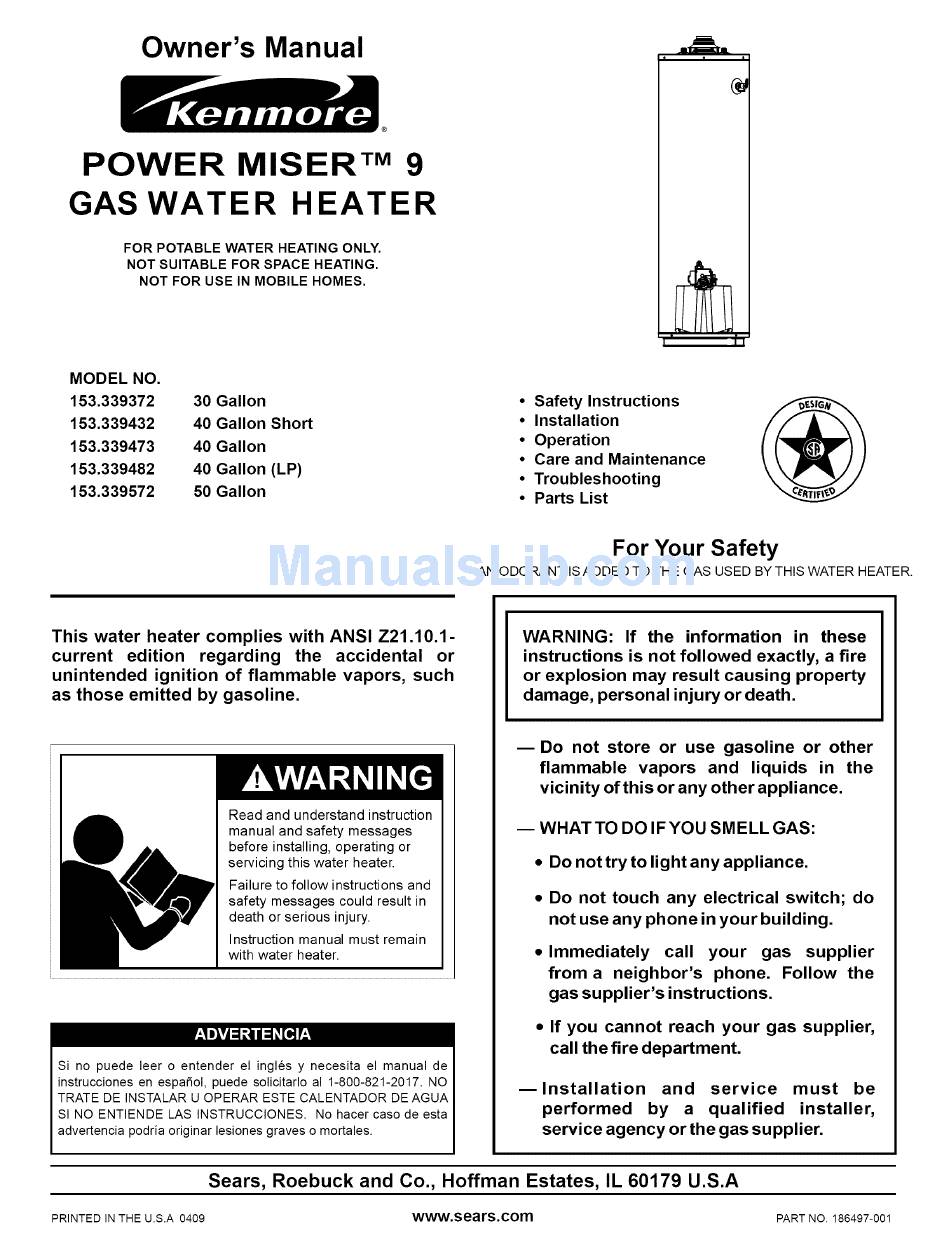

Owner's Manual
POWER
MISERTM
9
GAS WATER
HEATER
FOR POTABLE
WATER
HEATING
ONLY.
NOT SUITABLE
FOR SPACE
HEATING.
NOT FOR USE IN MOBILE
HOMES.
MODEL NO.
153.339372
30 Gallon
153.339432
40 Gallon Short
153.339473
40 Gallon
153.339482
40 Gallon (LP)
153.339572
50 Gallon
• Safety Instructions
• Installation
• Operation
• Care and Maintenance
• Troubleshooting
• Parts List
For Your Safety
AN ODORANT
ISADDED
TO THE GAS USED BY THIS WATER HEATER.
This water heater
complies
with ANSI Z21.10.1-
current
edition
regarding
the
accidental
or
unintended
ignition
of flammable
vapors,
such
as those emitted
by gasoline.
Read and understand
instruction
manual
and safety messages
before installing,
operating
or
servicing
this water
heater.
Failure
to follow
instructions
and
safety messages
could result in
death
or serious
injury.
Instruction
manual
must remain
with water heater.
Si no puede
leer o entender
el ingles
y necesita
el manual
de
instrucciones
en espaSol, puede solicitarlo al 1-800-821-2017.
NO
TRATE DE INSTALAR U OPERAR
ESTE CALENTADOR
DE AGUA
Sl NO ENTIENDE
LAS INSTRUCCIONES.
No hacer caso de esta
advertencia
podria originar lesiones graves o mortales.
WARNING:
If the
information
in these
instructions
is not followed
exactly, a fire
or explosion
may result causing
property
damage,
personal
injury or death.
m Do not store
or use gasoline
or other
flammable
vapors
and
liquids
in the
vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical
switch;
do
not use any phone in your building.
• Immediately
call
your
gas
supplier
from a neighbor's
phone.
Follow
the
gas supplier's
instructions.
• If you cannot
reach your gas supplier,
call the fire department.
m lnstallation
and
service
must
be
performed
by
a
qualified
installer,
service agency or the gas supplier.
Sears,
Roebuck
and Co.,
Hoffman
Estates,
IL 60179
U.S.A
PRINTED
IN THE U.S.A
0409
www.sears.com
PART NO. 186497-001
