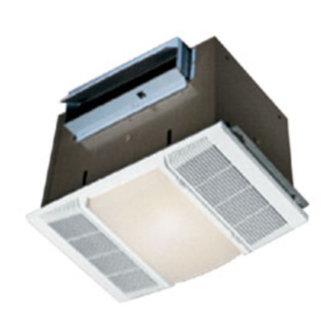

Combination fan/light
Table of Contents

Advertisement

Available languages

Available languages

Quie TT est
(with Night Light)
MODEL: QT140L
SUITABLE FOR USE OVER TUB OR SHOWER ENCLOSURE
WHEN INSTALLED IN A GFCI PROTECTED BRANCH CIRCUIT.
• Suitable for use with solid-state speed controls.
• Not for use in kitchens.
1
• Uses standard 3
" x 10" ducting.
4
• Designed for ceiling installation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE. ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally.
When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION:
For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.

INSTALLATION INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent back draft. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration, and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application.
F. NEVER place a switch where it can be reached from a tub or
shower.
FOR BEST RESULTS
In a new construction site, install the housing during rough-in
construction of the building. The blower assembly, light, and grille
should be installed when the finished ceiling is in place.
Installation in an existing, finished building requires an accessible
area (attic or crawl space) above the planned location. See
"INSTALLATION IN EXISTING CONSTRUCTION."
INSTALLATION IN A NEW CONSTRUCTION SITE
Preparation of Housing Assembly
CAUTION: When handling the power unit, do not reach in the end
openings and bend the blower wheels.
Combination Fan/Light
®
INSTALLATION INSTRUCTIONS
READ & SAVE THESE INSTRUCTIONS!
POWER
UNIT
HANGER
ROD
VERTICAL
DISCHARGE
1
3
" X 10"
4
DUCT
KNOCKOUTS
FAN HOUSING

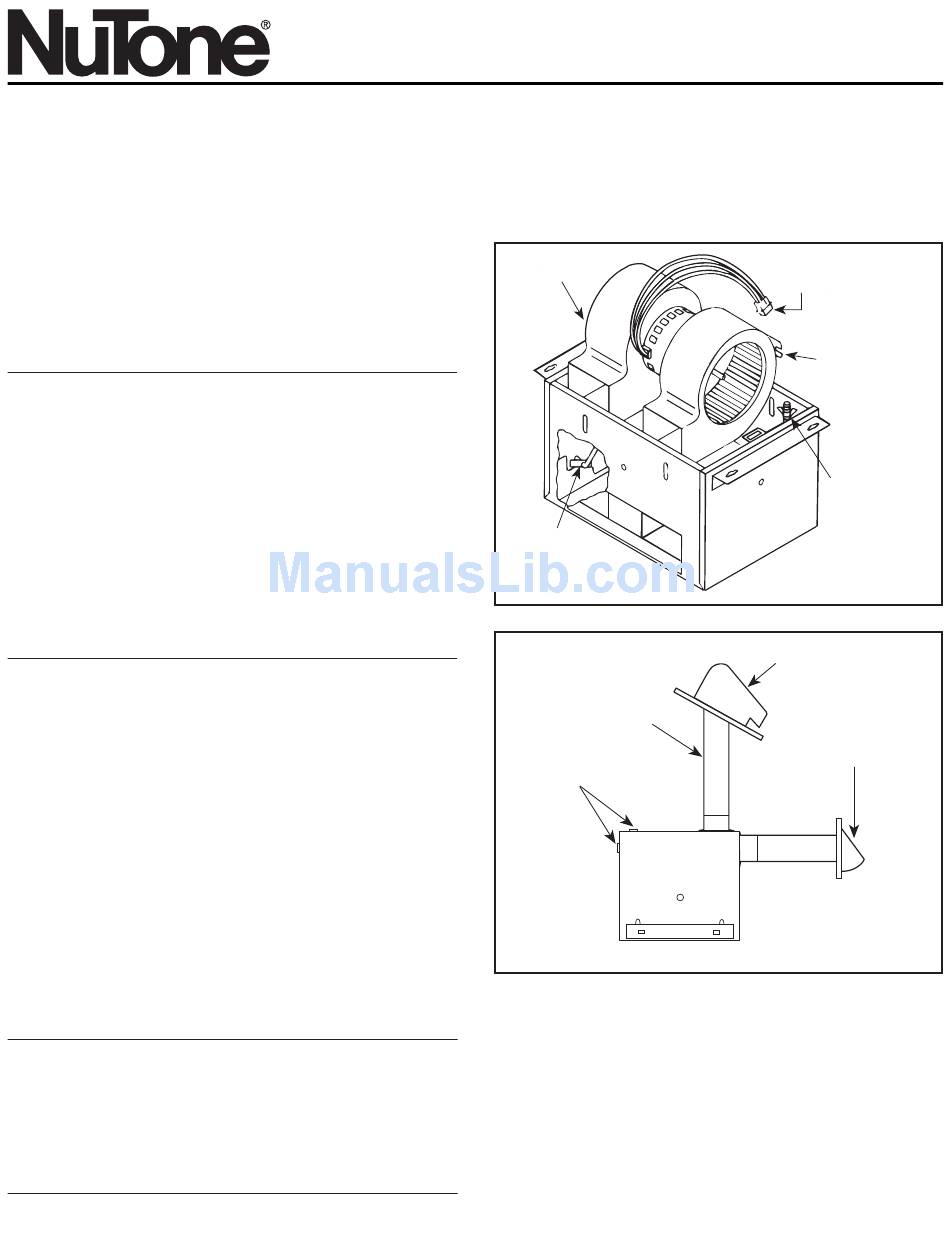

1. Refer to Figure 1. Remove power unit from housing assembly.
A. If necessary, unplug power plug from mating connector.
B. Loosen wing nuts on hanger rods that hold the power unit.
C. Unfasten hanger rods from slots and remove power unit.
D. Set power unit aside until needed.
2. Remove one of the wiring knockouts from the housing.
3. Refer to Figure 2. This unit can be ducted for either vertical or
horizontal discharge. Determine the method of discharge that will
be used.
4. Refer to Figure 3. Mount 3
housing for vertical discharge, or on the side of housing for
horizontal discharge with two (2) screws (furnished).
POWER
CONNECTOR
SLOT
WING NUT,
HANGER
ROD
FIGURE 1
ROOF CAP
WALL CAP
HORIZONTAL
DISCHARGE
FIGURE 2
1
" x 10" damper section on top of
4
