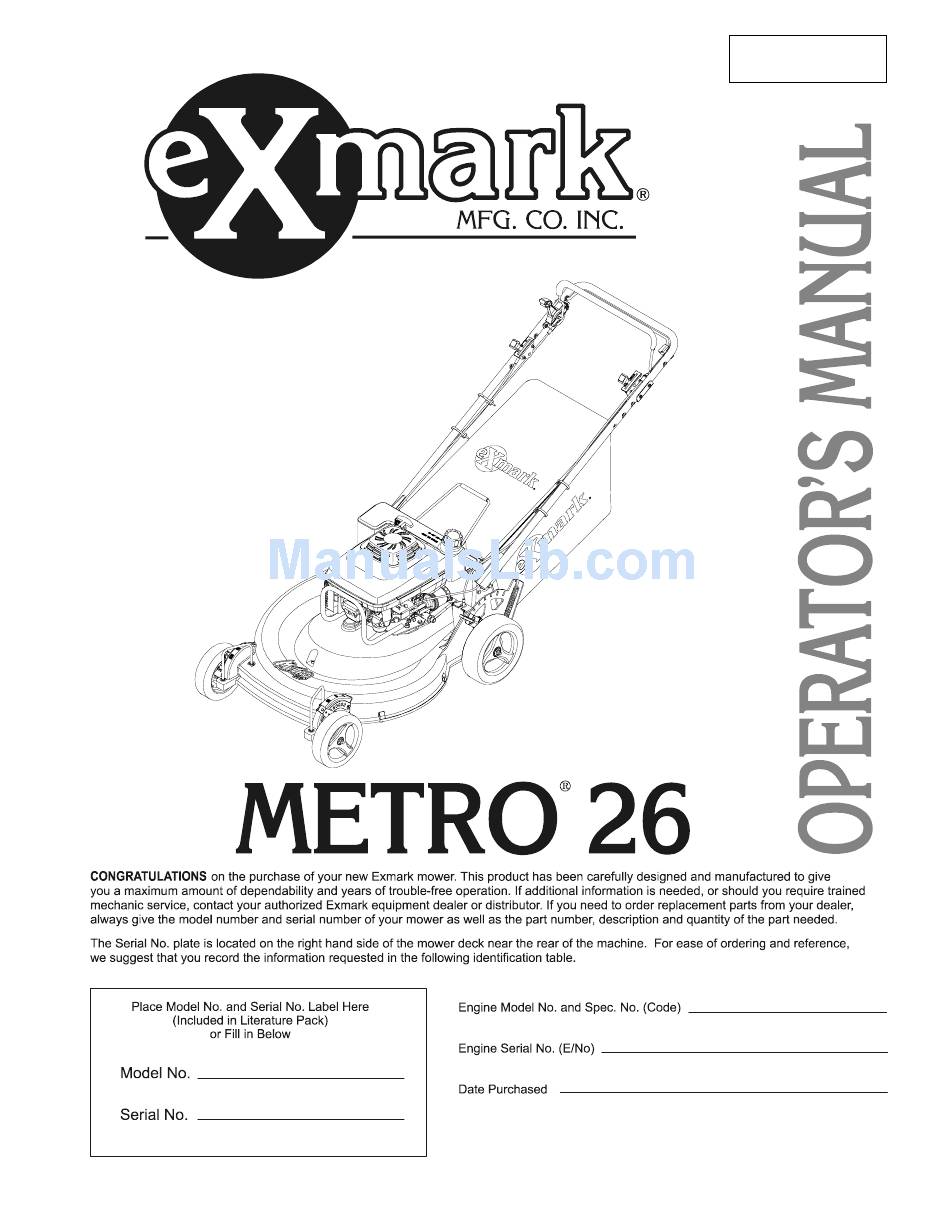

  • Page 1 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 For Serial Nos. 510,000 & Higher Part No. 103-9832 Rev. A www.mymowerparts.com...
  • Page 2 Replacements may be ordered through the engine manufacturer. Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Exmark, or its distributors and dealers, accept no responsibility for variations which may be evident in the actual specifications of its products and the statements and descriptions contained in this publication.
  • Page 3 3. Exmark being unable to ship the part and the Exmark parts order is received by 3:00 p.m., central time, Exmark pays for the part and freight. 4. If the part does not arrive overnight due to the shipper (UPS), the shipper pays for the freight and Exmark pays for the part.
  • Page 4 If additional information is needed, or should you require trained mechanic service, contact your authorized Exmark equipment dealer or distributor. All Exmark equipment dealers and distributors are kept informed of the latest methods of servicing and are equipped to provide prompt and efficient service in the field or at their service stations. They carry ample stock of service parts or can secure them promptly for you from the factory.

  • Page 5: Table Of Contents

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 TABLE OF CONTENTS 1. SAFETY PAGE Safety Alert Symbol ..................1 Training....................... 1 Preparation ....................1-3 Operation....................3-5 Maintenance & Storage ................5-6 Safety Signs .................... 6-7 2. SPECIFICATIONS Model Numbers ..................7 Engine ......................

  • Page 6: Safety Alert Symbol

    MAY result in minor or moderate injury. 1.2 TRAINING 1.2.1 Regard the Exmark mower as a piece of power equipment and teach this regard to all who operate this unit. 1.2.2 Read the instructions carefully. Familiarize yourself with the controls and the proper use of the equipment.
  • Page 7 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 1.3.3 While mowing, always wear substantial footwear and long trousers. Do not operate equipment when barefoot or when wearing open sandals. 1.3.4 Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires, bones, and other foreign objects which may damage the equipment or cause personal injury to the operator or bystanders.

  • Page 8: Operation

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 DANGER POTENTIAL HAZARD ♦ In certain conditions gasoline is extremely flammable and highly explosive. WHAT CAN HAPPEN ♦ A static charge can ignite gasoline vapors. A fire or explosion from gasoline can burn you, others, and cause property damage.
  • Page 9 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 WARNING POTENTIAL HAZARD ♦ Hands, feet, hair, clothing, or accessories can become entangled in rotating parts. WHAT CAN HAPPEN ♦ Contact with rotating parts can cause traumatic amputation or severe lacerations. HOW TO AVOID THE HAZARD ♦...

  • Page 10: Maintenance & Storage

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 1.4.8 Do Not change the engine governor settings or overspeed the engine. Operating an engine at excessive speed may increase the hazard of personal injury. 1.4.9 Never attempt to make wheel height adjustments while the engine is running.

  • Page 11: Safety Signs

    When new components are installed, be sure that current safety signs are affixed to the replaced components. 1.6.4 New safety signs may be obtained from your authorized Exmark equipment dealer or distributor or from Exmark Mfg. Co. Inc. 1.6.5 Safety signs can be affixed by peeling off the backing to expose the adhesive surface.

  • Page 12: Specifications

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 PART NO.: 1-213240 LOCATION: On Rear Discharge Chute Cover PART NO.: 103-6329 PART NO.: 103-6328 LOCATION: Top Surface of LOCATION: Top Surface of Shifter Control Throttle Control 2. SPECIFICATIONS 2.1 MODEL NUMBER: M266KASPC 2.2 ENGINE...

  • Page 13: Assembly Instructions

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 3. ASSEMBLY INSTRUCTIONS NOTE: Determine the left and right sides of the machine from the normal operating position. 3.1 Installing the Handle Mount the handle to the outside of the lawn mower housing on each side as shown Fig.

  • Page 14: Service The Engine

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 6. Secure the fuel line in place with the fuel line clamp (Fig. 3). FIGURE 3 Service the Engine 3.3.1 Filling the Crankcase with Oil Initially, fill the crankcase with 30 ounces (0.88 liters) of oil. Use only high-quality SAE 30 or SAE 10W-30 weight detergent oil that has the American Petroleum Institute (API) service classification SF, SG, SH, or SJ.
  • Page 15 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIGURE 5 4.1.3 Self-Propel Drive Bail: Located on the upper handle as shown in Figure 5. When the self-propel drive bail is squeezed, the unit will move forward at the speed set on the speed control lever.

  • Page 16: Pre-Start

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 4.2 PRE-START 4.2.1 Refer to Section 5 Maintenance and perform all of the necessary inspection and maintenance steps. 4.2.2 Fill the Fuel Tank with Gasoline See Section 1.3 Preparation section for safety information regarding the proper way to handle gasoline.
  • Page 17 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIGURE 8 Open the fuel valve. The fuel valve is located at the lower left edge of the fuel tank. Rotate the valve counter-clockwise to turn on fuel. (Fig. 9) FIGURE 9 Move the throttle-choke control to the (Choke) position.
  • Page 18 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 speed. Move the ground speed control to the Neutral position when you use the lawn mower for trimming or whenever you leave the lawn mower. 4.3.5 Operating the Blade Control Lever: Start the engine.
  • Page 19 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 14. Pull the lawn mower away from the newspaper. If the newspaper ball unravels or is shredded, the blade has not properly stopped, resulting in an unsafe operating condition. Contact an Authorized Service Dealer.
  • Page 20 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Front wheel height adjustment: Pull the wheel height adjustment lever toward the wheel (Fig. 11) and move it to the desired setting. FIGURE 11 Release the wheel height adjustment lever and set it securely in the notch.
  • Page 21 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIGURE 13 Set the bag frame onto the bag support tabs. Lower door onto bag. Mowing with the Grass Bag WARNING POTENTIAL HAZARD ♦ A worn grass bag could allow small stones and other similar debris to be thrown in the operator’s or...
  • Page 22 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 4.3.10 Operating Tips • Review the Safety Instructions (Section 1) and read this manual carefully before operating the lawn mower. • Set the engine speed to the fastest position for the best cutting results.

  • Page 23: Maintenance

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 5. MAINTENANCE NOTE: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule Service Interval Maintenance Procedure • Check the engine oil level. • Check the stopping time of the blade brake. The blade must stop within 3 seconds of releasing the bail;...

  • Page 24: Checking The Blade Brake Clutch

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Checking the Blade Brake Clutch Refer to Section 4.3.6 Checking the Blade Brake Clutch. Cleaning the Underside of the Lawn Mower Housing. To ensure the best performance, keep the underside of the lawn mower housing clean (Fig.

  • Page 25: Cleaning The Discharge Tunnel

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 4. Remove the dirt and grass clippings with a hardwood scraper. Avoid burrs and sharp edges. 5. Turn the lawn mower upright. 6. Fill the fuel tank. 7. Connect the wire to the spark plug.

  • Page 26: Maintaining The Blade

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Paper Air Filter Foam Pre Cleaner G0216 Figure 17 NOTE: Do not try to clean a paper air filter. 6. Remove the foam pre-cleaner and wash it with a mild detergent and water, then blot it dry (Fig 17).
  • Page 27 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Sail Sail Flat Sail Wear G0219 Slot FIGURE 19 NOTE: For the best performance, install a new blade before the cutting season begins. During the year, file down any small nicks to maintain the cutting edge.

  • Page 28: Cleaning The Under The Cover

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 9. Re-install a sharp balanced Exmark blade, spacer, washer, and blade bolt. The sail of the blade must point toward the top of the lawn mower housing for proper installation. Torque the blade bolt to 75-85 ft-lb (102-115 N-m).

  • Page 29: Adjusting The Self-Propelled Drive

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 2. Locate the grease fitting on the underside of the mower deck. Wipe the grease fittings with a clean rag (Fig. 23). FIGURE 23 3. Install a grease gun onto the fitting and gently apply 2 or 3 pumps of #2 multi- purpose lithium base grease (Fig.

  • Page 30: Changing The Engine Oil

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 0.030 in. (0.76 mm) FIGURE 25 6. Install the spark plug and the gasket seal. 7. Torque the plug to 17 ft-lb (23 N-m). 8. Connect the wire to the spark plug.

  • Page 31: Lubricating The Gear Case

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 WARNING POTENTIAL HAZARD ♦ Oil may be hot after engine has been run. WHAT CAN HAPPEN ♦ Contact with hot oil can cause severe personal injury. HOW TO AVOID THE HAZARD ♦ Avoid contacting the hot engine oil when you drain it.

  • Page 32: Adjusting The Blade Brake Cable

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIGURE 28 4. Gently apply one to two pumps of #2 multi-purpose lithium-base grease. 5. Re-install gear case access cover. 6. Install the grass bag. 5.15 Adjusting the Blade Brake Cable: Service Interval: Adjust whenever a new blade brake cable assembly it installed 1.

  • Page 33: Storage

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FRONT WHEEL ASSEMBLY REAR WHEEL ASSEMBLY FIGURE 30 FIGURE 31 Assembling the Wheels 1. Re-install wheel assembly as shown in Figures 30 or 31. 2. Connect the wire to the spark plug.

  • Page 34: General Storage Information

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 3. Using an oil can, add about one tablespoon of oil to the crankcase through the spark plug hole. 4. Slowly rotate the engine several times, using the starter rope, to distribute the oil.

  • Page 35: Troubleshooting

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 8. TROUBLESHOOTING Exmark designed and built your lawn mower for trouble free operation. Check the following components and items carefully, and refer to Section X Maintenance for more information. If a problem continues, contact an Authorized Service Dealer.
  • Page 36 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Problem Possible Causes Corrective Action Lawn mower or engine 1. The blade is bent or is out of 1. Balance the blade. If the blade vibrates excessively balance. is bent, replace it.

  • Page 37: Warranty

    This warranty extends only to replace or adjust any part manufactured by Exmark and found turf equipment operated under normal conditions. You by us (in the exercise of our reasonable discretion) to be...
  • Page 38 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 NOTES - 33 - www.mymowerparts.com...
  • Page 39 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 SERVICE RECORD Date Description of Work Done Service Done By - 34 - www.mymowerparts.com...
  • Page 40 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 SEE EXMARK’S COMPLETE LINE OF ACCESSORIES RIDING ACCESSORIES CUSTOM RIDE SEAT SUSPENSION SYSTEM DECK LIFT ASSIST KIT HITCH KIT LIGHT KIT MICRO-MULCH SYSTEM ROLL OVER PROTECTION SYSTEM (ROPS) SNOW BLADE SUN SHADE...
