Installation Instructions
TSTATCCPF701
TSTATBBPF701
P374-1100FM
NOTE: Read the entire instruciton manual before starting the installation.

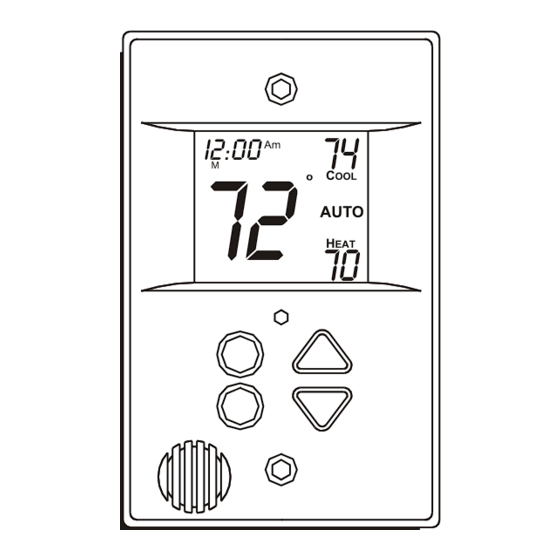

I2:00
Am
72
M
MULTI-STAGE
Form: IM-TSTAT-08
Cancels:
Digital Thermostat
HEAT
74
COOL
C
OOL
AUTO
&
70
H
EAT
HEAT
PUMP
SEVEN DAY PROGRAMMABLE
Printed in U.S.A.
Catalog No. 13TS-TA34
Advertisement
Related Manuals for Carrier TSTATCCPF701
Summary of Contents for Carrier TSTATCCPF701
-
Page 1: Installation Instructions
Installation Instructions TSTATCCPF701 Digital Thermostat TSTATBBPF701 P374-1100FM NOTE: Read the entire instruciton manual before starting the installation. HEAT I2:00 COOL AUTO & HEAT PUMP MULTI-STAGE SEVEN DAY PROGRAMMABLE Form: IM-TSTAT-08 Cancels: Printed in U.S.A. Catalog No. 13TS-TA34... -
Page 2: Table Of Contents
THE OLD THERMOSTAT AND INSTALLING WARNING THE NEW THERMOSTAT. Replacement Components Division Carrier Corporation 4/01 This device complies with Part 15 of the FCC rules. Operation is subject to the following 2 conditions: (1) This device may not cause harmful interference,... -
Page 3: Preparation
STEP #1 PREPARATION Proper installation of the thermostat will be accomplished by following these step by step instructions. If you are unsure about any of these steps, call a qualified technician for assistance. Assemble tools & recommended Junction Box or Wall Bracket. FLATSTAT ‘Mud rings’... -
Page 4: Remove Old Thermostat
STEP #2 REMOVE & REPLACE OLD THERMOSTAT Remove the cover of the old thermostat. If it does not come off easily check for screws. Loosen the screws holding the thermostat base or subbase to the wall, and lift away. Disconnect the wires from the old thermostat. -
Page 5: Wire Connections
STEP #3 WIRE CONNECTIONS If the terminal designations on your old thermostat do not match those on the new thermostat, refer to the chart below, or the wiring diagrams that follow. Install on the Wire from the old thermostat new thermostat Function connector marked terminal marked... -
Page 6: Wiring Diagrams
Sample Wiring Diagrams 5 Wire, 1 Stage Cooling, 1 Stage Gas Heat Residential Gas or Electric Heat *, Electric Cool, split systems & package units Thermostat 24 vac common fan relay compressor relay 1st stage heat circuit 24 vac return * If using electric heat this option must be selected on during advanced setup. - Page 7 Sample Wiring Diagrams 6 Wire, 1 Stage Cooling, 2 Stage Heat Residential & commercial 1 Stage Cooling, with 2 Stage Gas or Electric Heat* Thermostat 24 vac common fan relay compressor relay 1st stage heat circuit 24 vac return 2nd stage heat circuit 5 Wire, 1 Stage Cooling, 1 Stage Heat - Heat Pump* No auxiliary heat, residential Heat Pumps , split systems &...
- Page 8 Sample Wiring Diagrams Commercial Gas or Electric Heat ***, 7 Wire, Fan Coil w/ 3 Speed Fan Electric Cool, split systems & package units including Commercial Heat Pumps ** Thermostat 24 vac common fan relay - low speed compressor relay hot water valve 24 vac return fan relay - med.
-
Page 9: Calibration
Sample Wiring Diagram 6 Wire, 1 Stage Cooling, 2 Stage Heat, Heat Pump * Most residential split and package heat pumps with auxiliary heat Thermostat 24 vac common fan relay compressor relay 1st stage heat circuit 24 vac return 2nd stage heat circuit * The heat pump option must be selected on during advanced setup. -
Page 10: Test Operation
STEP #4 TEST OPERATION Turn the power on to the Heating/Air Conditioning system. Press the On/Off button repeatedly until the HEAT icon appears on the display. Press the Up or Down buttons until the set temperature is 10 degrees above room temperature. -
Page 11: Troubleshooting
TROUBLESHOOTING SYMPTOM: When using 4 wires (R, G, W, Y), the air conditioning equipment tries repeatedly to turn on, but cannot. At times the display dims or disappears. CAUSE: There is not enough power available to "power share". REMEDY: Connect a 270 ohm, 10 watt power resistor at the furnace as shown below. - Page 12 TROUBLESHOOTING SYMPTOM: The air conditioning does not attempt to turn on. CAUSE: The cooling setpoint is set too high. REMEDY: Consult the Owner's Manual in the Setup section to lower the cooling setpoint limit. SYMPTOM: The heating does not attempt to turn on.
- Page 13 "conventional" (non heat pump) system. REMEDY: Consult the Owner's Manual in the Advanced Setup section to turn off the heat pump. FlatStat TSTATCCPF701 TSTATBBPF701 P374-1100FM Tested to Comply with FCC Standards FOR HOME OR OFFICE USE 4Z95...
