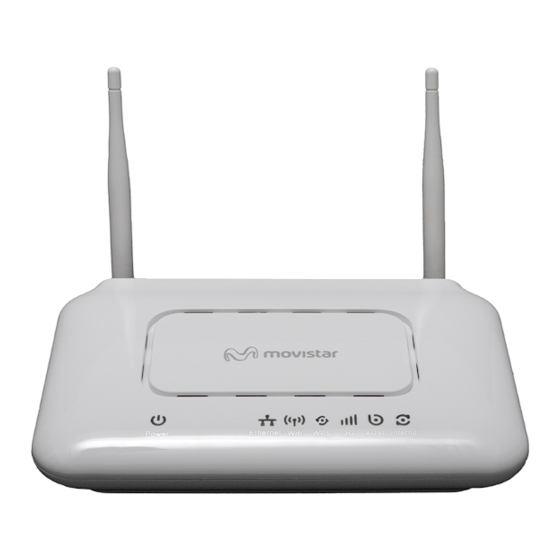

movistar Home Station ADSL Installation Manual

Hide thumbs Also See for Home Station ADSL:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Home Station
ADSL
Freedom in a
box.
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for movistar Home Station ADSL

Summary of Contents for movistar Home Station ADSL

  • Page 1 Home Station ADSL Freedom in a box. Installation Guide...

  • Page 3: Package Contents

    The advanced settings CD includes a video in electronic format with a graphic and detailed explanation of your Internet startup process. (Ayuda- Grafica.exe) Package Contents (3) Two simple microfilters (1) Home Station ADSL (2)Power adapter (4) One double microfilter (4) Phone cable (6) Ethernet Cable...
  • Page 4 (4) labeled as Connect the microfilter with double ADSL) and to the ADSL connector of outlet (4) to the selected telephone the Home Station ADSL labeled as socket where the router will be ADSL. connected and the telephone to the outlet labeled as (or TELÉFONO),...
  • Page 5 4. Switching on the router Turn the Home Station ADSL on by pressing the Power button on the back of the router to its ON position. Wait a few minutes to reach the LEDs status shown below. Status Description Power...
  • Page 6 Start using your ADSL... 5. Connecting the router with your computer. Two options are avilable You may either connect your computer to the router with an Ethernet cable if they are close enough or b y means a wireless network. Furthermore, you can simultaneously have some equipments connected to the router using the Ethernet cable and others, as laptops, through the wireless network.
  • Page 7 WPS Connection Connection using Windows wireless client Your Home Station ADSL is compatible To configure your wireless device in with WPS for setting up a secure Windows XP SP2, Vista or Windows 7 wireless network. By default, WPS you can use the wireless client function is enabled on the router.
  • Page 8 Select the network whose identifier (SSID) is the one that appears on the label of the router and click on Connect. Connect to the wireless network by pressing the button Connect (or Accept in Windows 7). Check to make sure that the wireless net-work connection icon for the system tray indicates that the connection has been correctly...
  • Page 9 Switch the PC on. Ethernet LED indicator will light up in green after a few seconds. This LED will blink in green when trasferring data. It will be also switched on the light indicator on the back side of the router corresponding with the port where it was connected the Ethernet cable: More information at User Manual on Advanced Settings CD.
  • Page 10 Once you are connected to the ADSL service it is highly recommended to protect your PC against Internet attacks or intrusions. If you want to do so, you can hire these services (Antivirus Anti-Intrusion Security Pack...) www.movistar.es, calling 1004 or through your usual channel. More information at User Manual on Advanced Settings CD.
  • Page 11 Internet connection and the advanced configuration of the ADSL service. This help is in Spanish language. "Acceso Portal configuración Web": Although equipment supplied by Movistar doesn't require any additional configuration, if you wish to, you can change advanced parameters when you are connected to the "Home Station".

  • Page 12: Advanced Settings Options

    Advanced settings options There are different ways to configure advanced options in your Home Station ADSL: • By using the web portal of the router, accesing with your browser to the address asociated to the device, by default, it is http://192.168.1.1.
  • Page 13 Solutions to Frequent Problems (FAQ) b lem Cause Solution Check there is a microfilter installed between each phone device (phones, Connection is There is no faxes...) and services using the dropped when microfilter between telephone line (alarms, etc) and the the phone and the phone socket (see step 1 of the phe is off...
  • Page 14 Problem Cause Solution Check there is a microfilter installed between each telephone device There is no (phones, faxes...) and services using microfilter between the telephone line (alarms, etc) and the phone and the the phone socket (see step 1 of phone socket section "Start using your ADSL..."...
  • Page 15 Problem Cause Solution Check that you don't have a A firewall installed in Firewall preventing connections to your equipment is internet. Configure your firewall to preventing the enable web browsing, following the connection. manufacturer instructions. Review the documentation included You have hired in the box for specific instructions on static IP addressing this case.
  • Page 16 Problem Cause Solution Check you are using the same You have not encryption type and the same key in correctly configured all your network elements. the encryption used Remember, if you use WEP encryption, in the wireless you should select and configure the I cannot network when key 1 in the configuration of the...

  • Page 17: Customer Care

    All the information about ADSL can be found in the "Internet" section at movistar.es www.movistar.es/adsl Movistar Technical Customer Care Centers Home users: 1004 Enterprises and professionals: 900 10 10 10 (*) Additionaly, for any Warranty/Maintenance question, you may contact the phone numbers mentioned above.

  • Page 18: Additional Information

    Telefónica de España, S.A.U informs We thank you the trust placed in Never dispose of this Home Station Movistar to adquire one of our devices ADSL with your usual household and we inform you that, for any waste. Ask your...

  • Page 19: Declaration Of Conformity

    Address: C/Monte Esquinza 28, 1º Dcha. 28010. Madrid Telephone: 902 367 132 C.I.F.: B-83488676 Hereby declare under our sole responsibility that the product: Device: HOME STATION ADSL OBSERVA TELECOM BHS-RTA Brand: Telefónica Manufacturer: OBJETIVOS Y SERVICIOS DE VALOR AÑADIDO, S.L. (OBSERVA TELECOM) Manufacture Country: China Model: BHS-RTA It complies with the technical specifications that are applicable on the day of the date by R &...
  • Page 20 Speed. Antivirus: Dynamic/Static Addressing: Application to detect and remove any It indicates how Movistar assigns the IP computer virus and other malicious address to your line. If every time that programs. your wireless router starts a session it is...
  • Page 21 Microfilters: TCP/IP (Transmission Control Protocol/ Internet Protocol): Element which filters the ADSL signal and separate it form the phone signal, Set of network protocols upon which it so that it is possible to make phone is based Internet and which allow data calls and surf Internet at the same time to be transmitted between computer without interruptions or drops.

  • Page 24: Discover More

    Discover more: 100 4 www.movistar.es Movistar Shops Equipment supplied by: C.I.F.: B-83488676 REI-RAEE Registration number: 000334 Version 1.0...
