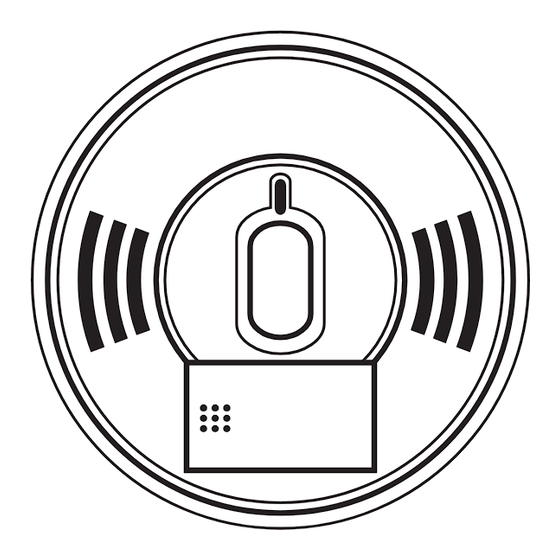

- Page 1 120 V AC and 9 V Battery Backup moke larm ™ with Test and Smart Hush Feature Alarm Manual Model i12060CA SINGLE AND/OR MULTIPLE STATION SMOKE ALARM...
-
Page 2: Table Of Contents
Warranty......25 Kidde Canada Inc., P.O. Box 40, Aspley, ON K0L1A0 Consumer Hotline: 1-800-880-6788 www.kiddecanada.com... -
Page 3: Installation
This unit is suitable as a Single Station and/or Multiple Station alarm (interconnects with up to 24 devices), and has a five-year limited warranty. IMPORTANT: This unit is only approved to interconnect with the Kidde line of products. It is not approved to interconnect with any other manufacturer’s products. - Page 4 Installation Recommended Locations • Locate the first alarm in the immediate area of the bedrooms. Try to monitor the exit path, as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area (Image 1A).
- Page 5 Installation DINING KITCHEN BEDROOM BEDROOM ROOM BEDROOM HALL BEDROOM LIVING ROOM BEDROOM LIVING KITCHEN ROOM Smoke Alarms for Minimum Protection Smoke Alarms for Additional Protection Ionization Type Smoke Alarm with BASEMENT Hush® Control or Photoelectric Type SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN IMAGE 1A IMAGE 1B •...
-
Page 6: Locations To Avoid
Installation Locations to Avoid • Do not install within 0.9 m (3') of the following: The door to a kitchen, or a bathroom that contains a tub or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high air-flow areas. - Page 7 Installation 10 cm (4”) MINIMUM CEILING IMAGE 2A NEVER HERE BEST PLACEMENT ACCEPTABLE PLACEMENT SIDE WALL NOT IN THIS AREA 10 cm (4”) ANYWHERE IN THIS AREA 0.9 m (3’) 0.9 m (3’) HORIZONTAL DISTANCE FROM PEAK IMAGE 2B NOT IN THIS AREA ANYWHERE IN THIS 10 cm (4”)
- Page 8 Installation Mobile Homes Modern mobile homes have been designed to be energy efficient. Install smoke alarms as recommended in Recommended Locations and Image 2A. In older mobile homes that are not well insulated compared to present standards, extreme heat or cold can be transferred from the outside to the inside through poorly insulated walls and roof.
- Page 9 CAUTION! Kidde alarms and accessories CAN ONLY BE interconnected with other Kidde alarms and accessories as well as specified brands and models of interconnect compatible alarms. Connection of Kidde products to a non-specified manufacturer’s interconnect system, or connection with...
- Page 10 Installation IMAGE 3 INTERCONNECT WIRING...
- Page 11 Installation Mounting CAUTION: This unit is sealed. The cover is not removable! CAUTION: When wall mounting, the unit must be mounted so that battery door faces down! (Image 4C) • After selecting the proper smoke alarm location as described previously, and wiring the AC Quick-Connect wire harness as described in Wiring, attach the mounting plate to the electrical box (Image 4B).
-
Page 12: Installation
Installation • Pull the AC Quick-Connect wire harness through the center hole in the mounting bracket and secure the bracket, making sure that the mounting screws are positioned in the small ends of the keyholes before tightening (Image 4B). • Plug the AC Quick-Connect wire harness into the back of the alarm (Image 5), making sure that the locks on the connector snap into place. -
Page 13: Operation
Operation Testing • Test the unit to ensure proper operation by pressing the Test button. (All interconnected, battery backed-up alarms, should respond). CAUTION: Due to the loudness (85 decibels) of the alarm, always stand an arms-length away from the unit when testing. •... - Page 14 Operation Alarm Tamper Resist Feature To make the smoke alarm somewhat tamper resistant, a tamper resist feature has been provided. Activate the alarm tamper resist feature by breaking off the four posts in the square holes in the mounting plate (Image 6A). Rotate the alarm onto the mounting plate until you hear the tamper resist tab snap into place, locking the alarm.
- Page 15 Operation Battery Tamper Resist Feature This alarm has a battery tamper resist feature, which prevents the battery door from being opened. This feature is effective in preventing the removal of the battery from this device (which will render the unit inoperable during the loss of AC power).
- Page 16 Operation ™ Smart Hush Feature Smoke alarms are designed to minimize nuisance alarms. Cigarette smoke will not normally set off the alarm, unless the smoke is blown directly into the alarm. Combustion particles from cooking may set off the alarm if the alarm is located close to the cooking area.
-
Page 17: Operation
Operation LED Indicators This alarm is equipped with red and green LED indicators: The green LED (when illuminated) indicates the presence of AC power. The red LED has four modes of operation: Standby Condition: The red LED will flash every 30-40 seconds to indicate that the smoke alarm is operating properly. -
Page 18: Maintenance
Maintenance Testing CAUTION: Due to the loudness (85 decibels) of the alarm, always stand an arms length away from the unit when testing. Test by pushing the Test button on the cover and hold it down for a minimum of 5 seconds. This will sound the alarm if all the electronic circuitry, horn and battery are working. - Page 19 Maintenance Battery Removal NOTE: If battery tamper resist feature has been activated it will need to be deactivated in order to change the battery. Refer to the Battery Tamper Resist Feature section for instructions. To replace or install the battery press down on the battery door and then release to allow the door to pop open.
- Page 20 Maintenance This smoke alarm uses a 9 V carbon zinc battery (alkaline and lithium batteries may also be used). A fresh battery should last for one year under normal operating conditions. Use only the following 9 volt batteries for replacement: Carbon-Zinc Type Eveready 1222 Gold Peak 1604P or 1604S...
-
Page 21: Maintenance
Never attempt to disassemble the unit or clean inside. This action will void your warranty. Replacing the Alarm The National Fire Protection Association (NFPA) and Kidde recommend replacing this alarm ten years from the date code label (located on the back of the alarm). -
Page 22: Fire Safety
(associated with slow smoldering fires) sooner than ionization alarms. Home fires develop in different ways and are often unpredictable. For maximum protection, Kidde recommends that both Ionization and Photoelectric alarms be installed. • A battery powered alarm must have a battery of the specified type, in good condition and installed properly. -
Page 23: Good Safety Habits
Fire Safety • The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm. For maximum protection, a smoke alarm should be installed in each sleeping area on every level of a home. • Although smoke alarms can help save lives by providing an early warning of a fire, they are not a substitute for an insurance policy. - Page 24 Fire Safety Alarm Exit Procedure • Alert small children in the home. • Leave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or picking up valuables. • In leaving, don’t open any inside door without first feeling its surface.
-
Page 25: Fire Safety
Fire Safety Additional Recommendations The National Fire Protection Association’s Standard 72 provides the following information: Smoke Detection. Where required by applicable laws, codes, or standards for the specified occupancy, approved single- and multiple-station smoke alarms shall be installed as follows: (1) In all sleeping rooms Exception: Smoke alarms shall not be required in sleeping rooms in existing one- and two-family dwelling units. -
Page 26: Warranty
Kidde or any of its parent or subsidiary corporations be liable for consequential loss or damages resulting from the failure of this smoke alarm or for breach of this or any other warranty, express or implied, even if the loss or damage is caused by the company’s...
