JVC UX-GP5 Instructions

Warnings, Cautions and Others
Mises en garde, précautions et indications
diverses

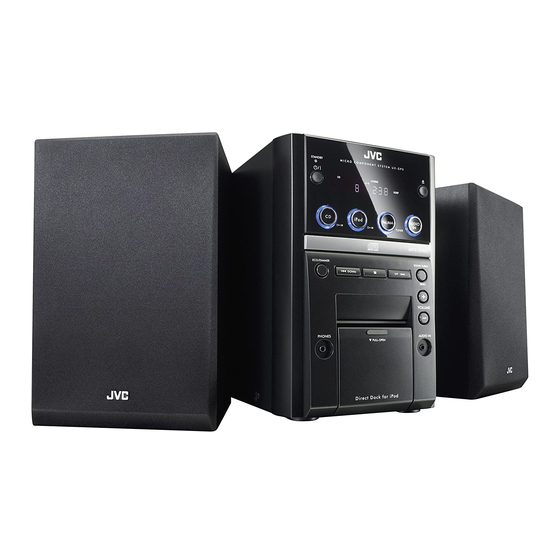

MICRO COMPONENT SYSTEM
UX-GP5
—Consists of CA-UXGP5 and SP-UXG300
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
Thank you for purchasing a JVC product.
maintenance (servicing) instructions in the
literature accompanying the appliance.
INSTRUCTIONS
GVT0242-019B[J/C]
0108WMKMDWJMM
©2008 Victor Company of Japan, Limited
For customer use:
Le symbole de l'éclair à l'intérieur d'un triangle
Enter below the Model No. and Serial No. which are
équilatéral est destiné à alerter l'utilisateur sur
located either on the rear, bottom or side of the cabinet.
la présence d'une "tension dangereuse" non
Retain this information for future reference.
isolée dans le boîtier du produit. Cette tension
Model No.
est suffisante pour provoquer l'électrocution
Serial No.
de personnes.
Le point d'exclamation à l'intérieur d'un
For U.S.A.
triangle équilatéral est destiné à alerter
This equipment has been tested and found to comply with
l'utilisateur sur la présence d'opérations
the limits for a Class B digital device, pursuant to part 15 of
d'entretien importantes au sujet desquelles
the FCC Rules.
des renseignements se trouvent dans le
These limits are designed to provide reasonable protection
manuel d'instructions.
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
Note to CATV system installer:
energy and, if not installed and used in accordance with
This reminder is provided to call the CATV system
the instructions, may cause harmful interference to radio
installer's attention to Section 820-40 of the NEC which
communications. However, there is no guarantee that
provides guidelines for proper grounding and, in particular,
interference will not occur in a particular installation. If this
specifies that the cable ground shall be connected to the
equipment does cause harmful interference to radio or
grounding system of the building, as close to the point of
television reception, which can be determined by turning
cable entry as practical.
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
[European Union only]
Increase the separation between the equipment and
[Union européenne seulement]
receiver. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Getting Started
Supplied Accessories Connections
After unpacking, check to be sure that you have all the
following items.
To connect the FM antenna (supplied)
• Remote control, RM-SUXGP5A (× 1)
Extend it so that you can obtain the best reception.
• Lithium coin battery CR2025 (× 1)
– The battery has been installed when shipped from the
FM antenna (supplied)
factory.
• AM loop antenna (× 1)
• FM antenna (× 1)
If anything is missing, consult your dealer immediately.
For better FM reception
Prepare the Remote Control
When you use the remote control for the first time, pull out
Disconnect the supplied FM antenna, and connect
the insulation sheet.
to an outdoor FM antenna using a 75 Ω wire with
coaxial type connector (IEC or DIN45325).
Insulation sheet
To Replace the Battery in the Remote Control
Rear view
Lithium coin battery
(product number: CR2025)
NOTES:
• Store the battery in a place where children cannot reach. If
a child accidentally swallows the battery, consult a doctor
immediately.
• To prevent the battery from over-heating, cracking, or starting
a fire:
– Do not recharge, short, disassemble or heat the battery or
dispose of it in a fire.
– Do not leave the battery with other metallic materials.
– Wrap the battery with tape and insulate when throwing
away or saving it.
– Do not poke the battery with tweezers or similar tools.
• Dispose of battery in the proper manner, according to federal,
state, and local regulations.
• The batteries (battery pack or batteries installed) shall not be
exposed to excessive heat source such as sunshine, fire or the
To a wall outlet
like.
Plug the AC power cord only after all connections are complete.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which
NOTES:
contains Perchlorate Material – special handling may
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas
apply.
away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
• Make sure both the speakers are connected correctly and firmly.
• When connecting the speaker cords, match the polarity of the speaker terminals: red color to (+) and black color to (–).
CAUTION:
• DO NOT connect more than one speaker to each terminal.
Danger of explosion if battery is incorrectly replaced.
• DO NOT allow the conductor of the speaker cords to be in touch with the metallic parts of the System.
Replace only with the same or equivalent type.
IMPORTANT FOR LASER PRODUCTS
CAUTION
1. CLASS 1 LASER PRODUCT
To reduce the risk of electrical shocks, fire, etc.:
2. CAUTION: Do not open the top cover or cabinet. There
1. Do not remove screws, covers or cabinet.
are no user serviceable parts inside the unit; leave all
2. Do not expose this appliance to rain or moisture.
servicing to qualified service personnel.
ATTENTION
3. CAUTION: Visible and/or invisible class 1M laser radiation
Afin d'éviter tout risque d'électrocution, d'incendie, etc.:
when open. Do not view directly with optical instruments.
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
coffret de l'appareil.
INSIDE THE UNIT.
2. Ne pas exposer l'appareil à la pluie ni à l'humidité.
IMPORTANT POUR PRODUITS LASER
1. PRODUIT LASER CLASSE 1 CAUTION: Proper Ventilation
2. ATTENTION: N'ouvrez pas le couvercle supérieur ni To avoid risk of electric shock and fire, and to prevent
le coffret de l'appareil. Il n'y a aucune pièce réparable damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
par l'utilisateur à l'intérieur de l'appareil; confiez toute
2. Sides/Top/Back: No obstructions should be placed in the
réparation à un personnel qualifié.
areas shown by the dimensions below.
3. ATTENTION: Rayonnement laser visible et/ou invisible
3. Bottom: Place on the level surface. Maintain an adequate
de classe 1M une fois ouvert. Ne pas regarder directement
air path for ventilation by placing on a stand with a height
dans le faisceau avec des instruments optiques.
of 10 cm or more.
4. REPRODUCTION DE L'ÉTIQUETTE: ÉTIQUETTE DE
PRÉCAUTION PLACÉE À L'INTERIEUR DE L'APPAREIL.
Front view
CAUTION:
Changes or modifications not approved by JVC could void
the user's authority to operate the equipment.
For Canada/pour le Canada:
Side view
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS
B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL
APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING
EQUIPMENT STANDARD ENTITLED "DIGITAL APPARATUS,"
ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE
BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS
NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR
LE MATERIEL BROUILLEUR; "APPAREILS NUMERIQUES", NMB-
003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
CAUTION:
Caution — (Standby/on) button! • Do not block the ventilation openings or holes. (If the
Disconnect the mains plug to shut the power off completely ventilation openings or holes are blocked by a newspaper
(the STANDBY lamp goes off). When installing the apparatus, or cloth, etc., the heat may not be able to get out.)
ensure that the plug is easily accessible. The (Standby/on) • Do not place any naked flame sources, such as lighted
button in any position does not disconnect the mains line. candles, on the apparatus.
• When the system is on standby, the STANDBY lamp lights • When discarding batteries, environmental problems
red. must be considered and local rules or laws governing the
• When the system is turned on, the STANDBY lamp goes off. disposal of these batteries must be followed strictly.
The power can be remote controlled. • Do not expose this apparatus to rain, moisture, dripping
or splashing and that no objects filled with liquids, such as
ATTENTION—Touche (attente/sous tension)!
vases, shall be placed on the apparatus.
Déconnectez la fiche secteur pour mettre l'appareil
• Excessive sound pressure from earphones or headphones
complètement hors tension (le témoin STANDBY l s'éteint).
can cause hearing loss.
Lors de l'installation de l'appareil, assurez-vous que la fiche
soit facilement accessible. La touche (attente/sous tension)
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
dans n'importe quelle position ne déconnecte pas l'appareil
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
du secteur.
MOISTURE.
• Quand l'appareil est en mode d'attente, le témoin STANDBY
est allumé en rouge.
• Quand l'appareil est sous tension, le témoin STANDBY
s'éteint.
L'alimentation peut être commandée à distance.
1
Do not connect the AC power cord until all other connections have been made.
To connect the AM loop antenna (supplied)
AM loop antenna (supplied)
Turn it until the best reception
is obtained.
Outdoor FM antenna
(not supplied)
To connect the speaker cords
From right
speaker
2
Basic and Common Operations
How to cancel the demonstration
Press and hold DEMO button while on standby. (Refer to the attached "Information
about the demonstration function.")
Using Headphones
Be sure to turn down the volume before connecting or putting on the headphones.
• Connecting the headphones will deactivate the speakers.
• Sound adjustments also affect the sound through the headphones.
NOTE:
DO NOT turn off (standby) the System with the volume set to an extremely high level;
otherwise, the sudden blast of sound can damage your hearing, speakers and/or
headphones when you turn on the System or start playback.
Playing Back a Disc
The following operations are explained using the remote control, unless
mentioned otherwise. However, if the System has the same or similar button
names, they can also be used for the operations.
To assemble the AM loop antenna
This System can play back...
– CD.
– CD-R/CD-RW recorded in audio CD format (CD-DA) or recorded MP3/WMA files
in ISO 9660 format.
• When playing back an MP3 or WMA track, MP3 or WMA indicator lights up.
Loading a Disc
(on the System only)
1 Press to open the disc tray.
2 • When using an 8 cm disc, place it on the inner
circle of the disc tray.
3 Press to close the disc tray.
Prohibiting Disc Ejection
(on the System only)
You can lock the disc tray so that no one can eject the loaded disc.
• This is possible while the System is on standby.
Press and hold
To cancel the prohibition, repeat the same procedure.
+
Release
Insert
Red
From left
Black
speaker
Point at the remote sensor on the front panel.
(The operating range is approx. 7 m.)
STANDBY lamp
Turn on or off
(standby) the power
Select a source
Adjust the volume
Drop the volume in a
moment
Activate the EALA
surround mode
Emphasize the
sound (Sound Turbo
function)
PHONES jack
Stereo mini plug cord
Reinforce the bass
sound (Active Hyper
Bass Pro function)
Adjust the tone
(Bass/Treble)
Change the display
brightness
Change the display
information (Clock
and Source)
Set the Save Mode
3
Basic Disc Operations
To Press Indication/Result
Play back the disc • Current track number and elapsed playing
time appear.
For MP3/WMA files: Before current track
number and elapsed playing time appear, the
tag information appears if it is recorded.
• During playback, press again to pause.
Stop playback • While playback is stopped, total track number
and total playing time (for MP3/WMA files,
group number and track number) appear.
Select a track Select the next tracks.
To go back to the beginning of the current or
previous tracks.
Select a group Select the next groups.
(MP3/WMA only)
Select the previous groups.
Forward search/ Press and hold to fast-forward the track during
Reverse search playback.
To stop searching, release the button.
Press and hold to fast-reverse the track during
playback.
To stop searching, release the button.
NOTES:
• If no disc is inserted, "NO DISC" appears on the main display.
• If MP3/WMA files are not recorded on the disc, "NO PLAY" appears on the main
display.
Playing Repeatedly—Repeat Play
1 Press repeatedly to specify the repeat mode as follows:
REP TRK: Repeats the current (or specified) track. [
REP GRP: Repeats all tracks in the current group (MP3/WMA
only). [ ]
REP ALL: Repeats all tracks. [ ALL ]
REP OFF: Normal playback
2
4
Press
To Indication/Result
System Remote
The STANDBY lamp on the System turns off/on.
See "Playing Back a Disc" on page 4 and "Listening to an
iPod" on page 5.
Press repeatedly to select "FM" or "AM."
• For "FM/AM," see "Listening to FM and AM
Broadcasts" on page 5.
See "Listening to Digital Audio Player" on page 5.
Adjustable range: Level 0 ("VOL MIN") to level 40
("VOL MAX").
To restore the volume, press again, or adjust the
—
volume level.
The indicator lights up.
— To cancel this function, press repeatedly until
indicator lights off.
The S.TURBO indicator lights up.
To cancel this function, press again.
Press and hold until the AHB indicator lights up.
• When Sound Turbo function is activated (see above),
— this function cannot be activated.
To cancel this function, press and hold again when
Sound Turbo function is deactivated.
Press once for adjusting the bass level; twice for treble
level, then, press VOLUME +/–.
Adjustable range: –3 to +3.
—
You can dim the display window and illumination lamp.
While the System is turned on...
—
For setting the clock, see "Setting the Clock and Using
— Timers" on page 6.
Press when the System is on standby.
Setting the save mode allows you to reduce power
consumption by turning the display off while on
—
standby.
To cancel this function, press again when the System
is on standby.
Programming the Playing Order—Program Play
1 During stops, press until the PRGM (program) indicator lights up
before playing.
• For MP3/WMA files: Select a group number, then a track
2
number.
or
• For CD: Select a track number.
3 Press to program the selected group/track.
Repeat steps 2 and 3 to program other tracks you want.
4
• If you try to program a 51st track, "FULL" will appear.
5 The tracks are played back in the programmed order.
Operations for Program Play (while not playing)
• To check the programmed contents, press 4 or ¢.
• To add tracks, repeat steps 2 and 3 above.
• To erase the last programmed track, press CANCEL.
• To erase the entire program, press and hold CANCEL for about 2 seconds.
• To exit from program play, press MODE.
– The stored program is kept.
Playing at Random—Random Play
1 Press until the RND (random) indicator lights up before you start
playback.
2 Playback starts in random order.
Random Play ends when all tracks are played back.
Operations for Random Play
• To skip a track, press ¢.
• To go back to the beginning of the current track, press 4.
• To exit from random play, press MODE while playback is stopped.
RESUME Play (For MP3/WMA only)
When you stop the playback by one of the following operations, this System
stores the beginning of the stopped track on the disc.
– Pressing 7 once
– Changing the source
When you start playback again, playback starts from the stored position.
] To clear the stored position, open the disc tray.
• When you clear the stored position and start playback, playback starts from the
beginning of the first track.
NOTE:
This function does not work in Program Play and Random Play.
