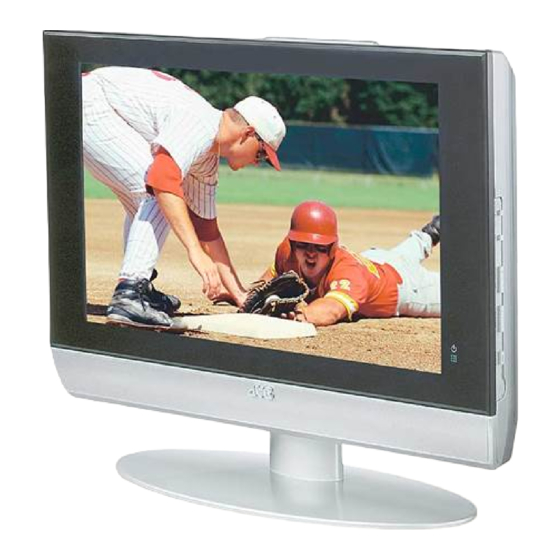

- Page 1 ENGLISH FRANÇAIS CASTELLANO LT-17X475 LT-23X475 LCD FLAT TELEVISION INSTRUCTIONS TELEVISEUR A ECRAN PLAT – LCD MANUEL D’INSTRUCTIONS TELEVISOR PLANO LCD MANUAL DE INSTRUCCIONES...
- Page 2 5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover. Changes of modifications nor approved by JVC could void the warranty. * When you don't use the TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.
- Page 3 15. Apparatus shall not be exposed to dripping or splashing and no objects fill with liquids, such as vases, shall be placed on the apparatus. ® • As an “ENERGY STAR ” partner, JVC has determined that this product or product model meets the ® “ENERGY STAR ” guidelines for energy...
- Page 4 Thank you for buying this JVC LCD flat television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. (“LCD” stands for Liquid Crystal Display.) WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
-
Page 5: Cleaning The Screen
Point defects LCDs use collections of fine pixels to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light or may light all the time. Distance recommendations Avoid improper installation and never position the unit where good ventilation is impossible. -
Page 6: Table Of Contents
ZOOM function...12 Sleep timer funtion...12 VIDEO STATUS...12 C.C. (Closed Caption)...12 Using the PC PIP function ...13 Operating a JVC brand VCR or DVD player ...13 Using the TV’s menu ...14 Basic operation ...14 PICTURE SETTING...15 VIDEO STATUS ...15 Picture Adjustment...15 COLOR TEMPERATURE...15... -
Page 7: Setting Up Your Tv
TV up and down. • As a safety measure, the stand is constructed so that it requires a certain amount of force to tilt the TV. LT-17X475 Tilt slowly Hold down steadly in front of center on stand... -
Page 8: Putting The Batteries Into The Remote Control
Putting the batteries into the Remote control Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct. • Follow the warnings printed on the batteries. • Battery life is about six months to one year, depending on your frequency of use. •... -
Page 9: Connecting The Aerial And Video Cassette Recorder (Vcr)
Settin g up your TV Connecting the aerial and video cassette recorder (VCR) • The connectin g cables are not pro • For further details, refer to the manuals provided with ices to be connected. If you are connecting a VCR, follow in the diagram below. -
Page 10: Tv Buttons And Functions
TV buttons and functions Power lamp 2 Remote control sensor MENU button INPUT OK button VOLUME button CHANNEL button Standby botton 8 Headphone jack (mini jack) Turn the TV on from standby mode Press the POWER button or CHANNEL buttons to turn the TV on from standby mode •... -
Page 11: Remote Control Buttons And Functions
Remote control buttons and functions MUTING 100+ VIDEO STATUS ASPECT C.C. DISPLAY CHANEL PC PIP MOVE SIZE SOUND TOP MENU RM-C1880 1 Muting bu 2 Number buttons 3 ASPECT button VIDEO STATUS button POWER C.C. button DISPLAY button CHANNEL VCR/DVD/PIP control buttons POWER button VCR/TV/DVD switch INPUT... -
Page 12: Adjust The Volume
Adjust the volume buttons to adjust the volume. Press the VOLUME The volume indicator appears and the volume changes as you press the VOLUME buttons. Muting the sound Press the muting button to turn off the sound. Pressing the muting button again restores the previous volume level. -
Page 13: Zoom Function
Remote control buttons and functions ASPECT function You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ASPECT modes. REGULAR: Use to view a normal picture (4:3 aspect ratio) as this is its original shape. -
Page 14: Using The Pc Pip Function
Standby button. 2 Press the VCR/DVD Control Button to control your VCR or DVD player • If your device is not made by JVC, these buttons will not work. • Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using. -
Page 15: Using The Tv's Menu
Using the TV’s menu This TV has a number of functions you can operate using menus. To use all your TV’s functions, you need to understand the basic menu operating techniques fully. MUTING POWER 100+ INPUT VIDEO SLEEP STATUS ASPECT TIMER C.C. -
Page 16: Picture Setting
PICTURE SETTING Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. PICTURE VIDEO STATUS CHOICE TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE COLOR TEMPERATURE HIGH RESET : OPERATE : SELECT VIDEO STATUS You can choose one of five VIDEO STATUS to adjust the picture settings automatically. -
Page 17: Sound Setting
SOUND SETTING Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. SOUND BASS TREBLE BALANCE HYPER SURROUND : OPERATE : SELECT Sound Adjustment You can adjust the sound to your liking. BASS: You can adjust the low tone of the sound. : weaker : strong TREBLE:... -
Page 18: Features
FEATURES Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. FEATURES NOISE MUTING FRONT PANEL LOCK AUTO SHUT OFF : OPERATE : SELECT NOISE MUTING You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device. -
Page 20: Initial Setup
CLOSED CAPTION Select CAPTION or TEXT and press the to select a caption (CC1 to CC4) or text channel (T1 to T4). CLOSED CAPTION CAPTION TEXT : OPERATE : SELECT Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. -
Page 21: Set Lock Code
INITIAL SETUP Note: If you want to change the setup, move the cursor to the top column and change the lock icon to " - " by pressing or again. You may then select indivual categories to block. Movies Ratings : •... -
Page 22: Pc Menu
PC MENU (In PC mode only) This TV also has a number of functions on PC mode, you can operate using pc menus. PC MENU PC PICTURE POSITION PC PICTURE SOUND : SELECT OK : OPERATE 1024 X 768 H : 48 kHz V : 60 Hz PC PICTURE POSITION You can adjust the... -
Page 23: Pc Support Mode List
PC MENU PC support mode list LT-17X475 Mode NO. Mode Name Resolution VGA 60 Hz 640x480 SVGA 56 Hz 800x600 SVGA 60 Hz 800x600 XGA 60 Hz 1024x768 WXGA 1280x768 LT-23X475 Mode NO. Mode Name Resolution VGA 70 Hz 640x350... -
Page 24: Additional Preparation
Additional preparation Connecting external equipment Connect the equipment to the TV, making the correct rear panel and front panel connections. Before connecting anything: • Read the manuals that came with the equipment. Depending on the equipment, the connection method may be different from the diagram. Also, the equipment settings may need to change depending on the connection method. -
Page 25: Connecting Headphones
• According to your using cable cord type, it may be difficult to insert your using cable cord to the Audio output terminal or PC audio terminal. (LT-17X475) • The Audio output terminal is fix. • The output from the AUDIO OUT terminal is not interrupted by headphone connection to the TV. -
Page 26: Troubleshooting
Troubleshooting If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself. - Page 27 Troubleshooting Other concerns • When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV suddenly turns off, try to press the standby button to turn on the TV once again. If the TV goes back to normal, there is no problem.
-
Page 30: Specifications
