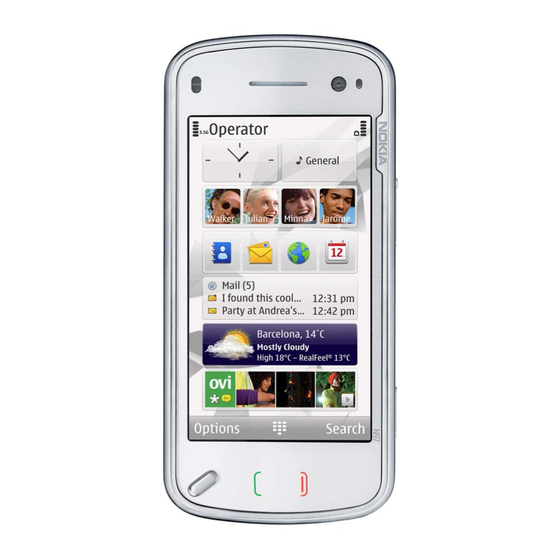

Nokia N97 Service Manual
N97
Hide thumbs
Also See for N97:
- User manual (360 pages) ,
- Service manual (20 pages) ,
- Quick start manual (7 pages)
Table of Contents
Advertisement
Quick Links
1
SERVICE MANUAL
Level 1&2
RM-505/RM-506/RM-507
Transceiver characteristics
Band:
RM-505:
WCDMA HSDPA 900/1900/2100
EGSM 850/900/1800/1900
RM-507:
WCDMA HSDPA 850/1900/2100,
EGSM 850/900/1800/1900
RM-506:
EGSM 850/900/1800/1900
Display:
3.5" nHD 16:9 widescreen, 640x360 pixel resolution ,
16M colour TFT
Camera:
Main camera: 5MPix CMOS, Dual LED Flash, Auto focus
Secondary camera: 640x480 VGA
Operating System:
Symbian OS ver. 9.4 Series60 5th Edition
Connections:
WLAN IEEE802.11 b/g with UPnP support (not in RM-
506), USB 2.0 (micro USB), Bluetooth 2.0 + EDR + A2DP,
3.5mm AV connector
Transceiver with BP-6MT battery pack
Talk time
GSM:
Up to 400 min
WCDMA:
Up to 320 min
Confidential Copyright © 2009 NOKIA All rights reserved
Nokia N97 RM-505/RM-506/RM-507
Service Manual Level 1&2
Standby
Note
GSM:
Talk times are
Up to 430 hours
dependant on
WCDMA:
network
Up to 400 hours
parameters and
phone settings
Version 1.2
ISSUE 1
Advertisement
Table of Contents
Related Manuals for Nokia N97
Summary of Contents for Nokia N97
- Page 1 Talk times are Up to 400 min Up to 430 hours dependant on WCDMA: WCDMA: network Up to 320 min Up to 400 hours parameters and phone settings Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
-
Page 2: Table Of Contents
Exploded view ....................................9 8. Service devices .................................... 10 9. SW-update ....................................11 10. Disassembly instruction ..............................12 11. Assembly hints ..................................19 12. Solder components ................................20 Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 3: Change History
14.05.2009 Service devices updated The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g. -
Page 4: Copyright
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. -
Page 5: Warnings And Cautions
3. Use only approved components as specified in the parts list. 4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment. 5. Ensure all cables and wires are repositioned correctly Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 6: Esd Protection
Nokia N97 RM-505/RM-506/RM-507 Service Manual Level 1&2 4. ESD PROTECTION Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone. Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use. -
Page 7: Care And Maintenance
All of the above suggestions apply equally to the product, battery, charger or any accessory. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 8: Battery Information
Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 9: Exploded View
SCREW M1.4X3.6 TORX+ 4 I0210 SCREW M1.2X2 TORX+ 4 C-COVER I0211 I0212 Only available as These parts can not be Ver. 1.0 assembly reused after removal Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 10: Service Devices
Service Bulletin (SB-011) on NOKIA Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service BP-4L Battery equipment” document on NOKIA Online. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 11: Sw-Update
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check always for the latest version of flash software, wich is available on Nokia Online. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2... -
Page 12: Disassembly Instruction
3) Protect the front cover with protective film. 4) Press release button and remove the BATTERY COVER. 4) Remove the BATTERY COVER. 6) If there is a battery inserted, remove it also. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... - Page 13 11) Close the slide. 12) Carefully lift up the upper part to gain access to the TILT FPC ASSEMBLY connector. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
- Page 14 AUDIO FPC ASSEMBLY. Be careful not to damage the connector - or components nearby. 17) Next, lift up the AUDIO ASSEMBLY with the SS-93. 18) Then release the IHF HOLDER ASSEMBLY with the SS-93. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
- Page 15 24) Next, open the connector of the BEZEL FPC SS-93. Then remove the camera with the tweezers ASSEMBLY with the SS-93. by pulling it through the hole. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
- Page 16 29) Remove the two screw bumpons with the 30) Unscrew the two Phillips size 00 screws in the dental tool. Do not use them again. order shown. Do not use them again. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
- Page 17 35) Use the sharp end of the SS-93 to release the 36) Use the SS-93 to lift up the LCD. EARPIECE. Remove the EARPIECE with the tweezers. Do not use it again. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
- Page 18 39) Start releasing the QWERTY KEYMAT with the 40) Nokia N97 disassembly is now complete. dental tool. Remove the keymat by peeling it as shown. -END OF DISASSEMBLY- Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
-
Page 19: Assembly Hints
14 Ncm in the order shown. 7 Ncm. 3) Tighten the six TORX + size 4 screws to the torque of 18 Ncm in the order shown. Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1... -
Page 20: Solder Components
Nokia N97 RM-505/RM-506/RM-507 Service Manual Level 1&2 12. SOLDER COMPONENTS X9001 X4400 X4401 X2100 X5200 S4404 X2159 V3374 X7403 J2158 X7401 X7402 Ver. 1.0 Confidential Copyright © 2009 NOKIA All rights reserved Version 1.2 ISSUE 1...
