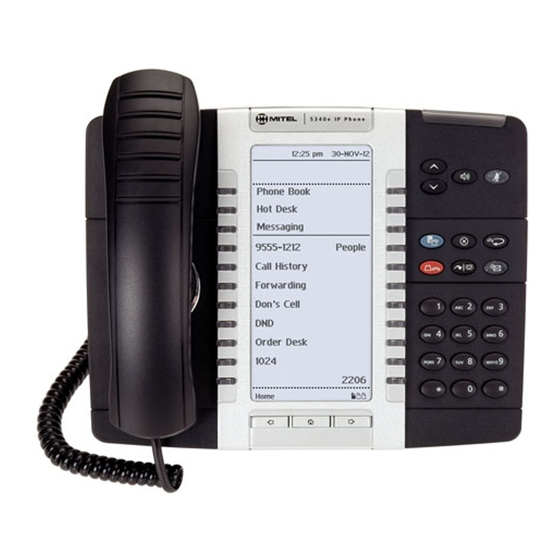

Mitel 5330 User Manual

Hide thumbs Also See for 5330:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
C
ARLETON
5330/5340
P
U
G


HONE
SER
UIDE
U

NIVERSITY

http://www2.carleton.ca/ccs/services/voice‐phone‐services/

Advertisement

Table of Contents
loading

Related Manuals for Mitel 5330

Summary of Contents for Mitel 5330

  • Page 1 ARLETON  5330/5340     HONE  SER  UIDE   NIVERSITY   http://www2.carleton.ca/ccs/services/voice‐phone‐services/  ...

  • Page 3: Table Of Contents

      USING YOUR DEFAULT PHONE WINDOW AND KEYS ..........8   Getting Started with Your Phone ...................8   5340 and 5330 IP Phone Default Window and Keys ............9   ABOUT YOUR PHONE APPLICATIONS ................9   Using the Settings Application ....................10  ...
  • Page 4 5330/5340 IP Phones – User Guide Adjust the Ringer .........................16   Enable a Screen Saver (5340 only) ..................17   Program Receipt of External Messaging ................17   Enable URL Displays on Your Phone .................17   PROGRAMING FEATURES ON YOUR KEYS ...............18  ...
  • Page 5 5330/5340 IP Phones – User Guide Conference Split ........................25   Add Held ..........................25   Swap .............................26   Call Forwarding ........................26   Call Forward - Remote (I'm Here) ..................28   Call Forward - End Chaining ....................29   Call Forward - Forced ......................30  ...

  • Page 6: About Your Phone

    IP network. They both feature a large graphics display (160 x 320) and self- labeling keys. The 5330 IP Phone offers 24 programmable multi-function keys and the 5340 IP Phone offers 48 programmable multi-function keys for one-touch feature access.

  • Page 7: Elements Of Your Phone

    5330/5340 IP Phones – User Guide The 5340 IP Phone Elements of Your Phone Feature Function 1) Display Provides a large, high-resolution viewing area that assists you in selecting and using phone features. 2) Ring/Message Flashes to signal an incoming call and to indicate a message Indicator waiting in your voice mailbox.

  • Page 8: Ring/Message Indicators

    Back and Next. The 5340 has three page navigation keys: Back, Next, and Home. 7) Programmable Provides 24 (on the 5330) and 48 (on the 5340) self-labeling keys Feature Keys and that can be programmed as speed call keys, fixed function keys, Softkeys.

  • Page 9: Tips For Your Comfort And Safety

    5330/5340 IP Phones – User Guide TIPS FOR YOUR COMFORT AND SAFETY Don't Cradle the Handset! Prolonged use of the handset can lead to neck, shoulder, or back discomfort, especially if you cradle the handset between your ear and shoulder. If you use your phone a lot, you may find it more comfortable to use a headset.

  • Page 10: Using Your Default Phone Window And Keys

    5330/5340 IP Phones – User Guide USING YOUR DEFAULT PHONE WINDOW AND KEYS The 5340 and 5330 IP Phone default phone windows and keys are shown and described below. The Phone window provides access to programmable keys and the main phone interface.

  • Page 11: 5340 And 5330 Ip Phone Default Window And Keys

    Programmable Keys area, such as Page Indicators, numbers of items, and so forth. ABOUT YOUR PHONE APPLICATIONS Your 5330 and 5340 IP Phones provide applications that simplify the use of your phone. To open the Applications window, press the blue Applications key. The Applications home window gives the current status of your phone’s applications.

  • Page 12: Using The Settings Application

    Go To URL: Allows you to enable third party URLs to display in the Web Browser application. PC Connectivity: Allows you to enter a password that is used by the phone to establish communications with the PC-resident 5330/5340 Integrated Office Companion application.

  • Page 13: Using The Call History Application

    5330/5340 IP Phones – User Guide About 5330/5340 IP Phone: This screen displays the software release. Using the Call History Application Use this application to display logs of your most recent 20 calls. After the 20-call limit has been reached, the oldest log is replaced each time a new call is missed, made, or answered.

  • Page 14: Review Call Log Icons

    3. Press Delete List to delete all logs from the currently displayed list. 4. You are prompted to confirm the delete. Press Delete. Getting Help To access the 5330/5340 IP Phone help and documentation: 1. Press the blue Applications key.

  • Page 15: Tips For Setting Up Your Phone

    5330/5340 IP Phones – User Guide Tips for Setting up Your Phone After you receive your 5330/5340 IP Phone, use the options in the Settings application to customize your phone. After customizing your phone, press the blue Applications key to verify the settings are correct.

  • Page 16: Using The On-Screen Keyboard To Enter Information

    Specify Display Brightness and Contrast You can adjust the brightness and display contrast either via the phone volume controls (when the phone is idle) or via the Settings application. (Brightness adjustment on a 5330 IP Phone is available on models with backlit displays only.)

  • Page 17: Specify Audio Feedback Options

    3. Select Large Text or Small Text. 4. Press Save. Note: This setting is available only on the 5340 since the 5330 always uses large text. Large is the default text size on the 5340 IP Phone. - 15 -...

  • Page 18: Specify Call Notification Behavior

    5330/5340 IP Phones – User Guide Specify Call Notification Behavior To specify that the Phone window automatically displays when you are making or receiving calls: 1. Press Settings. 2. Press Call Notification. 3. Press the appropriate options to identify when you want the Phone window to display. For example, if you select the Made option, each time the phone goes off hook to make a call, the Phone window is displayed.

  • Page 19: Enable A Screen Saver (5340 Only)

    5330/5340 IP Phones – User Guide 4. Press “Ringer Pitch”. 5. Press (UP) or (DOWN). 6. Press Superkey. Enable a Screen Saver (5340 only) You can program your screen saver to turn on after a specific time period of inactivity on your phone.

  • Page 20: Programing Features On Your Keys

    5330/5340 IP Phones – User Guide PROGRAMING FEATURES ON YOUR KEYS Tips on Programming Features You can program your phone's programmable keys to enable features. To program your keys, use: Settings application You can assign the following to a programmable Key:...

  • Page 21: Applications Available For Programming On Programmable Keys

    5330/5340 IP Phones – User Guide APPLICATIONS AVAILABLE FOR PROGRAMMING ON PROGRAMMABLE KEYS Application Default Label Applications List Applications Call History Call Hist People (5340) People Call Forwarding Forwarding Conference Unit Conf Unit Help Help Settings Settings Call Info Call Info...

  • Page 22: Clear Programming From A Key

    5330/5340 IP Phones – User Guide 4. If “Features” are displayed beside the top left key, press “View Applications”. 5. Select the desired application. 6. Press Save. 7. Press Close. To program Speed Call: press the blue Applications 1. Press Settings.

  • Page 23: Setting Up Your Contact List (5340 Only)

    5330/5340 IP Phones – User Guide SETTING UP YOUR CONTACT LIST (5340 ONLY) Use the People application to set up your contact list. Adding Names to Your Contact List You can add a name to your contact list by entering it directly using the People application or by copying a number from the Call Info window.

  • Page 24: Making And Answering Calls

    5330/5340 IP Phones – User Guide MAKING AND ANSWERING CALLS You can make a call using one of the following methods: Dial a number from the People application (for the 5340 IP Phone only). Press the programmed key associated with the party you want to call. For more information about...

  • Page 25: Handsfree Operation

    5330/5340 IP Phones – User Guide Handsfree Operation To use Handsfree to make a call: 1. If you want to use a Non–Prime Line, press a Line Appearance key. Note: Your administrator must program Line Appearances to your phone. 2. Dial the number.

  • Page 26: Call Handling

    5330/5340 IP Phones – User Guide Press the Hang Up softkey. Wait for the caller to hang up. CALL HANDLING Hold Note: If you are currently on a call and one of your second lines ring; you do not have to manually place the first call on hold.

  • Page 27: Transfer

    5330/5340 IP Phones – User Guide Transfer To Transfer an active call: 1. Press (TRANS/CONF). 2. Dial the number of the third party. 3. Do one of the following: To complete the Transfer, hang up. To announce the Transfer, wait for an answer, consult, and hang up.

  • Page 28: Swap

    5330/5340 IP Phones – User Guide Swap To call another party when you are in an established two–party call: 1. Press (TRANS/CONF). 2. Dial the number. To alternate between the two parties: Press the Trade Calls softkey. Call Forwarding Call Forward lets you redirect incoming calls to an alternate number when...

  • Page 29: Programming Call Forwarding Using Profiles

    5330/5340 IP Phones – User Guide 2. Press Deactivate. PROGRAMMING CALL FORWARDING USING PROFILES You can create Call Forward profiles that identify where to send your incoming calls. After you create and save a Call Forward profile in the Call Forwarding application, you can enable or disable the profile at any time.

  • Page 30: Activate Call Forward

    5330/5340 IP Phones – User Guide 12. Press Save. This profile is saved but it is not activated. To activate this profile, see Activate Call Forward below. 13. Press Close. 14. Press Close. Note: Press Cancel at any time to exit this application without making any changes.

  • Page 31: Call Forward - End Chaining

    5330/5340 IP Phones – User Guide 1. Press Superkey (must be programmed to a key). 2. Press the No softkey until "Call Forwarding?" appears. 3. Press the Forwarding softkey. 4. Press the Next softkey until "I Am Here" appears. 5. Press the To Me softkey.

  • Page 32: Call Forward - Forced

    5330/5340 IP Phones – User Guide Call Forward - Forced To force an incoming call to be forwarded: Press the Forward softkey. Call Forward - Override To override Call Forward and ring a station: 1. Lift the handset. 2. Dial the appropriate feature access code.
  • Page 33 5330/5340 IP Phones – User Guide DIRECT PAGING - HANDSFREE ANSWERBACK ENABLED When you receive a Direct Page, Handsfree Answerback automatically establishes a Handsfree call on your phone after a single burst of tone. Your administrator enables or disables Handsfree Answerback on your phone. After your administrator enables Handsfree Answerback, you can choose to turn it on or off directly from your phone.
  • Page 34 5330/5340 IP Phones – User Guide When the Handsfree Direct Page call ends, the MUTE key light returns to the state it was in before the call was established. DIRECT PAGING - HANDSFREE ANSWERBACK DISABLED Your administrator enables or disables Handsfree Answerback and you can also turn it on or off on your phone.

  • Page 35: Do Not Disturb

    5330/5340 IP Phones – User Guide Do Not Disturb When you enable Do Not Disturb, callers will get a busy tone, and an on-screen text message indicating that you do not wish to be disturbed. To activate or deactivate Do Not Disturb: Press the Do Not Disturb key that you programmed.

  • Page 36: Headset Operation

    5330/5340 IP Phones – User Guide Headset Operation To enable Headset Operation: Press the Headset feature key. To answer a call (when Auto Answer is disabled): Press the flashing line key or Float Key. To answer call (when Call Notification is enabled) Select Close and then select the prime line.

  • Page 37: Music

    5330/5340 IP Phones – User Guide 1. Press Superkey (must be programmed to a key). 2. If necessary, press the No softkey until "Advisory Msgs” appears. 3. Press the Advisory softkey. 4. Press the Next softkey until the desired message appears.

  • Page 38: Speed Call

    5330/5340 IP Phones – User Guide To change the Reminder, press the Change Key softkey, enter the new time, and press the Save softkey. To cancel the Reminder, press the Cancel No. softkey. To exit without canceling the Reminder, press Superkey (must be programmed to a key).
