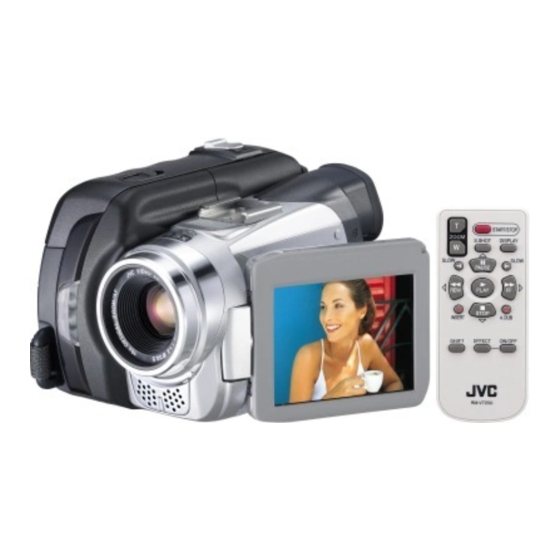

JVC GR-DF540 Instructions Manual

Jvc digital video camera instructions
Hide thumbs
Table of Contents

Advertisement

Quick Links

DIGITAL VIDEO CAMERA

GR-DF540
Please visit our Homepage on the World Wide Web for
Digital Video Camera:
http://www.jvc.co.jp/english/cyber/
For Accessories:
http://www.jvc.co.jp/english/accessory/
INSTRUCTIONS
Dear Customer,
Thank you for purchasing this digital
video camera. Before use, please
read the safety information and
precautions contained in the pages
3 – 4 and 10 to ensure safe use of
this product.
GETTING STARTED
VIDEO RECORDING &
PLAYBACK
DIGITAL STILL CAMERA
(D.S.C.) RECORDING &
PLAYBACK
ADVANCED FEATURES
REFERENCES
TERMS
To deactivate the demonstration,
set "DEMO MODE" to "OFF".
(
pg. 37, 40)
LYT1448-001A
ENGLISH
6
19
28
37
57
66
EN
