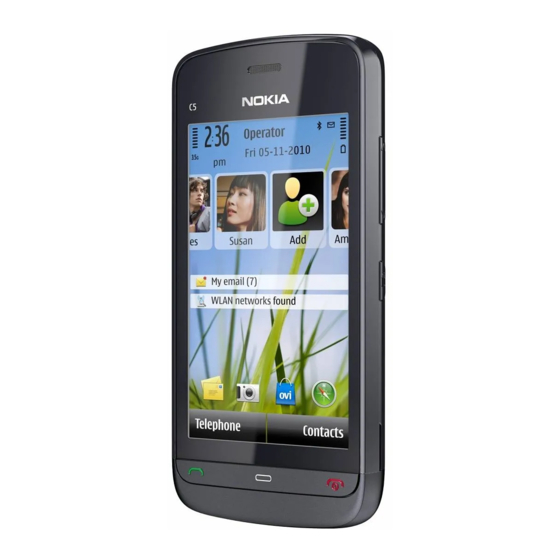

Nokia C5-03 Service Manual
Nokia c5-03
Hide thumbs
Also See for C5-03:
- User manual (131 pages) ,
- Manual del usuario (129 pages) ,
- Service manual (20 pages)
Table of Contents
Advertisement
Quick Links
See also:
User Manual
1
SERVICE MANUAL
Level 1&2
RM-697, RM-719
Transceiver characteristics
Band:
RM-697
GSM 850/900/1800/1900
WCDMA 900/1900/2100
RM-719
GSM 850/900/1800/1900
WCDMA 850/1900/2100
Display:
nHD 3.2" 640x360 touch screen with 16M colors
Camera:
5.0 Mpix full focus camera, 3x digital zoom
Operating System:
Symbian OS v.9.4
Connections:
3.5 mm AV connector, micro USB connector, Micro SD
memory card slot (up to 16 GB), Bluetooth version 2.0
with EDR, FM radio receiver with RDS, DC jack
Transceiver with BL-4U battery pack
Talk time
GSM:
Up to 11.5 hours
WCDMA:
Up to 4.7 hours
Note:
Talk times are dependent on network parameters
and phone settings
Conf idential | Copyright © 2011 Nokia | A ll rights reserved
Nokia C5-03
RM-697, RM-719
Service Manual Level 1&2
Standby
GSM:
Up to 600 hours
WCDMA:
Up to 588 hours
Version 3.0
Advertisement
Table of Contents
Related Manuals for Nokia C5-03
Summary of Contents for Nokia C5-03
- Page 1 Up to 11.5 hours Up to 600 hours WCDMA: WCDMA: Up to 4.7 hours Up to 588 hours Note: Talk times are dependent on network parameters and phone settings Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
-
Page 2: Table Of Contents
BATTERY INFORMATION ............................... 8 EXPLODED VIEW..................................9 SERVICE DEVICES ................................... 10 SOFTWARE UPDATE ................................11 DISASSEMBLY INSTRUCTIONS ............................12 ASSEMBLY HINTS ................................19 SOLDER COMPONENTS..............................23 Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... - Page 3 The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g.
-
Page 4: Copyright
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. -
Page 5: Warnings And Cautions
3. Use only approved components as specified in the parts list. 4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment. 5. Ensure all cables and wires are repositioned correctly Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 6: Esd Protection
ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local Nokia After Market Services representative. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 7: Care And Maintenance
All of the above suggestions apply equally to the product, battery, charger or any accessory. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 8: Battery Information
Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 9: Exploded View
I0015 TYPE LABEL I0007 SCREW TORX+ 6 I0016 BATTERY COVER I0017 Only available Not reuseable Repair/swap Ver. 1.0 as assembly after removal only in level 3 Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 10: Service Devices
Service Bulletin (SB-011) on Nokia Online. Supplier or manufacturer contacts for tool re-order can be SS-88 Camera Removal tool found in “Recommended service equipment” document on Nokia Online. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 11: Software Update
Service Manual Level 1&2 8. SOFTWARE UPDATE Flash concept (Point of Sale) Please check always for the latest version of flash software, which is available on Nokia Online. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... -
Page 12: Disassembly Instructions
4. Lift up the BATTERY COVER from the release notches to detach it. 5. Remove the BATTERY COVER. 6. If there is a battery inserted, remove it also. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... - Page 13 11. Unscrew the four TORX+ size 6 screws in the 12. Use the SS-93 to detach the three shown clips of order shown. the FRONT COVER ASSEMBLY. Be careful not to damage any nearby components. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 14 SS-93 as shown. Be careful not to damage any from the CHASSIS so that the DISPLAY connector is nearby components. disconnected. Be careful not to damage the flex. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 15 22. Protect also the TOUCH PANEL from the inside with protective film. 23. Use the SS-93 to detach the KEYMAT. 24. Remove the KEYMAT with the tweezers. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 16 29. Position the SS-88 camera removal tool on top of 30. Lift up the SS-88 with the CAMERA and remove the CAMERA and press it down. the CAMERA. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 17 33. Lever up the DC JACK with the DC plug as shown. 34. Remove the DC JACK. 35. Lever up the AV JACK with the AV plug as shown. 36. Remove the AV JACK. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 18 40. Detach the EARPIECE MESH with the tweezers, tool. and remove it. Do not use it again. 41. Nokia C5-03 disassembly is now complete. -END OF DISASSEMBLY- Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
-
Page 19: Assembly Hints
5. Press down with the SS-93 to activate the 6. Place the EARPIECE with the tweezers and push it EARPIECE ADHESIVE. down with the SS-93 to activate the adhesive. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0... - Page 20 11. Place the CAMERA MODULE with the tweezers. 12. Press the CAMERA MODULE down with the SS-93. Be Make sure that the guiding notch is correctly careful not to damage the lens. placed. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 21 Be careful not to damage the connector or any nearby SS-93. Be careful not to damage the connector or components. any nearby components. Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
- Page 22 23. Insert the BATTERY and place the BATTERY 24. Nokia C5-03 assembly is now complete. COVER to its place. Press it gently to lock up the clips. -END OF ASSEMBLY- Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
-
Page 23: Solder Components
Nokia C5-03 RM-697, RM-719 Service Manual Level 1&2 11. SOLDER COMPONENTS Conf idential | Copyright © 2011 Nokia | A ll rights reserved Version 3.0...
