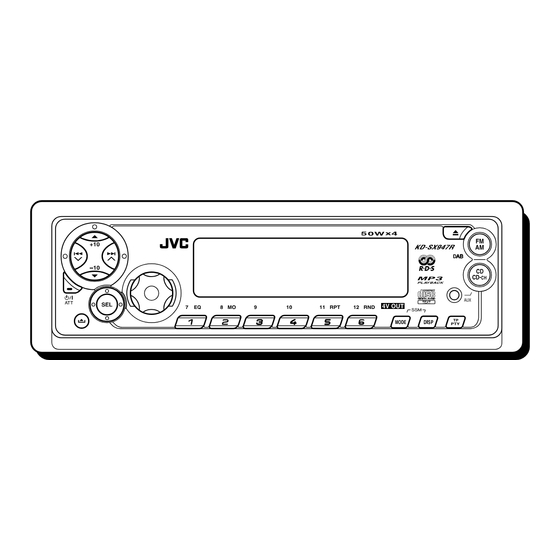

CD RECEIVER
KD-SX947R
For installation and
connections, refer to
the separate manual.
ATT
SOUND
U
R
SOURCE
F
D
VOL
VOL
INSTRUCTIONS
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
KD-SX947R
GET0126-001A
[EE]

Advertisement

Table of Contents
loading

Summary of Contents for JVC CD Receiver KD-SX947R

  • Page 1 CD RECEIVER KD-SX947R SOURCE For installation and connections, refer to the separate manual. INSTRUCTIONS ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ SOUND KD-SX947R GET0126-001A [EE]...
  • Page 2: How To Reset Your Unit

    3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel. 4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.
  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to use the MODE button ...
  • Page 4: Location Of The Buttons

    LOCATION OF THE BUTTONS Control panel Display window (standby/on/attenuator) button 2 5 (up) button +10 button /¢ buttons 4 Remote sensor 5 Display window 6 0 (eject) button 7 FM/AM (DAB) button 8 CD CD-CH (CD changer) (AUX: auxiliary) button (control panel release) button p ∞...
  • Page 5: Remote Controller

    Remote controller SOUND SOURCE 1 • Turns on the unit if pressed when the unit is turned off. • Turns off the unit if pressed and held until “SEE YOU” appears on the display. • Drops the volume level in a moment if pressed briefly.
  • Page 6: Preparing The Remote Controller

    Preparing the remote controller Before using the remote controller: • Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between. Remote sensor • Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).
  • Page 7: Basic Operations

    Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 9 –...
  • Page 8: Setting The Clock

    Setting the clock You can also set the clock system to either 24 hours or 12 hours. Press and hold SEL (select) for more than 2 seconds so that one of the PSM item appears on the display. (PSM: see pages 32 and 33.) Set the hour.
  • Page 9: Radio Operations

    Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching a station automatically: Auto search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: FM 1 FM 2...
  • Page 10: Manual Search

    Searching a station manually: Manual search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: FM 1 FM 2 (F1) (F2) Note: This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.
  • Page 11: Storing Stations In Memory

    Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong- station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).
  • Page 12: Tuning In To A Preset Station

    Press and hold the number button (in this example, 1) for more than 2 seconds. Selected band/preset number and “MEMO” (memory) appear alternately for a while. Repeat the above procedure to store other stations into other preset numbers. Notes: • A previously preset station is erased when a new station is stored in the same preset number.
  • Page 13: Rds Operations

    What you can do with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.
  • Page 14: Using Ta Standby Reception

    Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.) Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display. Select the desired mode—“AF,” “AF REG,”...
  • Page 15 Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components). • PTY Standby Reception will not work if you are listening to an AM station.
  • Page 16 Searching your favorite programme You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).
  • Page 17: Other Convenient Rds Functions And Adjustments

    To search your favorite programme type Press and hold TP/PTY for more than 2 seconds while listening to an FM station. The last selected PTY code appears. To select one of your favorite programme type To select any one of the twenty-nine PTY-codes Preset number appears only if you select a PTY code using the number buttons.
  • Page 18: Automatic Clock Adjustment

    Changing the display mode while listening to an FM station You can change the initial indication on the display to station name (PS NAME) or station frequency (FREQ) while listening to an FM RDS station. • See also “Changing the general settings (PSM)”...
  • Page 19 PTY codes NEWS: News AFFAIRS: Topical programmes expanding on current news or affairs INFO: Programmes which impart advice on a wide variety of topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or regional culture SCIENCE: Programmes on natural science and technology...
  • Page 20: Cd Operations

    CD OPERATIONS Refer to “MP3 OPERATIONS” on pages 26 to 29 for operating MP3 discs. Playing a CD Open the control panel. Notes: • When an external component is connected to the AUX input jack on the control panel, be careful of handling a CD.
  • Page 21: Locating A Track Or A Particular Portion On A Cd

    To stop play and eject the CD Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source. • If you change the source, CD play also stops (without ejecting the CD).
  • Page 22: Selecting Cd Playback Modes

    How to use the +10 and –10 buttons • Ex. 1: To select track number 32 while playing track number 6 (Three times) \ 10 \ 20 \ 30 Track 6 • Ex. 2: To select track number 8 while playing track number 36 (Three times) \ 30 \ 20 \ 10...
  • Page 23: Playing A Cd Text

    Playing a CD Text In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text. To change the CD Text information manually, select text display mode while playing a CD Text.
  • Page 24: Mp3 Introduction

    MP3 INTRODUCTION What is MP3? MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.
  • Page 25 MP3 folder/file configuration : Root ROOT : Folders : MP3 files Note: There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations. MP3 playback/search order • The numbers in circles below the MP3 files ( the MP3 files.
  • Page 26: Mp3 Operations

    • If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.
  • Page 27: Locating A File Or A Particular Portion On An Mp3 Disc

    To stop play and eject the disc Press 0. Playback stops and the control panel flips down. The disc automatically ejects from the loading slot. To change the display information While playing back an MP3 file, you can change the MP3 disc information shown on the display. Each time you press DISP (display), the display changes to show the following:...
  • Page 28 To go to a particular file quickly within the current folder (+10 and –10 buttons) Press MODE to enter the functions mode while playing an MP3 disc. “MODE” flashes on the upper part of the display. Press +10 or –10. To skip 10 files* forwards to the last file To skip 10 files* backwards...
  • Page 29: Selecting Mp3 Playback Modes

    To skip to the next or previous folder Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).
  • Page 30: Sound Adjustments

    SOUND ADJUSTMENTS Selecting preset sound modes (C-EQ: custom equalizer) You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre. • There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.
  • Page 31: Adjusting The Sound

    Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: (bass) (treble) (fader) WOOFER (subwoofer) (volume) Indication To do: BAS* Adjust the bass.
  • Page 32: Other Main Functions

    OTHER MAIN FUNCTIONS Changing the general settings (PSM) You can change the items listed in the table below and on page 33 by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
  • Page 33 Indications DAB AF* Alternative frequency search DAB VOL* DAB volume adjustment LEVEL Level display DIMMER Dimmer mode Telephone muting BEEP Key-touch tone SCROLL Scroll mode EXT IN* External component AUX ADJ Auxiliary adjustment TAG DISP Tag display Displayed only when DAB tuner is connected. Displayed only when one of the following sources is selected—FM, AM, and CD.
  • Page 34 To select the dimmer mode—DIMMER When you turn on the car headlights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated. • AUTO: Activates Auto Dimmer. • OFF: Cancels Auto Dimmer. • ON: Always dims the display.
  • Page 35: Assigning Names To The Sources

    Note: If you change the setting from “TAG OFF” to “TAG ON” while playing an MP3 file, the tag display will be activated when the next file starts playing. • TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the folder name and file name can be shown.) Assigning names to the sources...
  • Page 36: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power.
  • Page 37: Cd Changer Operations

    CD CHANGER OPERATIONS We recommend that you use the JVC MP3- compatible CD changer with your unit. By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.
  • Page 38 • When the current disc is a CD: Playback starts from the first track of the current disc. Selected disc number* Elapsed playing time Current track * When “CLOCK” is set to “ON” (see page 33), the current indication will soon change to the clock time.
  • Page 39 To show the disc information for CD Text and MP3 discs This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability. Select text display mode while playing a CD Text or an MP3 disc.
  • Page 40: Selecting The Playback Modes

    Selecting the playback modes To play back tracks/files at random (Folder Random/Disc Random/Magazine Random Play) Press MODE to enter the functions mode during play. “MODE” flashes on the upper part of the display. Press RND (random), while “MODE” is still flashing on the display.
  • Page 41 To play back tracks/files repeatedly (Track Repeat/Folder Repeat/Disc Repeat Play) Press MODE to enter the functions mode during play. “MODE” flashes on the upper part of the display. Press RPT (repeat), while “MODE” is still flashing on the display. Each time you press the button, the repeat play mode changes as follows: For MP3 discs:...
  • Page 42: External Component Operations

    EXTERNAL COMPONENT OPERATIONS * Not compatible with digital signals. Playing an external component You can connect two external components to this unit. Connect one to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied), and the other to the AUX input jack on the control panel.
  • Page 43: Dab Tuner Operations

    We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer. • Refer also to the Instructions supplied with your DAB tuner. What is DAB system? DAB is one of the digital radio broadcasting systems available today.
  • Page 44: Storing Dab Services In Memory

    Start searching for an ensemble. Press ¢ search for ensembles of higher frequency. Press 4 search for ensembles of lower frequency. When an ensemble is received, searching stops. To stop searching before an ensemble is received, press the same button you have pressed for searching.
  • Page 45: Tuning In To A Preset Dab Service

    Tune in to an ensemble you want. Select a service of the ensemble you want to listen to. Press 5 (up) to select the next service. Press ∞ (down) to select the previous service. Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.
  • Page 46: What You Can Do More With Dab

    What you can do more with Tracing the same program automatically (Alternative Reception) You can keep listening to the same program. • While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program.
  • Page 47: Troubleshooting

    What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • This unit does not work at all. • SSM (Strong-station Sequential Memory) automatic preset does not work.
  • Page 48 Symptoms • Disc cannot be played back. • Noise is generated. • A longer readout time is required (“CHECK” keeps flashing on the display). • Files cannot be played back as you have intended them to play. • Elapsed playing time is not correct.
  • Page 49 Symptoms • “NO DISC” appears on the display. • “NO MAG” appears on the display. • “RESET 8” appears on the display. • “RESET 1” – “RESET 7” appears on the display. • The CD changer does not work at all. About mistracking: Mistracking may result from driving on extremely rough roads.
  • Page 50: Maintenance

    MAINTENANCE Handling discs This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts. • This unit is also compatible with MP3 discs. How to handle discs When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.
  • Page 51: Specifications

    Sensitivity: 20 µV Selectivity: 35 dB [LW Tuner] Sensitivity: 50 µV SPECIFICATIONS CD PLAYER SECTION Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz...
  • Page 52 Примечание: Ваши запрограммированные настройки—такие как запрограммированные каналы или настройки звука—также сотрутся. CAUTION: Invisible laser ADVARSEL: Usynlig laser - radiation when open and stråling ved åbning, når interlock failed or defeated. sikkerhedsafbrydere er ude AVOID DIRECT EXPOSURE af funktion. Undgåudsæt- TO BEAM. telse for stråling.
  • Page 53 ПЕРЕД ТЕМ, КАК ПРИСТУПАТЬ К ЭКСПЛУАТАЦИИ *Для Вашей безопасности... • Не повышайте слишком сильно громкость, поскольку в результате этого заглушаются внешние звуки, что делает опасным управление автомобилем. • Остановите автомобиль перед тем, как выполнять любые сложные операции. *Температура внутри автомобиля... Если...
  • Page 54 РАСПОЛОЖЕНИЕ КНОПОК Панель управления Окно на экране дисплея ¢ ∞ Окно на экране дисплея KD-SX947R...
  • Page 55 Устройство дистанционного управления SOUND SOURCE Примечание : Примечание : Примечание :...
  • Page 56 Подготовка устройства дистанционного управления Установка батарейки Снимите держатель батарейки. Поставьте батарейку. Поставьте держатель батарейки на место. ПРЕДОСТЕРЕЖЕНИЕ: ПРЕДУПРЕЖДЕНИЕ:...
  • Page 57 Примечание в отношении управления в одно касание: Когда Вы выбираете источник сигнала в пункте 2 ниже, устройство автоматически включается. Вам не нужно нажимать эту кнопку для того, чтобы включить устройство. ПРЕДОСТЕРЕЖЕНИЕ в отношении установки громкости: Компакт-диски издают очень мало шума по сравнению...
  • Page 58 Примечание: Для отображения времени на дисплее см. стр. 33.
  • Page 59 FM 1 FM 2 FM 3 (F1) (F2) (F3) Примечание: Примечание:...
  • Page 60 FM 1 FM 2 (F1) (F2) Примечание: FM 3 (F3) ¢...
  • Page 61 FM 1 FM 2 FM 3 (F1) (F2) (F3) FM 1 (F1) FM 2 FM 3 (F2) (F3)
  • Page 62 Примечания: FM 1 FM 2 FM 3 (F1) (F2) (F3)
  • Page 63 Примечание:...
  • Page 64 — ¢...
  • Page 65 ¢...
  • Page 66 POP M ROCK M CLASSICS AFFAIRS EASY M VARIED...
  • Page 67 ¢ Примечание: ¢...
  • Page 68 ¢ Примечание: (PS NAME) (PTY) Примечание: ¢ ¢...
  • Page 70 Примечания: Примечания: •...
  • Page 71 Примечания: ¢ ¢...
  • Page 73 Примечания: ABCå!d# ] ABCA D...
  • Page 74 “.” “.” “.” Примечания:...
  • Page 75 ROOT 15 16 18 19 ROOT Примечание:...
  • Page 76 Примечания: Примечания:...
  • Page 77 • • Примечание: Примечание: ¢ ¢...
  • Page 78 Примечания: ¢...
  • Page 79 ∞ Примечание: FLDR RND DISC RND Otmeheho TRK RPT FLDR RPT Otmeheho...
  • Page 80 Примечание: USER ROCK CLASSIC JAZZ HIP HOP POPS...
  • Page 81 WOOFER LOUD...
  • Page 82 CLOCK H CLOCK M 24H/12H AUTO ADJ CLOCK TU DISP AF-REG PTY STBY TA VOL P-SEARCH AF REG OFF*...
  • Page 83 DAB AF DAB VOL LEVEL DIMMER BEEP SCROLL EXT IN AUX ADJ TAG DISP AUDIO 1 AUDIO 2 AUTO MUTING 1 MUTING 2 ONCE AUTO...
  • Page 84 Примечание : Примечание: Примечание:...
  • Page 85 Примечание: CD-CH Примечания: – < >...
  • Page 86 Примечание в отношении чистки разъемов:...
  • Page 87 CD-CH* • Примечание:...
  • Page 88 • ¢ Примечания : • • ¢ •...
  • Page 89 ∞ Примечание:...
  • Page 90 FLDR RND Otmeheho DISC RND Otmeheho Примечание: DISC RND MAG RND MAG RND...
  • Page 91 TRK RPT FLDR RPT Otmeheho DISC RPT TRK RPT DISC RPT Otmeheho Примечание:...
  • Page 92 Подготовка: Примечание в отношении управления в одно касание: LINE IN*...
  • Page 93 FM/AM DAB 1 DAB 2 DAB 3 Примечание: (D1) (D2) (D3) Примечание:...
  • Page 94 ∞ ¢ DAB 1 (D1) ¢ ¢ ∞ FM/AM DAB 2 DAB 3 (D2) (D3)
  • Page 95 Примечания: ∞ DAB 1 (D1) Примечание: FM/AM DAB 2 DAB 3 (D2) (D3)
  • Page 96 ¢ Примечание: ¢...
  • Page 99 Относительно схождения с дорожки: Схождение с дорожки может произойти в результате движения автомобиля по чрезвычайно неровной дороге. Это не повредит устройство и компакт-диск, однако, это раздражает. Мы рекомендуем Вам прекратить воспроизведение компакт-диска во время движения по таким неровным дорогам.
  • Page 100 • • • • • • • ПРЕДУПРЕЖДЕНИЯ: • Не вставляйте 8-сантиметровые диски (одиночные диски) в отверстие для дисков. (Такие диски не выходят при выбросе). • Не вставляйте диски необычной формы, такие как в форме сердечка или цветка; иначе это приведет к появлению...
  • Page 101 ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ СЕКЦИЯ УСИЛИТЕЛЯ ЗВУКОВОЙ ЧАСТОТЫ Ω Ω Ω СЕКЦИЯ ТЮНЕРА [Тюнер FM] µ Ω µ Ω [Тюнер MW] µ [Тюнер LW] µ СЕКЦИЯ ПРОИГРЫВАТЕЛЯ КОМПАКТ-ДИСКОВ Ω Ω Ω Ω ОБЩИЕ ХАРАКТЕРИСТИКИ Ω Дизайн и технические характеристики могут меняться без уведомления. ×...
  • Page 102 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit EN, RU 0103KKSMDTJEIN © 2003 VICTOR COMPANY OF JAPAN, LIMITED...
