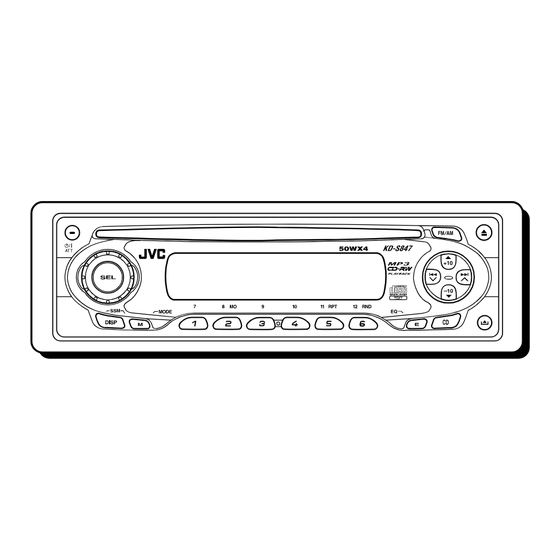

CD RECEIVER
KD-S847
For installation and
connections, refer to
the separate manual.
INSTRUCTIONS
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
GET0137-001A
[EE]

Advertisement

Table of Contents
loading

Related Manuals for JVC CD Receiver KD-S847

Summary of Contents for JVC CD Receiver KD-S847

  • Page 1 CD RECEIVER KD-S847 For installation and connections, refer to the separate manual. INSTRUCTIONS ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ GET0137-001A [EE]...

  • Page 2: How To Reset Your Unit

    3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel. 4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to use the M (MODE) button ...

  • Page 4: Location Of The Buttons

    LOCATION OF THE BUTTONS Control panel Display window (standby/on/attenuator) button 2 SEL (select) button 3 Control dial 4 Display window 5 Loading slot /¢ buttons 7 FM/AM button 8 5 (up) button +10 button 9 0 (eject) button p ∞ (down) button –10 button q DISP (display) button •...

  • Page 5: Basic Operations

    Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 7 –...

  • Page 6: Setting The Clock

    Setting the clock Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.) Set the hour. 1 Select “CLOCK H” (hour) if not shown on the display.

  • Page 7: Radio Operations

    Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching a station automatically: Auto search Select the band (FM 1 – 3, AM). Each time you press the button, the band changes as follows: Selected band appears.

  • Page 8: Storing Stations In Memory

    Tune in to a station you want while “M” (manual) is flashing. To tune in to stations of higher frequencies To tune in to stations of lower frequencies • If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

  • Page 9: Tuning In To A Preset Station

    Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually. Ex.: Storing FM station of 88.3 MHz into the preset number 1 of the FM1 band. Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

  • Page 10: Cd Operations

    CD OPERATIONS Refer to “MP3 OPERATIONS” on pages 16 to 20 for operating MP3 discs. Playing a CD Insert a CD into the loading slot. The unit turns on, draws the CD and starts playback automatically. Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

  • Page 11: Locating A Track Or A Particular Portion On A Cd

    Locating a track or a particular portion on a CD To fast-forward or reverse the track Press and hold ¢ while playing a CD, to fast- forward the track. Press and hold 4 while playing a CD, to reverse the track. To go to the next or previous tracks Press ¢...

  • Page 12: Selecting Cd Playback Modes

    Selecting CD playback modes To play back tracks at random (Disc Random Play) You can play back all tracks on the CD at random. Press M (MODE) to enter the functions mode while playing a Press RND (random), while still in the functions mode, so that “DISC RND”...

  • Page 13: Playing A Cd Text

    Playing a CD Text In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text. To change the CD Text information manually, select text display mode while playing a CD Text.

  • Page 14: Mp3 Introduction

    MP3 INTRODUCTION What is MP3? MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.
  • Page 15 MP3 folder/file configuration : Root ROOT : Folders : MP3 files Note: There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations. MP3 playback/search order • The numbers in circles below the MP3 files ( the MP3 files.

  • Page 16: Mp3 Operations

    • If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc playback starts from where playback has been stopped previously.
  • Page 17 To change the display information While playing back an MP3 file, you can change the MP3 disc information shown on the display. Each time you press DISP (display), the display changes to show the following: • When “TAG DISP” is set to “TAG ON” (initial setting: see page 24) Album name / performer (folder name*)

  • Page 18: Locating A File Or A Particular Portion On An Mp3 Disc

    Locating a file or a particular portion on an MP3 disc For “MP3 playback/search order” see page 15. To fast-forward or reverse the file Press and hold ¢ while playing an MP3 disc, to fast-forward the file. Press and hold 4 while playing an MP3 disc, to reverse the file.
  • Page 19 To go to a particular folder directly IMPORTANT: To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”...

  • Page 20: Selecting Mp3 Playback Modes

    Selecting MP3 playback modes To play back files at random (Folder Random/Disc Random Play) You can play back all files of the current folder or all files on the MP3 disc at random. Press M (MODE) to enter the functions mode while playing an MP3 disc.

  • Page 21: Sound Adjustments

    Selecting preset sound modes (C-EQ: custom equalizer) You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre. Select the sound mode you want. When you press the button once, the last selected sound mode is recalled and applied to the current source.

  • Page 22: Adjusting The Sound

    Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: (bass) (treble) LOUD (volume) (loudness) Indication To do: BAS* Adjust the bass.

  • Page 23: Other Main Functions

    Changing the general settings (PSM) You can change the items listed in the table below by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
  • Page 24 To select the level meter—LEVEL You can select the level display according to your preference. When shipped from the factory, “AUDIO 2” is selected. • AUDIO 1: Shows the audio level indicator. • AUDIO 2: Alternates “AUDIO 1” setting and illumination display.

  • Page 25: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power.

  • Page 26: Troubleshooting

    Signals are too weak. The aerial is not connected firmly. Disc is inserted upside down. CD-R/CD-RW is not finalized. Disc is locked. The CD player may function incorrectly. You are driving on rough roads. Disc is scratched. Connections are incorrect.
  • Page 27 Symptoms • Disc cannot be played back. • Noise is generated. • A longer readout time is required (“CHECK” keeps flashing on the display). • Files cannot be played back as you have intended them to play. • Elapsed playing time is not correct.

  • Page 28: Maintenance

    • After starting the heater in the car. • If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

  • Page 29: Specifications

    [MW Tuner] Sensitivity: 20 µV Selectivity: 35 dB [LW Tuner] Sensitivity: 50 µV SPECIFICATIONS CD PLAYER SECTION Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz...
  • Page 30 Примечания: ПЕРЕД ТЕМ, КАК ПРИСТУПАТЬ К ЭКСПЛУАТАЦИИ *Для Вашей безопасности... CAUTION: Invisible laser ADVARSEL: Usynlig laser - radiation when open and stråling ved åbning, når interlock failed or defeated. sikkerhedsafbrydere er ude AVOID DIRECT EXPOSURE af funktion. Undgåudsæt- TO BEAM. telse for stråling.
  • Page 31 5 ∞...
  • Page 32 ¢ ∞ j k l / 7 8 9 p y u i...
  • Page 33 Примечание в отношении управления в одно касание: ПРЕДОСТЕРЕЖЕНИЕ в отношении установки громкости:...
  • Page 34 • • Примечания: •...
  • Page 35 Примечание: Примечание: ¢...
  • Page 37 Примечания: Примечание: ∞ ∞...
  • Page 38 Примечание в отношении включения в одно касание: Примечание: Примечания:...
  • Page 39 ¢ ¢...
  • Page 41 Примечания: ABCå!d# ] ABCA D...
  • Page 42 Примечания:...
  • Page 43 ROOT 15 16 18 19 ROOT Примечание:...
  • Page 44 Примечания: Примечание в отношении включения в одно касание:...
  • Page 45 Примечание:...
  • Page 46 ¢ ¢...
  • Page 47 ¢ ∞ Примечание: Примечания:...
  • Page 48 Выбор режимов воспроизведения МР3 Произвольное воспроизведение файлов (Произвольное воспроизведение папок/дисков) FLDR RND Otmeheho Активный Режим индикатор Повторное воспроизведение файлов (Повторное воспроизведение дорожек/папок) DISC RND Режим Воспроизводятся в произвольном режиме TRK RPT FLDR RPT Otmeheho Активный Воспроизводятся индикатор несколько раз...
  • Page 49 Примечание: USER ROCK CLASSIC JAZZ HIP HOP POPS...
  • Page 50 Настройка звука Выберите тот параметр, который Вы хотите настроить. (низкие (высокие частоты) частоты) LOUD (громкость) (компенсация) Индикация Для того, чтобы: Настройте уровень. (регулятор уровня сигнала) (баланс) Диапазон Повторите пункты настроить другие параметры. Чтобы вернуться к заводской установке, и чтобы...
  • Page 51 CLOCK H CLOCK M LEVEL SCROLL TAG DISP...
  • Page 52 • AUDIO 2: • OFF: Примечание: Даже если режим прокрутки экрана установлен на “OFF” (выключено), Вы можете прокрутить экран дисплея, нажимая кнопку DISP (дисплей) в течение более 1 секунды.
  • Page 53 Примечание в отношении чистки разъемов: При частом снятии панели управления разъемы могут испортиться. Для того, чтобы свести до минимума такую возможность, периодически протирайте разъемы ватным тампоном или тканью, смоченными в спирте, стараясь не повредить разъемы.
  • Page 55 Относительно схождения с дорожки: Схождение с дорожки может произойти в результате движения автомобиля по чрезвычайно неровной дороге. Это не повредит устройство и компакт-диск, однако, это раздражает. Мы рекомендуем Вам прекратить воспроизведение компакт-диска во время движения по таким неровным дорогам.
  • Page 56 • ПРЕДУПРЕЖДЕНИЯ: • Не вставляйте 8-сантиметровые диски (одиночные диски) в отверстие для дисков. (Такие диски не выходят при выбросе). • Не вставляйте диски необычной формы, такие как в форме сердечка или цветка; иначе это приведет к появлению неисправности. • Не подвергайте диски воздействию прямого солнечного света...
  • Page 57 Ω Ω Ω Ω µ Ω µ Ω µ LW ] µ Ω Ω Ω Дизайн и технические характеристики могут меняться без уведомления. × × × × × ×...
  • Page 58 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit EN, RU 0203KKSMDTJEIN © 2003 VICTOR COMPANY OF JAPAN, LIMITED...
