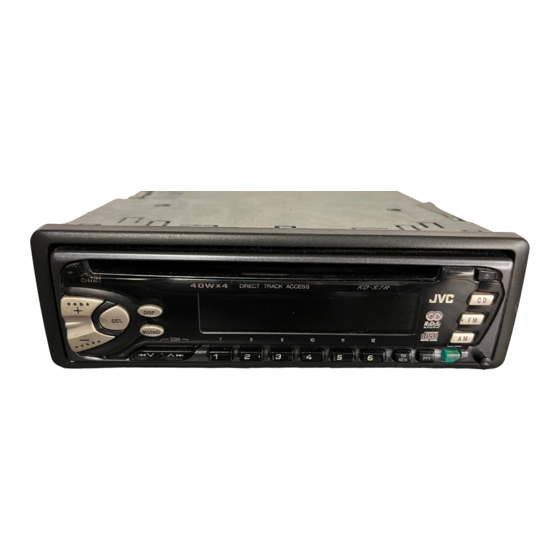

JVC KD-S70R Instructions Manual

Cd receiver
Hide thumbs Also See for KD-S70R:
Table of Contents

Advertisement

Quick Links

CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER
KD-S70R/S7R
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende
handleiding.
KD-S70R
KD-S7R
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
COMPACT
DIGITAL AUDIO
GET0042-001A
[E]

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-S70R

Summary of Contents for JVC KD-S70R

  • Page 1 CD RECEIVER CD-RECEIVER RECEPTEUR CD CD-RECEIVER KD-S70R/S7R For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

  • Page 2: How To Reset Your Unit

    Position And Reproduction Of Labels Bottom panel of the main unit Name/Rating plate CLASS LASER PRODUCT Caution: This product contains a laser component of higher laser class than Class 1. Note: For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis.

  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS BASIC OPERATIONS ... 4 RADIO OPERATIONS ... 5 Listening to the radio ... 5 Storing stations in memory ...

  • Page 4: Basic Operations

    BASIC OPERATIONS /I/ATT Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Adjust the sound as you want (see pages 20 – 25). To drop the volume in a moment Press briefly while listening to any source.

  • Page 5: Radio Operations

    RADIO OPERATIONS Listening to the radio To search stations of higher frequencies. To search stations of lower frequencies. To stop searching before a station is received, press the same button you have pressed for searching. To tune in a particular frequency without searching: 1 Press FM or AM to select the band.

  • Page 6: Storing Stations In Memory

    Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong-station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

  • Page 7: Manual Preset

    Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band Repeat the above procedure to store other stations into other preset numbers.

  • Page 8: Tuning Into A Preset Station

    Tuning into a preset station You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7. To change the display information while receiving an FM RDS station Press DISP.

  • Page 9: Rds Operations

    What you can do with RDS EON RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the station send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “EON (Enhanced Other Networks).”...
  • Page 10 Mode 1 The AF indicator lights up but the REG indicator does not. Network-Tracking is activated with Regionalization set to “off.” Switches to another station within the same network when the receiving signals from the current station become weak. Note: In this mode, the programme may differ from the one currently received.

  • Page 11: Using Standby Reception

    Using Standby Reception Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) and Traffic Announcement (TA) from the current source (another FM station and CD). Note: Standby Reception will not work if you are listening to an AM station. TA Standby Reception •...

  • Page 12: Selecting Your Favorite Programme For Pty Standby Reception

    Selecting Your Favorite Programme for PTY Standby Reception You can select your favorite programme for PTY Standby Reception to store in memory. When shipped from the factory, “NEWS” is stored as the programme type for PTY Standby 1, 4 Reception. Searching Your Favorite Programme You can search one of your 6 favorite programme types stored in memory.
  • Page 13 To store your favorite programme types 1, 5 Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want. The selected code name will flash on the display. Press and hold SEL for more than 2 seconds to call up the general setting mode (see page 29).
  • Page 14 To search your favorite programme type • If there is a station broadcasting a programme of the same PTY code you have selected, that station is tuned in. • If there is no station broadcasting a programme of the same PTY code you have selected, the station will not change.

  • Page 15: Other Convenient Rds Functions

    Other convenient RDS functions and adjustments Automatic selection of the station when using the number buttons Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in another frequency broadcasting the same programme as the original preset station is broadcasting.

  • Page 16: Automatic Clock Adjustment

    Automatic clock adjustment When shipped from the factory, the clock built in this unit is set to be readjust automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below. •...

  • Page 17: Cd Operations

    Playing a CD Total playing time of the inserted disc Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically. CAUTION on Volume Setting CDs produces very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level.

  • Page 18: Locating A Track Or A Particular Portion On A Cd

    Locating a track or a particular portion on a CD To fast forward or reverse the track Press and hold Press and hold 4 To go to the next track or the previous track Press the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

  • Page 19: Selecting Cd Playback Modes

    Selecting CD playback modes To play back tracks at random (Random Play) You can play back all tracks on the CD at random. Each time you press MO/RND (Mono/Random) while playing a CD, CD MO/RND random play mode turns on and off alternatively. When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

  • Page 20: Sound Adjustments

    SOUND ADJUSTMENTS Adjusting the sound You can adjust the sound characteristics to your preference. Indication Adjust the bass (Bass) Adjust the treble (Treble) Adjust the front and rear speaker (Fader)* balance Adjust the left and right speaker (Balance) balance LOUD See page 21 (Loudness) Adjust the volume...

  • Page 21: Turning On/Off The Loudness Function

    Turning on/off the loudness function The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce well-balanced sound at low volume level. Each time you press + or –, the loudness function turns on and off alternatively.

  • Page 22: Using The Sound Control Memory

    Using the Sound Control Memory You can select and store a preset sound adjustment suitable to each playback source. (Advanced SCM) Selecting and storing the sound modes Once you select a sound mode, it is stored in memory, and will be recalled every time you select the same source.

  • Page 23: Recalling The Sound Modes

    Recalling the sound modes Notes: • You can adjust each sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 25. •...

  • Page 24: Canceling Advanced Scm

    Canceling Advanced SCM You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes and the playback sources. When shipped from the factory, a different sound mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources. LINK ON: Advanced SCM (different SCMs for different sources) LINK OFF: Conventional SCM (one SCM for all sources)

  • Page 25: Storing Your Own Sound Adjustments

    Storing your own sound adjustments You can adjust the sound modes (BEAT, SOFT, POP: see page 22) to your preference and store your own adjustments in memory. Within 5 seconds Within 5 seconds Within 5 seconds Repeat the same procedure to store other settings. To reset to the factory settings Repeat the same procedure and reassign the preset values listed in the table on page 22.

  • Page 26: Other Main Functions

    OTHER MAIN FUNCTIONS Setting the clock You can also set the clock system either to 24 hours or 12 hours. 2, 3, 4 Press and hold SEL for more than 2 seconds to call up the general setting mode (see page 29). 1, 5 2, 3, 4 Set the hour.
  • Page 27 To check the current clock time (changing the display mode) Press DISP repeatedly. Each time you press the button, the display mode changes as follows. During tuner operation: Clock Frequency Note: For the indication change during RDS operation, see page 15. •...

  • Page 28: Selecting The Level Display

    Selecting the level display You can select the level display according to your preference. When shipped from the factory, “VOL 2” is selected. VOL 1: Shows the volume level indicator and the equalization pattern indicator. VOL 2: Alternates “VOL 1” setting and illumination display. OFF: Erase the volume level indicator and the equalization pattern indicator.

  • Page 29: Changing The General Settings

    Changing the general settings You can change the items listed on the next page to your preference. Basic Procedure 1, 4 Press and hold SEL for more than 2 seconds to call up the general setting mode. Select the item you want to adjust. (See page 30.) Adjust the item selected above.
  • Page 30 Select. CLOCK H Hour adjustment CLOCK M Minute adjustment SCM LINK Sound control memory linkage 24H/12H 24/12-hour time display AUTO ADJ Automatic setting of the clock DISPMODE Display mode PTY STBY PTY standby PTY SRCH PTY search TA VOL Traffic announcement volume P-SEARCH Programme search...

  • Page 31: Selecting The Telephone Muting

    Selecting the telephone muting This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2,” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated. •...

  • Page 32: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure...

  • Page 33: Maintenance

    Handling CDs This unit has been designed only to reproduce the CDs bearing the Other discs cannot be played back. How to handle CDs When removing a CD from its case, press down the center holder of the case and lift the CD out, holding it by the edges. •...

  • Page 34: Troubleshooting

    TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • CD cannot be played back. • CD sound is sometimes interrupted. • “NO DISC” appears on the display. • Sound cannot be heard from the speakers.

  • Page 35: Specifications

    AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 40 W per channel Rear: 40 W per channel Continuous Power Output (RMS): Front: 16 W per channel into 4 , 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear: 16 W per channel into 4 , 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.
  • Page 36 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Haben Sie PROBLEME mit dem Betrieb? Bitte setzen Sie Ihr Gerät zurück Siehe Seite Zurücksetzen des Geräts Vous avez des PROBLÉMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...

  • Page 37: In-Dash Mounting

    Sie entsprechend Ihrem jeweiligen Auto Anpassungen vornehmen. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt. Vor dem Einbau: Drücken Sie (Freigabe der Bedienungsblende), um die Arretierung der Bedienungsblende zu lösen, sofern diese bereits angerbracht ist.
  • Page 38 • When using the optional stay • Beim Verwenden der Anker-Option • Lors de l'utilisation du hauban en option Washer Dashboard Unterlegscheibe Armaturenbrett Rondelle Tableau de bord Sleeve Halterung Manchon Removing the unit • Before removing the unit, release the rear section. Remove the control panel.

  • Page 39: Electrical Connections

    12 volts à masse NEGATIVE . Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC. • Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.
  • Page 40 Connections Adding Other Equipment / Anschlüsse zum Hinzufügen von anderer Ausrüstung / Raccordement pour ajouter d’autres appareils Since this unit has line-out terminals, an amplifier and other equipment can be used to upgrade your car stereo system. • Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
