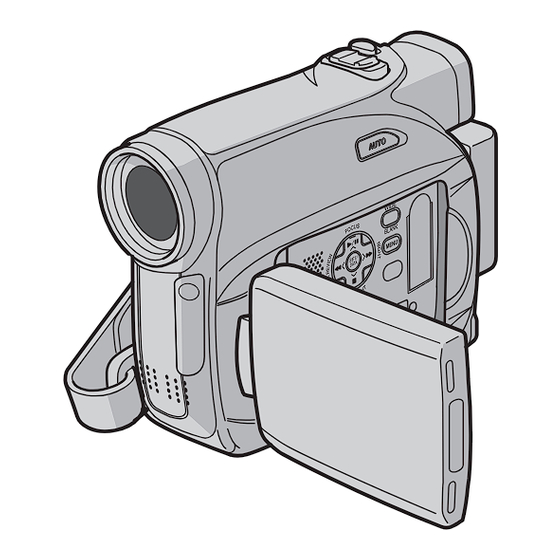

DIGITAL VIDEO CAMERA

GR-D370E/EK
Please visit our Homepage on the World Wide Web for
Digital Video Camera:
http://www.jvc.co.jp/english/cyber/
For Accessories
:
http://www.jvc.co.jp/english/accessory/
INSTRUCTIONS
Dear Customer,
Thank you for purchasing this digital
video camera. Before use, please
read the safety information and
precautions contained in the pages 2,
4 – 6 and 12 to ensure safe use of
this product.
GETTING STARTED
VIDEO RECORDING &
PLAYBACK
DIGITAL STILL CAMERA
(D.S.C.) RECORDING &
PLAYBACK
ADVANCED FEATURES
REFERENCES
TERMS
To deactivate the demonstration,
set "DEMO MODE" to "OFF".
(
pg. 32, 34)
LYT1539-001A
ENGLISH
8
20
27
32
46
Back cover
EN

Advertisement

Table of Contents
loading

Related Manuals for JVC GR-D370E

Summary of Contents for JVC GR-D370E

  • Page 1: Digital Video Camera

    DIGITAL VIDEO CAMERA GR-D370E/EK Please visit our Homepage on the World Wide Web for Digital Video Camera: http://www.jvc.co.jp/english/cyber/ For Accessories http://www.jvc.co.jp/english/accessory/ INSTRUCTIONS Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the pages 2, 4 –...

  • Page 2: Read This First

    So, for important recordings, we recommend using SP mode. For safety and reliability. It is recommended only genuine JVC batteries and accessories are used in this camcorder. This product includes patented and other proprietary technology and will operate only with JVC Data Battery.
  • Page 3 ( pg. 36) Auto Button You can change the recording mode between manual setting to the standard mode setting of the camcorder by pressing the AUTO button. ( pg. 39, Spot Exposure pg. 15) BATTERY CONDITION MAX TIME FINDER pg.

  • Page 4: Safety Precautions

    This product includes patented and other proprietary technology and will operate only with JVC Data Battery. Use the JVC BN-VF707U/VF714U/VF733U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter.
  • Page 5 Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. (Business users) If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product. [Other Countries outside the European Union]...
  • Page 6 SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. DO read the operating instructions before you attempt to use the equipment.

  • Page 7: Table Of Contents

    GETTING STARTED Index ... 8 Provided Accessories ... 12 Power... 14 Operation Mode ... 15 Language Settings... 16 Date/Time Settings ... 16 Grip Adjustment ... 17 Viewfinder Adjustment ... 17 Brightness Adjustment Of The Display ... 17 Tripod Mounting... 17 Loading/Unloading A Cassette ...

  • Page 8: Getting Started

    GETTING STARTED Index 16:9...

  • Page 9: Other Parts

    Controls Rewind Button [ pg. 23) Left Button [ ] Quick Review Button [QUICK REVIEW] pg. 22) Set Button [SET] ( pg. 16) Data Battery Button [DATA] ( Stop Button [8] ( pg. 23) Backlight Compensation Button [BACKLIGHT] ( pg. 39) Down Button [ VIDEO/MEMORY Switch ( Play/Pause Button [4/9] (...
  • Page 10 27) : Appears during shooting. : Blinks in white when a memory card is not loaded. : Blinks in yellow while the camcorder is reading the data in the memory card. pg. 27) : Spot Exposure Control Indicator pg. 39) : Backlight Compensation Indicator pg.
  • Page 11 During 16:9 Recording 16:9 Wide (16:9) mode Indicator The lower side of the screen blackens when “16:9” is selected in Wide Mode ( Some of the indicators are displayed on the area. During Video Playback 25min 12BIT BLANK SEARCH PUSH "STOP" BUTTON TO CANCEL VOLUME 15:29:03...

  • Page 12: Provided Accessories

    So, for important recordings, we recommend using SP mode. It is recommended that you use JVC brand cassette tapes. Your camcorder is compatible with all brands of commercially available cassette tapes complying...
  • Page 13 NOTES: In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.

  • Page 14: Power

    This product includes patented and other PUSH proprietary technology and will operate only BATT. with JVC Data Battery. Use the JVC BN- VF707U/VF714U/VF733U battery packs. Using generic non-JVC batteries can cause damage to the internal charging circuitry. If the protective cap is attached to the battery pack, remove it first.

  • Page 15: Operation Mode

    3 times the planned shooting time. ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. Data Battery System You can check the remaining battery power and the recordable time.

  • Page 16: Language Settings

    Manual recording is possible by setting various functions. Power-Linked Operation When the Power Switch is set to “REC”, you can also turn on/off the camcorder by opening/ closing the LCD monitor or pulling out/pushing in the viewfinder. INFORMATION: The following explanations in this manual supposes the use of LCD monitor in your operation.

  • Page 17: Grip Adjustment

    SET or Press MENU. The Menu screen closes. Tripod Mounting To attach the camcorder to a tripod, align the direction stud and screw to the mounting socket and stud hole on the camcorder.

  • Page 18: Loading/Unloading A Cassette

    GETTING STARTED Loading/Unloading A Cassette The camcorder needs to be powered up to load or eject a cassette. OPEN/EJECT Cassette holder cover PUSH Cassette holder Make sure the window side is facing out. Slide and hold OPEN/EJECT in the direction of the arrow, then pull the cassette holder cover open until it locks.

  • Page 19: Loading/Unloading A Memory Card

    31) ATTENTION: Do not insert or remove the memory card while the camcorder is turned on, as this may cause the memory card to be corrupted or cause the camcorder to become unable to recognise whether or not the card is installed.

  • Page 20: Video Recording & Playback

    If the Record-Standby mode continues for 5 minutes and no operation is performed (“PAUSE” indicator may not appear), the camcorder’s power shuts off automatically. To turn the camcorder on again, push back and pull out the viewfinder again or close and re-open the LCD monitor.

  • Page 21: Zooming

    If zoomed-in in the auto focus mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when “TELE MACRO” is set to “ON”. ( Journalistic Shooting In some situations,...

  • Page 22: Time Code

    When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The Middle Of A Tape”...

  • Page 23: Video Playback

    TV. pg. 24) If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to “OFF”, then to “PLAY”.

  • Page 24: Connections To A Tv Or Vcr

    * Not required for watching still images only. NOTE: The S-Video cable is optional. Be sure to use the YTU94146A S-Video cable. Consult the JVC Service Centre described on the sheet included in the package for details on its availability. Make sure to connect the end with a core filter to the camera.

  • Page 25: Playback Using The Remote Control

    Playback Using The Remote Control The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. It also makes additional playback functions possible. pg. 26)

  • Page 26: Playback

    VIDEO PLAYBACK Zoom (T/W) SLOW (YI) PLAY (Left) SHIFT Slow-Motion Playback During normal video playback, press SLOW (YI or IU) more than approx. 2 seconds. After approx. 10 minutes, normal playback resumes. To pause Slow-Motion playback, press PAUSE (9). To stop Slow-Motion playback, press PLAY (U). NOTES: You can also engage Slow-Motion Playback from Still Playback by pressing SLOW (YI or IU) more...

  • Page 27: D.s.c. Recording

    Basic Shooting (D.S.C. Snapshot) You can use your camcorder as a Digital Still Camera for taking snapshots. Still images are stored in the memory card. NOTE: Before continuing, perform the procedures listed below: Power ( pg. 14) Loading a Memory Card ( pg.

  • Page 28: D.s.c. Playback

    D.S.C. PLAYBACK Normal Playback Of Images Images shot with the camcorder are automatically numbered, then stored in numerical order in the memory card. You can view the stored images, one at a time, much like flipping through a photo album.

  • Page 29: Additional Features For D.s.c

    Resetting The File Name By resetting the file name, a new folder will be made. The new files you are going to make will be stored in the new folder. It is convenient to separate the new files from previously made files.

  • Page 30: Deleting Files

    Check files before deleting. CAUTION: Do not remove the memory card or perform any other operation (such as turning off the camcorder) during deletion. Also, be sure to use the provided AC Adapter, as the memory card may be corrupted if the battery becomes exhausted during deletion.

  • Page 31: Initialising A Memory Card

    To cancel initialisation, select “RETURN”. CAUTION: Do not perform any other operation (such as turning off the camcorder) during initialisation. Also, be sure to use the provided AC Adapter, as the memory card may be corrupted if the battery becomes exhausted during initialisation. If the memory card becomes corrupted, initialise it.

  • Page 32: Advanced Features

    MENUS FOR DETAILED ADJUSTMENT Changing The Menu Settings This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. pg. 32 – 35) VIDEO/ MEMORY For Video and D.S.C. Recording Menus: Set the VIDEO/MEMORY Switch to “VIDEO” or “MEMORY”.

  • Page 33: Recording Menus

    MENUS FOR DETAILED ADJUSTMENT It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder. During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.
  • Page 34 TV. TIME CODE [OFF]: Time code is not displayed. ON: Time code is displayed on the camcorder and on the connected TV. Frame numbers are not displayed during recording. ( DEMO MODE...

  • Page 35: Playback Menus

    If no operation is performed for more than 3 minutes after that, the demonstration will resume. NOTES: If a cassette is in the camcorder, the demonstration cannot be turned on. “DEMO MODE” remains “ON” even if the camcorder power is turned off.

  • Page 36: Features For Recording

    NOTE: Available only when the VIDEO/MEMORY Switch is set to“VIDEO” Wide Mode This camcorder allows you to choose the type of image output format for recording. LED Light [ ] = Factory-preset Set the Power Switch to appears.)

  • Page 37: Night-Scope

    “SNOW” or “SPORTS” of “PROGRAM AE”, or all modes of “SHUTTER”. ( During Night-Scope, it may be difficult to bring the camcorder into focus. To prevent this, use of a tripod is recommended. Snapshot (Record Still Image On Tape) This feature lets you record still images that look like photographs onto a tape.

  • Page 38: Exposure Control

    FEATURES FOR RECORDING Exposure Control Manual exposure control is recommended in the following situations: When shooting using reverse lighting or when the background is too bright. When shooting on a reflective natural background such as at the beach or when skiing. When the background is overly dark or the subject is bright.

  • Page 39: Backlight Compensation

    The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve a more professional colour/ tint reproduction. To change the setting Set “W.BALANCE” to the desired mode.

  • Page 40: Manual White Balance Adjustment

    FEATURES FOR RECORDING Manual White Balance Adjustment Adjust the white balance manually when shooting under various types of lighting. Set the Power Switch to “REC”. Set the recording mode to “M”. ( pg. 16) Hold a sheet of plain white paper in front of the subject.
  • Page 41 “ ”, but can be changed to your desired setting. When Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m to infinity. From less than 10 m, adjust the focus manually. FEATURES FOR RECORDING SHUTTER OFF: Disables the function.

  • Page 42: Editing

    * Not required for watching still images only. NOTE: The S-Video cable is optional. Be sure to use the YTU94146A S-Video cable. Consult the JVC Service Centre described on the sheet included in the package for details on its availability. Make sure to connect the end with a core filter to the camera.

  • Page 43: Dubbing To Or From A Video Unit Equipped With A Dv Connector (Digital Dubbing)

    DV IN/OUT connector. When using a DV cable, be sure to use the optional JVC VC-VDV204U or VC-VDV206U DV cable. To use this camcorder as a recorder Make sure all units are turned off.

  • Page 44: Connection To A Personal Computer

    When using a DV cable, be sure to use the To DV connector optional JVC VC-VDV206U or VC-VDV204U DV cable depending on the type of DV connector (4 or 6 pins) on the PC. If the PC connected to the camcorder via the USB cable is not powered, the camcorder does not enter the USB mode.

  • Page 45: Audio Dubbing

    Make sure you only edit recorded areas. If feedback or howling occurs during TV playback, move the camcorder’s microphone away from the TV, or turn down the TV’s volume. If you change from 12-BIT to 16-BIT in mid-...

  • Page 46: References

    TROUBLESHOOTING If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly.
  • Page 47 The date/time is not set. HSet the date/time. ( The built-in clock battery has run out and the previously set date/time has been erased. HConsult your nearest JVC dealer for replacement. pg. 37, 40) Files stored in the memory card cannot be deleted.
  • Page 48 Appears when the tape ends during recording or playback. SET DATE/TIME! Appears when the date/time is not set. The built-in clock battery has run out and the previously set date/time has been erased. Consult your nearest JVC dealer for replacement. pg. 16) pg. 16) Exhausted pg. 18)
  • Page 49 DCF or a file with a size that is not compatible with this camcorder. COPY PROTECTED Appears if dubbing of copyguarded signals is attempted while this camcorder is being used as a recorder. MEMORY CARD! Appears if there is no memory card loaded when the SNAPSHOT Button is pressed while the Power Switch is set to “REC”...
  • Page 50 (battery, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains, consult your nearest JVC dealer. UNIT IN SAFEGUARD MODE EJECT AND REINSERT TAPE The error indications (03 or 04) show what type of malfunction has occurred.

  • Page 51: User Maintenance

    Mould may form if the lens is left dirty. When using a cleaner or chemically treated cloth refer to the cautions of each product. To clean the viewfinder, please consult your nearest JVC dealer. USER MAINTENANCE...

  • Page 52: Cautions

    If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re- attach it to the camcorder. NOTES: It is normal for the battery pack to be warm after charging, or after use.
  • Page 53 20 seconds, it stops automatically. Also refer to the cleaning cassette’s instructions. If, after using the cleaning cassette, the problems still exist, consult your nearest JVC dealer. Mechanical moving parts used to move the video heads and video tape tend to become dirty and worn out over time.
  • Page 54 Serious malfunctioning If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from...

  • Page 55: Specifications

    Camcorder For General Power supply DC 11 V (Using AC Adapter) DC 7.2 V (Using battery pack) Power consumption Approx. 2.4 W (2.6 W*) (LCD monitor off, viewfinder Approx. 2.7 W (2.9 W*) (LCD monitor on, viewfinder off) * Using LED Light...

  • Page 56: Terms

    TERMS AC Adapter ... 15 Audio Dubbing ... 45 Backlight Compensation ... 39 Battery Pack ... 14, 15, 52 Blank Search ... 23 Changing The Menu Settings ... 32 – 35 Charging The Battery Pack ... 14 Connection To A Personal Computer ... 44 Connections To A TV Or VCR ...
