BMW Z3(E36/7) Electrical Troubleshooting Manual page 325

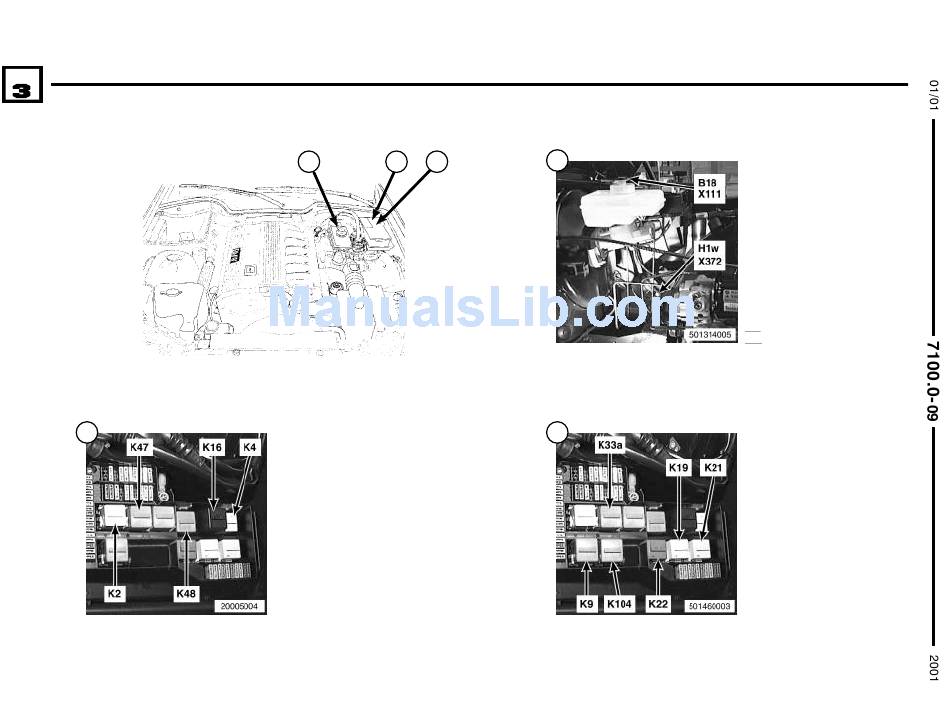

COMPONENT LOCATION VIEWS
BMW BMW BMW BM
Z3
2
1 2 3
K2 K47
HORN RELAY FRONT FOG LIGHT
RELAY
K4 K48
BLOWER RELAY LOW BEAM LIGHT
RELAY
K16
HAZARD FLASHER
RELAY
1
3
B18
BRAKE FLUID
LEVEL SWITCH
H1w
ANTI–THEFT HORN
(ALPINE)
X111
X372
K9 K22
UNLOADER RELAY, HIGH SPEED
TERMINAL 15 RELAY
K19 K33a
COMPRESSOR AIR CONDITIONING
CONTROL RELAY RELAY, MOTRONIC
K21 K104
NORMAL SPEED AIR CONDITIONING
RELAY RELAY/AUXILIARY
WATER PUMP
