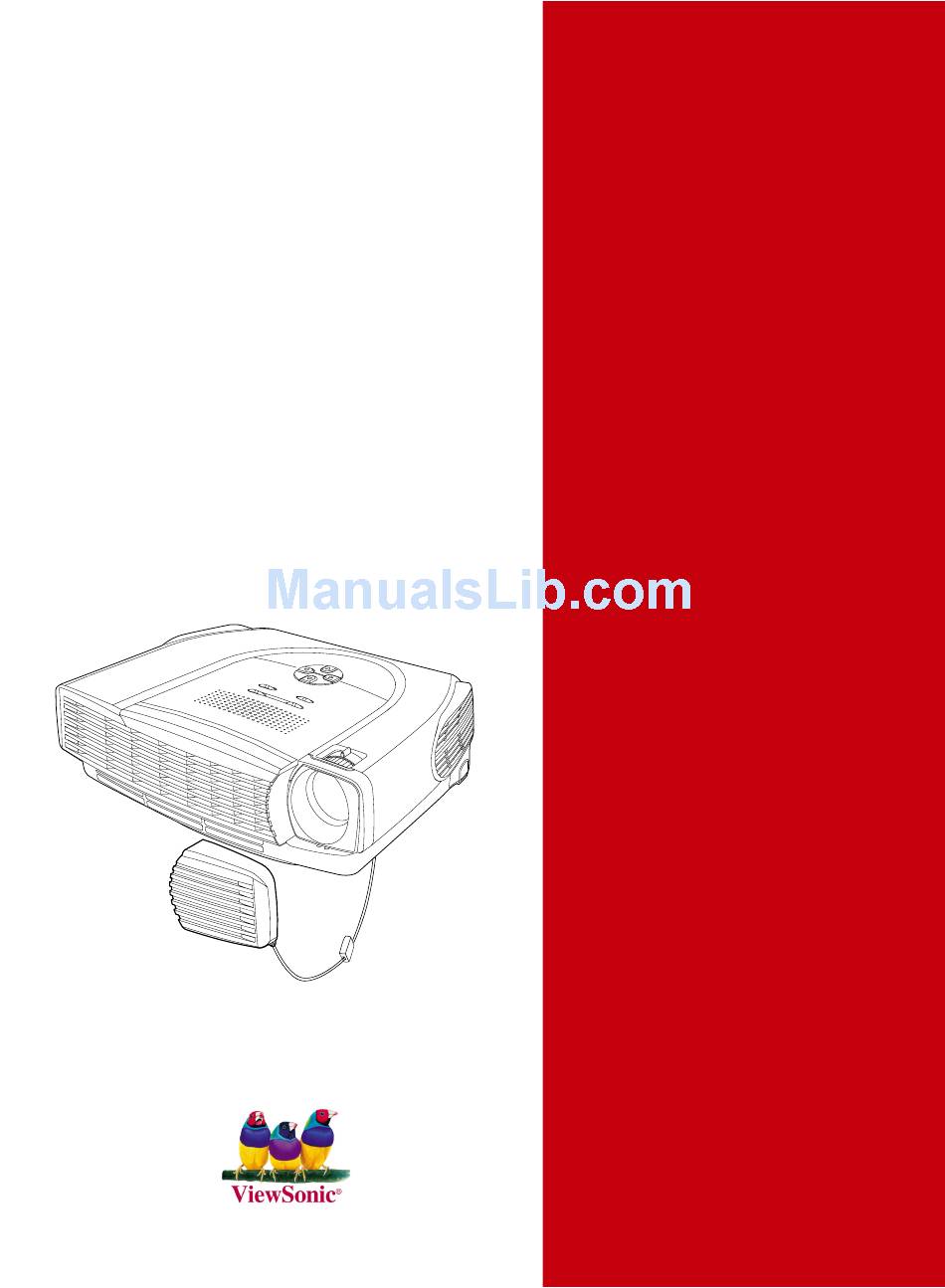

- Page 1 ViewSonic ® PJ402D Portable LCD Projector PJ402D User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell’utente Guia do usuário Användarhandbok Käyttöopas Руководство пользователя 使用手冊 使用手冊...
-
Page 2: Compliance Information
EEC as amended by 92/31/EEC and 93/68/EEC Art. 5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/ EEC Art. 13 with regard to “Safety.” User Information for all Countries Notice: Use the cables which are included with the projector or specified. ViewSonic PJ402D... -
Page 3: Important Safety Instructions
ViewSonic PJ402D... -
Page 4: For Your Records
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions con- tained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 5: Notes On Ac Power Cord
AC line plug to prevent from signal interference due to voltage fluctuation. Ground Ground For Australia and For the U.S.A. and Canada Mainland China Ground Ground For Continental Europe For the U.K. ViewSonic PJ402D... -
Page 6: Table Of Contents
Cleaning the Lens ..................... 33 Cleaning the Projector Housing................33 Replacing the Lamp....................34 Technical Specifications...................... 36 Appendix ..........................36 Indicator Messages ....................36 Preset Signals......................37 HDTV Preset Signals ......................38 Customer Support....................... 39 Limitd warranty ........................40 ViewSonic PJ402D 09/03/04... -
Page 7: Product Introduction
State-of-the-art motion adaptive hardware deinterlacing with 3:2 pull down 200-watt, user-replaceable lamp Compatibility with Macintosh computers ® Compatibility with NTSC, PAL, SECAM, and HDTV Multi-function remote control D-Sub 15-pin cable for analog video connectivity User-friendly, multi-language on-screen display (OSD) Advanced electronic keystone correction * compressed. ViewSonic PJ402D... -
Page 8: Package Contents
For maximum protection, repack your unit as it was originally packed at the factory. Accessories and components may vary by retailer and region. Use the cables which are included with the projector or specified. ViewSonic PJ402D... -
Page 9: Getting To Know The Projector
Projector Components Front View 1. Lens cap 6. Focus ring 2. Lens cap strap 7. Control panel 3. Lens 8. Speaker 4. Ventilation holes (intake) 9. Front IR remote control sensor 5. Zoom ring 10. Ventilation holes (exhaust) ViewSonic PJ402D... -
Page 10: Rear View
Rear View 1. Interface connector 2. Rear IR remote control sensor 3. Security lock receptacle 4. AC power socket 5. Ventilation holes (intake) 6. Foot adjuster 7. Foot adjuster button Bottom View 1. Lamp cover ViewSonic PJ402D... -
Page 11: Control Panel
3. COMPUTER IN (D-SUB) connector Connect image input signal (analog) to this connector. 4. S-VIDEO connector Connect S-Video output from video equipment to this jack. 5. VIDEO connector Connect composite video output from video equipment to this jack. ViewSonic PJ402D... -
Page 12: Remote Control Components
Remote Control Components Power button 2. Four direction buttons 3. Menu button 4. Enter button 5. Keystone buttons 6. Volume buttons 7. Source button 8. Mute button 9. Blank button 10. 4:3/16:9 button 11. Auto button ViewSonic PJ402D... -
Page 13: Installation
Installation Connecting the Projector A. Connecting to a computer 1 AC Power Cord 2 VGA Cable (D-SUB to D-SUB) Desktop type Laptop type ViewSonic PJ402D... - Page 14 B. Connecting to a Video Source 1.Connecting with S-Video Cable 1 AC Power Cord 2 S-Video Cable 3 Audio Cable ViewSonic PJ402D...
- Page 15 2.Connecting with Composite Video Cable 1 AC Power Cord 2 Composite Video Cable 3 Audio Cable ViewSonic PJ402D...
- Page 16 3.Connecting with HDTV Cable 1 AC Power Cord 2 D-SUB to HDTV Cable 3 Audio Cable When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. ViewSonic PJ402D...
-
Page 17: Powering On/Off The Projector
Remote Control again to turn off the power. Wait until the lamp LED indicator turns off. Please wait until the fan motor and the lamp LED turn off before removing the AC power cord from the projector. ViewSonic PJ402D... -
Page 18: Adjusting The Projected Image
2. Lower the projector, and then release the buttons to lock the foot adjusters into position. You may turn the foot adjuster to make fine adjustment of the height. To avoid damaging the projector, make sure that the foot adjuster is fully retracted before placing the projector in its carrying case. ViewSonic PJ402D... -
Page 19: Adjusting The Projector Zoom And Focus
2. Focus the image by rotating the focus ring. A still image is recommended for focusing. Adjusting Projection Image Size Refer to the graphic and table below to determine the screen size and projection distance. Distance between the screen and the center of the lens ViewSonic PJ402D... - Page 20 Make sure the heat ventilation holes are not blocked. Do not use the projector in a smoky environment. Smoke residue may cause buildup on critical parts (i.e. DMD, lens assembly, etc.) ViewSonic PJ402D...
-
Page 21: Using The Projector
Automatically adjusts frequency and phase. 5. Four direction buttons The four direction buttons / / / can be used to scroll through OSD (On- Screen Display) menus and make adjustments. 6. SOURCE ( ) Manually selects an input source. ViewSonic PJ402D... -
Page 22: Remote Control
Manually selects an input source. 8. Mute Cuts off the sound temporarily. 9. Blank Cuts off the screen temporarily. 10. 4:3/16:9 Press the 4:3/16:9 to switch the image aspect ratio from 4:3 to 16:9. 11. Auto Automatically adjusts frequency and phase. ViewSonic PJ402D... -
Page 23: Battery Replacement
Do not dispose of the used battery along with household waste. Dispose of used batteries according to local regulations. Avoid excessive heat and humidity. Danger of explosion may happen if a battery is incorrectly replaced. Replace only with the same type recommended by the manufacturer. ViewSonic PJ402D... -
Page 24: Remote Control Operation
Do not disassemble the remote control. Under unusual circumstances the remote control may not operate well due to the location being used or the surroundings. At such times, change the direction of the remote control to the projector and retry the operation. ViewSonic PJ402D... -
Page 25: Menu Options
On the Projector Control Panel: Go back to main menu tab with the / buttons, and press the MENU\ENTER button. On the Remote Control: press the Menu button. The illustrations in this manual are for the purpose of explanation and may differ from the actual setting of your projector. ViewSonic PJ402D... -
Page 26: Image
(through VGA cable) of resolution less than SVGA (800 x 600). If the input signal is a computer signal greater than SVGA or component 1080i / 720p, only 16:9 or 4:3 aspect ratio will be available. ViewSonic PJ402D... - Page 27 Setting 0 will maximize color reproduction quality. Color Temperature Adjusts the color temperature. With the higher temperature, the screen looks colder; with the lower temperature, the screen looks warmer. Red, Green and Blue mode activate only if the Color Temperature is set to “User”. ViewSonic PJ402D...
- Page 28 Press the button to increase the color temperature. Blue Manually adjusts blue. Select the desired setting with the buttons: Press the button to decrease the color temperature. Press the button to increase the color temperature. ViewSonic PJ402D...
-
Page 29: Video
Sharpness Adjusts the sharpness of the image. Select the desired setting with the buttons: Press the button to decrease the sharpness. Press the button to increase the sharpness. ViewSonic PJ402D... -
Page 30: Display
Press the button to move the image right. V.Position Adjusts the vertical position. Select the desired setting with the buttons: Press the button to move the image up. Press the button to move the image down. ViewSonic PJ402D... -
Page 31: Language
Selects the language for menu and message displayed. Select the language you prefer with the buttons, and confirm the selection with the MENU\ENTER button on the Projector Control Panel or the Enter button on the Remote Control. English Deutsch Français Español Portuguese Italiano ViewSonic PJ402D... -
Page 32: Advanced
Displays operating hours since lamp timer reset. Lamp hour counter is displayed in read-only format, and this setting cannot be manually adjusted. Color Space Manually selects signal type. Select the input signal type with the buttons: YCbCr YPbPr ViewSonic PJ402D... -
Page 33: Audio
Volume Adjusts the volume. Select the desired setting with the buttons: Press the button to decrease the volume. Press the button to increase the volume. Mute Cuts off the sound temporarily. Select the desired setting with the buttons: ViewSonic PJ402D... -
Page 34: Maintenance
Make sure the lens is cool before cleaning. Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners. Do not use chemical sprays. Use a soft cloth or lens paper only. ViewSonic PJ402D... -
Page 35: Replacing The Lamp
Leave the area immediately if the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful to user's health. ViewSonic PJ402D... - Page 36 Do not reuse the old lamp. This could cause the lamp to explode. Be sure to turn off the projector and unplug the AC power cord before replacing the lamp. Do not use the projector with the lamp cover removed. ViewSonic PJ402D...
-
Page 37: Technical Specifications
AC 100 - 240 V, 50 - 60 Hz Power Consumption 250 Watts Dimension (W x D x H) 254 x 202 x 98 mm Weight 2.0 kg (4.5 lb) Note: Design and Specifications are subject to change without prior notice. ViewSonic PJ402D... -
Page 38: Appendix
Green Flashing cable or turn the power switch off before the lamp LED turns off. The fan motor will turn off when the lamp has cooled. Lamp LED Amber Flashing Temperature is too high. The lamp will turn off. ViewSonic PJ402D... -
Page 39: Preset Signals
77.487 85.057 H(+), V(+) 1568 1280 x 960 SXGA VESA 60 Hz 60.000 60.000 H(+), V(+) 1800 SXGA VESA 75 Hz 75.000 75.000 H(+), V(+) 1680 1280 x 1024 SXGA VESA 60 Hz 63.981 60.020 H(+), V(+) 1688 ViewSonic PJ402D... - Page 40 576i 15.6 kHz 50 Hz 576p 31.3 kHz 50 Hz 720p 45.0 kHz 60 Hz 720p 37.5 kHz 50 Hz 1080i 33.8 kHz 60 Hz 1080i 28.1 kHz 50 Hz Note: Specifications are subject to change without notice. ViewSonic PJ402D...
-
Page 41: Customer Support
F: 65 273 1566 viewsonic.com Malaysia/Thailand www.viewsonic.com T: 886 2 2246 3456 service@sd. South Africa/ F: 886 2 8242 3668 viewsonic.com Other countries www.hk.views- T: 886 2 2246 3456 service@hk. Hong Kong onic.com F: 886 2 8242 3668 viewsonic.com ViewSonic PJ402D... -
Page 42: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will at its sole option repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
